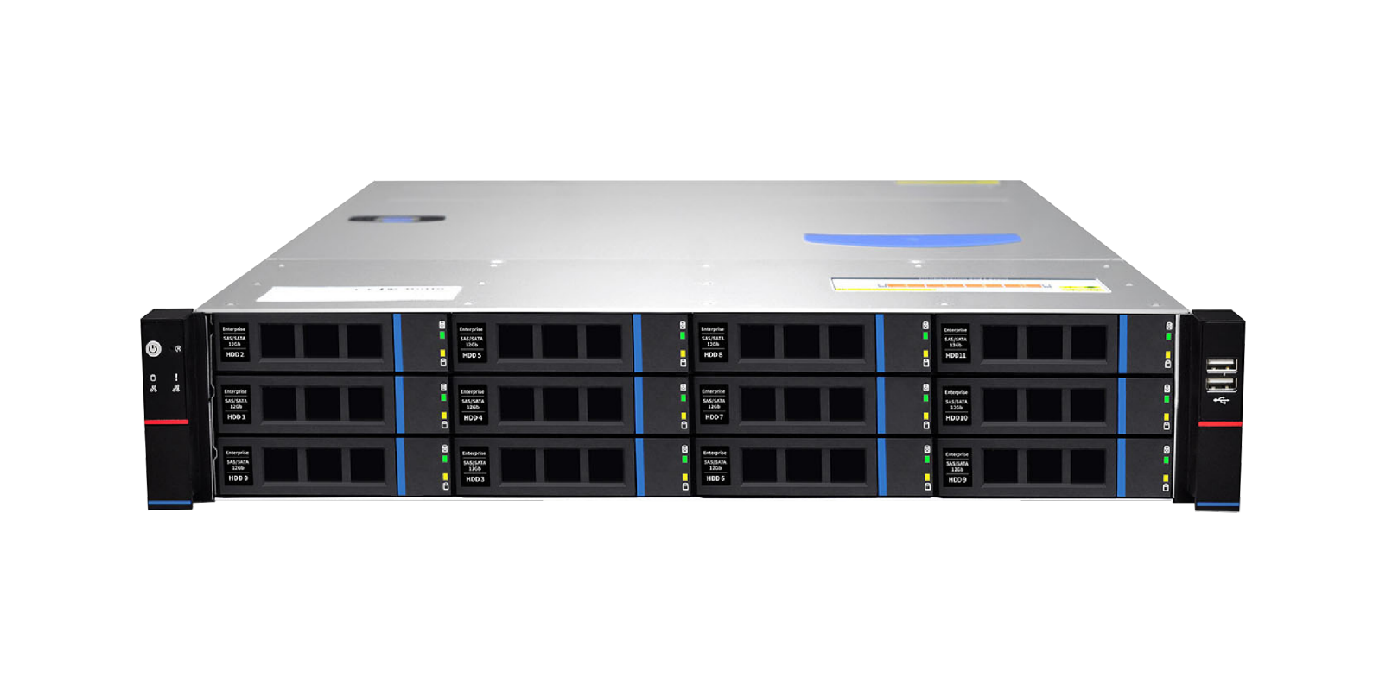

SYS-80215R
The SYS-80215R series features the Intel® C741 high-performance server chipset and is based on fourth- and fifth-generation Intel® Xeon® Scalable Processors. From its exterior design to internal structure, this new Xeon server reflects the company’s commitment to its business philosophy of technology, innovation, and environmental protection, aiming to provide customers with a high-performance, high-reliability, low-power-consumption 2U server with excellent heat dissipation. Whether deployed in enterprise-class data centers or for developing enterprise applications, the product offers a variety of flexible configuration options to better meet the growing server demands of customers and delivers reliable hardware support for data storage, big data processing, virtualization, and other applications, making it an ideal choice for large-scale industries, enterprises, and government organizations with high requirements for stability and practicality.
- •
- Stable and innovative bottom design, with accurate airflow guidance and fan adjustment mechanism, create a stable and reliable model
- •
- Support fourth and fifth generation Intel ® Xeon ® scalable processors
- •
- Adopts the latest DDR5 memory technology and supports 4400/4800MHz ECC DDR5 RDIMMs/LRDIMMs (up to 4TB 3DS RDIMMs). 2 standard PCIe 5.0 x16 (x16 slots) 4 standard PCIe 5.0 x8 (x8 slots) 4 MCIO X8 (reserved for NVME connection) 4 MCIO X8 (reserved for Extended PCIE) for flexible expansion Support hardware monitoring, can remotely monitor the host power supply, voltage, temperature, fan and other hardware working status
- •
- Supports up to 3.5-inch SAS/SATA3.0 hot-swappable hard drives. Supports two 2.5G Gigabit network ports and one management port.
System Control | Number of CPUs | 2 |
CPU Model | Supports 4th Gen Intel® Xeon® Scalable processors | |
Chipset | Intel® C741 chipset | |
Memory | Type | 16 * memory slots, supports 4400/4800MHz ECC DDR5 RDIMM/LRDIMM (up to 4TB 3DS RDIMM) |
Graphics | Chip/Interface | ASPEED AST2600 BMC, 1 * VGA port |
Storage | External | Supports 12 * front-mounted 3.5-inch 6G SATAIII hot-swappable hard drives, 2 * rear-mounted 2.5-inch 6G SATAIII hard drives Supports RAID 0, 1, 5, 10 |
M.2 | 1 * standard M.2 2242/2280 interface; 1 * standard M.2 2280 interface (PCIe 5.0 x4 signal) | |
Gigabit Network | Network card IC | Intel Enterprise-Class 2.5G Network Controller |
Network Card Bandwidth | 10/100/1000/2500 Mbps | |
Network Card Connector | 1 * dual-layer RJ45 connector | |
IPMI management interface | Type | 1 * standard RJ45 interface, supports 10/100/1000Mbps network interface |
USB | USB 3.0 | Rear-mounted 2 * USB 3.0, 2 * USB 3.0 ports; front-mounted 2 * USB 3.0 ports |
Expansion | MCIO Expansion | 4 * MCIO X8 (reserved for NVMe connection) |
PCIE Expansion | 2 * half-height PCIe5.0 x8 expansion slots; 2 * full-height dual-wide PCIe5.0 x16 expansion slots | |
Rear window indicator lights | Rear window indicator lights | 1 * illuminated UID switch |
Front panel | Switch | 1 * power switch; 1 reset switch |
Indicator Lights | 1 * power indicator light; 1 * hard disk activity indicator light; 2 * network indicator lights | |
Power source | Power input | Dual 800W power supply |
Fan | Fan | 4 * 8038 fans, hot-swappable; |
Dimensions | Dimensions | Dimensions: 435mm (W) x 87.8mm (H) x 711mm (D) |
Temperature / humidity requirements | Temperature | Operating temperature: 10°C to 35°C; Storage temperature: -40°C to 70°C |
Humidity | Operating humidity requirements 8% to 90% non-condensing; Non-operating humidity requirements: 5%- 95% with no condensation | |
Installation kit | Rails | Supports rails (optional) |
