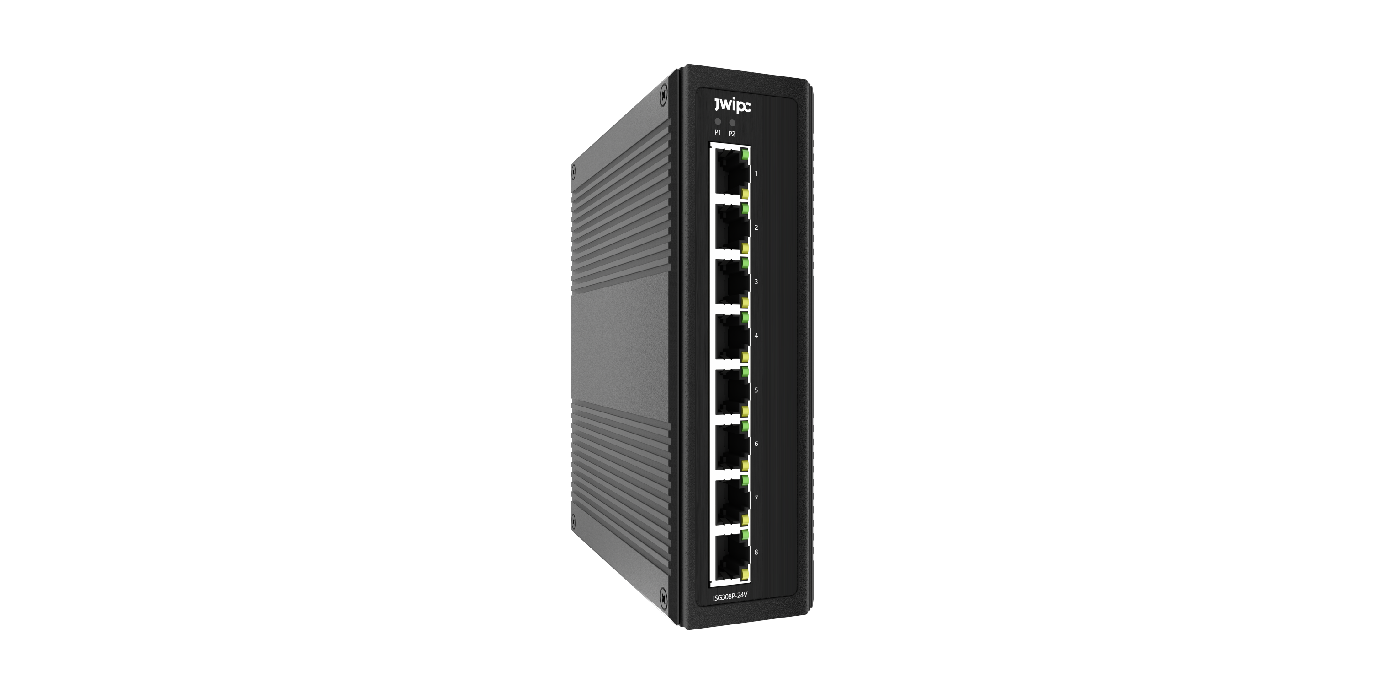

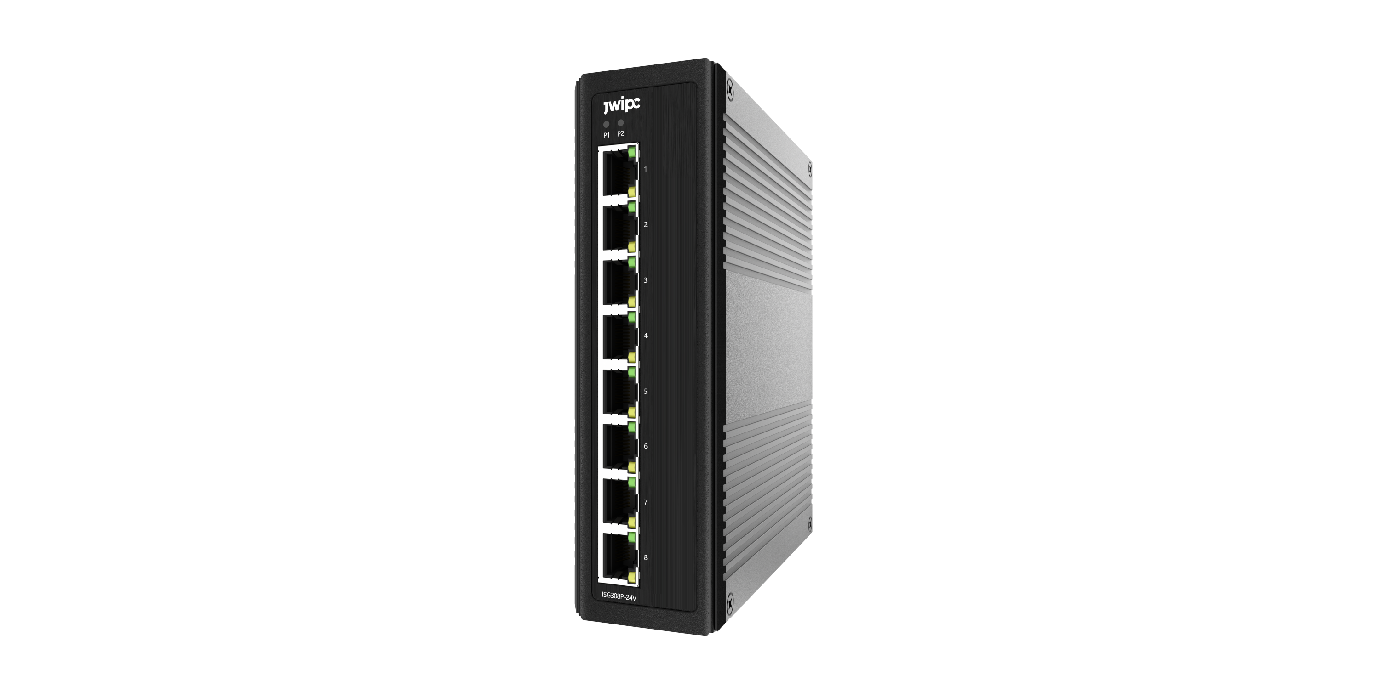

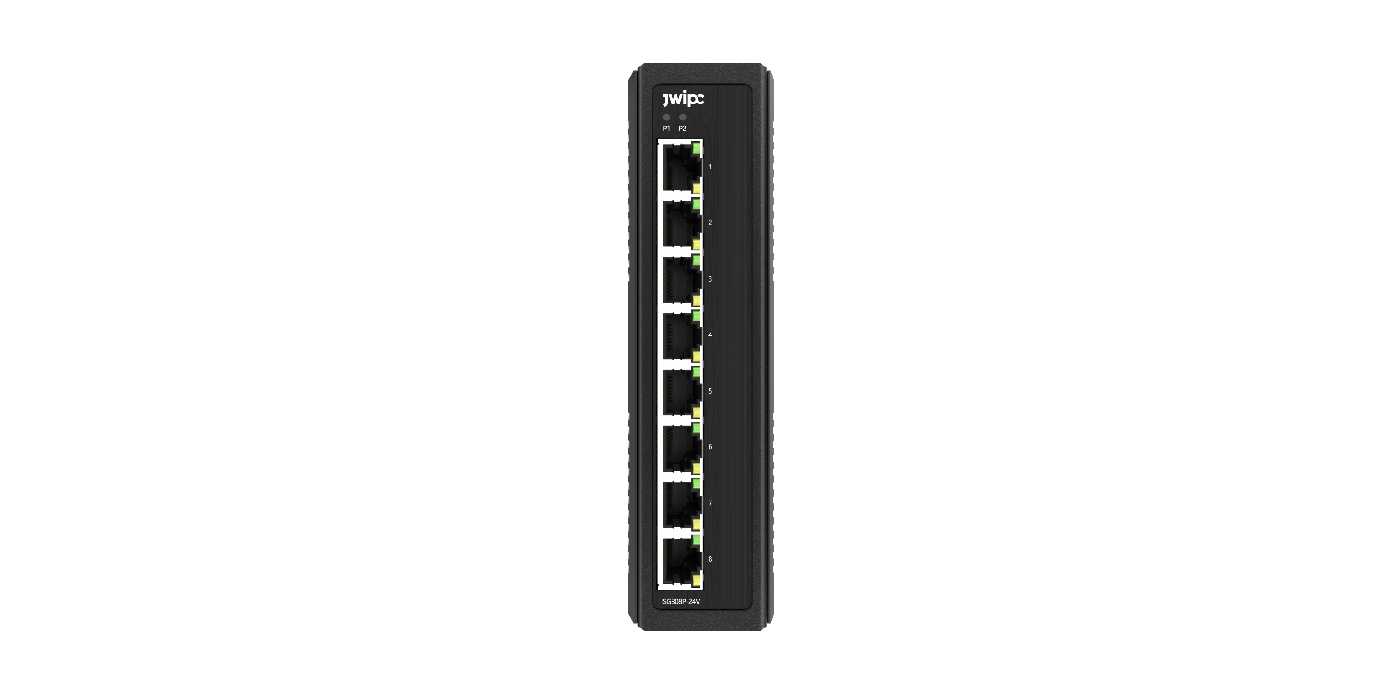

ISG308P-24V

24V PoE industrial switch

Industrial chip scheme, high standard industrial protection level, 24V safety voltage to reduce safety risks, can be widely used in industrial automation, smart city, smart transportation and other industrial scenarios.

•: Industrial hardware equipment platform

•: 24V safe voltage, a single PoE port can provide up to 30W output power

•: 8 ports full gigabit

•: IP40 aluminum alloy cooling housing

•: -40 to 75°C wide temperature operation

•: Plug and play

Message consultation Business Consulting

Specification Comparison

Specification parameters

Performance	Switching Capability	16Gbps
	Auto-negotiation	Support
	Auto-MDI/MDIX	Support
PoE	POE Port	8 ports, maximum power supply per port 30W
PoE	Power Supply	120W
Port	RJ45	8*10/100/1000MBASE-T RJ45 Port
LED	Port LED	Green: link/active Yellow:POE
Power Supply	Input range	DC 24V boost Redundant dual power inputs.

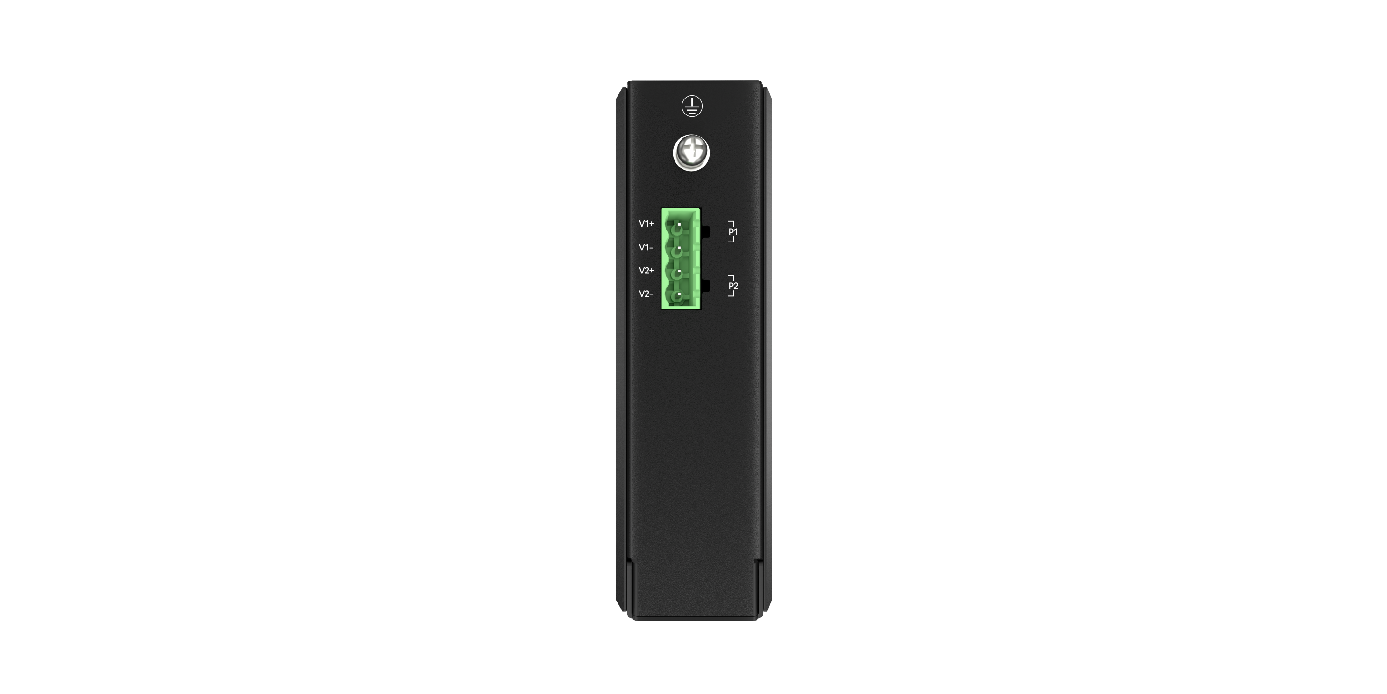

	connector	1 removable 4-contact terminal block(s)
	Overload Current Protection	Support
	Reverse Polarity Protection	Support
Mechanical	SIze	160mm(L)×118mm(W)×44mm(H)
	IP Rating	IP40
	installation	DIN-rail mounting
	Heat Dissipation	Fanless natural heat dissipation design
Environment	Operating Temperature	-40~75℃(-40~167 °F)
	Storage Temperature	-40~85℃(-40~185 °F)
	Operating Humanity	5 to 95%（(non-condensing）
	Storage Humanity	5 to 95%（(non-condensing）
Standards And Certifications	EMC	EN 55032/24
	EMI	CISPR 32, FCC Part 15B Class A
	EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
	Safety	EN 60950-1、EN 60950-1 (LVD)
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6
	Freefall	IEC 60068-2-31
	WEEE	Support
	RoHS	Support

Specification parameters

Exchange capacity

16Gbps

FLASH

DDRIII

MAC address table

ARP table

Jumbo frame

Port auto-negotiation

support

Port adaptive

support

PoE port

Eight PoE ports, each with a maximum power supply of 30W

PoE total power

120W

RJ45

8*10/100/1000MBASE-T RJ45 port

SFP

Port light

Green: Connect/forward, yellow: POE

Power input range

DC 24V boost, dual power supply redundancy

Power connector

1 4-pin Phoenix terminal

Overload current protection

support

Reverse polarity protection

support

dimension

160mm(L)×118mm(W)×44mm(H)

Class of protection

IP40

Install

Rail mounting

Heat dissipation

Fanless natural cooling design

Operating temperature

-40~75℃(-40~167 °F)

Storage temperature

-40~85℃(-40~185 °F)

Working humidity

5 to 95% (no condensation)

Storage temperature

5 to 95% (no condensation)

EMC

EN 55032/24

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF

Safety regulation

EN 60950-1, EN 60950-1 (LVD)

strike

IEC 60068-2-27

Vibration

IEC 60068-2-6

fall

IEC 60068-2-31

WEEE

support

RoHS

support
