JEA-E76I
The JEA-E76I is a fanless embedded industrial PC based on the Rockchip RK3576J SoC. It offers high performance, rich interfaces, and versatile expansion capabilities, supporting multiple operating systems for a range of industrial control and embedded applications. The system features a high-performance CPU and NPU, dual 4K display output, multiple network connectivity options, extensive I/O interfaces, and an optional wide-temperature operating range to meet diverse industry requirements.
- •
- Industrial grade Rockchip RK3576J SoC
- •
- 4x Cortex-A72 + 4x Cortex-A53 + 6 TOPS NPU
- •
- 4/8GB LPDDR4X + 32/64/128GB eMMC
- •
- HDMI + DP (USB-C) Dual 4K display
- •
- 2x GbE, 2x CAN, 3x USB 3.0, up to 6x COM
- •
- On-board WiFi+BT module + M.2 Key B for 5G/4G
- •
- Supports Android, Debian, Ubuntu, OpenHarmony
- •
- Supports DIN Rail/wall/book-size/VESA mounting
- •
- Supports -40~70℃ operating temperature
System | SoC | Rockchip RK3576J/RK3576 | |
CPU | Quad core Arm Cortex-A72 up to 2.3 GHz (consumer) / TBD (industrial) Quad core Arm Cortex-A53 up to 2.2 GHz (consumer) / TBD (industrial) | ||
MCU | - | ||
NPU | 6 TOPS Neural Network performance | ||
Memory | On-board 4GB/8GB LPDDR4X | ||
Storage & Expansion | On-board 32GB/64GB/128GB eMMC 5.1 for OS 1x Micro SD slot for storage expansion | ||
Video | Graphics Engine | Arm Mali-G52 MC3, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0 FP | |
HW Video Codec | H.265/H.264/VP9/AV1/AVS2 Decoder up to 8K30 or 4K120 H.265/H.264 Encoder up to 4K60 | ||
Interface | 1x HDMI 2.1 Type-A, 1x DP 1.4 (USB-C) Supports dual independent display | ||
Audio | Audio Codec | ES8336 | |
Interface | 1x 3.5mm Audio (CTIA) | ||
Network | Ethernet | 2x RJ45, 10/100/1000 Mbps, 4kV Surge protection | |
WiFi | On-board AW-CM358 WiFi 5 (802.11ac) + Bluetooth 5.2 module | ||
5G/4G | 1x M.2 Key B for 4G/5G (USB 3.0) with Micro SIM slot | ||

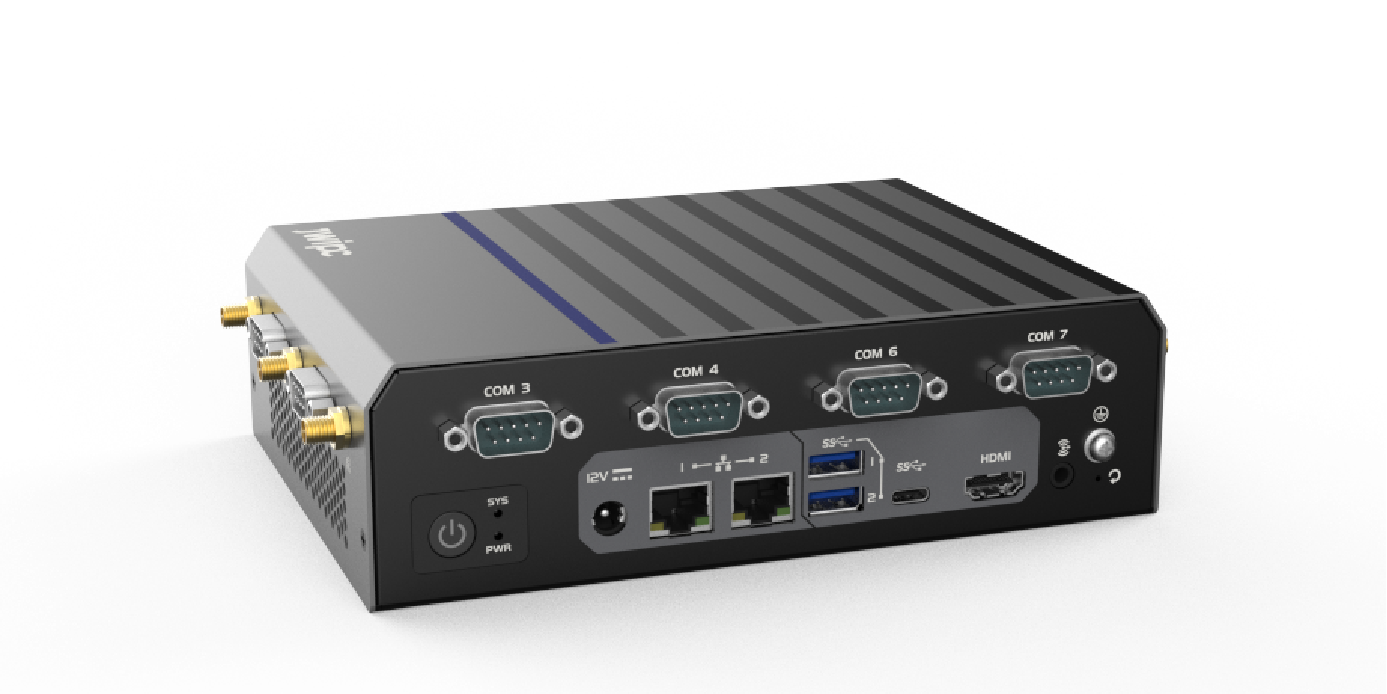

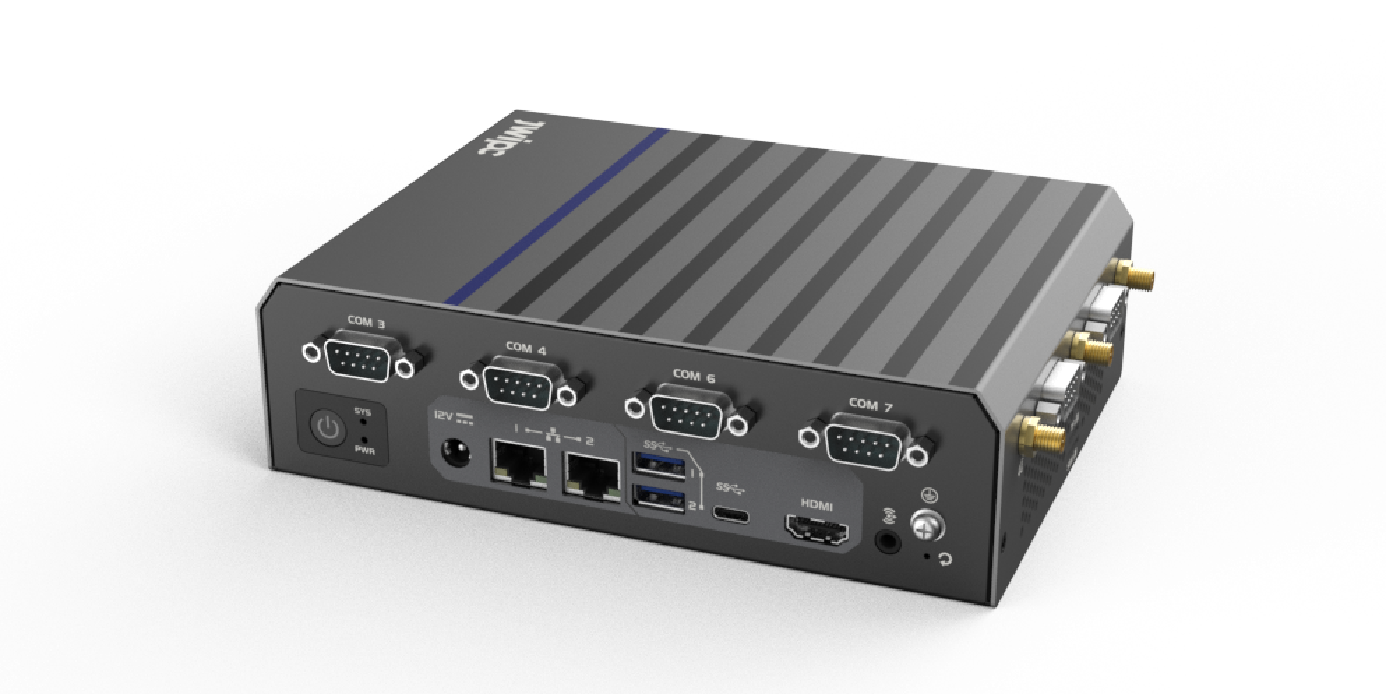

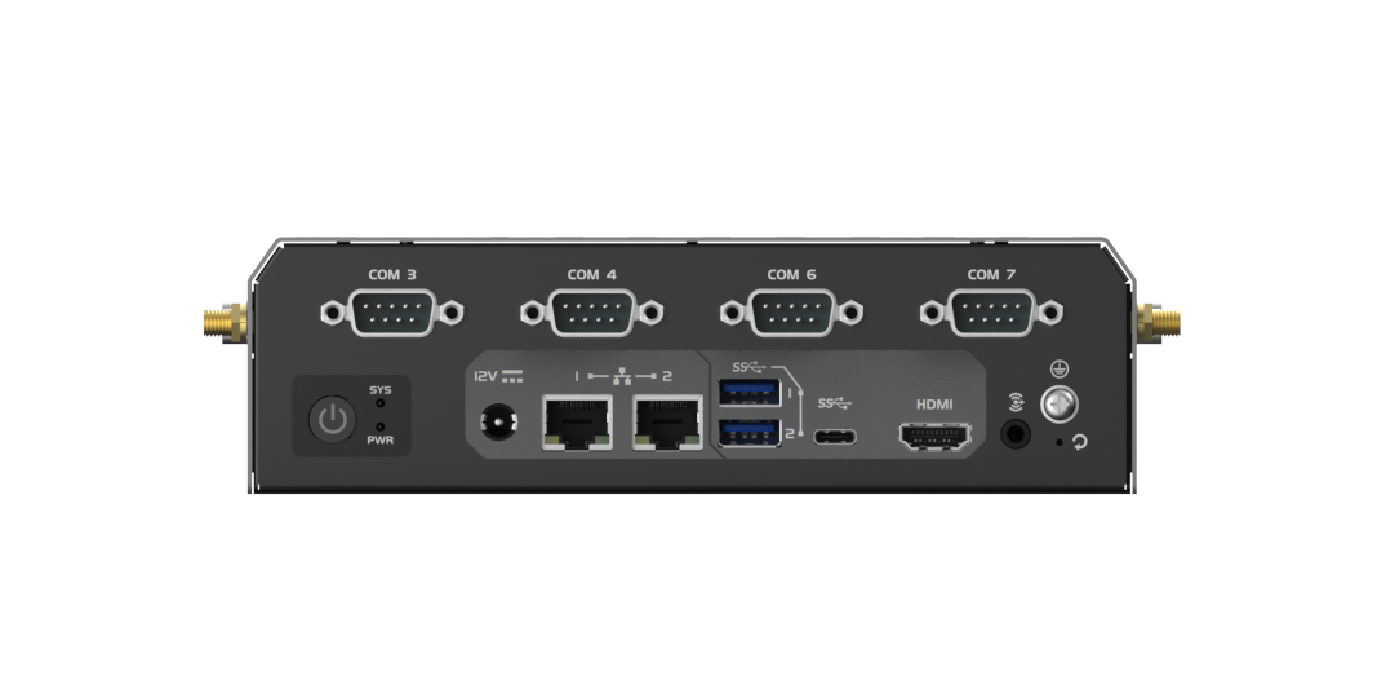

I/O | Front I/O | 1x USB 3.0 Type-C with OTG/DP 2x USB 3.0 Type-A 2x RS-232/485 by DB9 2x RS-232/TTL by DB9 | |

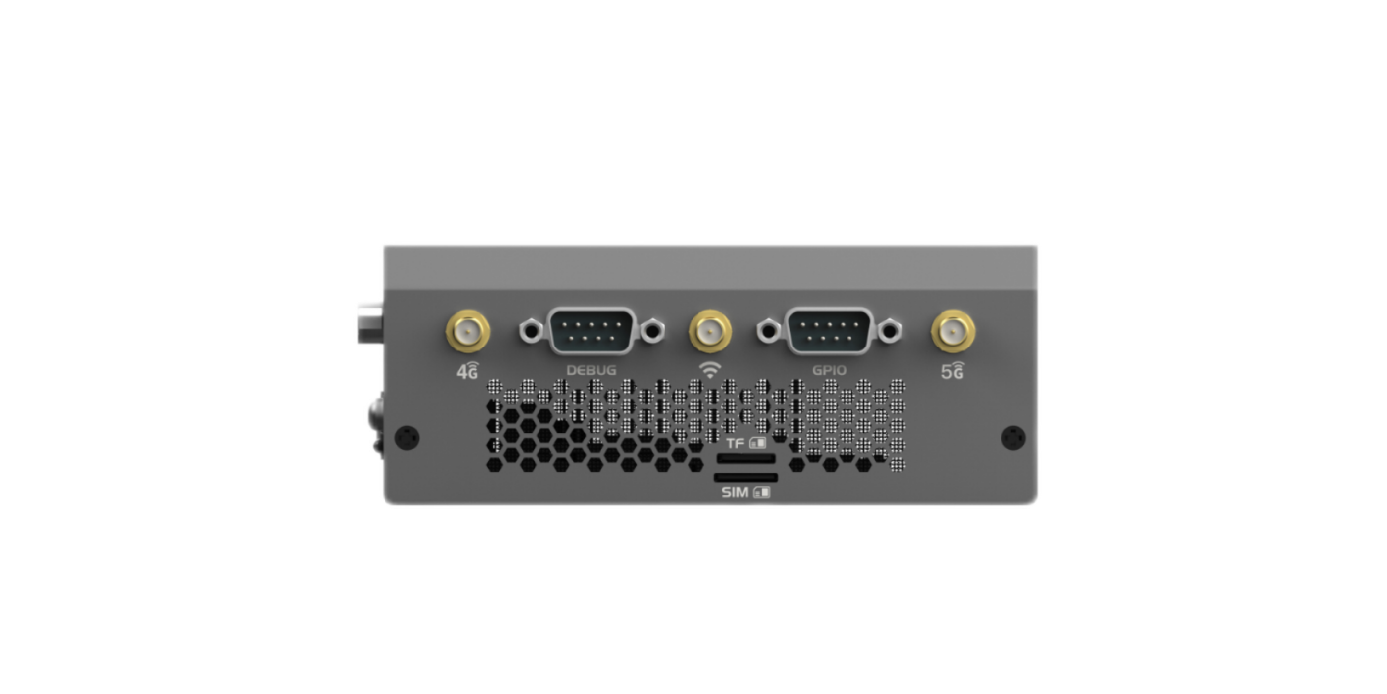

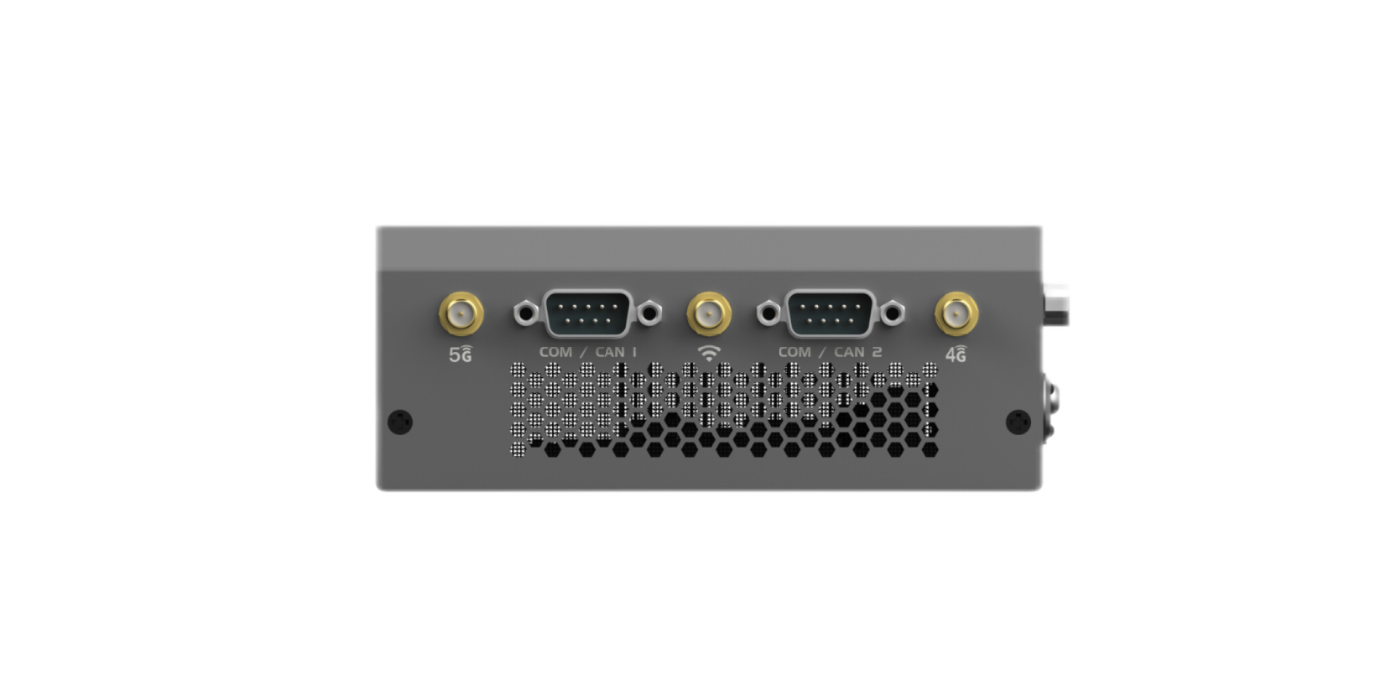

Side I/O | 2x RS-232/CAN by DB9 8x GPIO by DB9 (3.3V TTL level) 1x debug port by DB9 | ||
Other Features | Watchdog | Watchdog Timer & power on/off management | |
Real Time Clock | On-board RTC chip, battery-backed | ||
Security | On-board Z32H330TC TPM 2.0 module (optional) | ||
Power | Power Input | 12V DC-IN | Optional 9~36V DC-IN (typical 12/24V) with Reverse Polarity Protection |
Interface | 5.5x2.5mm DC Jack | 2-pole lockable terminal block | |
System Ctrl & Monitoring | 1x Power button, 1x Recovery button 2x programmable LEDs | 1x Recovery button 2x programmable LEDs (by pin header) | |

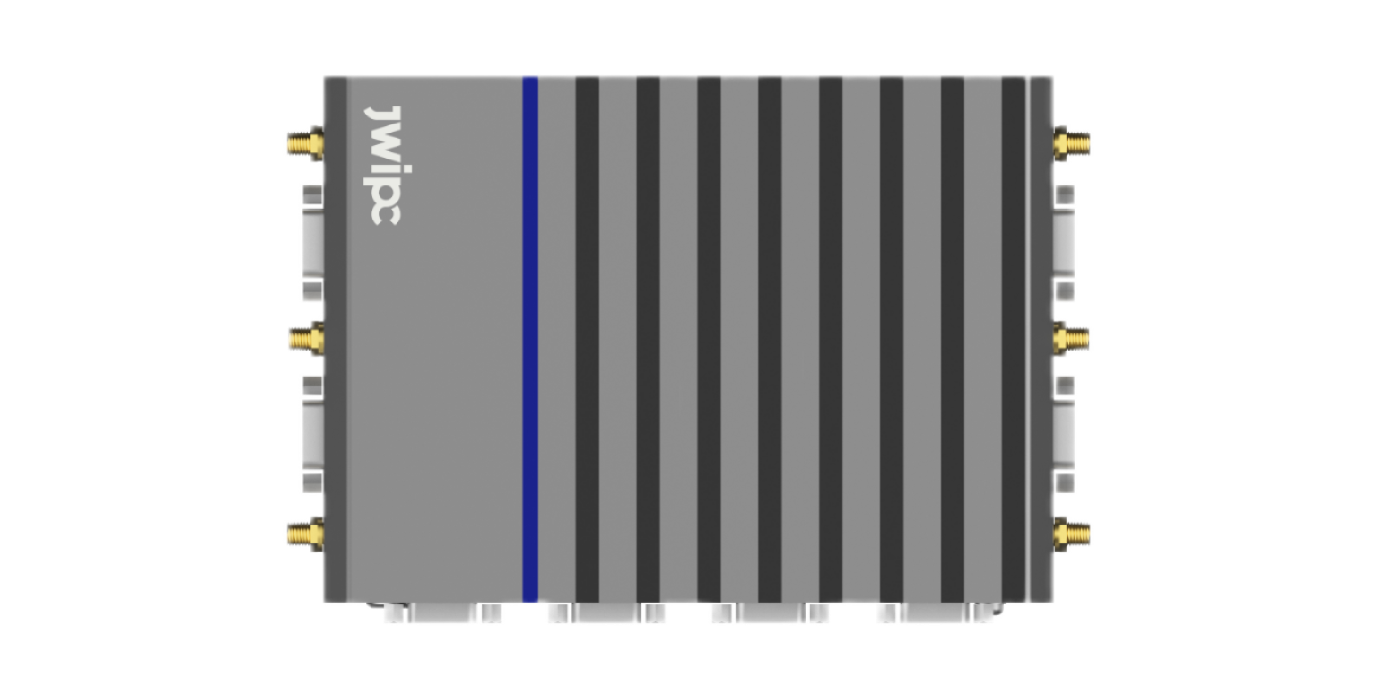

Mechanical | Dimensions | 187mm x 135mm x 54mm | |
Mounting | Wallmount, Bookmount, DIN Rail, VESA mount | ||
Software | OS Support | Android 14, Debian 12, Ubuntu (TBD), OpenHarmony (TBD) | |
Boot Options | eMMC | ||
Environment | Operating Temp. | 0~50℃ / -20~60℃ / -40~70℃ optional | |
Storage Temp. | -40~85℃ | ||
Humidity | 10%~90% RH, non-condensing | ||
EMC & Safety | Compliance | IEC 61000-4-2 ESD level 3 (Contact ±6kV, Air ±8kV) IEC 61000-4-4 EFT level 4 (Power ±4kV, Ethernet ±2kV) | |
Certifications | CCC, CE Class B | ||
