JEA-E88I

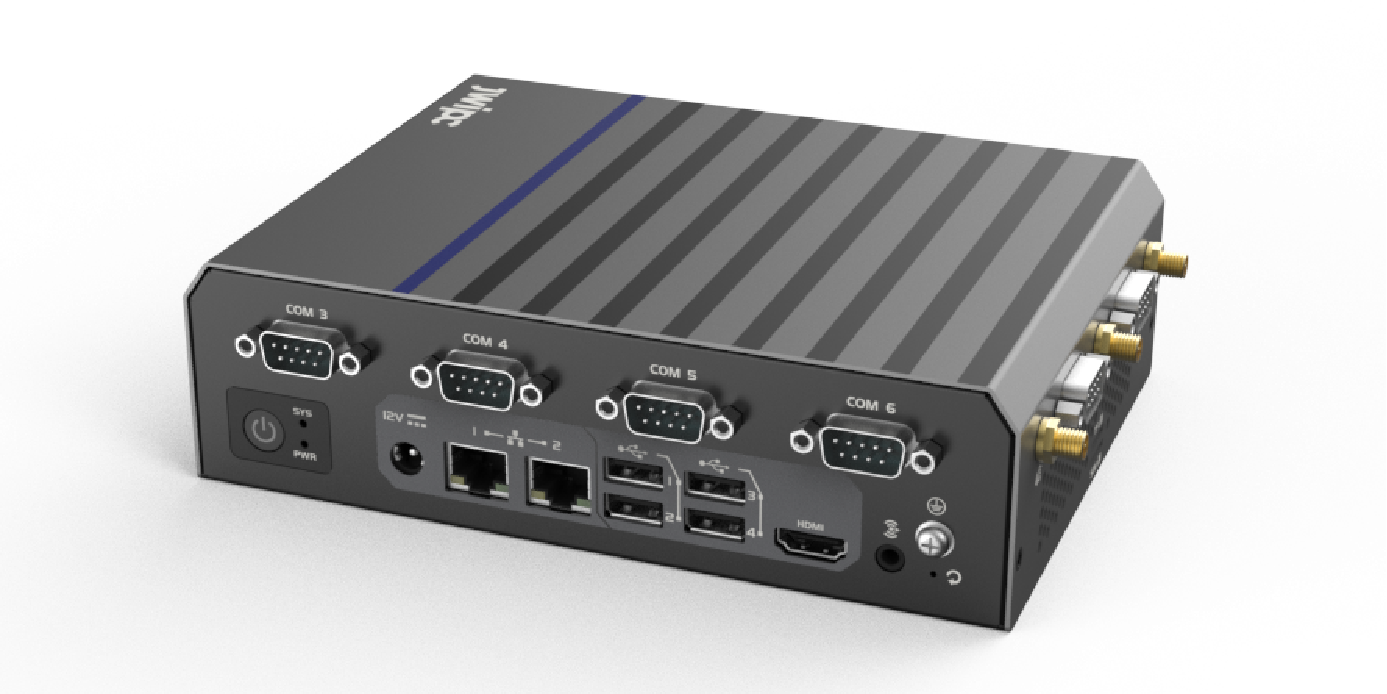

The JEA-E88I is a high-performance embedded BOX PC based on the Rockchip RK3588J/RK3588 SoC. It features an octa-core 64-bit processor, 4/8/16GB LPDDR4X memory, and 32/64/128GB eMMC storage. The system supports 4K video input and output, offering a range of interfaces such as dual Gigabit Ethernet, CAN, USB, and COM ports. It supports multiple operating systems, various installation methods, and operates in a wide temperature range of -40°C to 70°C, making it ideal for various industrial applications.
- •
- Industrial grade Rockchip RK3588J SoC
- •
- 4x Cortex-A76 + 4x Cortex-A55 + 6 TOPS NPU
- •
- 4/8/16GB LPDDR4X + 32/64/128GB eMMC
- •
- HDMI In+HDMI Out for 4K video input & output
- •
- 2x GbE, 2x CAN, 4x USB, up to 6x COM
- •
- Supports WiFi, BT, 5G/4G, NVMe SSD expansion
- •
- Supports Android, Debian, Ubuntu, OpenHarmony
- •
- Supports DIN Rail/wall/book-size/VESA mounting
- •
- Supports -40~70℃ operating temperature
System | SoC | Rockchip RK3588J/RK3588 | |
CPU | Quad core Arm Cortex-A76 up to 2.2 GHz (consumer) / 2.0 GHz (industrial) Quad core Arm Cortex-A55 up to 1.8 GHz (consumer) / 1.7 GHz (industrial) | ||
MCU | - | ||
NPU | 6 TOPS Neural Network performance | ||
Memory | On-board 4GB/8GB/16GB LPDDR4X | ||
Storage & Expansion | On-board 32GB/64GB/128GB eMMC 5.1 for OS 1x M.2 2280 (PCIe x4) for NVMe SSD or AI accelerator 1x Micro SD slot for storage expansion | ||
Video | Graphics Engine | Arm Mali-G610 MP4, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 | |
HW Video Codec | H.265/H.264/VP9/AV1/AVS2 Decoder up to 8K60 H.265/H.264 Encoder up to 8K30 | ||
Interface | 1x HDMI 2.1 Tx up to 4K60 1x HDMI 2.0 Rx up to 4K30 | ||
Audio | Audio Codec | ES8336 | |
Interface | 1x 3.5mm Line out | ||
Network | Ethernet | 2x RJ45, 10/100/1000 Mbps, 4kV Surge protection | |
WiFi | On-board AW-CM358 WiFi 5 (802.11ac) + Bluetooth 5.2 module | ||
5G/4G | 1x M.2 Key B for 4G/5G (USB 3.0) with Micro SIM slot | ||

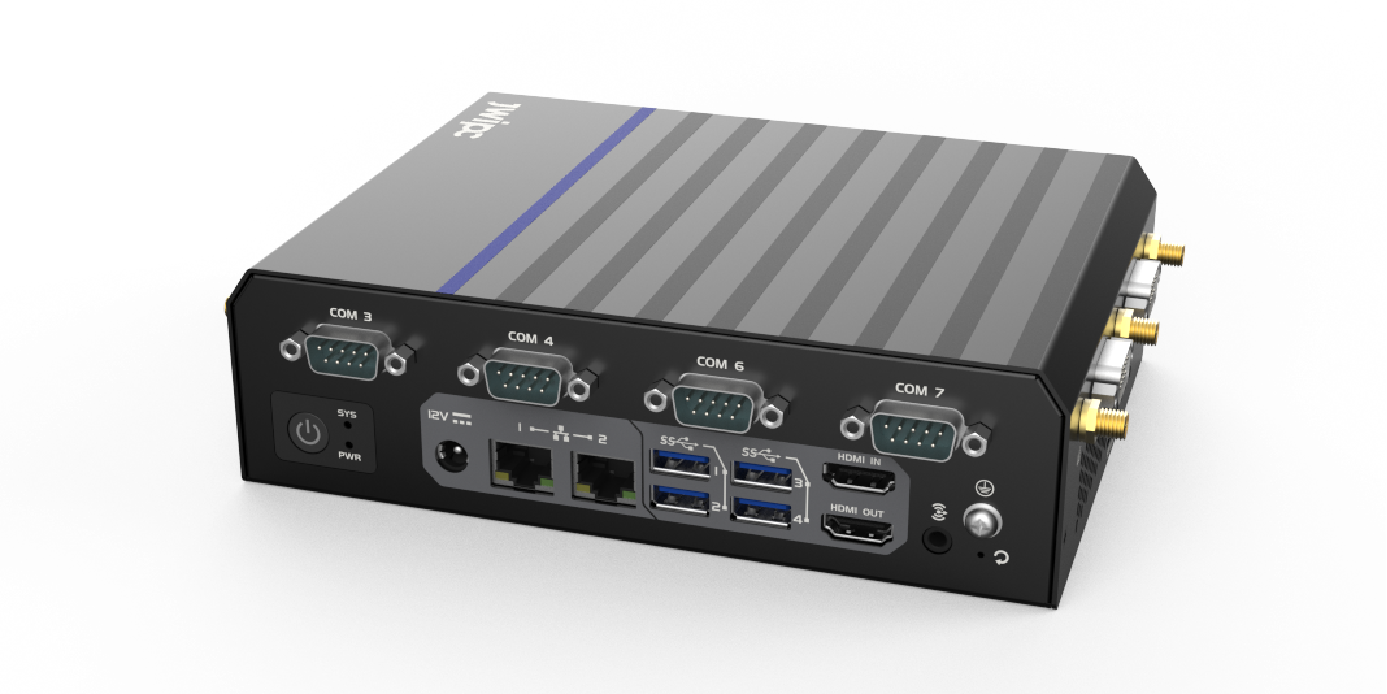

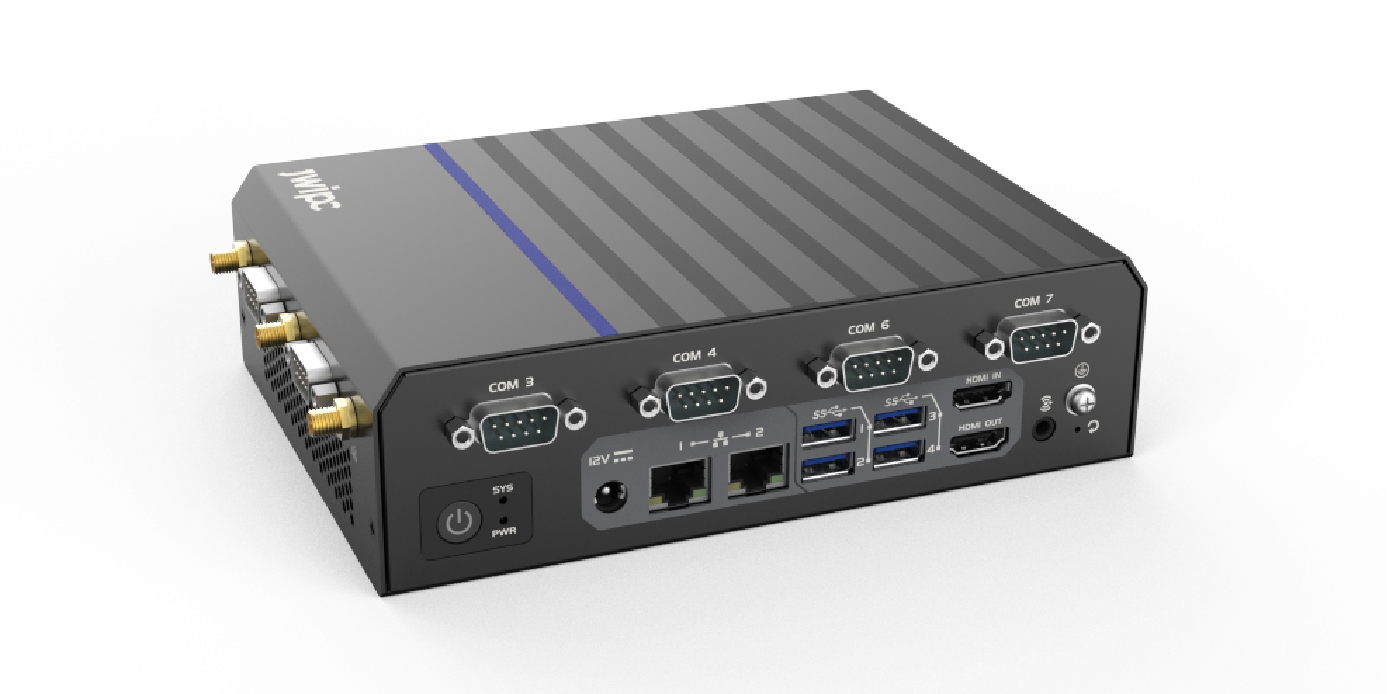

I/O | Front I/O | 4x USB 3.0 Type-A (1 supports OTG for OS image flashing) 2x RS-232/485 by DB9 2x RS-232/TTL by DB9 | |

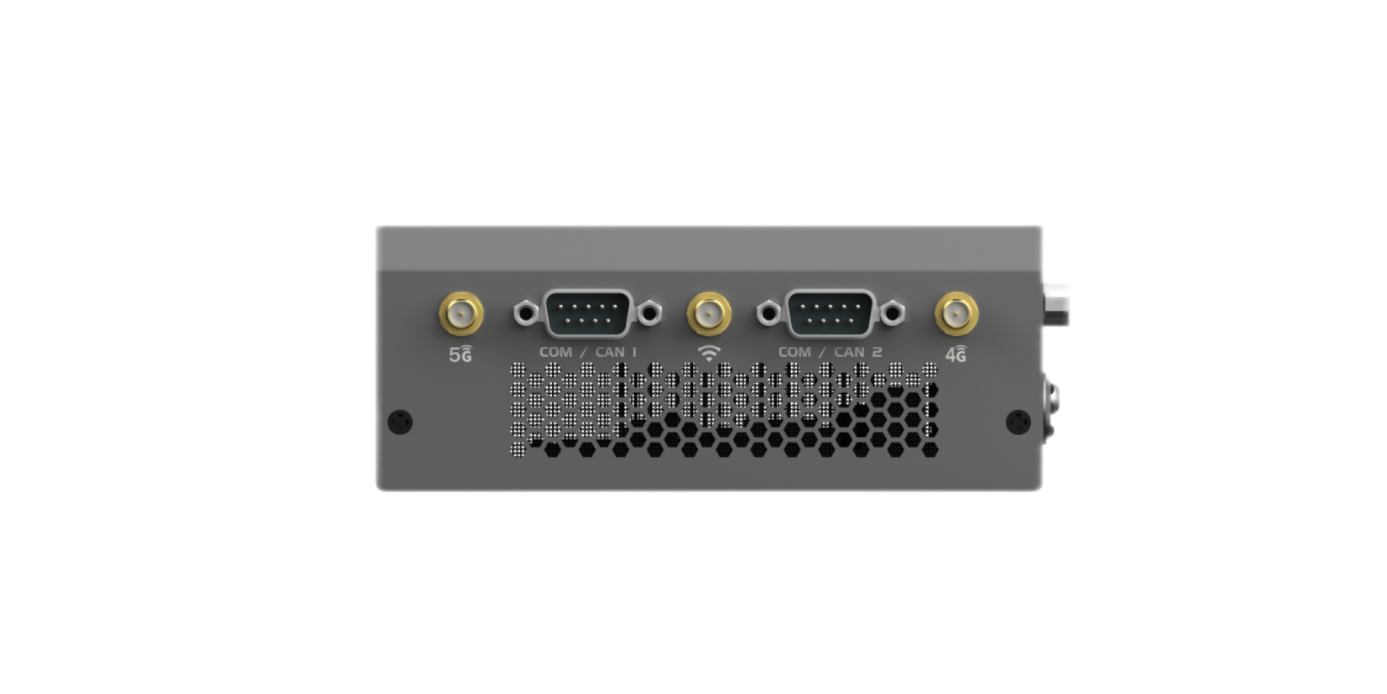

Side I/O | 2x RS-232/485/CAN by DB9 7x GPIO+1x ADC by DB9 (3.3V TTL level) 1x debug port by DB9 | ||
Other Features | Watchdog | Watchdog Timer & power on/off management | |
Real Time Clock | On-board RTC chip, battery-backed | ||
Security | - | ||
Power | Power Input | 12V DC-IN | Optional 9~36V DC-IN (typical 12/24V) with Reverse Polarity Protection |
Interface | 5.5x2.5mm DC Jack | 2-pole lockable terminal block | |
System Ctrl & Monitoring | 1x Power button, 1x Recovery button 2x programmable LEDs | 1x Recovery button 2x programmable LEDs (by pin header) | |
Mechanical | Dimensions | 187mm x 135mm x 54mm | |
Mounting | Wallmount, Bookmount, DIN Rail, VESA mount | ||
Software | OS Support | Android 12, Debian 11, Ubuntu 20.04, OpenHarmony 4.0 | |
Boot Options | eMMC | ||
Environment | Operating Temp. | 0~50℃ / -20~60℃ / -40~70℃ optional | |
Storage Temp. | -40~85℃ | ||
Humidity | 10%~90% RH, non-condensing | ||
EMC & Safety | Compliance | IEC 61000-4-2 ESD level 3 (Contact ±6kV, Air ±8kV) IEC 61000-4-4 EFT level 4 (Power ±4kV, Ethernet ±2kV) | |
Certifications | CCC, CE Class B | ||
