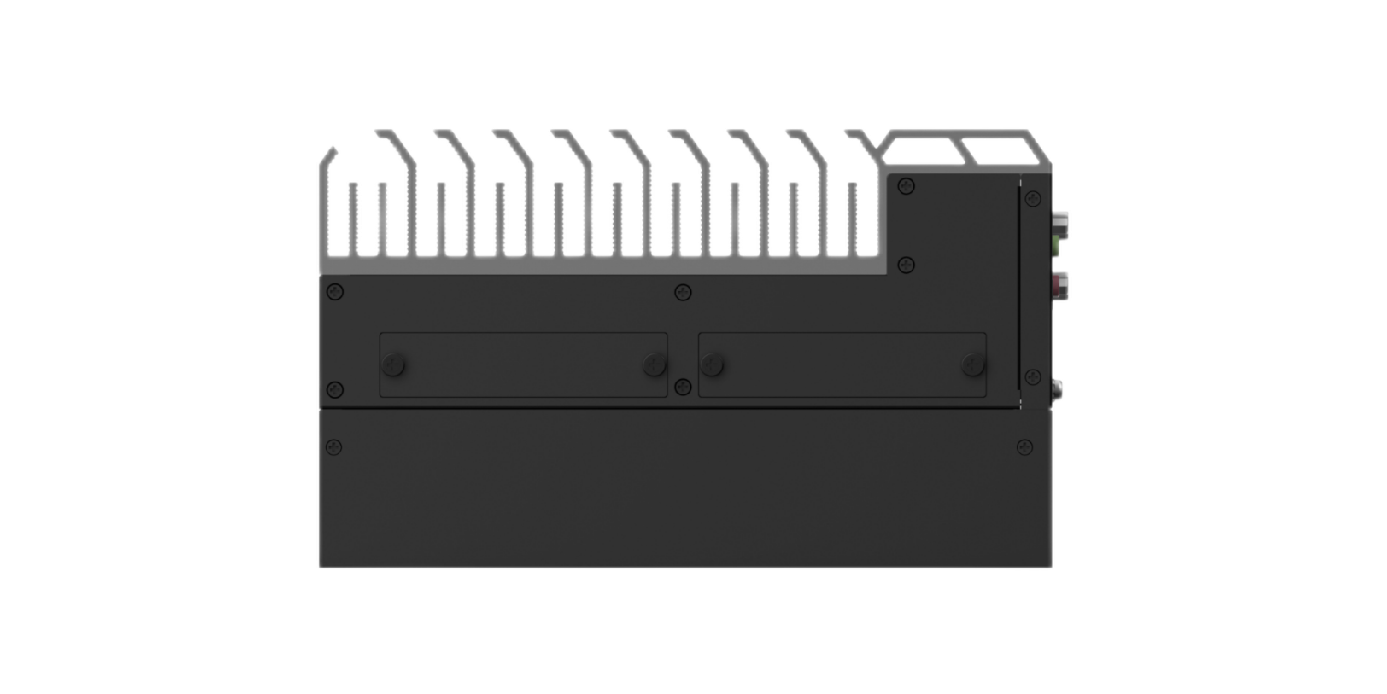

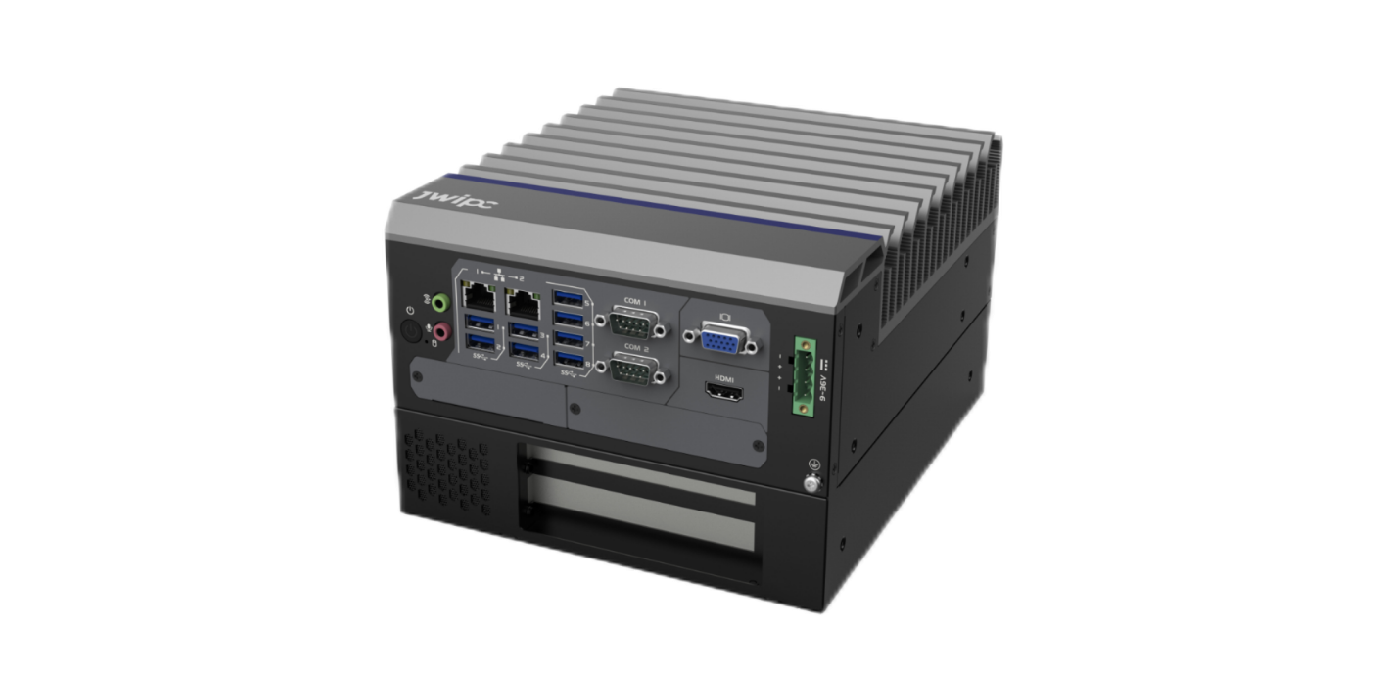

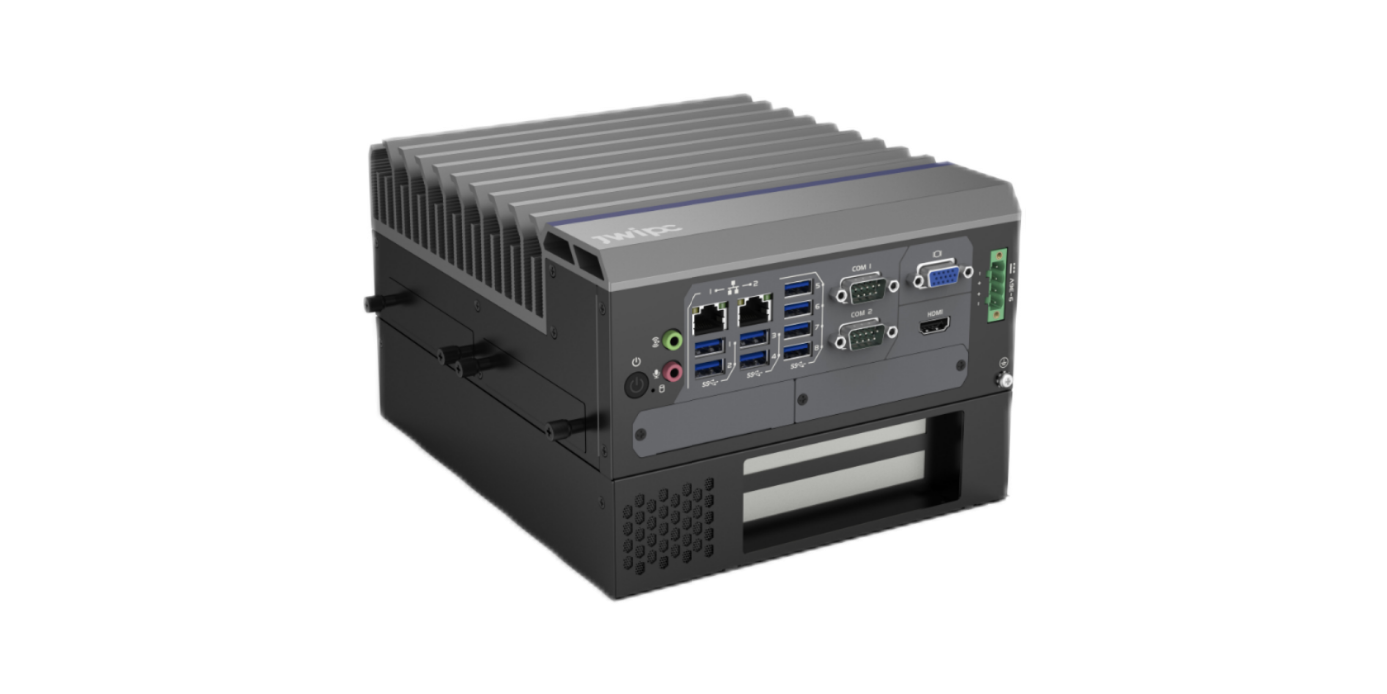

Extended BOX PC

The JMC-7112 features a modular design with separate base and expansion layers, allowing for flexible extension of various interfaces such as LAN, COM, DP/HDMI, and remote power on/off through I/O modules and adapter cards. The base layer is a compact, fanless embedded industrial PC, while the expansion layer supports PCIe and PCI expansion requirements. It is widely used in industries including industrial automation, data acquisition, motion control, optical inspection, logistics and warehousing, intelligent sorting, intelligent transportation, energy, and robotics.

LGA1151 Gen 6th/7th/8th/9th Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor with Q170/H110 Chipset
Dual-channel DDR4 2133/2400 MHz SODIMM Memory, up to 64 GB
Supports VGA and HDMI Display (3rd display supported by option)
2 x GbE LAN, 8 x USB Ports
2 x RS232/422/485 (with isolation), 2 x RS232/422/485 + 2 x RS232 (optional)
1 x 2.5" HDD/SSD (up to 2), 1 x mSATA
DC 9~36V wide voltage input
Supports modular and flexible expansion
Specification parameters

System

Processor

LGA1151 Gen 6th/7th/8th/9th Core™i3/i5/i7Pentium®/Celeron®Processor

Chipset

Q170/H110

BIOS

AMI UEFI/Legacy BIOS

 Memory

2x DDR4 2133/2400 MHz SO-DIMM, up to 32GB

OS

7th Gen. CPU: Windows 10 (64 bit)

6th Gen. CPU: Windows 10 (64 bit), Windows 8 .1, Windows 7

Linux OS

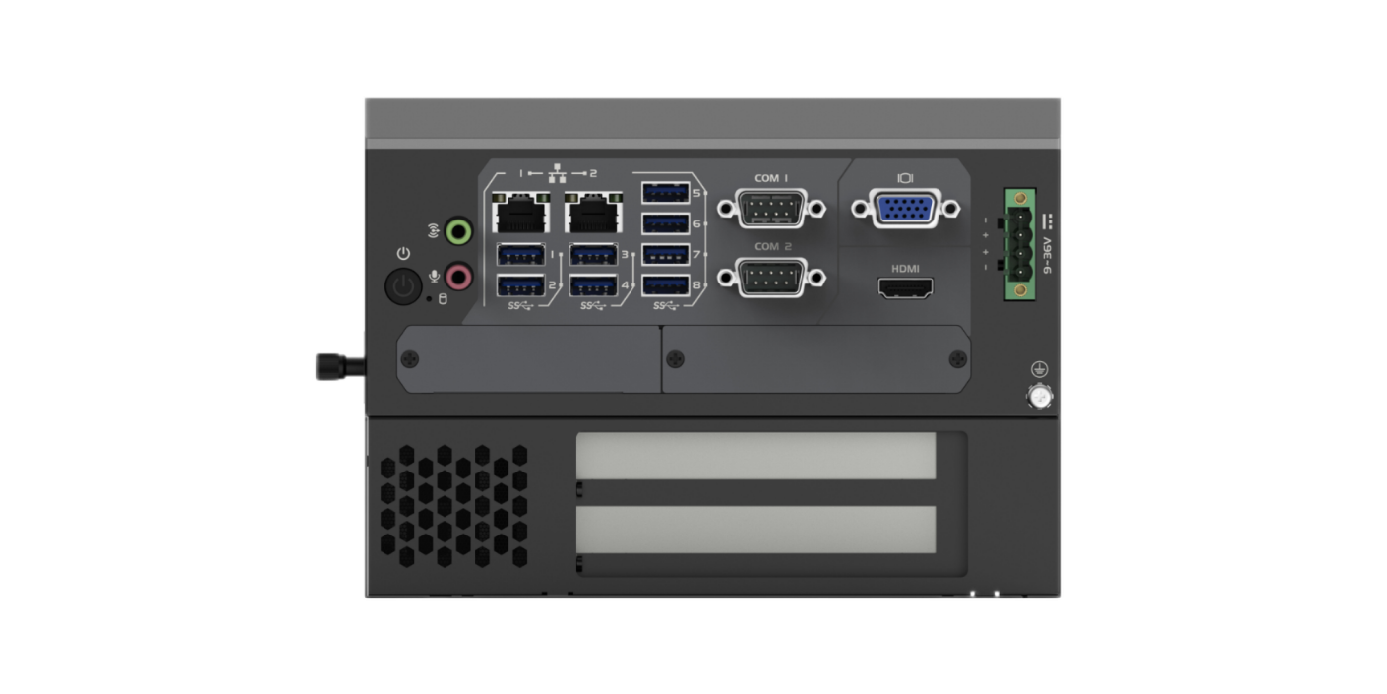

I/O interface

USB

Q170: 8x USB3.0, 2x USB2.0(Internal), 1x USB dongle

H110: 4x USB3.0, 4x USB2.0, 1x USB2.0(Internal)

Serial

2x RS232/422/485 (with isolation),

2x RS232/422/485+2x RS-232(Optional)

LED

Power, HDD

Expansion

Mini-PCIe/

PCI/PCIe

Q170: 1x mPCIe (via Nano-SIMsupport 4G module), 1mPCIe/mSATA

H110: 1x mPCIe (via Nano-SIMsupport 4G module), 1 x mSATA

Expansion layer:2PCI/1PCIex16+1PCI/1PCIex16+1PCIex4(optional)

Graphics

Graphics Processor

Intel®UHD Graphics 530/510

Interface

1xVGA, up to 1920*1200@60Hz

1xHDMI, up to 4096*2160@24Hz

Storage

Storage Device

2 x 2.5”HDD/SSD(1 optional) ,Q170 support SATA RAID 0/1,

1 x mSATA

Audio

Audio IC

Realtek ALC897

Audio Interface

1xMic-in, 1xLine-out

Ethernet

LAN IC

1xI219LM1x I210AT

Interface

2xRJ45

Power

Power Input

DC IN 9~36V

Power Interface

4-Pole Phoenix DC plug in

Others

Watchdog Timer

1 to 255 sec./min. per step

TPM

Optional

Mechanical

Dimensions

230mm(W)×192mm(D)×138mm(H)

Weight

KG

Mounting

Desk/Wall-mounting

Environment

Operating Temp.

65W: -10℃~50℃(With airflow), 35W:-10℃~60℃(With airflow)

Storage Temp.

-40~85℃

Humidity

95% @ 40 °C (non-condensing)

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duratio

Vibration

With SSD:2Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis

With HDD:1Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis
