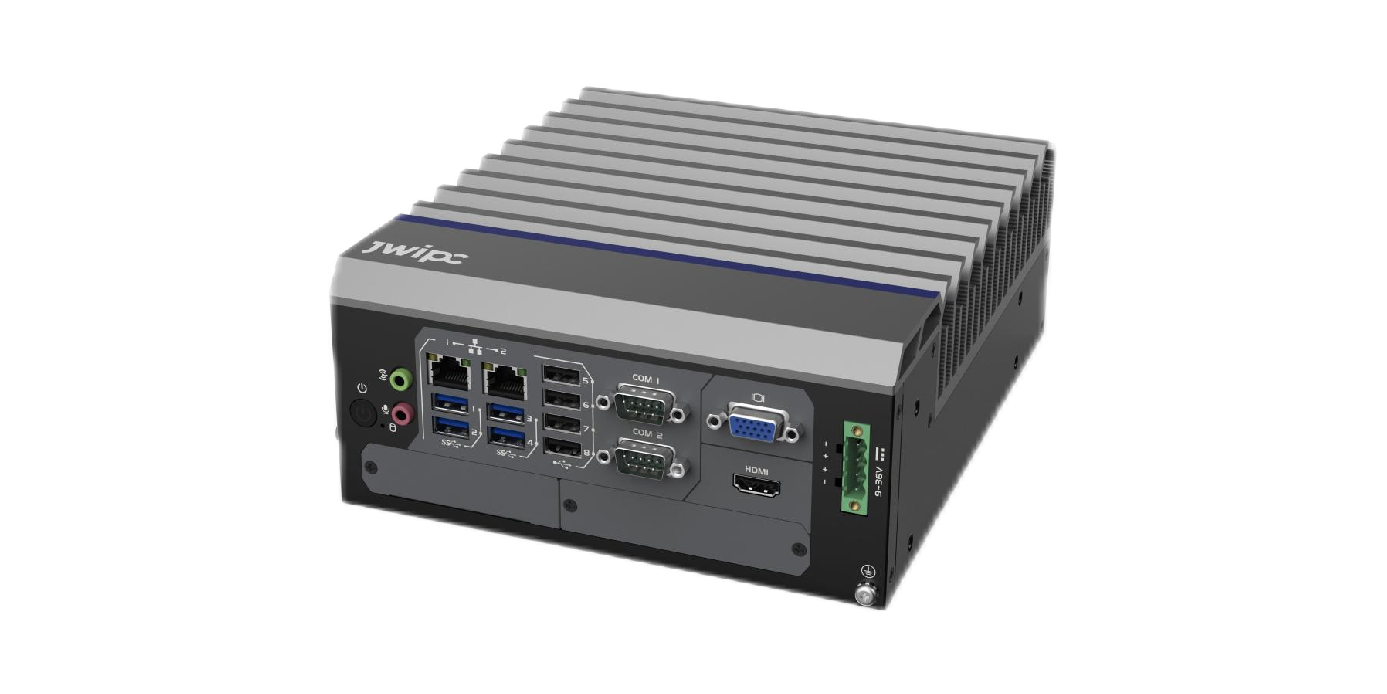

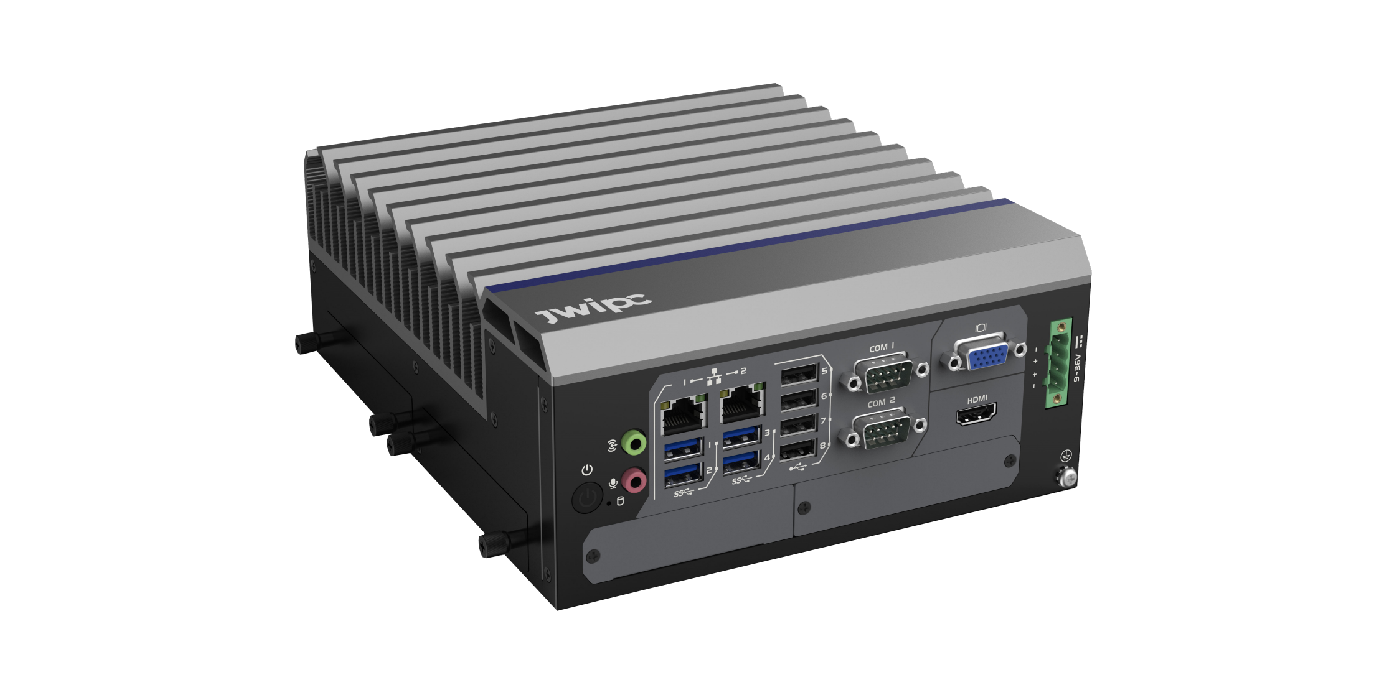

Modular BOX PC

Powered by the Intel® W480E/H420E chipset,The JMC-7310 supports flexible expansion of interfaces via I/O modules and adapter cards, such as LAN, COM, DP/HDMI (2nd), remote on/off, etc., to meet various configuration requirements across different application scenarios. Its core is a compact, embedded, fanless industrial control system, making it suitable for a wide range of industries.

LGA1200 Gen 10th&11th Intel® Core™i9/i7/i5/i3/Pentium®/Celeron®/Xeon® Processor with W480E/H420E Chipset
Dual-channel DDR4 2666/2933 MHz SODIMM Memory up to 64 GB(W480E SKU supports ECC)
VGA and HDMI display outputs with optional support for a third display
2xGbE LAN,8xUSB
2xRS232/422/485 and 4xRS232(optional)
1x 2.5" HDD/SSD (supports up to 2 drives), 1x mSATA
DC 9~36V wide voltage input
Supports modular and flexible expansion
Specification parameters

System

Processor

LGA1200 Gen 10th&11th Core™i3/i5/i7/i9 Pentium®/Celeron®/Xeon® Processor

Chipset

W480E/H420E

BIOS

AMI UEFI BIOS

 Memory

2x DDR4 2133/2400 MHz SO-DIMM, up to 32GB (W480E SKU support ECC)

OS

Windows 10(64 bit), Linux OS, Ubuntu 20.04

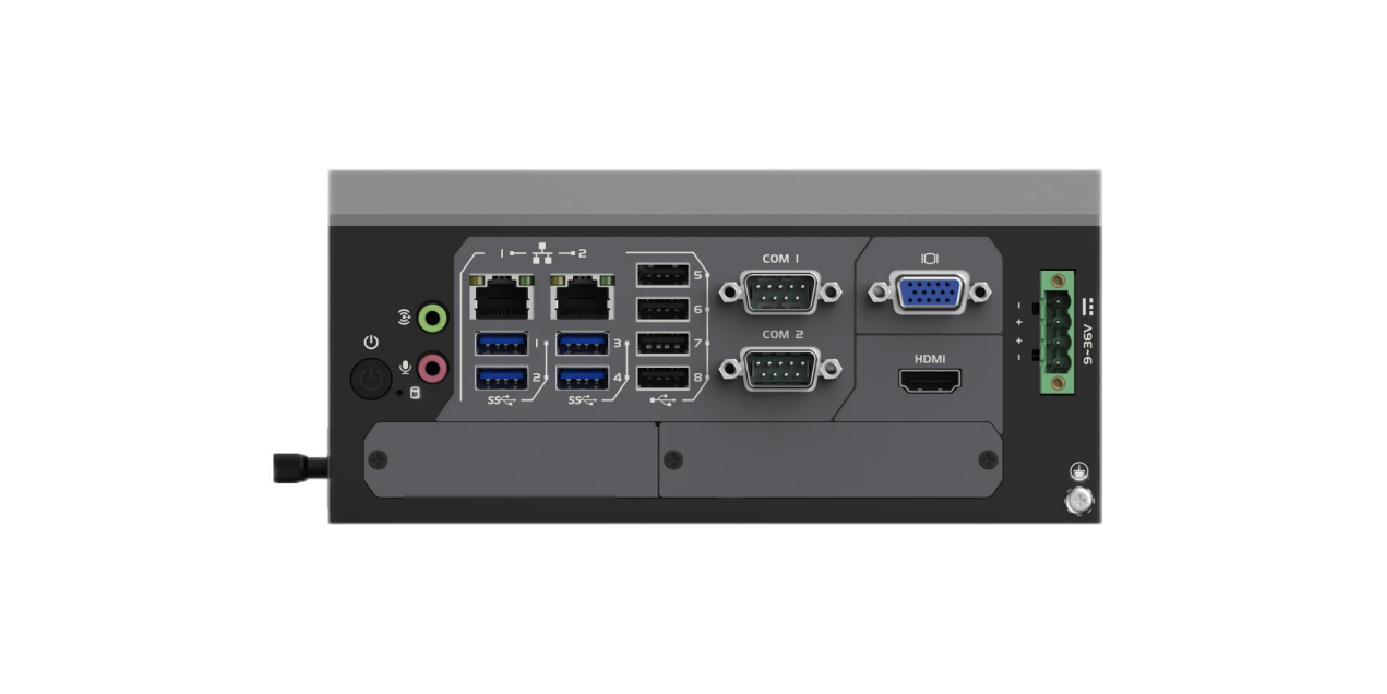

I/O interface

USB

W480E:2xUSB3.2(Gen2), 6xUSB3.2(Gen1), 2x USB2.0(Internal), 1x USB dongle

H420E:6xUSB3.2(Gen1), 2xUSB2.0, 1xUSB2.0(Internal)

Serial

2x RS232/422/485, 4x RS232 (Optional)

LED

Power, HDD

Expansion

Mini-PCIe

W480E: 1x mPCIe (via Nano-SIMsupport 4G module), 1mPCIe/mSATA

H420E1x mPCIe (via Nano-SIMsupport 4G module), 1 x mSATA

Graphics

Graphics Processor

Intel®UHD Graphics 630/610

Interface

1xVGA, up to 1920*1200@60Hz

1xHDMI, up to 4096*2160@24Hz

Storage

Storage Device

2 x 2.5”HDD/SSD(1 optional) ,W480E support SATA RAID 0/1,

1 x mSATA

Audio

Audio Codec

Realtek ALC897

Audio Interface

1xMic-in, 1xLine-out

Ethernet

LAN

1xIntel® I210AT,1xIntel®I219LM GbE LAN

Power

Power Input

DC IN 9~36V

Power Interface

4-Pole Phoenix DC plug in

Others

Watchdog Timer

1 to 255 sec./min. per step

TPM

Optional

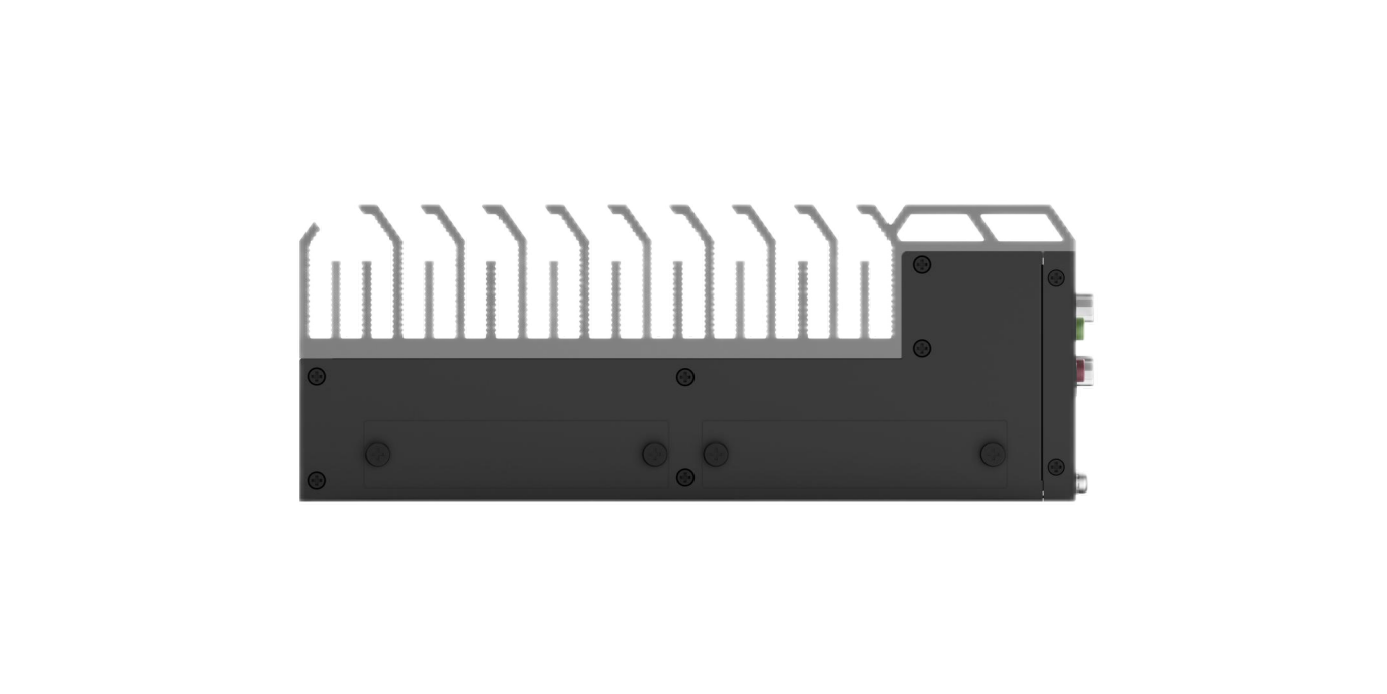

Mechanical

Dimensions

230mm(W)×192mm(D)×88mm(H)

Weight

4.96KG

Mounting

Desk/Wall-mounting

Environment

Operating Temp.

65W: -10℃~50℃(With airflow), 35W:-10℃~60℃(With airflow)

Storage Temp.

-40~85℃

Humidity

95% @ 40 °C (non-condensing)

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duratio

Vibration

With SSD:2Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis

With HDD:1Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis
