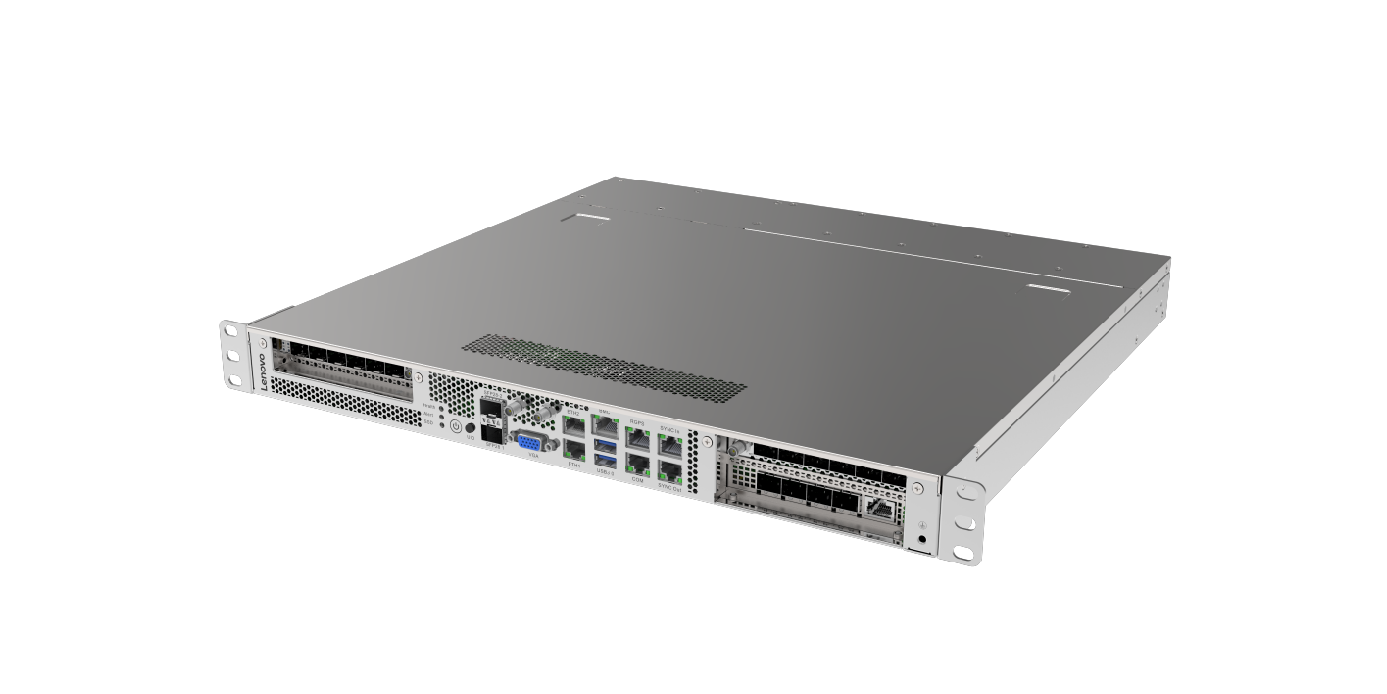

SYS-60115R
The SYS-60115R series products use Intel ® C741 high-performance server chipset, based on 5th/4th Gen Intel ® Xeon ® newly built with scalable processors. From exterior design to internal structure, the new Xeon server reflects the company's business philosophy of pursuing "technology/innovation/environmental protection", providing customers with a 1U server with high performance, high reliability, low power consumption, and optimal heat dissipation.
- •
- The stable and innovative underlying design, combined with precise airflow guidance and fan adjustment mechanisms, creates a stable and reliable model
- •
- Support for 5th/4th Gen Intel ® xeon ® Scalable processor
- •
- Adopting the latest DDR5 memory technology, it supports 4400/4800MHz ECC DDR5 RDIMM/LRDIMM (up to 4TB 3DS RDIMM)
- •
- Provide 3 full height and single width expansion slots
- •
- Supports hardware monitoring and can remotely monitor the working status of hardware such as host power, voltage, temperature, and fans
Processor System | CPU | Intel 5th/4th Gen Intel ® xeon ® Scalable processor 6430/5418Y/8458P；Single Socket LGA-4677 (Socket E) supported, CPU TDP Supports Up to 250W TDP |
Chipset | C741 | |
BIOS | AMI UEFI BIOS | |
Graphics | Chipset | AST2600 |
Interface | 1 x VGA | |
Memory | Type | 6 x DDR5 RDIMM Socket ,Up to 1.5TB 3DS ECC RDIMM, DDR5-4800MHz |
Max | RDIMM: 256GB | |
Ethernet | Lan IC | 2 x INTEL I226LM ; E810 |
Interface | 2 x SFP28 Support 25G/10G/1GE ; 2 x ETH(Support 10/100/1000M/2500M) | |
Expansion | PCIE | 3*PCIE 4.0 x16 |
Interface | 3 full height single width expansion bits | |
Storage | SATA | 1 x 2.5-inch built-in hard drive |
M.2 | 2 x M.2 2280 NVME/SATA | |
IO Interface | Front IO | 2 x USB 3.0; 2 x SFP28 Support 25G/10G/1GE ; 2 x ETH(Support 10/100/1000M); 1 x RGPS; 1 x COM;1 x SYNC IN ; 1 x SYNC OUT; 1 x BMC ;2 x SMA;1 x VGA |
LED/Butten | UID; Power LED/Butten; BMC/IPMI Heartbeat LED; Board status LED; SSD LED | |
Software | OS Supports | WINDOWS 2019; Canonical® Ubuntu® Server LTS; Citrix® Hypervisor®; Windows Server® RedHat® Enterprise Linux; SUSE® Linux Enterprise Server; VMware® ESXi® |
Watchdog | Support | |
TPM | Support | |
Power | Power input | 550W CRPS Standard Power Supply;Supports 1+1 redundant backup |
voltage | 100-240V for AC; - 48~~70V for DC | |
Size | Size | 438.4 x 449.2 x 43.6 mm |
Environment | Operating Temp. | 0~35℃ |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp. | -40~65℃ | |
Operating Humidity | 5%~95% non-condensing |
