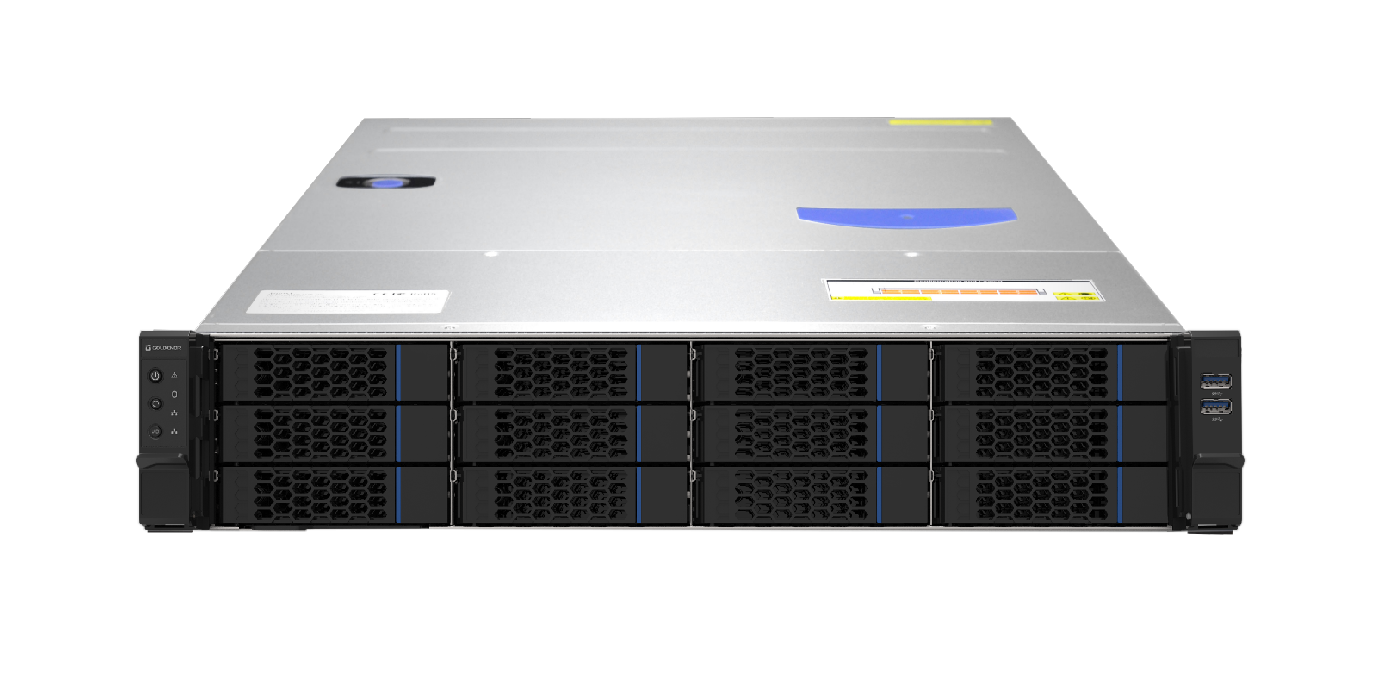

SYS-8028R
The SYS-8028R-S08 series uses Intel® C612 high-performance server chipset and is based on Intel® Xeon ® E5-2600 v3/v4 series processors. From the exterior design to the internal materials, the new Xeon E5 server reflects the company's pursuit of "technology/innovation/environmental protection" business philosophy, to provide customers with a high performance, high reliability, low power consumption, the best heat dissipation 2U8 disk server. Whether it is enterprise-class data centers or developing enterprise applications, the product can provide a variety of flexible configuration options, can better meet the growing server needs of customers, and provide reliable hardware support for data storage, big data processing, virtualization and other applications, is the best choice for large-scale industries, enterprises and government users with high requirements for stability and practicality.
- •
- Stable and innovative bottom design, with accurate airflow guidance and fan adjustment mechanism, create a stable and reliable model
- •
- Based on Intel®C612 high-performance server chipset, it supports two Intel® Xeon ® E5-2600 V4/V3 series high-performance processors (Grantley: Haswell/Broadwell). Provides 16 DDR4 DIMM slots (4 channels /CPU, 4-DIMM slots /CPU). Supports DDR4 ECC RDIMM/LRDIMM/3DS LRDIMM. Maximum support frequency 2400MHz
- •
- The maximum capacity is 2TB, and the memory read/write rate is significantly improved. Supports 5 PCI-E 3.0 expansion slots for flexible expansion
- •
- Supports up to eight 3.5/2.5-inch SATA3/SAS3 hot swappable hard disks (12Gb/s directly connected to the backplane). Optional rear 2 x 2.5-inch Nvme/SAS3/SATA3 hot-swappable hard disks. Optional array card, supporting RAID0/1/10/5/6/50/60/1E (Optional RAID card cache protection module). Supports four gigabit electrical ports (Intel i350) and one gigabit RJ45 IPMI management network port. Supports IPMI2.0, SOL, KVM Over IP, virtual media, and device health monitoring
System Control | CPU Model | Intel® Xeon® E5-2600 V4/V3 series processors, Grantley: (Haswell/Broadwell); TDP 160W; QPI (9.6 GT/s) |
Number of CPUs | 2 x Socket R3 (LGA 2011) | |
Chipset | Intel®C621 chipset | |
Memory | Type | 16 * memory slots (4-channel/CPU, 8-DIMM slots/CPU), supports up to 2TB 3DS LRDIMM Supports 2400/2133/1866/1600MHz ECC DDR4 RDIMM, LRDIMM, 3DS LRDIMM |
Graphics | Chip/Interface | ASPEED AST2500 BMC, 1 * VGA port |
Storage | External | Supports 8 * 3.5/2.5-inch SATA3/SAS3 hot-swappable hard drives (12Gb/s direct-connect backplane), Optional rear-mounted 2 x 2.5-inch Nvme/SAS3/SATA3 hot-swappable hard drives |
RAID controller | PCH C612 integrates 10 * SATA3 6Gb/s interfaces, supports Raid0,1,5,10 (6 7-pin SATA (iSATA) + 4 7-pin SATA (sSATA)) Optional RAID card, supports RAID0/1/10/5/6/50/60/1E (optional RAID card cache protection module) | |
DOM | 2 * DOM interfaces | |
Gigabit Network | Network card IC | Intel i350 Enterprise-Class Gigabit Network Controller |
Network Card Bandwidth | 4 * Gigabit Ethernet, supports 10/100/1000Mbps; | |
Network Card Connector | 2 * dual-layer RJ45 connector | |
IPMI management interface | Type | 1 * standard RJ45, 10/100/1000Mbps network interface |
USB | USB 3.0 | 2 * USB 3.0 (rear IO), 1 * USB 3.0 (internal TYPE A) |
USB 2.0 | 2 * USB 2.0 (rear IO), 2 * USB 2.0 (front) | |
Serial port | Serial port | 1 x COM port, 1 x serial port header |
PCIe Expansion | PCIe Expansion | 2 * standard PCIe3.0x16 (x16 slots), 3 * standard PCIe3.0x8 (x8 slots), |
Rear window indicator lights | Rear window indicator lights | 1 * illuminated UID switch |
Front panel | Switch | 1 * power switch; 1 reset switch |
Indicator Lights | 1 * power indicator light; 1 * abnormality indicator light; 1 * hard disk activity indicator light; 2 * network indicator lights | |
Power source | Power input | Optional CRPS 550W/800W/1300W 1+1 redundant power supply |
Fan | Fan | 3 * 8038 fans, hot-swappable; |
Dimensions | Dimensions | Dimensions: 670mm (D) * 444mm (W) * 87.6mm (H) |
Temperature / humidity requirements | Temperature | Operating temperature: 10°C to 35°C; Storage temperature: -40°C to 70°C |
Humidity | Operating humidity: 8% to 90% non-condensing; storage humidity: 5%- 95% with no condensation | |
Installation kit | Rails | Supports rails (optional) |
Obtain comprehensive product information. For various needs from product definition to software and hardware development, we will arrange product engineers to serve you as soon as possible.
