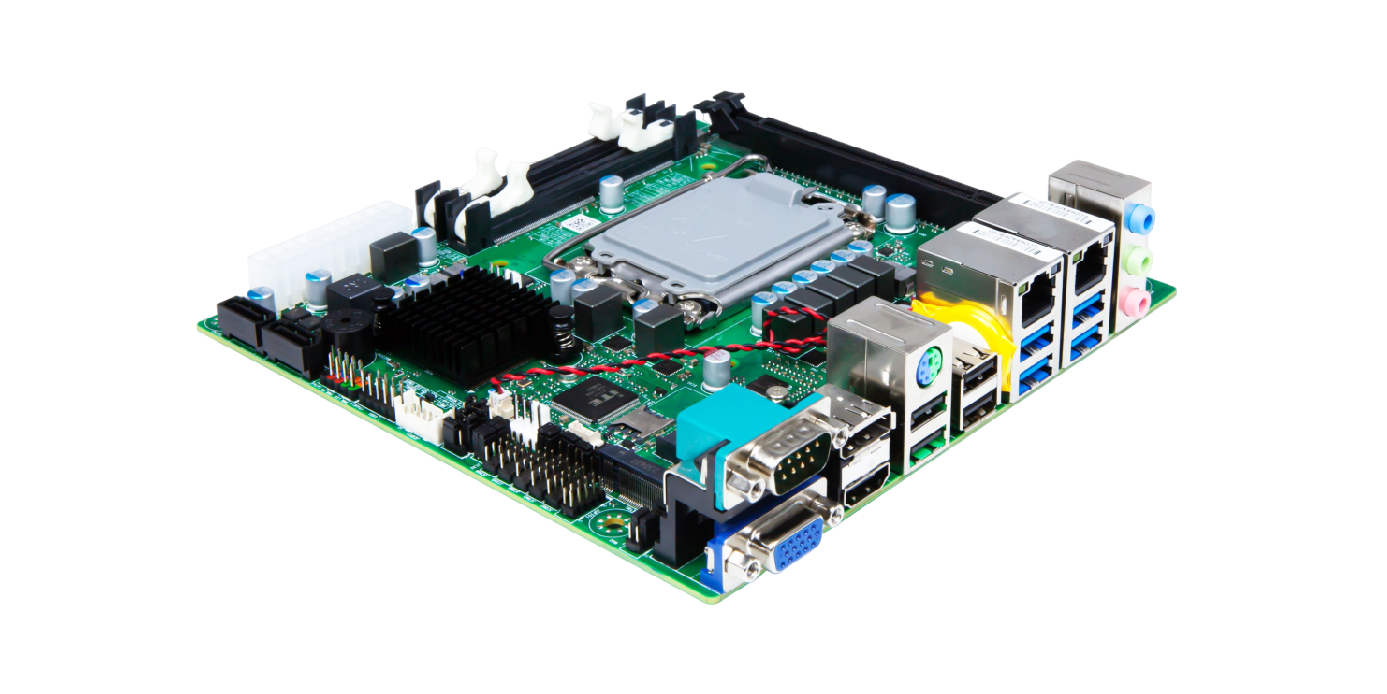

AIoT7-H610
The AIoT7-H610 is a standard Mini-ITX industrial motherboard that supports 12th, 13th, and 14th Gen Intel® processors, offering high performance and extensive interfaces. It supports multiple display outputs, various storage options, multiple USB and COM ports, and several expansion slots. Designed with industrial-grade durability, it provides wide-temperature adaptability and reliability, making it ideal for various industrial applications.
- •
- Supports LGA1700 socket for 12th, 13th, and 14th Gen Intel® i9/i7/i5/i3 CPUs
- •
- Two DDR4 SODIMM slots, supporting up to 64GB
- •
- PCIe 5.0 x16 and one M.2-3042 slot
- •
- Four USB 3.0 ports for connecting industrial cameras
- •
- Four display ports, supporting triple display
- •
- High Tg-grade PCB for enhanced temperature stability
- •
- Industrial-grade I/O protection against ESD and surges, ensuring system stability and reliability
- •
- Optimized interface and expansion layout to minimize interference and facilitate user expansion
CPU | Support LGA1700 packaged Gen12&13&14 i9/i7/i5/i3 CPUs, TDP 65W |
Chipset | Intel ® H610 chipset |
Memory | 2 * DDR4 SODIMM memory slot, single slot 32GB maximum support 64GB Depending on the assigned CPU support DDR4-2133/2400/2666/2933/3200 |
Display controller | Intel CPU Integrated display controller (depending on the assigned CPU) |
Display interface | VGA + HDMI + DP + eDP four display port, support Triple-display |
Storage | 2 SATA 3.0 (6 Gb/s) Ports 1 M.2 2242/2280 Key-M supports Nvme x4 protocol SSD |
Audio | Rear IO Support Mic-in+Line-out+Line-in, Supports audio output with amplifier (4Pin wafer) |
Network | 2x Intel High Speed Ethernet , RTL81111H*2 |

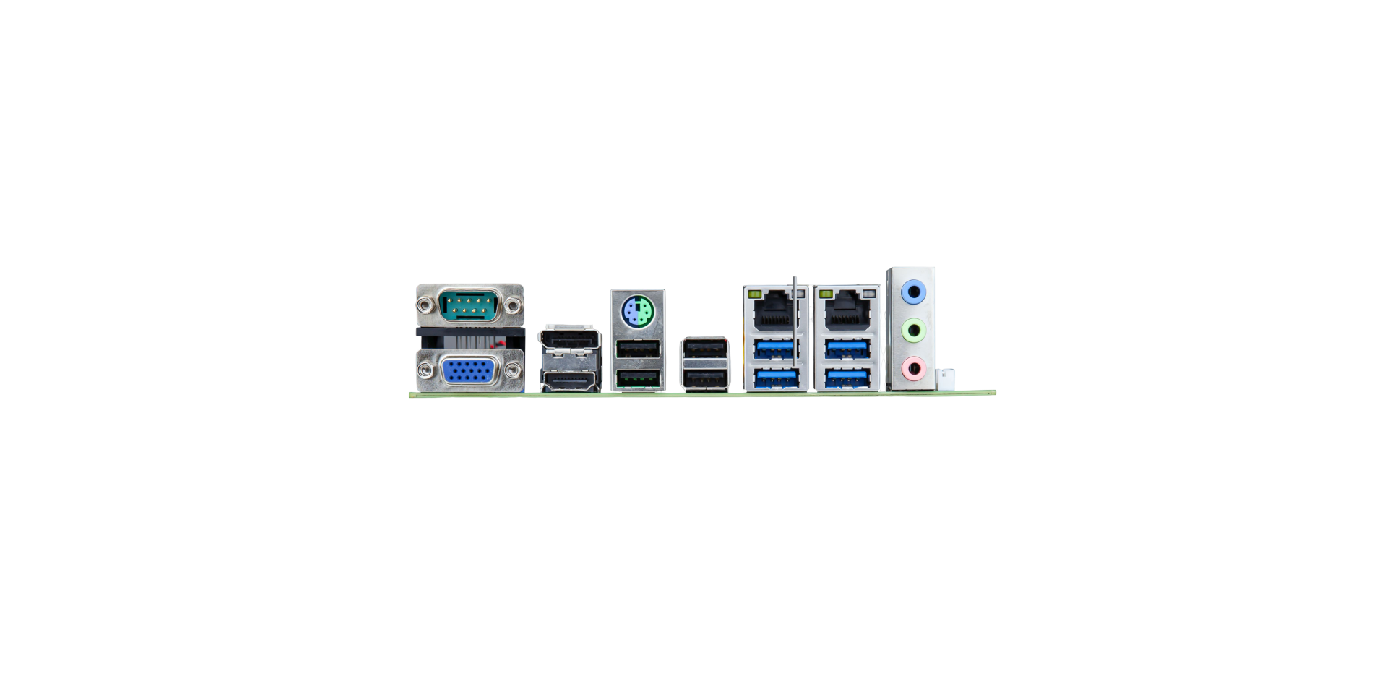

USB | 8 x rear IO USB port ( 4*USB3.0 Type A，4*USB2.0 Type A ) 2 x intenal USB port ( 1 for Pin-header either-or M.2-3042 ） |
Parallel/I²C/SMBus | 1x 4Pin I²CBus |
Serial port | COM1 Support RS232/485，COM2~COM6 Support RS232, COM2&COM3 Support Pin9 +5/12V,COM3 can be optional TTL |
Keyboard & mouse | 1 PS/2 Keyboard & mouse via 2-in-1 connector on the rear IO |
Digital I/O | 8-bit digital I / O, providing power supply and ground, + 5V level |
LPC/eSPI | 1 eSPI bus |
TPM interface | On board encryption chip SLB9670, supporting TPM2.0 |
Power supply | ATX Power Supply, supports ATX/AT power switch mode |
Expansion bus | 1 M.2 Key-B 3042 Support 4G/5G(PCIe x1,USB2.0)； 1 PCIe4.0 x16 slot |
Operating temperature and humidity | -10℃~60℃, relative humidity 0%~90%, no condensation, air pressure 85-105kPa |
Non-operating temperature and humidity | -40℃~85℃, relative humidity 0%~90%, no condensation, air pressure 85~105kPa |
Watch Dog | 255-level programmable in the mode of seconds/minutes, supports timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Win10 x64，Win11 x64，Linux Ubuntu 22.04 |
PCB dimensions (L*W) | 170mm * 170mm |
