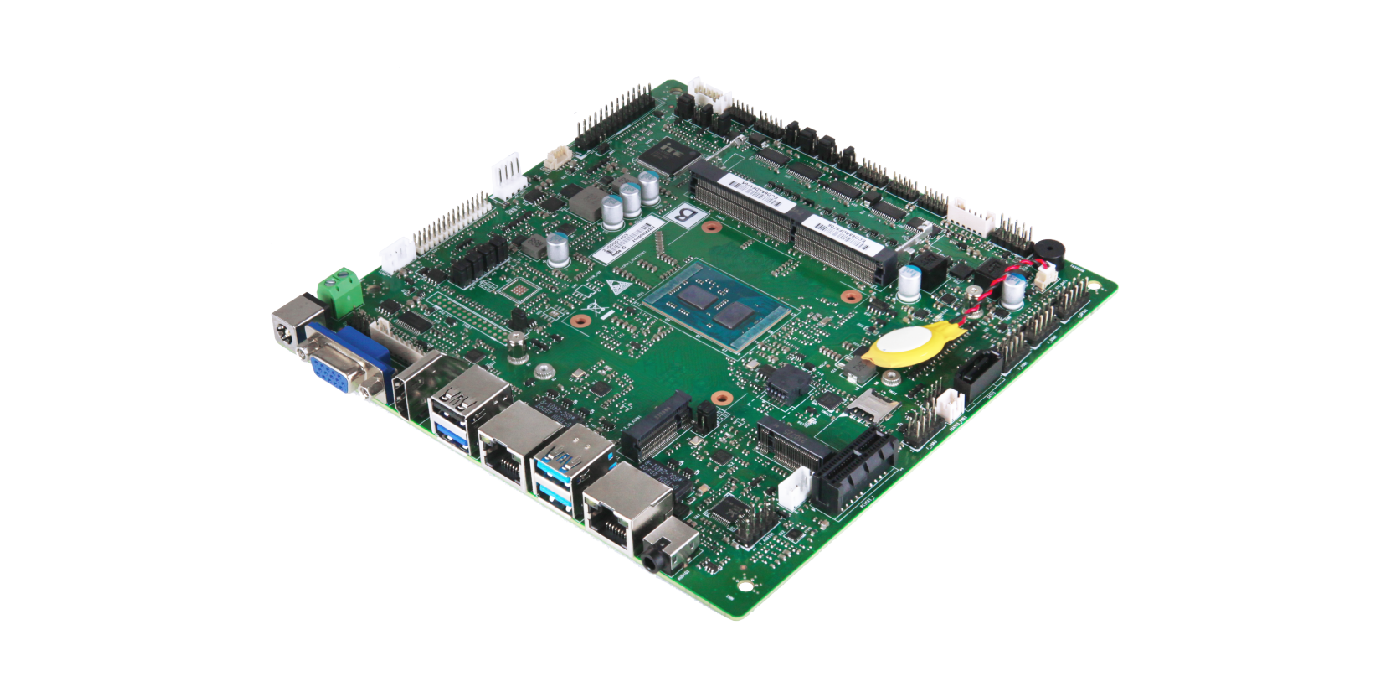

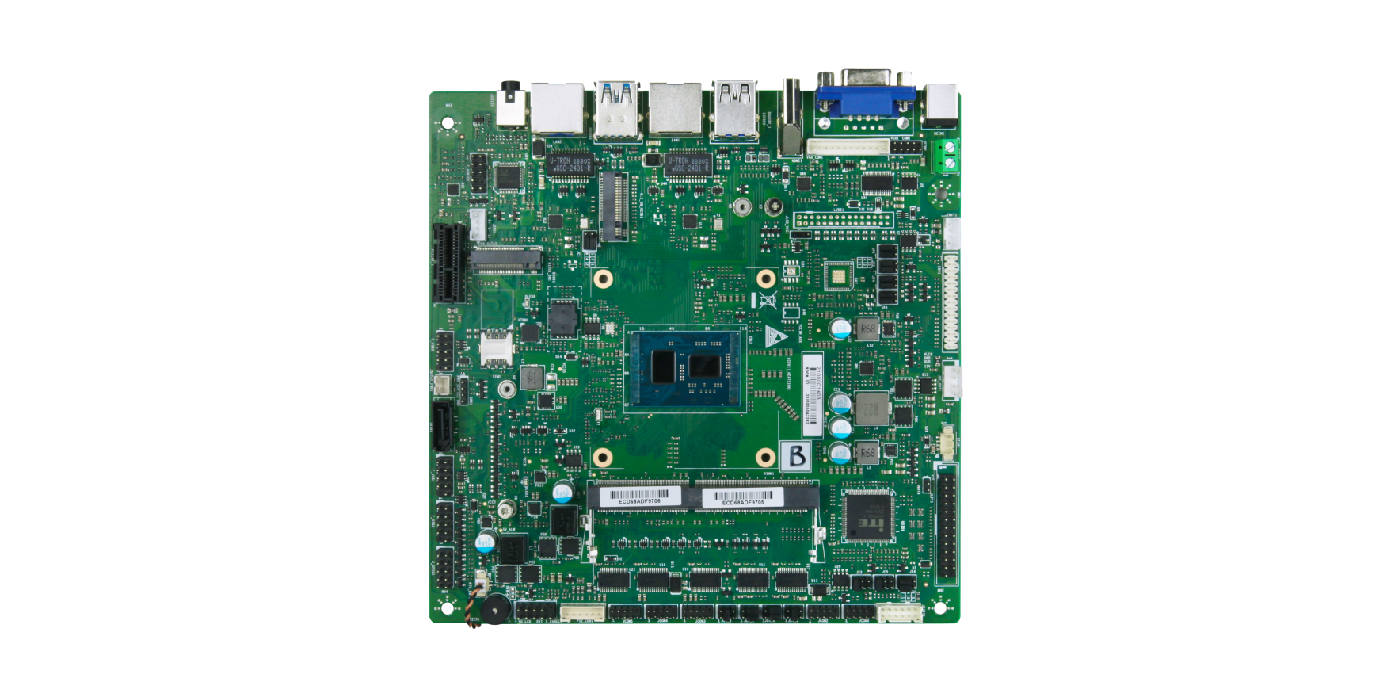

AIoT7-EHL12
The AIoT7-EHL12 uses the J6412 board-mounted CPU and features rich interfaces and buses, supporting serial port power sweep guns, TTL-level serial port devices, and digital switch control interfaces. It can be used for POS systems, lottery betting stations, gaming consoles, self-service equipment, and also meets certain industrial automation application requirements.
- •
- Onboard Intel Elkhart Lake J6412 4 Core 2.0~2.6GHz CPU
- •
- 1 strip of DDR4 SO-DIMM slot, max. 32 GB
- •
- 3 Display port/1*SATA/2*GbE/10*USB/6*COM/1PCIe
- •
- COM1 supports RS485, COM2~6 support RS232
- •
- 2 RTL8111H high-speed network interfaces
- •
- 1 PCIe 3.0x1 Slots, 1 M.2 Key-B 3042/3052 supports 4G / 5G
- •
- 1 M.2 2242/2280 support the SATA protocol SSD
- •
- Support for digital audio output with power amplifier
CPU | Onboard Intel Elkhart Lake J6412 4 Core 2.0~2.6GHz CPU |
Chipset | Intel Elkhart Lake SOC |
Memory | 1 DDR4 SODIMM memory slot, up to DDR 4-3200, up to 32GB |
Display controller | Intel CPU Integrated UHD display controller |
Display interface | Three display port HDMI + VGA + eDP / LVDS, support triple-display VGA maximum resolution 1920x1200@60Hz; HDMI maximum resolution 4096x2160@30Hz eDP resolution 4096x2160@ 60Hz; LVDS best resolution: 1920 * 1080 |
Storage | 1 SATA 3.0, 1 M.2 2242/2280 support the SATA protocol SSD |
Audio | The posterior IO Mic-in + Line-out combo Jack Support chassis front panel audio pin, support audio output with power amplifier (4Pin wafer) |
Network | 2 RJ 45 Gigabit Ethernet ports, RTL8111H |

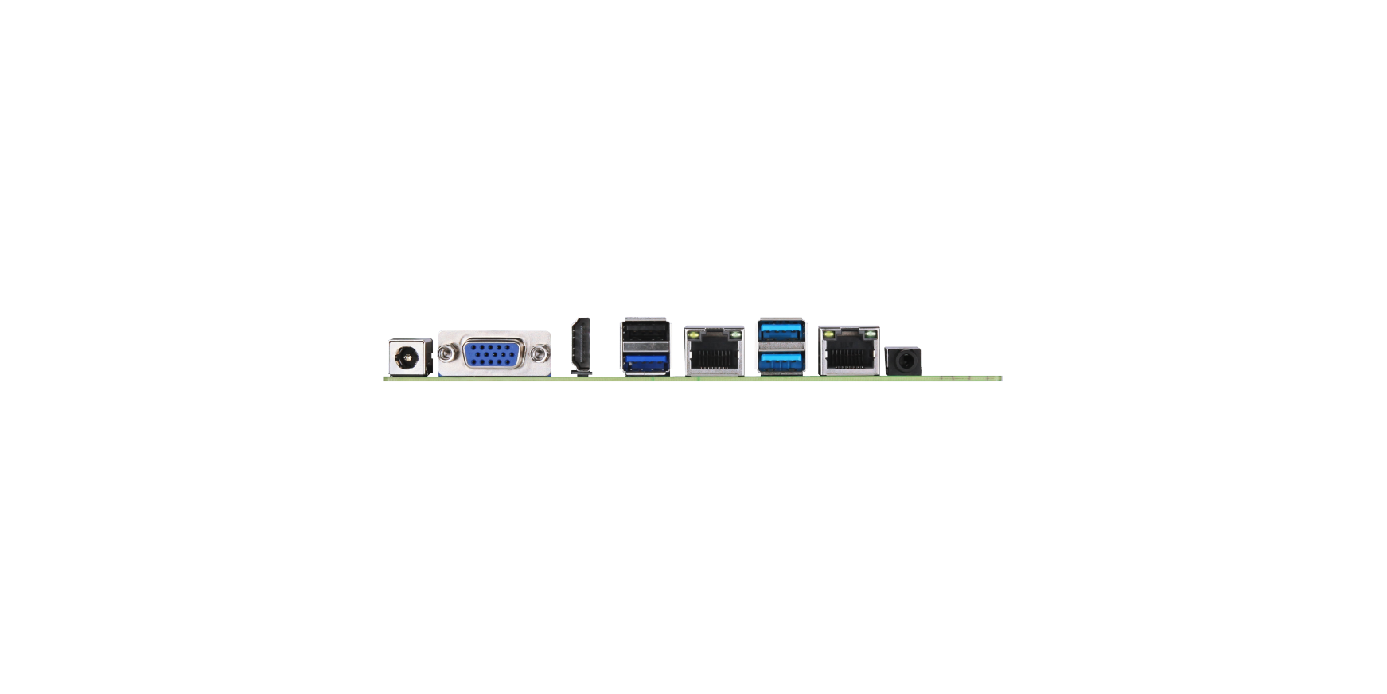

USB | 4 rear IO USB（3 x USB 3.0 Type-A and 1 USB 2.0 Type-A ) 6 intenal USB (One of the jumpers is selected to M.2-2230) |
Parallel/I²C/SMBus | 1 Parallel , 1 4Pin SMBus |
Serial port | COM1 support RS232 / 485, COM2-COM6 support RS232 COM2 & COM3 supports Pin9 5/12V power supply, COM3 optional TTL signal |
Keyboard & mouse | 1 * PS2 keyboard and mouse, via pin-header |
Digital I/O | 8-digit I/O, providing power and ground, +5V level |
LPC/eSPI | 1 * eSPI bus |
TPM interface | On-board encryption chip SLB9670VQ2.0/SLB 9672VU2.0, support TPM 2.0 |
Power supply | DC-Jack 12V input, optional 2 Pin Phoenix connector input DC-Out power supply : 12v and 5V@500mA |
Expansion bus | 1 PCIe 3.0 x 1 expansion slot 1 M.2 Key-B 3042/3052(PCIeX1+USB3.0+USB2.0), Support for 4G / 5G modules (WiFi and BT support via M2-3042to2230 transfer card) |
Operating temperature and humidity | 0~60℃, 10% to 90%, and no condensation |
Non-operating temperature and humidity | -40 to 80℃, 10% to 90%, and no condensation |
Watch Dog | 255 level programmable seconds / minutes, support timeout interruption or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Windows10，Windows11，Linux Ubuntu 20.04 |
PCB dimensions (L*W) | 170mm*170mm |
