IPC-4U840-W

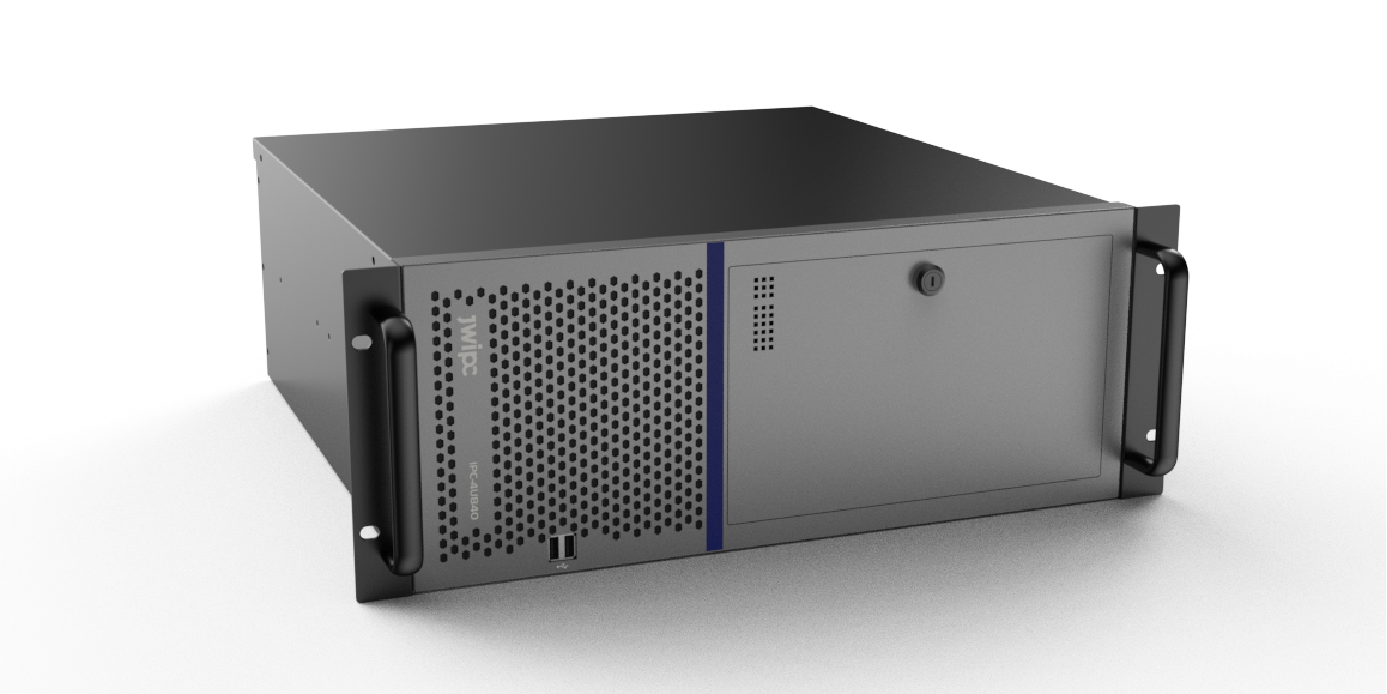

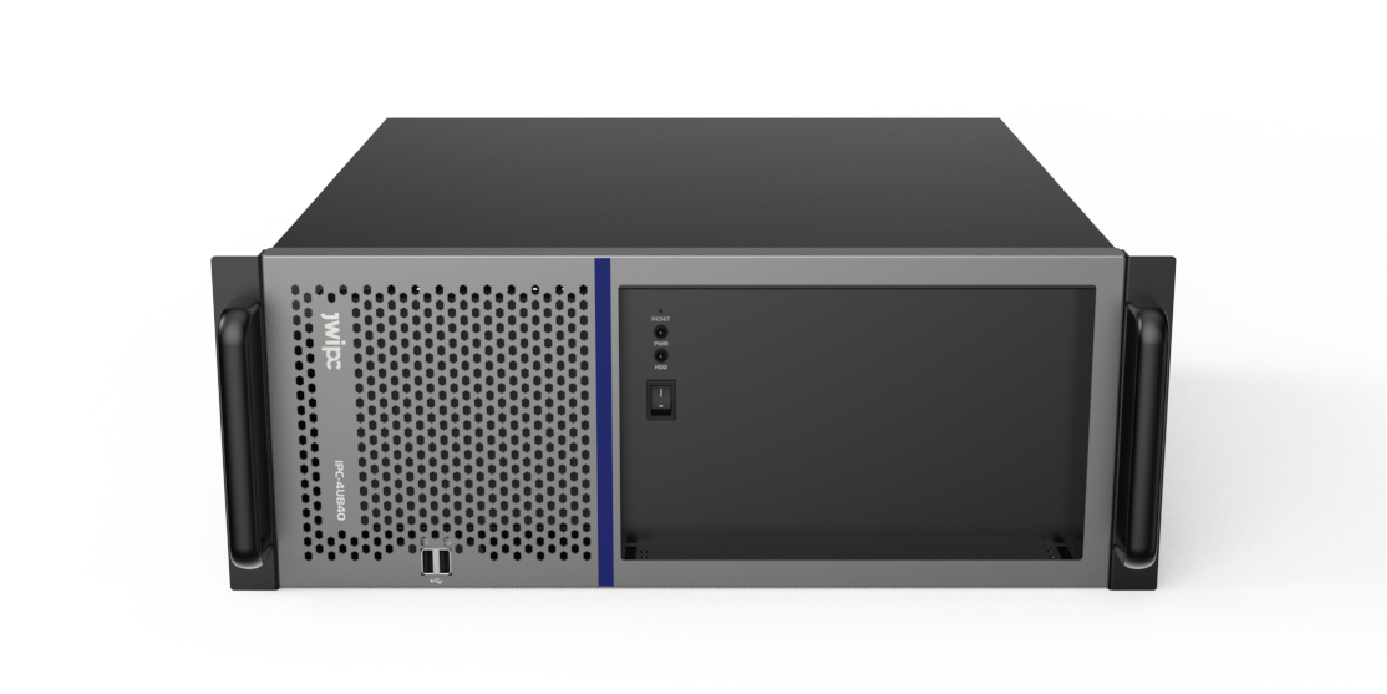

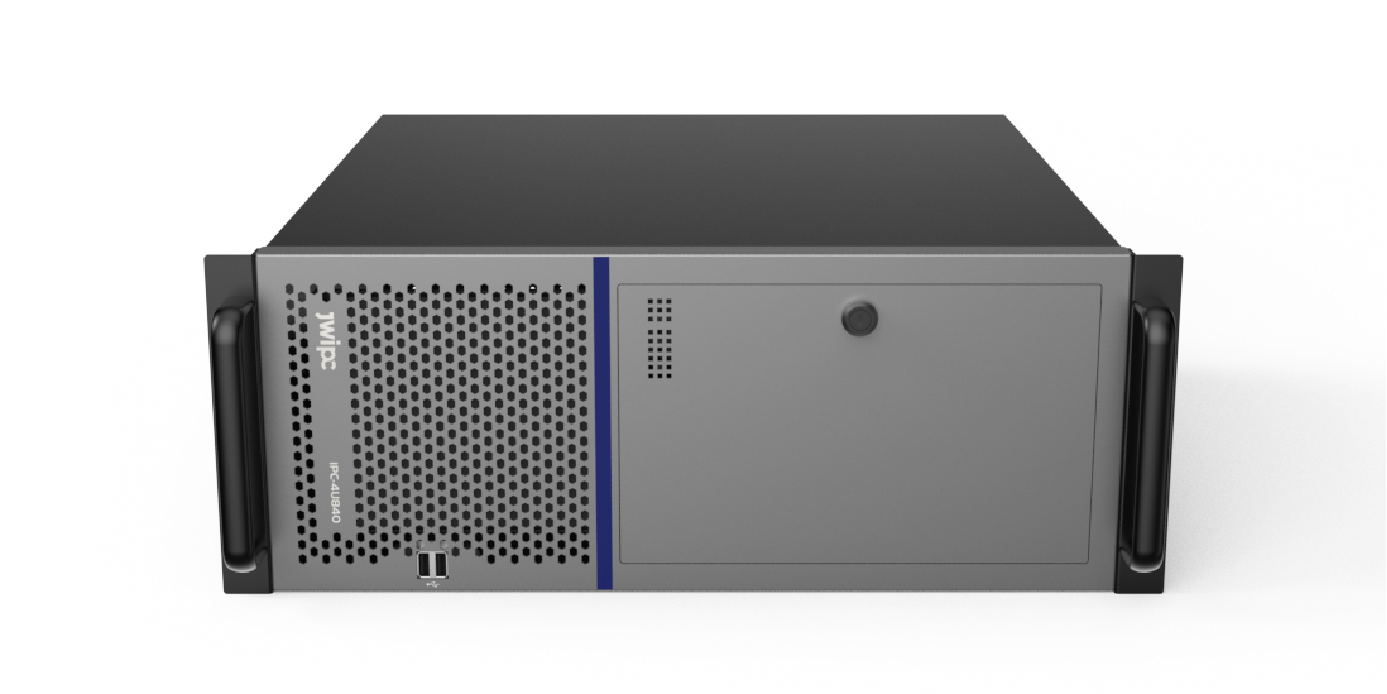

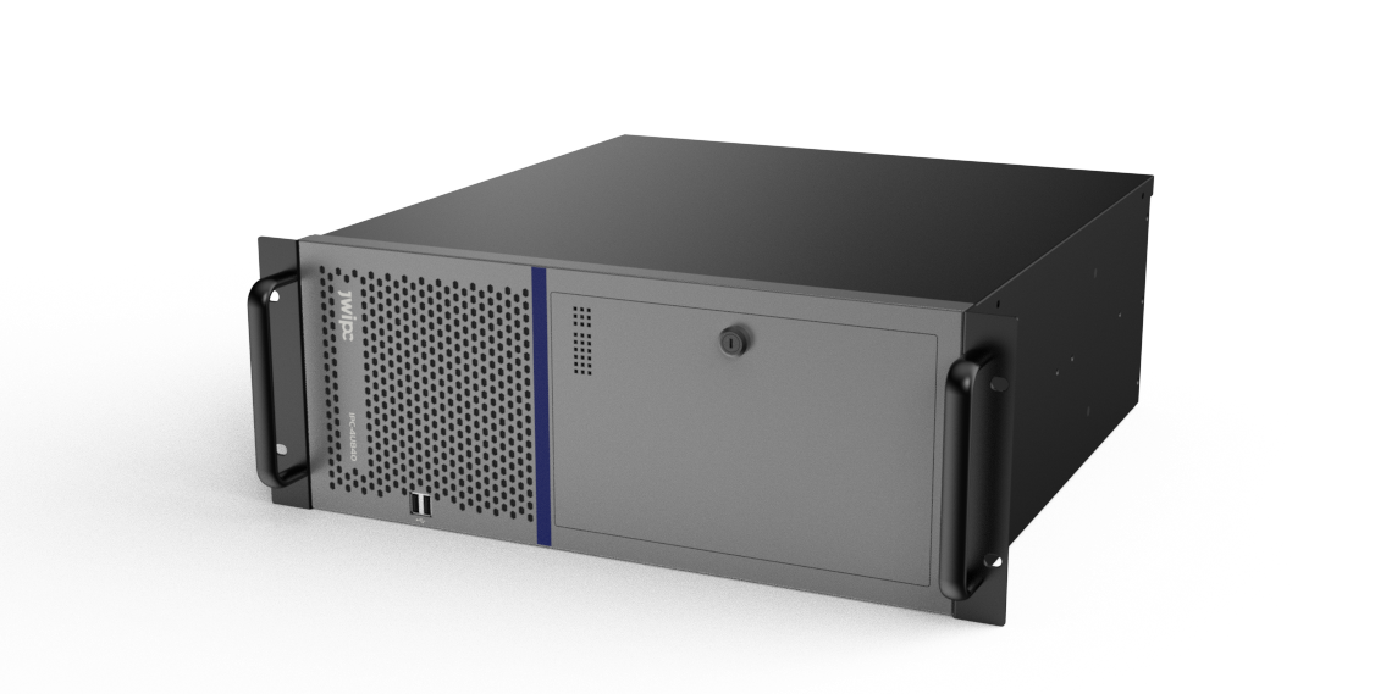

4U 19" standard rack-mounted industrial computer with Intel® W580 chipset, XXidon W-1390P CPU and 750W ATX power supply, supporting multiple serial ports, USB, and PCI/PCIE expansion. It can be widely used in deep learning, artificial intelligence, machine vision (such as automated inspection, automatic image analysis and processing), automated production and inspection.
- •
- Equipped with Xeon W-1390P CPU, it is deeply optimized for deep learning applications and supports VNNI and AVX-512 instruction set to improve AI processing capability. Four DDR4 U-DIMM slots support up to 128GB. Four display output DP+DP+HDMI+DVI-D, support three display mode
- •
- Dual gigabit network port /14USB/6COM/1PCI/6PCIe, of which 10 USB3.0 high-speed ports can connect high-definition video devices
- •
- Support Win10 x64, Win11 x64, Ubuntu 22.04, support a key restore OS
- •
- Compatible with 2 3.5" hard drive bits and 1 2.5 "SSD. 1 M.2 slot compatible with SATA or NVMe protocol
- •

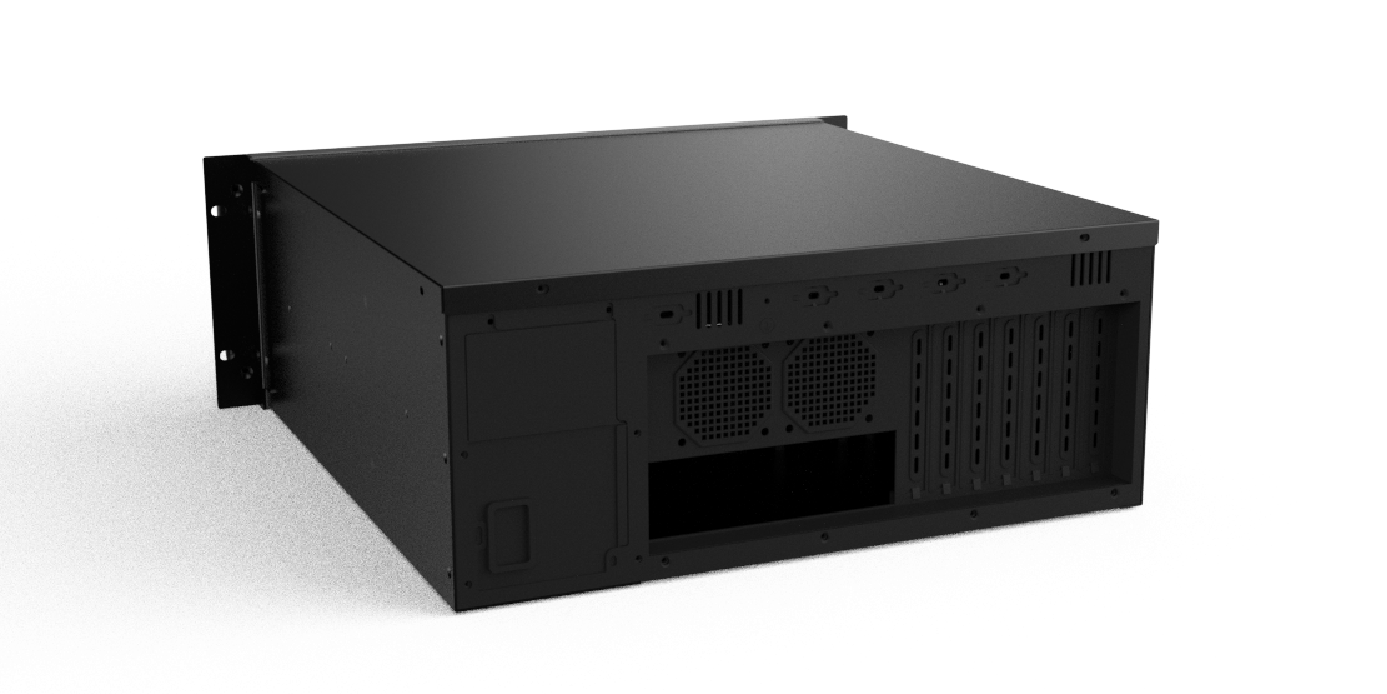

- Seven full-height PCI/PCIE expansion slots, with batten and fixed
- •
- Designed for 7x24 hours uninterrupted use
System | Processor | Equipped with Intel® Xeon® W-1390P CPU (16M Cache, up to 5.30 GHz) |
Chipset | Intel® W580 Chipset | |
BIOS | AMI UEFI BIOS | |
Graphics card | Intel CPU integrated display controller | |
Storage | 4×288PIN DDR4-UDIMM memory slot, single 32GB supports up to 128GB. Supports DDR4-2133/2400/2666/2933/3200 according to the configured CPU. | |
I/O Interface | USB | Front panel 2 USB2.0, rear I/O blank 10 USB3.0 Type A, 2 USB2.0 Type A reserved in the motherboard for USB Dongle default |
COM | 6 serial ports (COM1&2 supports RS232/422/485, COM3-6 supports RS232) | |
LED | POWER LED，HDD LED | |
Expansion | PCIE / PCI / M.2 | 2 PCIe4.0 x16 slots (x8 signal), 1 PCIe4.0 x4 slot (only supported by 11th generation CPU), 1 PCIe3.0 x8 slot (x4 signal), 1 PCIe3.0 x4 slot , 2 standard PCI slots (32bit) |
Interface | Interface | Quad display output DP+DP+HDMI+DVI-D, supports independent three displays |
Storage | Storage Device | 4 SATA3.0 supports Raid 0/1/5 (SATA1 has no signal when SATA SSD is inserted into M.2) 1 M.2 2242/2280 Key-M SSD socket supports SATA/NVMe x4 (only supported by Gen11) |
Drive Bay | 1 2.5” SSD installation position, 2 3.5” mechanical disk installation positions | |
Audio | Audio Codec | Realtek ALC897 |
Audio Interface | Support MIC-In, Speaker-Out, Line-In three-hole audio | |
Ethernet | LAN | 2 Intel Fast Ethernet ports: LAN1: i226-LM 2.5Gb, LAN2: I219v |
Power supply | Power Input | Equipped with standard ATX 750W power supply |
Power Interface | Support ATX/AT switch mode | |
Others | OS Supports | Support Win10 x64, Win11 x64, Linux (Ubuntu22.04) |
Watchdog Timer | Supports configuration via in-board USB Dongle | |
TPM | Onboard encryption chip SLB9670(SLB9672) support TPM2.0(default) / BOM Optional TCM chip | |
System Fan | Standard 1*12025 Fan, 2*6025 Fan | |
Physical parameters | Dimensions | 430mm ×178mm ×450mm (W x H x D) |
Weight | 15KG | |
Mounting | Desk/Rackmount | |
Working environment | Operating Temp. | 0℃～45℃ |
Storage Temp. | -40℃～55℃ | |
Humidity | Working relative humidity 20%～80%，Non-operating relative humidity 20%～93%(40℃) | |
Shock | Working status: 1Grms@5~500Hz , Non-working status：2Grms@5~500Hz | |
Vibration | 3 directions, 10G(11ms half sine wave), 3 times/direction |
