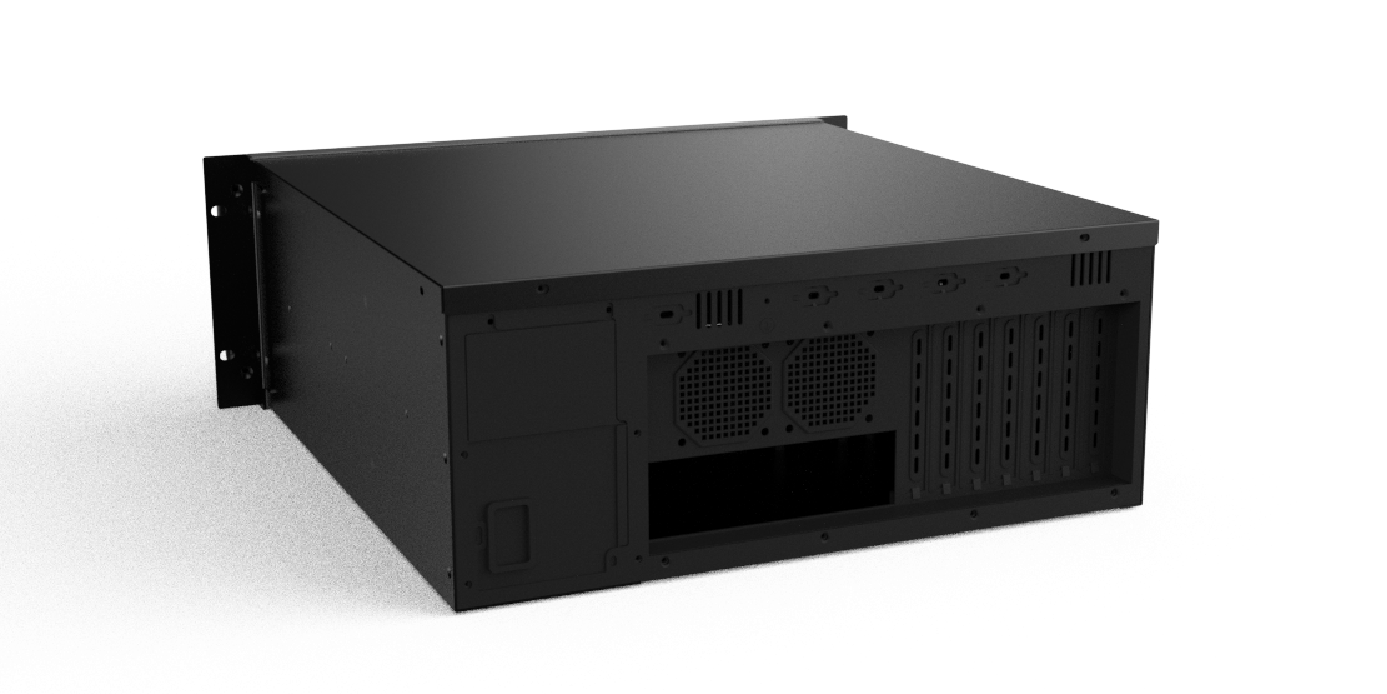

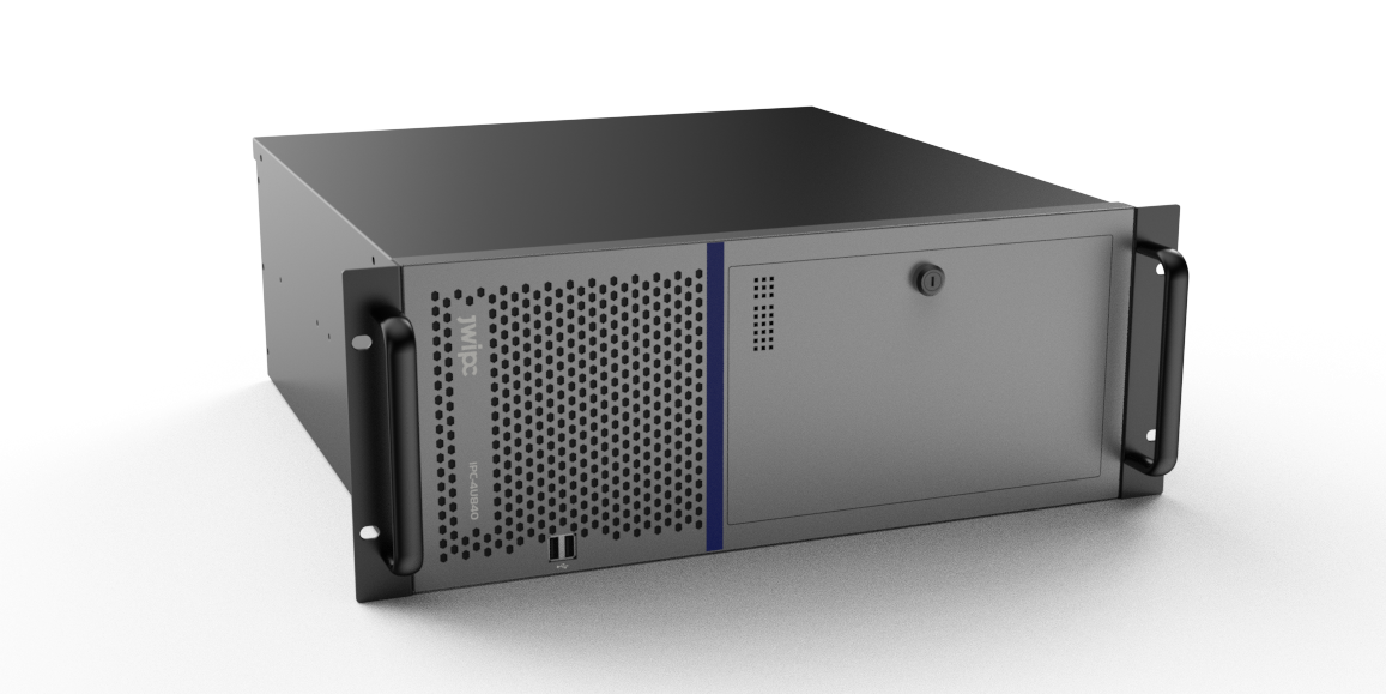

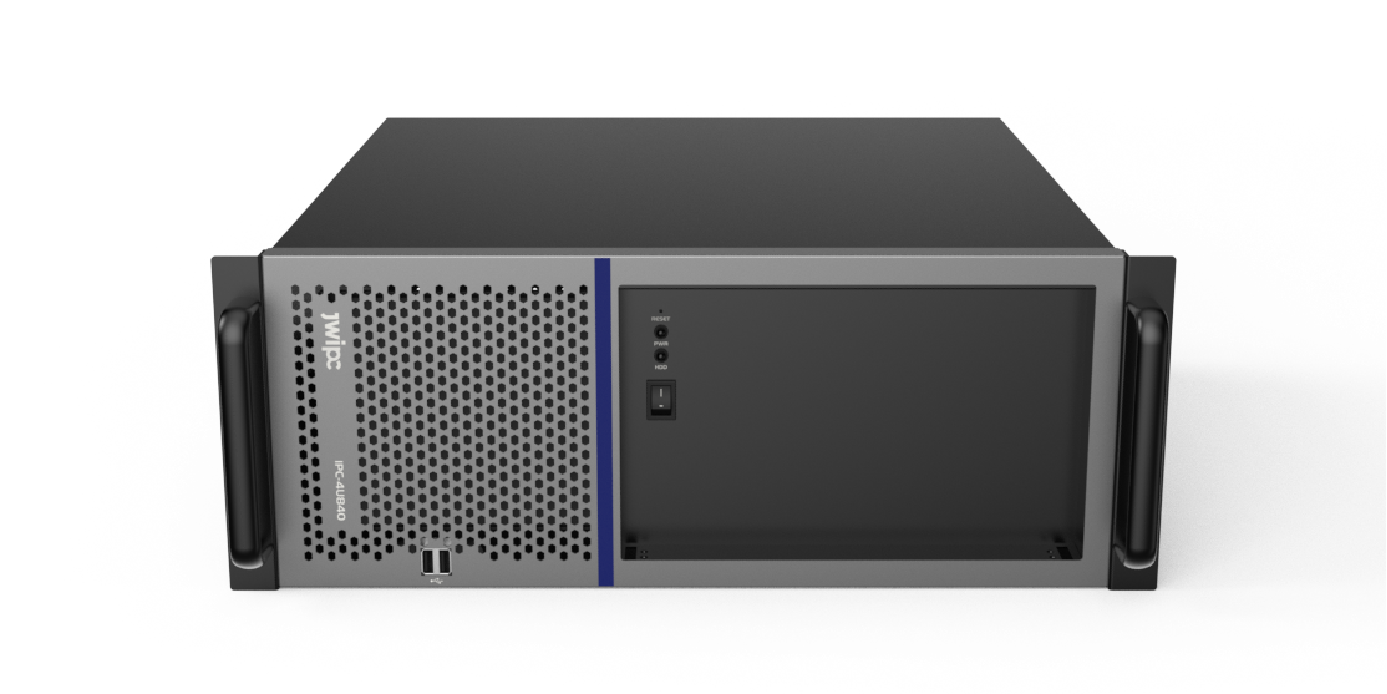

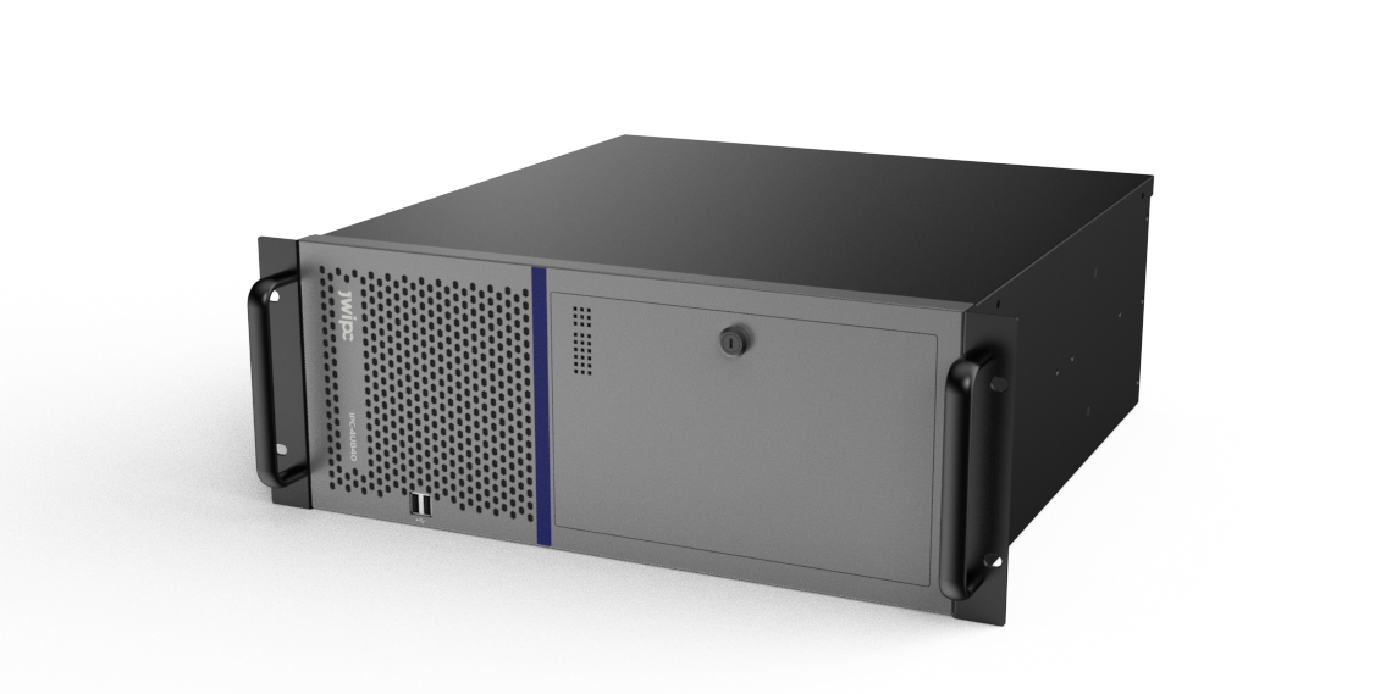

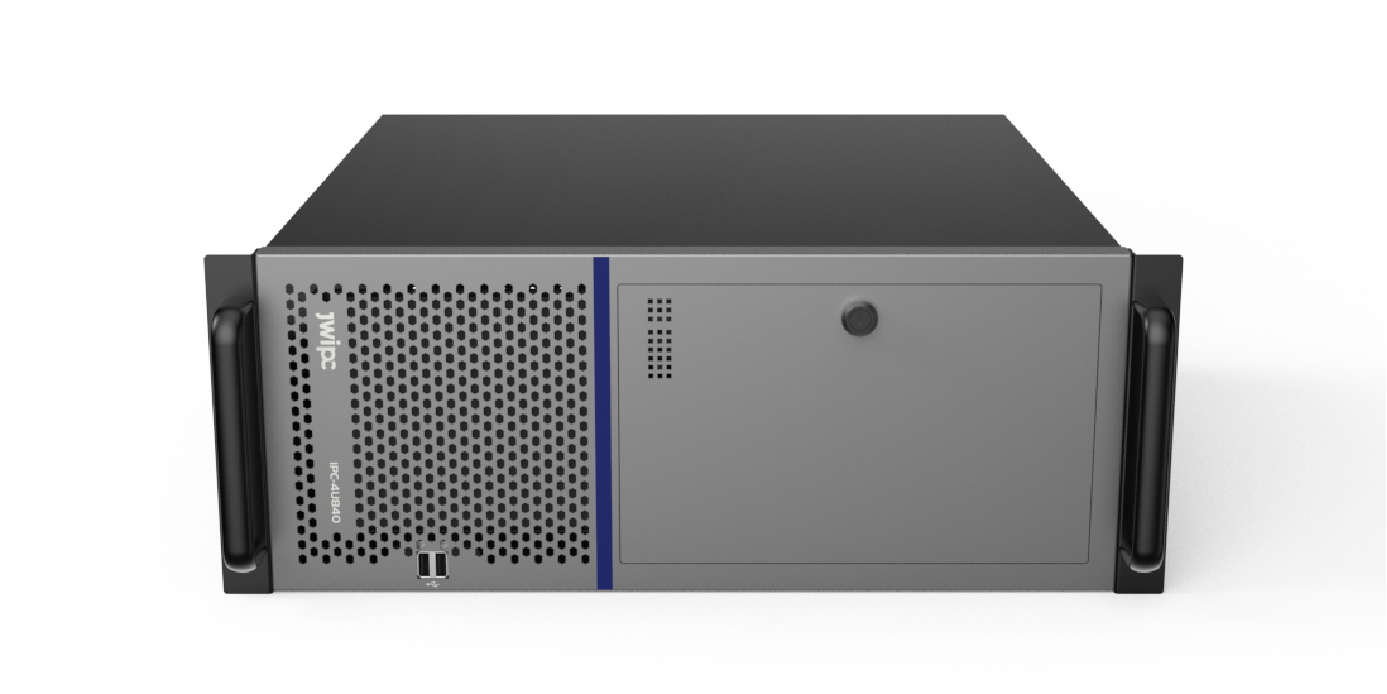

IPC-4U840-Q
4U 19" standard rack industrial computer, using Intel® Q570 chipset, equipped with 750W ATX power supply, support up to 6 Gigabit network ports, support multiple serial ports and PCI/PCIE expansion, can be widely used in artificial intelligence, machine vision (such as automated inspection, automatic image analysis and processing) and other industries.
- •
- Support LGA1200 package Gen10&11 W/i9/i7/i5/i3/G CPU,TDP 125W, i5 and above CPU can support vPro
- •
- Four DDR4 U-DIMM slots support up to 128GB. Three display output VGA+DP+HDMI
- •
- Six Intel Gigabit network ports to connect HD video devices
- •
- 8USB/2COM/2PCI/5PCIe
- •
- Support Win10 x64, Win11 x64, Ubuntu 22.04, support a key restore OS
- •
- Compatible with 2 3.5" hard drive bits and 1 2.5 "SSD. Compatible with one M.2 Key-M 2242/2280 supports SATA SSD, and one M.2 Key-M 2280 supports nVME x4/SATA adaptive. Provides seven full-height PCI/PCIE expansion slots, with layering and securing
System | Processor | Supports Intel LGA1200 packaged Gen10&11 i9/i7/i5/i3/G series CPUs |
Chipset | Intel® Q570 chipset | |
BIOS | AMI UEFI BIOS | |
Graphics card | Intel CPU Integrated display controller | |
Storage | 4×288PIN DDR4-UDIMM memory slot, single 32GB supports up to 128GB; Supports DDR4-2133/2400/2666/2933/3200 according to the equipped CPU | |
I/O Interface | USB | Front panel 2 USB2.0, rear I/O blank 10 USB3.0 Type A, 2 USB2.0 Type A reserved in the motherboard for USB Dongle default |
COM | SIM0-7360-6L：2 串口COM1&2 支持 RS232/485 | |
LED | POWER LED，HDD LED | |
Expansion | PCIE / PCI / M.2 | 2 PCIe4.0 x16 slots (x8 signal), 1 PCIe4.0 x4 slot (only supported by 11th generation CPU), 1 PCIe3.0 x8 slot (x4 signal), 1 PCIe3.0 x4 slot , 2 standard PCI slots (32bit) |
Interface | Interface | Three display mode VGA+DP+HDMI |
Storage | Storage Device | 4 SATA3.0 supports SATA Raid 0/1/5/10, 1 M.2 Key-M 2280 supports nVME x4 SSD, 1 M.2 Key-M 2242/2280 supports SATA protocol SSD |
Drive Bay | 1 2.5” SSD installation position, 2 3.5” mechanical disk installation positions | |
Audio | Audio Codec | Realtek ALC897 |
Audio Interface | Support MIC-In, Speaker-Out, Line-In three-hole audio | |
Ethernet | LAN | SIM0-7360-6L: LAN1: i219LM , LAN2~6: i210AT |
Power supply | Power Input | Equipped with standard ATX 750W power supply |
Power Interface | Support ATX/AT switch mode | |
Others | OS Supports | Support Win10 x64，Win11 x64，Linux （Ubuntu22.04） |
Watchdog Timer | Supports configuration via in-board USB Dongle | |
TPM | No onboard encryption chip | |
System Fan | Standard configuration: 1 12025 fan, 2 6025 fans | |
Physical parameters | Dimensions | 430mm ×178mm ×450mm (W x H x D) |
Weight | 15KG | |
Mounting | Desk/Rackmount | |
Working environment | Operating Temp. | 0℃～45℃ |
Storage Temp. | -40℃～55℃ | |
Humidity | Working relative humidity 20% ~ 80%, non-working relative humidity 20% ~ 93% (40℃) | |
Shock | Working state: 1Grms@5~500Hz, non-working state: 2Grms@5~500Hz | |
Vibration | 3 directions, 10G (11ms half sine wave), 3 times/direction |
