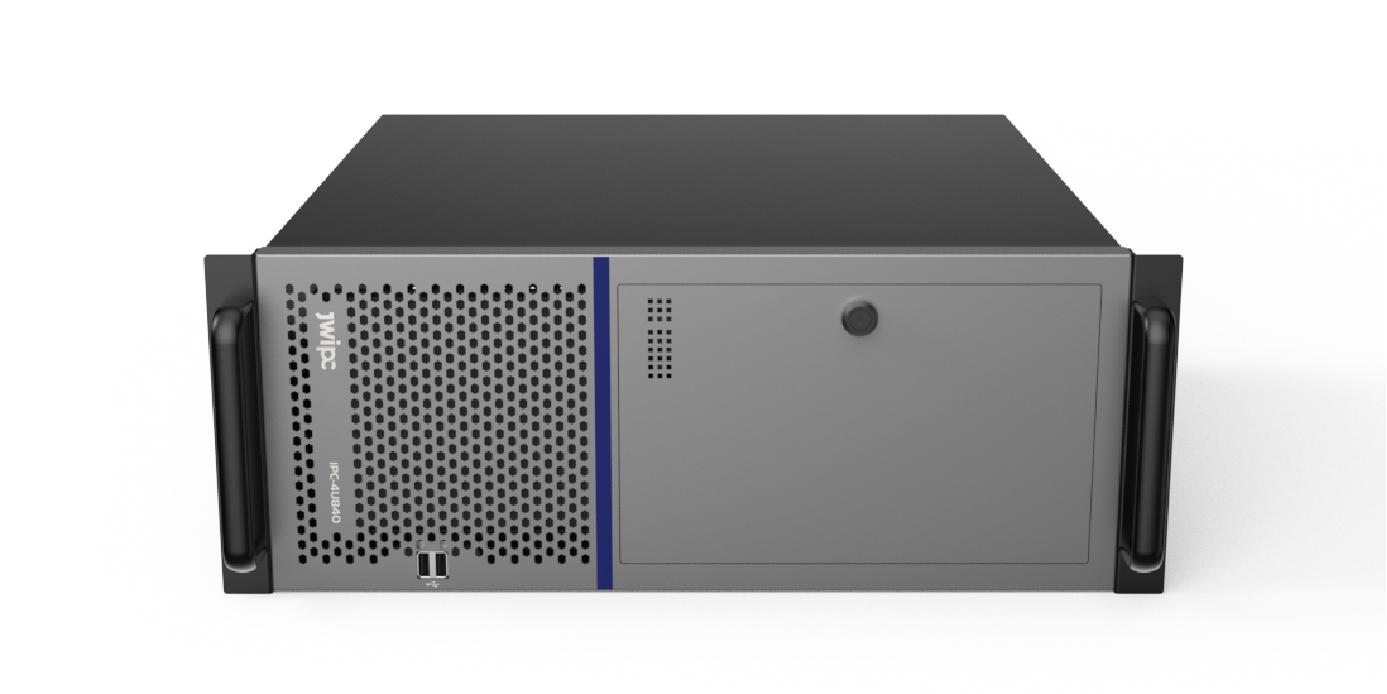

IPC-4U840
IPC-4U840 is a 4U 19" black standard rack chassis with rich external interfaces and support for 7-slot PCI/PCIe expansion, which can be widely used in lithium, photovoltaic, 3C, semiconductor, laser, pharmaceutical and other industries.
- •
- Compatible with ATX, Micro-ATX, Mini-ITX industrial motherboard
- •
- Supports 2 3.5" hard disk mounting slots and 1 2.5" SSD mounting slots
- •
- Seven full-height PCI/PCIE expansion slots, with batten and fixed
- •
- Compatible with ATX power supply and redundant power supply
- •
- The switch/indicator light is located in the lockable and see-through front door to effectively prevent unauthorized operation
- •
- The gauge design can be used in harsh environments such as vibration, dirt, dust and extreme temperature environments
System | Adapted motherboard | Support ATX、Micro-ATX、Mini-ITX |
Optional motherboard | AIoT0-H81, AIoT0-H110, AIoT0-C236, AIoT0-H510, AIoT0-W580, AIoT0-H610, AIoT0-W680 | |
I/O Interface | Front IO | 2*USB，POWER LED，HDD LED，RESET SW，POWER SW |
Rear IO | 5*COM | |
Expansion | Expansion Slot | 7* Full-height expansion slot |
Storage | 2.5” Drive Bay | 1 |
3.5” Drive Bay | 2 | |
5.25” Drive Bay | / Optional | |
Power supply | Power Input | Support ATX 750~1300W |
Power Interface | AC-in | |
Others | System Fan | 1*12025 system fan，2*6025 system fan |
Physical parameter | Dimensions | 430mm x 178mm x 450mm (W x H x D) |
Weight | 15KG | |
Mounting | Desktop/rack installation | |
Working environment | Operating Temp. | 0℃～45℃ |
Storage Temp. | -40℃～55℃ | |
Humidity | Working relative humidity 20% ~ 80%, non-working relative humidity 20% ~ 93% (40℃) | |
Shock | 3 directions, 10G (11ms half sine wave), 3 times/direction | |
Vibration | Working state: 1Grms@5~500Hz, non-working state: 2Grms@5~500Hz |
