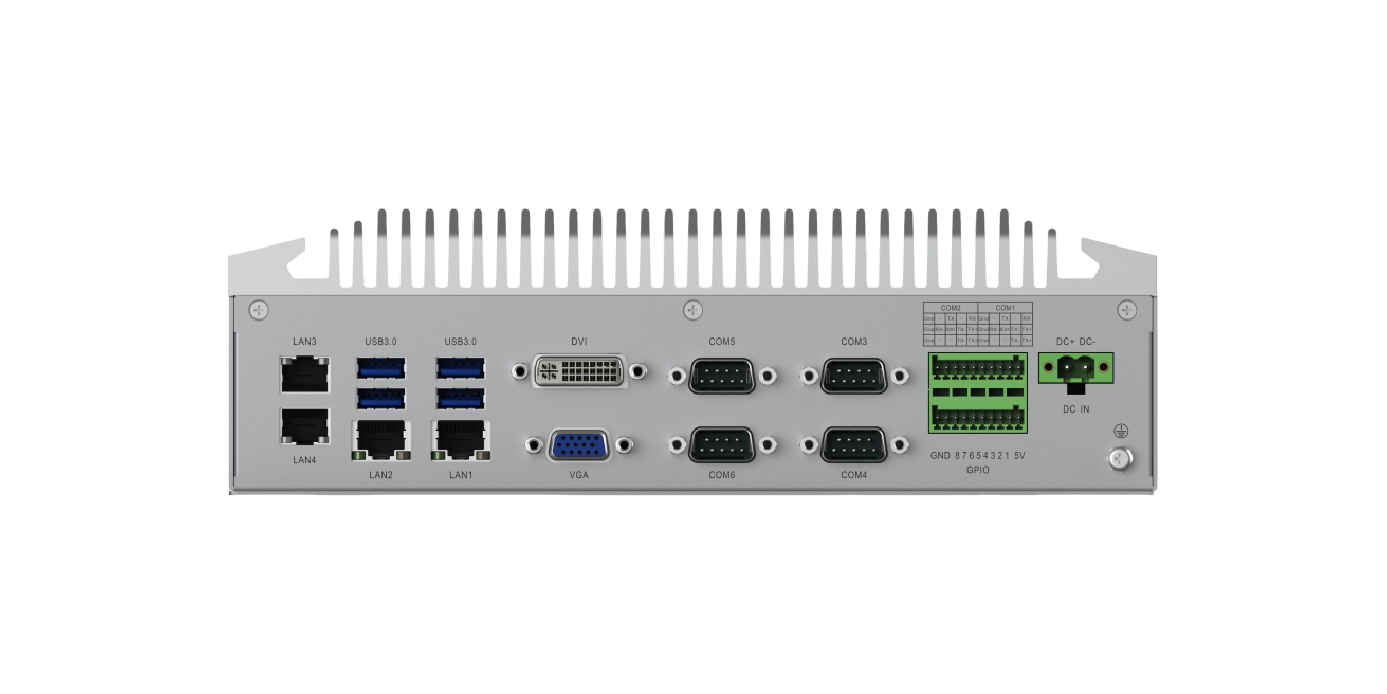

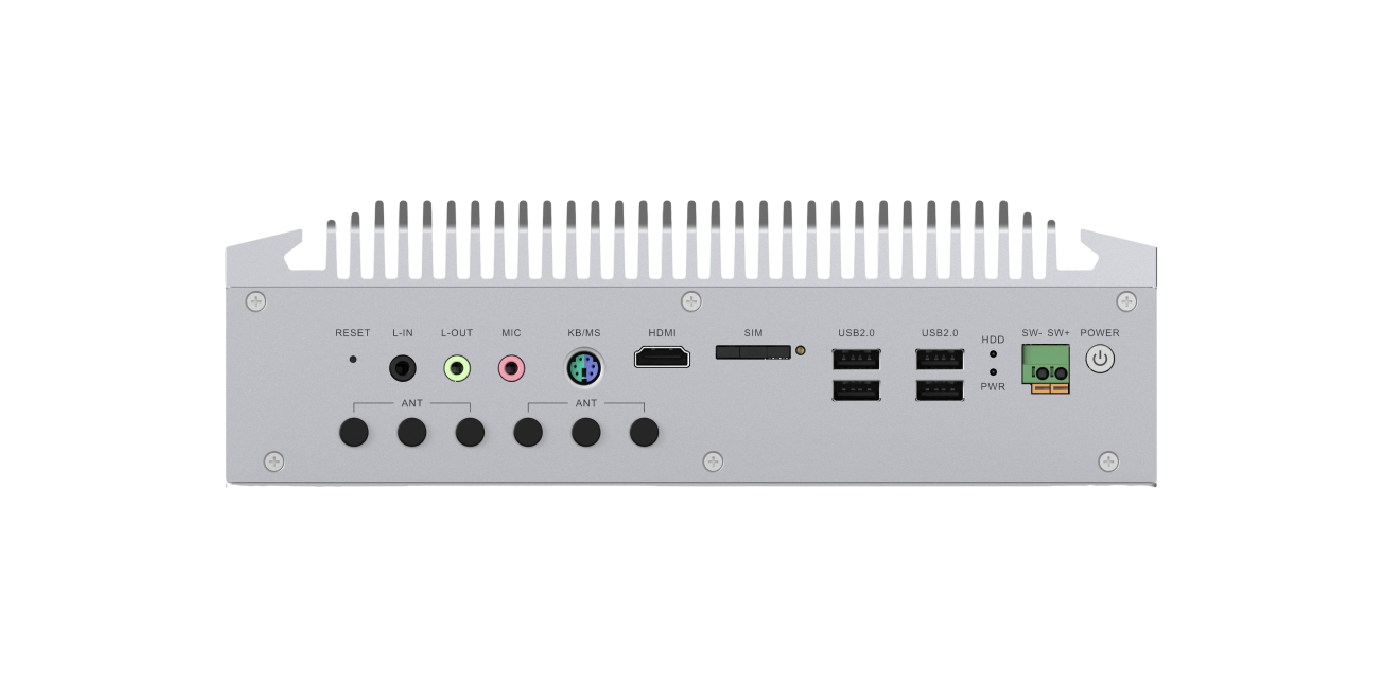

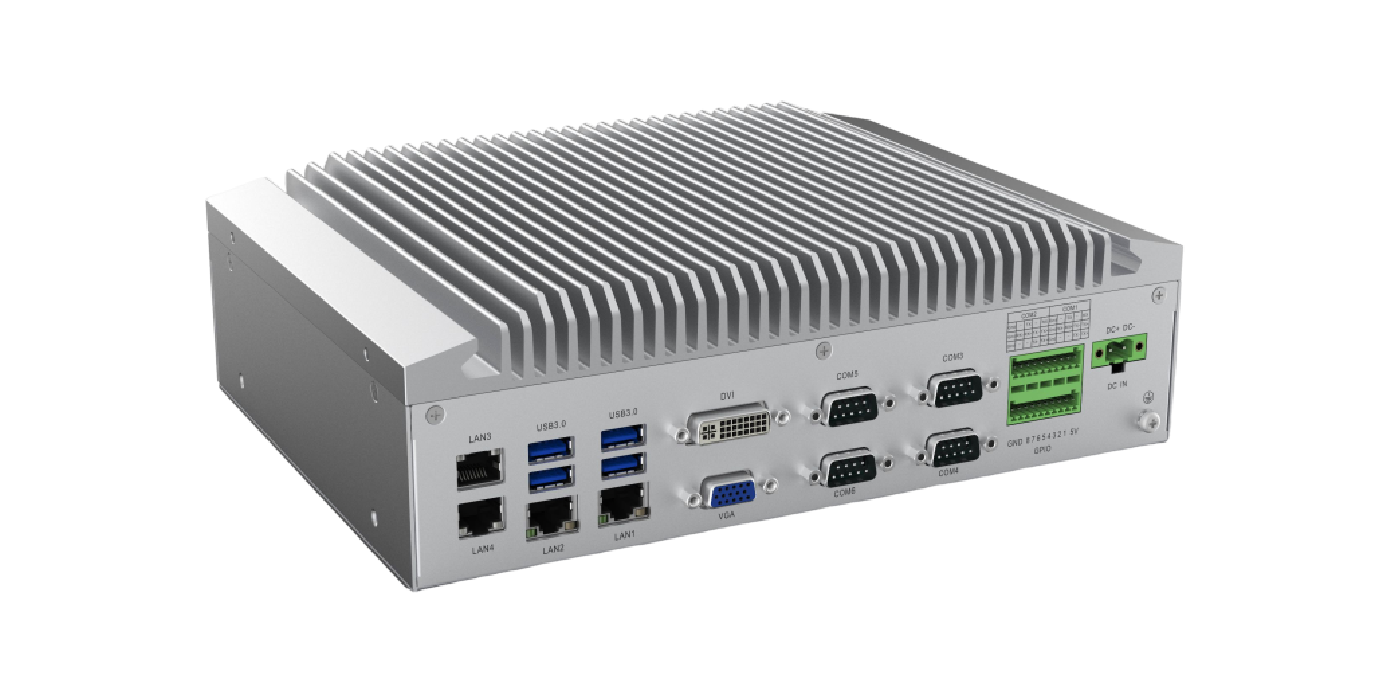

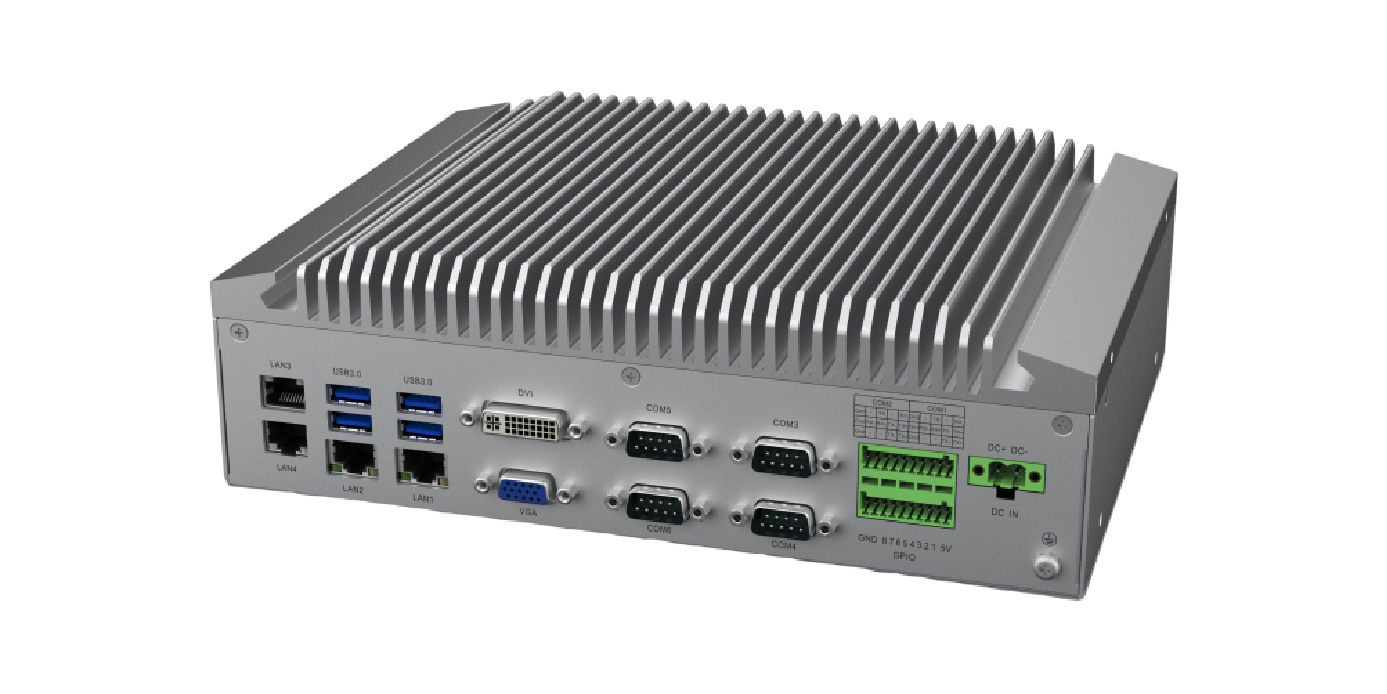

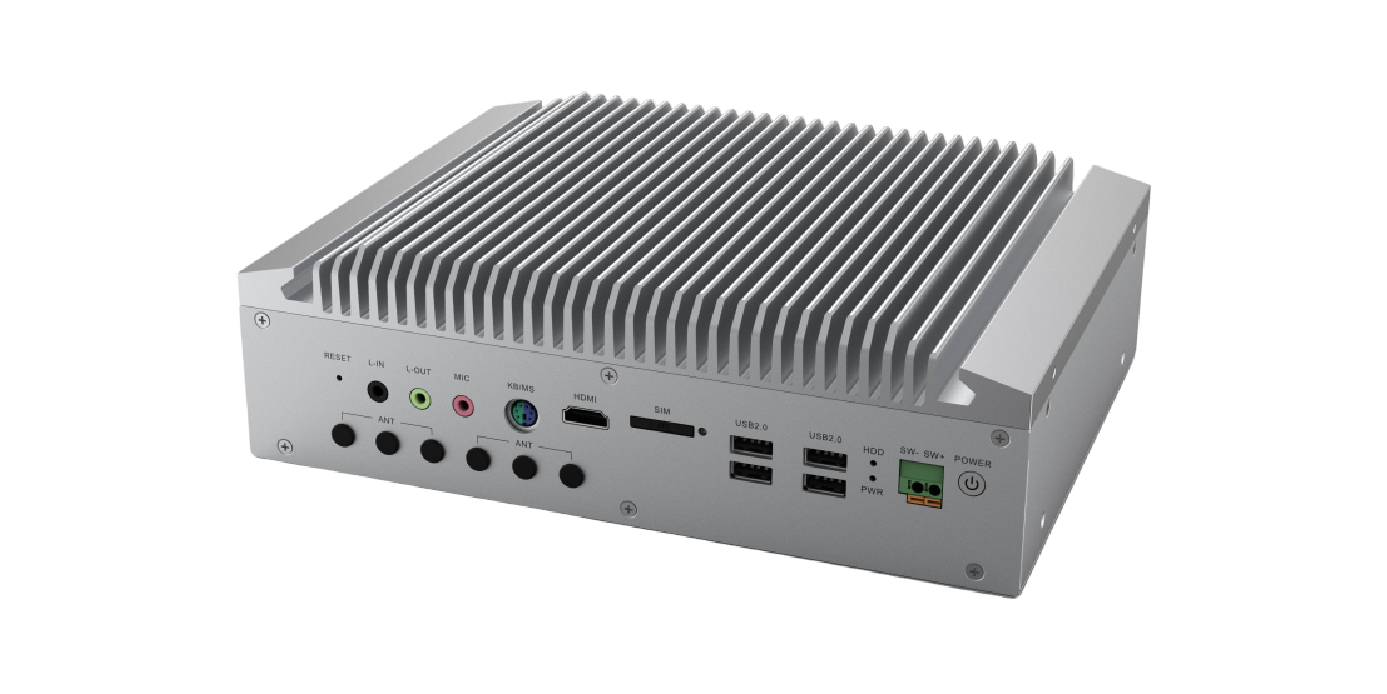

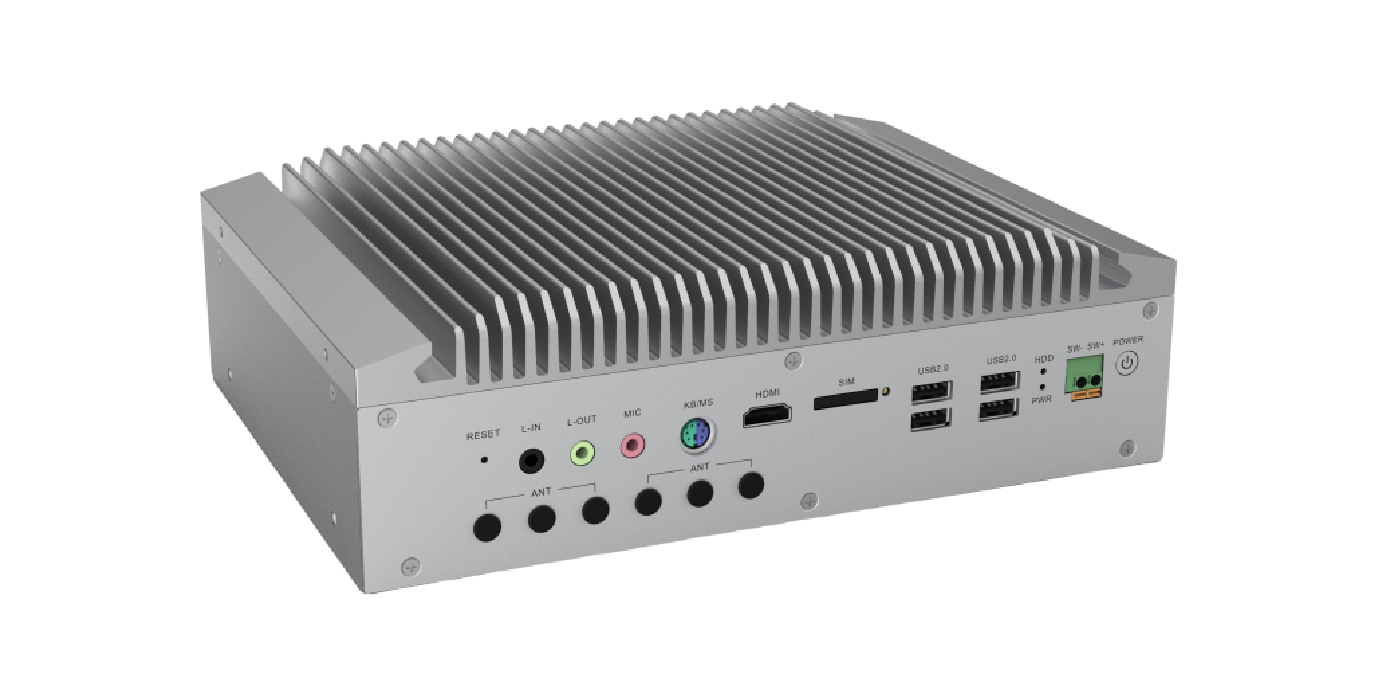

JEC-2701
The JEC-2701 is a high-performance industrial BOX PC featuring Intel® 6th, 7th, 8th, and 9th Gen embedded CPUs. It adopts a fanless design with an aluminum alloy chassis for efficient heat dissipation and durability. The system includes four Gigabit Ethernet ports, supports 5G networking, and offers a variety of interfaces such as COM, USB, and display outputs. With strong expandability and reliable performance, it is well-suited for a wide range of industrial applications
- •
- Gen. 6/7/8/9 i3/i5/i7/i9/G embedded T-series 35W CPUs with replaceable LGA1151 socket
- •
- Fanless design with an aluminum alloy die-cast shell for efficient heat dissipation and robust protection against dust, high vibration, and strong interference
- •
- Four Intel Gigabit Ethernet ports with surge protection
- •
- Supports 5G-compatible 4G network for adaptation to new 5G infrastructure
- •
- Standard version: 6 COM ports and 2 RS232/485 ports (expandable to 10 serial ports)
- •
- 8-channel programmable digital I/O with isolation
- •
- 4 video interfaces: VGA, DVI, HDMI (optional LVDS), and support for three graphics cards
- •
- 4 USB 3.0 ports, 4 USB 2.0 ports, and one internal encryption port
- •
- Supports PCI, PCIe, and Mini PCIe bus slot expansion
System | Processor | LGA1151 Gen 6th/7th/8th/9th Core™i3/i5/i7Pentium®/Celeron®Processor，TDP 35W CPU |
Chipset | H110/C236 (C236 support E3 V5&V6 CPU, tripple Displays, SATA Raid) | |
BIOS | AMI UEFI/Legacy BIOS | |
Memory | 2xDDR4 2133/2400/2666MHz SO-DIMM，up to 32GB | |
OS | Win7/Win10/WES7/Linux | |
I/O interface | USB | 4xUSB3.0, 4xUSB2.0, 1xUSB2.0Type A(intrenal) |
Serial | 6xCOM, COM1&2 supports RS232/422/485 (Phoenix terminal), COM3~6 supports RS232 (DB9 interface) | |
GPIO | 8bit GPIO | |
PS2 | 1xPS/2 can be connected to keyboard and mouse | |
LED | 1xPower, 1xHDD | |
Expansion | PCIe/M.2/Mini-PCIe | 1xMini-PCIe ; 1xM.2 B-Key 3042/3052 (via Nano-SIM, support 4G/5G module) (H110:4G& C236:4G/5G) |
eSPI/LPC/SM BUS/I2C | 1x4Pin SM Bus interface, LPC bus can expand TPM, TCM encryption module, serial port module | |
Graphics | Graphics Processor | Intel CPU integrated display controller (depending on the CPU configuration) |
Interface | VGA/DVI-D/HDMI H110 Support dual displays/C236 Support triple displays | |
Storage | SATA/M.2/mSATA | 2xSATA3.0 support 2.5” HDD/SSD (C236 support Raid0,1), 1xmSATA, 1xM.2 2242/2280 SATA SSD (C236 support nVME x4) |
Audio | Audio IC | Realtek ALC897 |
Audio Interface | 1xMic-in, 1xLine-out, 1xAudio-Out | |
Ethernet | LAN IC | 1xi219LM, 3xi210AT |
Interface | 4xRJ45 | |
Power | Power Input | 12V~30V, DC-in |
Power Interface | 2-Pole Phoenix DC plug in | |
Others | Watchdog Timer | 1 to 255 sec./min. per step |
Mechanical | Dimensions | 257mm(W)×191mm(D)×79mm(H) |
Weight | 3.88KG N.W. | |
Mounting | Desk-mounting | |
Environment | Operating Temp. | With ordinary temperature memory and storage：0℃～45℃ With wide temperature memory and storage：-10~60℃ |
Storage Temp. | -40~85℃ | |
Humidity | 10%~85% Humidity, non-condensing | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis |
