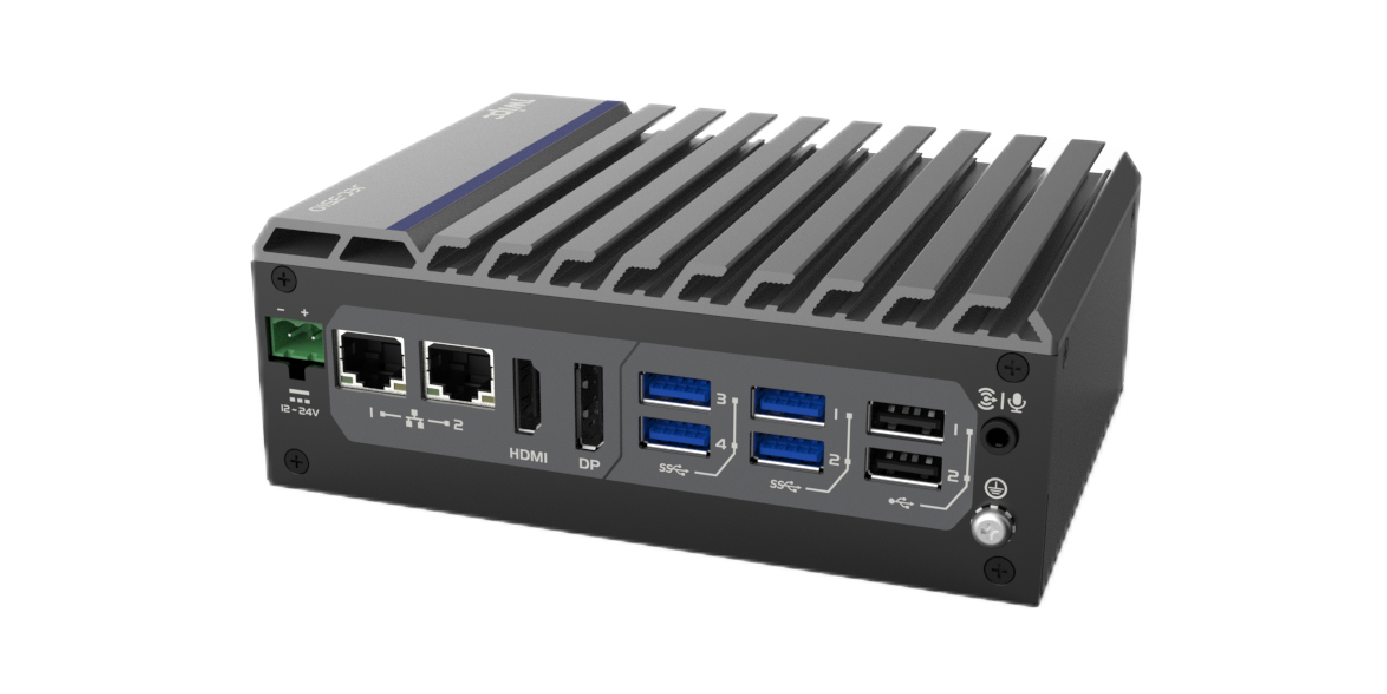

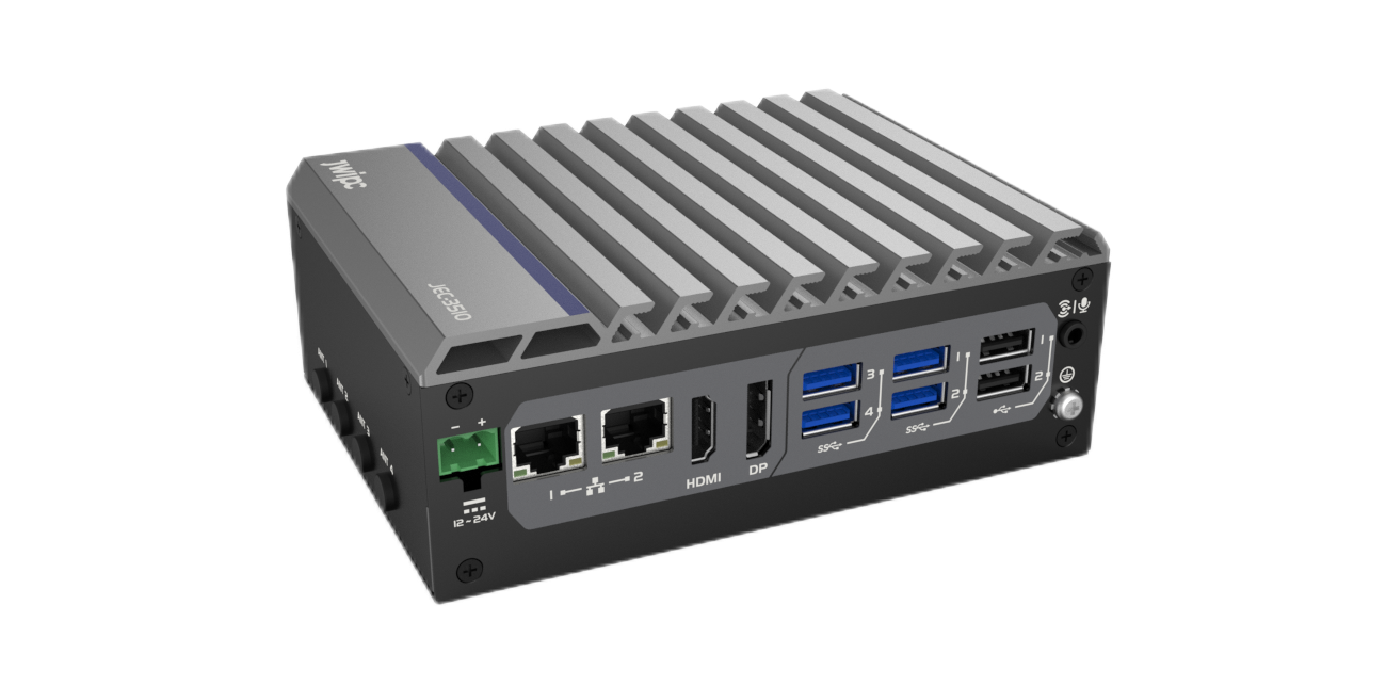

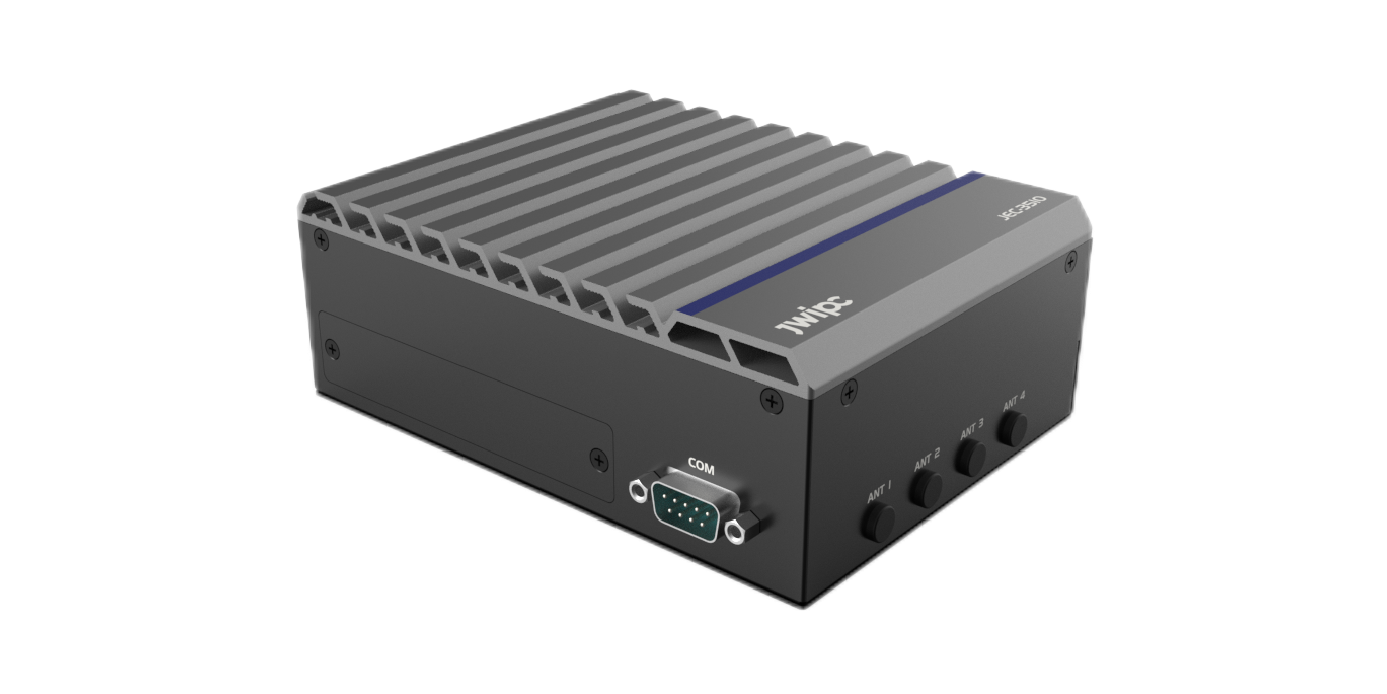

Fanless Embedded BOX PC

Features Intel® Celeron® Alder Lake-N series processors (N95/N97/N100 SoC) with quad-core design that balances performance and low power consumption. Its compact 3.5-inch chassis integrates comprehensive industrial I/O and expansion capabilities, meeting the stringent demands of industrial applications for stability, multi-tasking, and environmental adaptability.

Intel® Alder Lake-N SoC
1x SO-DIMM DDR4 Memory, max 16GB
Onboard HDMI and DP display interface
2x Independent GigE LAN
4xUSB3.0,2xUSB2.0
1xM.2 M-Key (2280 SATA/PCIex1 NVME)
1xM.2 E-Key 2230
1xRS232(DB9)
12V to 24V, DC-in
Specification parameters

System

Processor

Intel®  Celeron®  Alder Lake-N

Chipset

Intel®  Alder Lake-N N95/N97/N100/i3-N305 SoC

BIOS

AMI UEFI BIOS

Memory

1xDDR4 3200MHz SO-DIMM, up to 16GB

OS

Windows10, Windows11, Linux

I/O interface

USB

4xUSB 3.0, 2xUSB 2.0

Serial

1xRS485(DB9)

Expansion

PCIe/M.2/Mini-PCIe

1xM.2 (Key-E, 2230, Wifi+BT)

Graphics

Graphics Processor

Intel®UHD Gen.11 Graphics Engines

Interface

1xDP, up to 4096 x 2160 @60Hz

1xHDMI,up to 4096 x 2160 @24Hz

Storage

SATA/M.2/mSATA

1xM.2 M-Key (2280 SATA/PCIex1 NVME)

Audio

Audio IC

Realtek ALC897

Audio Interface

1xMic-in, 1xLine-out(2 in 1)

Ethernet

LAN IC

2x RTL8111K

Interface

2xRJ45

Power

Power Input

12V to 24V, DC-in

Power Interface

2-Pole Phoenix DC plug in

Others

Watchdog Timer

1 to 255 sec./min. per step

TPM

optional

Mechanical

Dimensions

150mm(W)×55mm(H)×110mm(D)

Weight

0.8KG N.W.

Mounting

Desk-mounting

Environment

Operating Temp.

0~60℃w/ 0.7m/s airflow

Storage Temp.

-40~85℃

Humidity

10%~85% Humidity, non-condensing

Shock

With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration

Vibration

With SSD:2Grms, IEC 60068-2-64, random,5~500Hz,1 hr/axis
