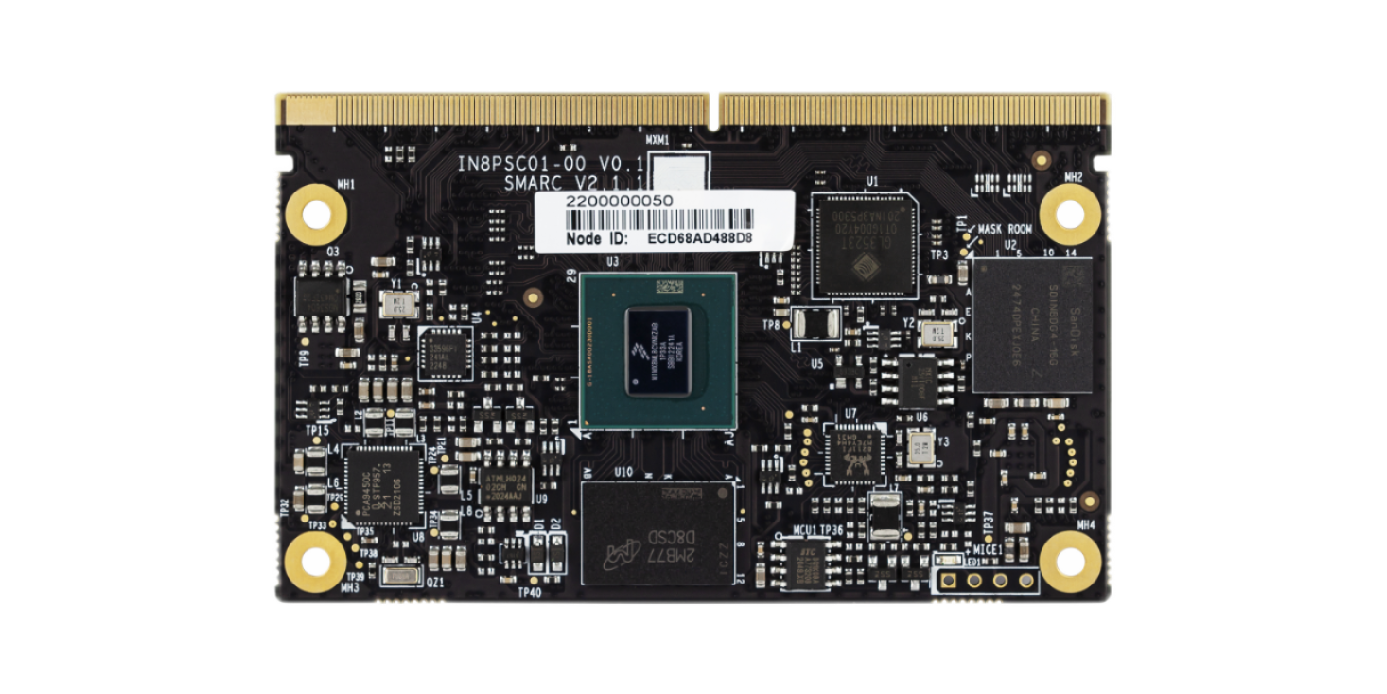

JSOM-N8PC
JSOM-N8PC is an Arm-based SMARC 2.1.1 Computer-on-Module powered by industrial grade NXP i.MX 8M Plus SoC, whichincludes 4x Arm Cortex-A53 cores, and integrates a 2.3 TOPS NPU for machine learning acceleration. It offers multiple display options and various high-speed interfaces including 2x GbE, 1x PCIe, 5x USB, 4x UART, 2x CAN. JSOM-N8PC issuited for lightweight edge AI applications with high reliability, such as industrial automation, healthcare and smart city. JSOM-N8PC is paired with the JSOM-SC211 SMARC 2.1.1 development board for faster end-product peripheral integration and time-to-market, offered along with carrier board design support documents and Android/Linux SDK.
- •
- NXP i.MX 8M Plus SoC up to 1.8 GHz
- •
- 4x Cortex-A53 + 1x Cortex-M7 + GC7000UL GPU
- •
- Integrated 2.3 TOPS NPU for machine learning
- •
- On-board 2/4/6GB LPDDR4 + 16/32/64GB eMMC
- •
- Display: Single LVDS+MIPI-DSI or Dual LVDS, HDMI 2.0a
- •
- I/O: 2x GbE, 1x PCIe, 5x USB, 4x UART, 2x CAN
- •
- Supports 0~60℃/-40~85℃ operating temperature
CPU | NXP i.MX 8M Plus 4x Arm Cortex-A53 up to 1.8 GHz (consumer) / 1.6 GHz (industrial) 1x Arm Cortex-M7 up to 800 MHz for real-time control | |
NPU | 2.3 TOPS Neural Network performance | |
GPU | Vivante GC7000UL, supports OpenVG 1.1, Open GL ES 3.1, Vulkan, and Open CL 1.2 FP | |
H/W Video Codec | H.265/H.264/VP9/VP8 Decoder up to 1080p60, H.265/H.264 Encoder up to 1080p60 | |
Memory | On-board 2GB/4GB/6GB LPDDR4 | |
Flash Memory | On-board 16GB/32GB/64GB eMMC 5.1 for OS | |
Ethernet | 2x 10/100/1000 Mbps | |
Display | 1x HDMI 2.0a up to 4K30 1x 4-lane MIPI-DSI 1x Single channel LVDS Dual independent display or triple identical display | 1x HDMI 2.0a up to 4K30 1x Dual channel LVDS Dual independent display support |
Video Input | 1x 4-lane MIPI-CSI, 1x 2-lane MIPI-CSI | |
Audio | 2x I2S | |
PCIe | 1x PCIe 3.0 1-lane | |
SATA | - | |
USB | 2x USB 3.0 Host, 2x USB 2.0 Host, 1x USB 2.0 OTG/Host | |
Serial Port | 2x 4-wire UART, 2x 2-wire UART for debug | |
Other I/Os | 1x SDIO (4 bit, for SD cards), 2x CAN FD, 2x SPI, 5x I2C, 14x GPIO | |
Board Features | Watchdog Timer, RTC | |
Power Supply | DC 5V, supports 3.6~5.25V operation from Lithium-ion cells | |
Form Factor | SMARC 2.1.1 314-pin MXM Connector, 82mm x 50mm | |
OS Support | Yocto 3.5 Linux, Ubuntu 22.04, Android 11 | |
Boot Options | eMMC or SD, default to eMMC | |
Operating Conditions | 0~60℃/-40~85℃, 10%~90% RH non-condensing | |
Storage Conditions | -40~85℃, 5%~90% RH non-condensing | |
