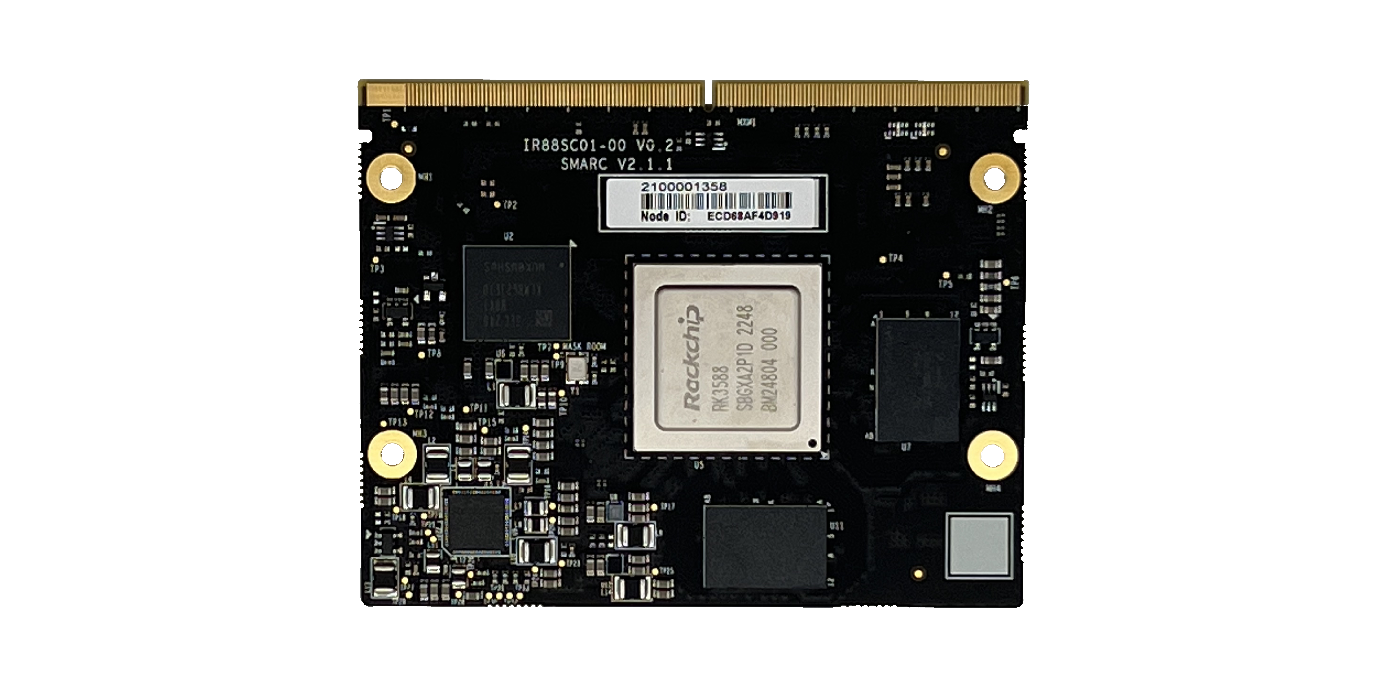

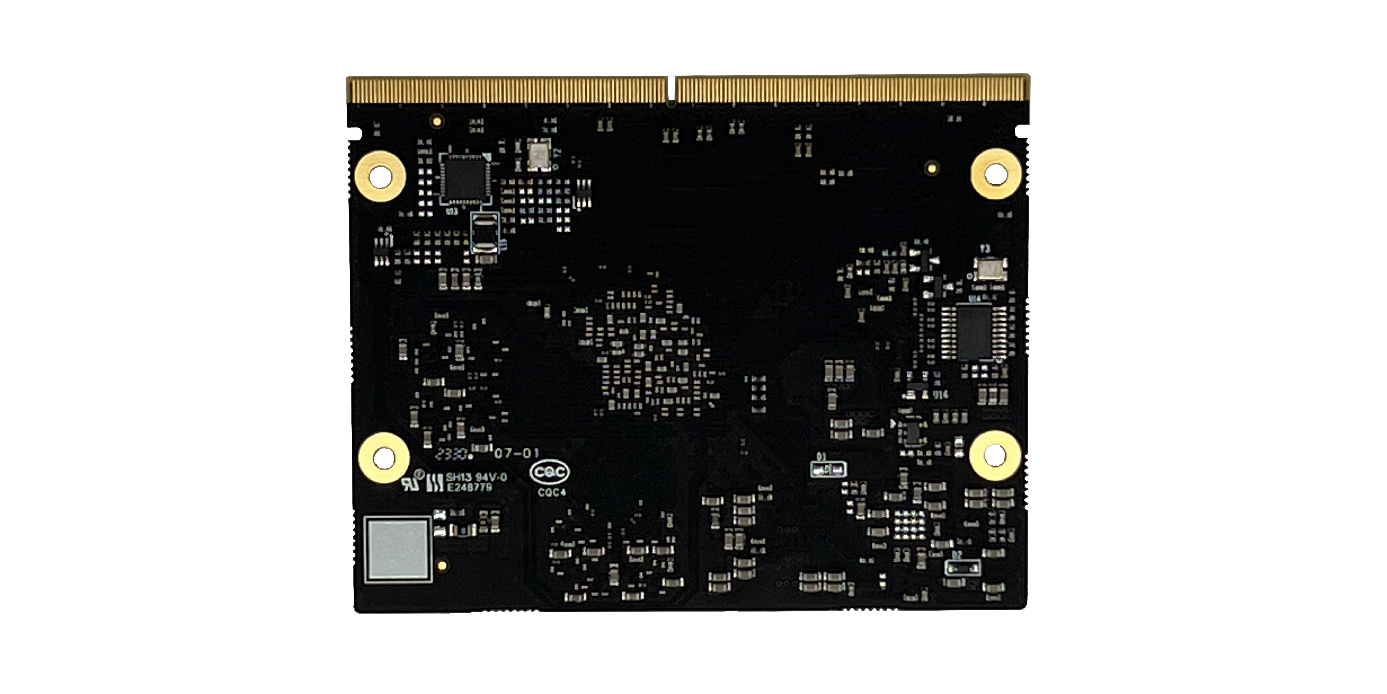

JSOM-R88C

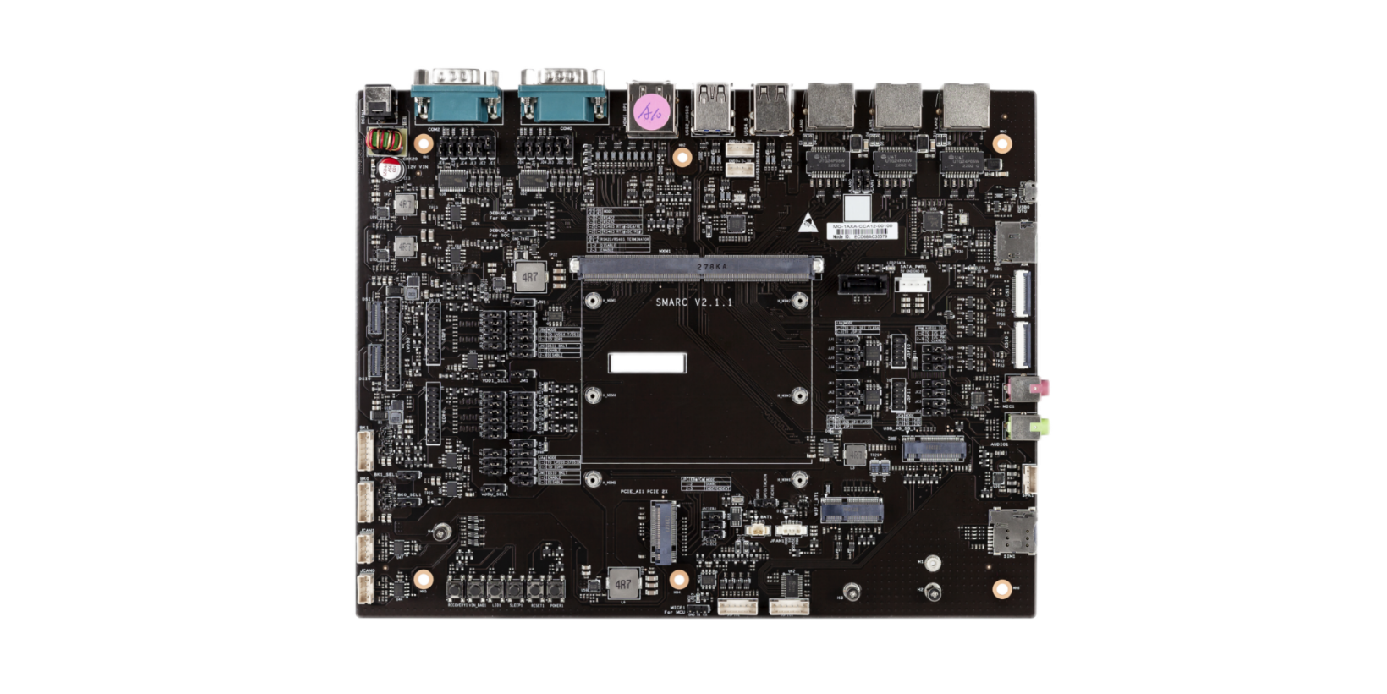

JSOM-R88C is an Arm-based SMARC 2.1.1 Computer-on-Module powered by industrial grade Rockchip RK3588J SoC, which includes octa-core Arm Cortex processors and integrates a 6 TOPS NPU for deep learning acceleration. It offers multiple display options and various high-speed interfaces including 1x GbE, 3x PCIe, 1x SATA, 4x USB, 4x UART, 2x CAN. JSOM-R88C can deliver best-in-class graphics performance and AI capabilities, ideal for edge computing and edge AI applications. JSOM-R88C is paired with the JSOM-SC211 SMARC 2.1.1 development board for faster end-product peripheral integration and time-to-market, offered along with carrier board design support documents and Android/Linux SDK.
- •
- Industrial-grade Rockchip RK3588J SoC
- •
- 4x Cortex-A76 + 4x Cortex-A55 + Mali-G610 GPU + 6 TOPS NPU
- •
- Supoorts multiple deep learning frameworks
- •
- On-board 4/8GB LPDDR4X + 32/64/128GB eMMC
- •
- Multimedia: 1x HDMI, 1x DP, 1x eDP, 1x MIPI-DSI, 2x MIPI-CSI
- •
- I/O: 1x GbE, 3x PCIe, 1x SATA, 4x USB, 4x UART, 2x CAN
- •
- Supports 0~60℃/-40~85℃ operating temperature
CPU | Rockchip RK3588J/RK3588 Quad core Arm Cortex-A76 up to 2.2 GHz (consumer) / 2.0 GHz (industrial) Quad core Arm Cortex-A55 up to 1.8 GHz (consumer) / 1.7 GHz (industrial) |
NPU | 6 TOPS Neural Network performance |
GPU | Arm Mali-G610 MP4, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
H/W Video Codec | H.265/H.264/VP9/AV1/AVS2 Decoder up to 8K60, H.265/H.264 Encoder up to 8K30 |
Memory | On-board 4GB/8GB LPDDR4X |
Flash Memory | On-board 32GB/64GB/128GB eMMC 5.1 for OS |
Ethernet | 1x 10/100/1000 Mbps |
Display | 1x HDMI 2.1 up to 4K60 1x DP 1.4 up to 4K60 1x 4-lane eDP 1.3 1x 4-lane MIPI-DSI Triple independent display or Quad identical display support |
Video Input | 1x 4-lane MIPI-CSI, 1x 2-lane MIPI-CSI |
Audio | 2x I2S |
PCIe | 2x PCIe 3.0 (1x 2-lane, 1x 1-lane), 1x PCIe 2.0 1-lane |
SATA | 1x SATA 3.0 |
USB | 2x USB 3.0 Host, 1x USB 2.0 Host, 1x USB 2.0 OTG/Host |
Serial Port | 2x 4-wire UART, 2x 2-wire UART for debug |
Other I/Os | 1x SDIO (4 bit, for SD cards), 2x CAN FD, 2x SPI, 5x I2C, 14x GPIO |
Board Features | Watchdog Timer, RTC |
Power Supply | DC 5V, supports 3.6~5.25V operation from Lithium-ion cells |
Form Factor | SMARC 2.1.1 314-pin MXM Connector, 82mm x 65mm |
OS Support | Debian 11, Ubuntu 20.04, Android 12 |
Boot Options | eMMC |
Operating Conditions | 0~60℃/-20~70℃/-40~85℃, 10%~90% RH non-condensing |
Storage Conditions | -40~85℃, 5%~90% RH non-condensing |
