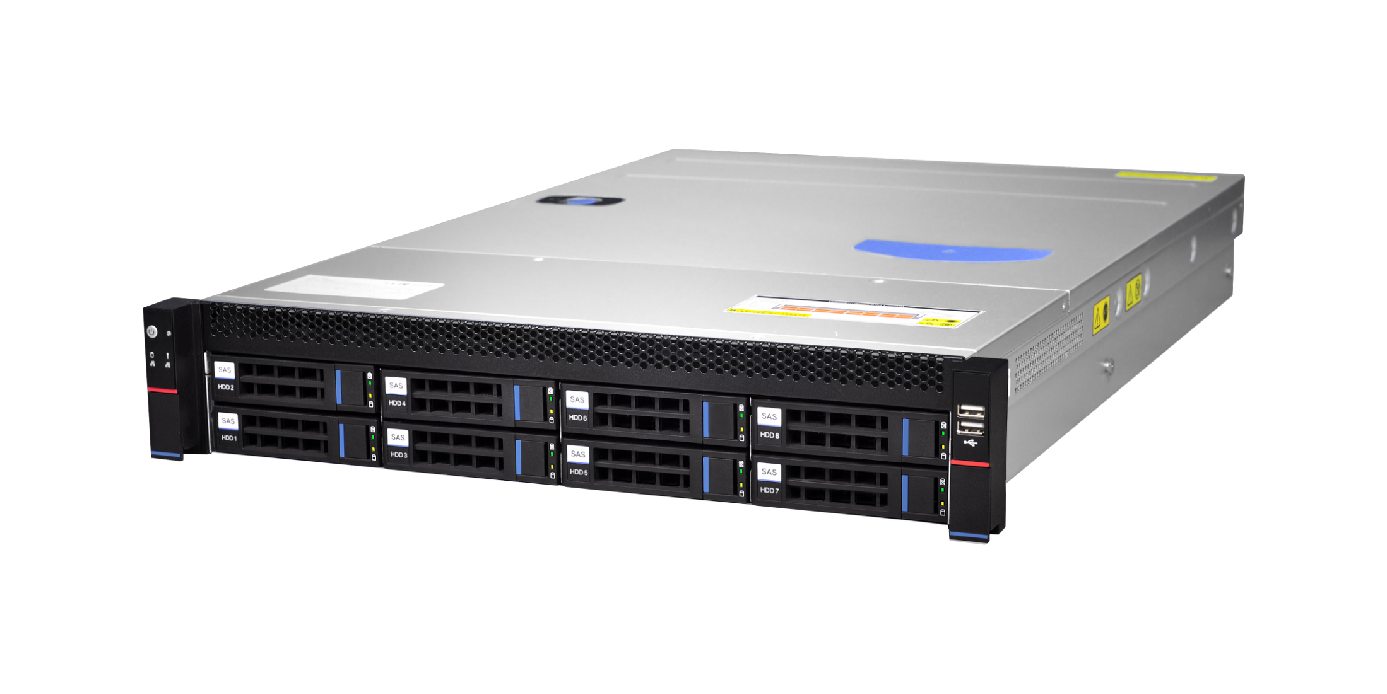

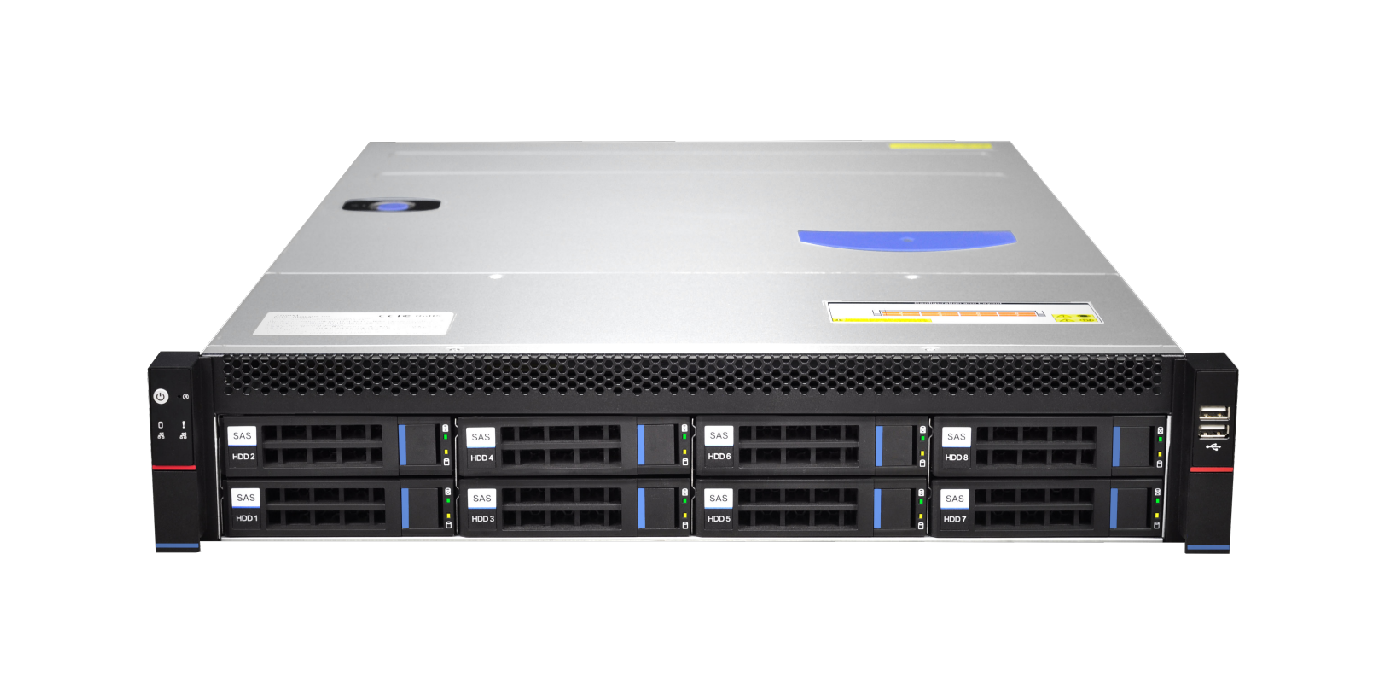

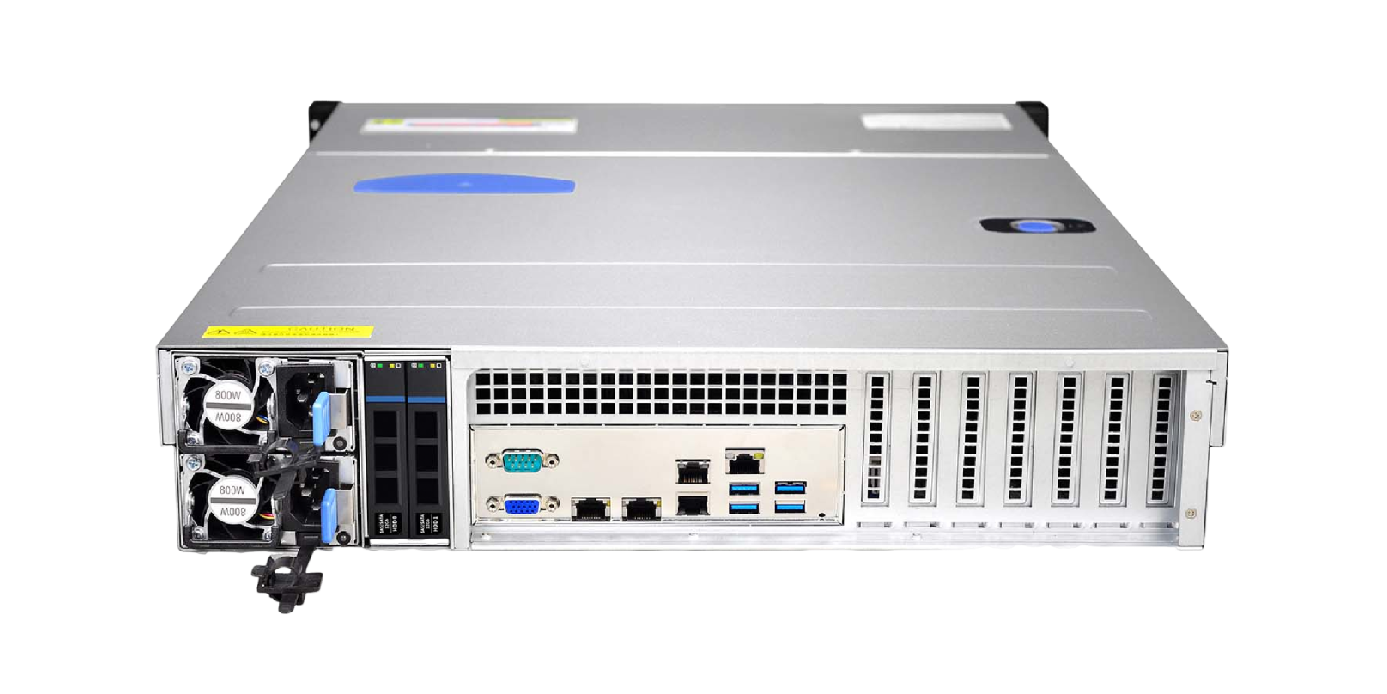

SYS-80213R
The SYS-80213R series features Intel® C621A high-performance server chipset and is based on the third-generation Intel® Xeon ® scalable processor. From the exterior design to the internal structure, the new Xeon server reflects the company's pursuit of "technology/innovation/environmental protection" business philosophy, to provide customers with a high performance, high reliability, low power consumption, the best heat dissipation 2U server. Whether it is enterprise-class data centers or developing enterprise applications, the product can provide a variety of flexible configuration options, can better meet the growing server needs of customers, and provide reliable hardware support for data storage, big data processing, virtualization and other applications, is the best choice for large-scale industries, enterprises and government users with high requirements for stability and practicality.
- •
- Stable and innovative bottom design, with accurate airflow guidance and fan adjustment mechanism, create a stable and reliable model
- •
- Support for 3rd generation Intel ® Xeon ® scalable processors
- •
- Adopts the latest DDR4 memory technology and supports DDR4 RDIMMs (up to 4TB). Supports four PCIE 4.0x16 expansion slots and two PCIE 4.0x8 expansion slots. Three MCIO x8 interfaces for flexible expansion
- •
- Support hardware monitoring, can remotely monitor the host power supply, voltage, temperature, fan and other hardware working status
- •
- Supports up to eight 3.5-inch front hot-swappable hard drives and 6GB SATAIII storage. Supports two 2.5G Gigabit network ports, two Gigabit network ports, and one management port.
System Control | Number of CPUs | 2 |
CPU Model | Supports 3th Gen Intel® Xeon® Scalable processors | |
Chipset | Intel® C621A chipset | |
Memory | Type | 16 x DIMM slots ((8 channels/CPU)), supports DDR4 RDIMM (up to 4TB) Supports memory up to 4TB Intel® Optane™ PMem 200 Series (Barlow Pass) |
Graphics | Chip/Interface | ASPEED AST2500 BMC, 1 * VGA port |
Storage | External | Supports 8 * front-mounted 3.5-inch 6G SATAIII hot-swappable hard drives, 2 * rear-mounted 2.5-inch hard drives (optional) supports RAID 0, 1, 5, 10 |
M.2 | 2 * M.2 (2242\2280) interfaces (PCIe4.0x4) | |
Internal | 2 * 2.5-inch hard drives | |
Gigabit Network | Network card IC | Intel Enterprise Gigabit Network Controller |
Network Card Bandwidth | 10/100/1000/2500 Mbps | |
Network Card Connector | 4 * dual-layer RJ45 connector | |
IPMI management interface | Type | 1 * standard RJ45, 10/100/1000Mbps network interface |
USB | USB 3.0 | 4 * USB 3.0 (rear), 2 * USB2.0 (front), 1 * USB2.0 (internal) |
Serial port | Serial port | 1 x COM port, 1 x front COM port header |
PCIe Expansion | PCIe Expansion | 4 * standard PCIe 4.0 x16 (x16 slots); 2 * standard PCIe 4.0 x8 (x8 slots); 3 * MCIO interfaces (PCIe 4.0 x8) |
Rear window indicator lights | Rear window indicator lights | 1 * illuminated UID switch |
Front panel | Switch | 1 * power switch; 1 reset switch |
Indicator Lights | 1 * power indicator light; 1 * fan abnormality indicator light; 1 * hard disk activity indicator light; 2 * network indicator lights | |
Power source | Power input | 600W power supply / dual 550W power supplies |
Fan | Fan | 3 * 8038 fans, hot-swappable; |
Dimensions | Dimensions | Dimensions: 444mm (W) x 87.6mm (H) x 670mm (D) |
Temperature / humidity requirements | Temperature | Operating temperature: 10°C to 35°C; Storage temperature: -40°C to 70°C |
Humidity | Operating humidity requirements 8% to 90% non-condensing; Non-operating humidity requirements: 5%- 95% with no condensation | |
Installation kit | Rails | Supports rails (optional) |
