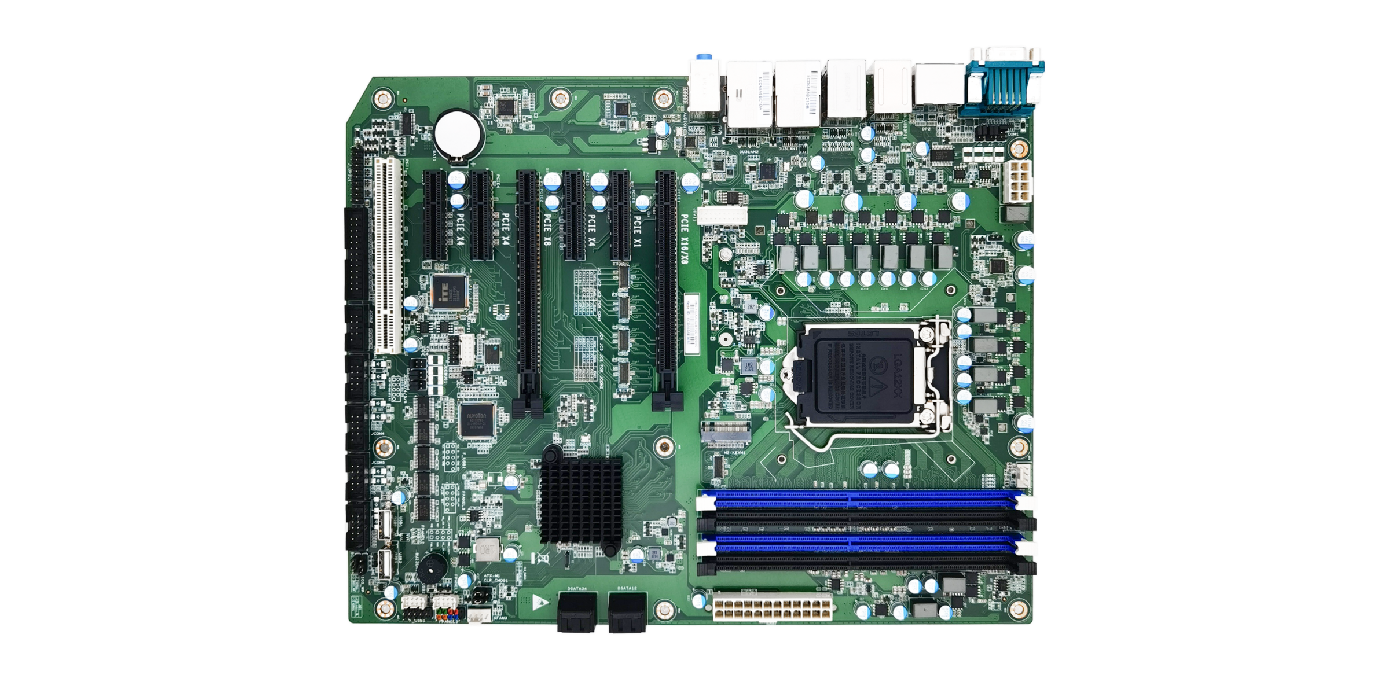

AIoT0-H110
With a wide range of external interfaces, the AIoT0-H110 supports high-performance Intel 6th, 7th, 8th, and 9th Gen CPUs. It is ideal for applications in machine vision (e.g., automated testing, image analysis, and processing), automated production and testing, bank security monitoring systems, intelligent building management systems (IBMS), integrated security management systems (ISMS), integrated traffic management systems (ITMS), subway monitoring systems, call centers, public security recording systems, command and dispatch centers, workstations, insurance, securities, and other industries requiring recording and monitoring systems.
- •
- Supports LGA1151 socket for 6th, 7th, 8th, and 9th Gen Intel® i9/i7/i5/i3/G series CPUs
- •
- Two DDR4 DIMM slots, supporting up to 64GB
- •
- DVI-D, VGA, HDMI
- •
- 3 SATA/2 GbE/ 9 USB/ 6 COM/ 4 PCI/ 3 PCIe
- •
- High Tg-grade PCB for enhanced temperature stability
- •
- Industrial-grade I/O protection against ESD and surges, ensuring system stability and reliability
- •
- Optimized interface and expansion layout to minimize interference and facilitate expansion for industrial users
CPU | Support LGA1151 Gen6&7&8&9 i9/i7/i5/i3/G |
Chipset | Intel® H110 chipset |
Memory | 2 * 288PIN DDR4 DIMM memory slot, supports up to 64GB (a single memory slot of 32GB) |
Display controller | Intel CPU integrated display controller (depending on CPU) |
Display interface | Three display output DVI-D+VGA+HDMI, supports independent dual display |
Storage | 3 *SATA3.0, and 1 *M.2 SSD (mSATA optional) |
Audio | Realtek ALC897, supports Mic-in and Spk-out |
Network | AIoT0-H110-1，LAN1: i219V, LAN2: RTL8111H AIoT0-H110-2，LAN1: i219V, LAN2: Intel i226V |
USB | 6 rear IO USB（4 x USB 3.0 Type-A and 2 USB 2.0 Type-A ) 3 intenal USB（2 x USB 2.0 via header, 1 x USB 2.0 Type-A) |
Parallel port | 1 * parallel port |
Serial port | COM1 supports RS232/422/485, and COM2-6 support RS232 (expandable to 10 serial ports) |
Keyboard & mouse | 1 PS/2 Keyboard & mouse via 2-in-1 connector on the rear IO |
Digital I/O | 8-digit I / O, providing power and ground, + 5V level |
LPC | 1 * LPC local bus interface |
TPM interface | LPC interface supports TPM module |
Power supply | ATX power source, supports ATX/AT On/Off mode |
Expansion bus | 1 PCIe3.0 x16, 2 PCIe2.0 x4 slot(x1 signals), 4 PCI (32 bits), 1 Mini-PCIe (support for SIM card socket to support 4G module) |
Operating temperature and humidity | 0 - 60°C, 5%- 95% with no condensation |
Non-operating temperature and humidity | -40 - 80°C, 5%- 95% with no condensation |
Watch Dog | 255-level programmable in the mode of seconds/minutes, supports timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Win7/Win10/WES7/Linux , 32bit/64bit |
PCB dimensions (L*W) | 305mm * 244 mm |
