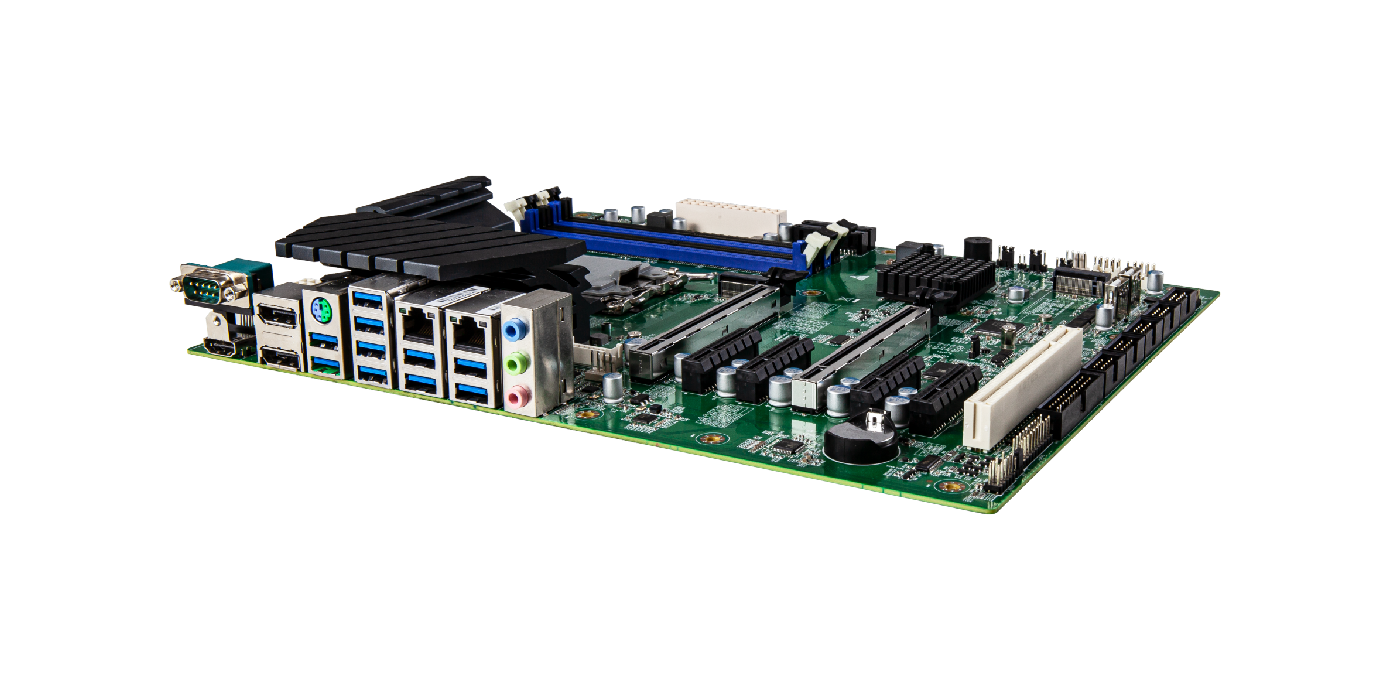

AIoT0-W680D
The AIoT0-W680D is a high-performance ATX industrial motherboard supporting 12th, 13th, and 14th Gen Intel Core processors, powered by the W680 chipset. It offers extensive expansion capabilities, including multiple PCIe slots, four display outputs, multiple USB and COM ports, and support for up to 128GB of DDR5 memory. Designed for industrial environments, it features a wide temperature range and high reliability, making it suitable for high-performance applications such as AI, deep learning and machine vision.
- •
- Supports LGA1700 socket 12th, 13th, and 14th Gen Intel® i9/i7/i5/i3 CPUs
- •
- Four DDR5 U-DIMM slots, supporting up to 128GB
- •
- Five PCIe expansion slots, capable of supporting up to 22 network ports
- •
- Ten USB 3.2 high-speed ports for connecting HD video devices
- •
- 4 x SATA, 2 x GbE, 14 x USB, 6 x COM, 1 x PCI, 6 x PCIe
- •
- High Tg-grade PCB to ensure wide temperature stability
- •
- Industrial-grade I/O protection against ESD and surges, ensuring system stability and reliability
- •
- Optimized interface and expansion layout to minimize interference and facilitate industrial expansion
- •
- Supports dual GPU card expansion, ideal for AI and machine vision applications
CPU | Support LGA1700 packaged Gen12&13&14 i9/i7/i5/i3 CPUs (not supporting G-series), TDP up to 125W, i5 and above support vPro |
Chipset | Intel ® W680 chipset |
Memory | 4 * DDR5 U-DIMM memory slots, support dual channels, support ECC memory; With Gen.12 CPU support 2 * DDR5-4800 (black), 4 * DDR5-4000,single 32GB, maximum 128GB; With Gen.13&14 CPU support 2 * DDR5-5600 (black), 4 * DDR5-4000,single 48GB, maximum 192GB; |
Display controller | Intel CPU Integrated display controller (depending on the assigned CPU) |
Display interface | Four display output DP + DP + HDMI + DVI-D, support independent four display HDMI：3840*2160@60Hz ；DP：5120*2160@60Hz ；DVI-D：1920*1080@60Hz |
Storage | 4 * SATA 3.0 (6 Gb/s) Ports, Support SATA Raid 0 / 1 / 5 / 10 2 * M.2 2242 / 2280 Key-M supports Nvme (M2-KEYM 2 supports SATA / Nvme adaptation) |
Audio | The rear IO supports MIC-In, Speaker-Out, Line-In three-hole audio, with a reserved front panel audio pin F_Audio |
Network | 2 * Intel high-speed Ethernet ports: LAN1: i226-LM/V2.5Gb; LAN2: i219V |
USB | 10 rear IO USB3.2 Type A（2 * Gen2 , and 8 * Gen1 ) ; 4 intenal USB（2 * USB 2.0 via header, 2 x USB 2.0 Type-A) Chassis front panel USB interface F_USB1 and F_USB2 , choose one from two |
Parallel/I²C/SMBus | 1 * parallel port |
Serial port | 6 serial port (COM1&2 supports RS232 / 422 / 485, COM3-6 supports RS232) |
Keyboard & mouse | 1 PS/2 Keyboard & mouse via 2-in-1 connector on the rear IO |
Digital I/O | 16-bit band isolation digital I / O, providing power supply and ground, + 5V level |
LPC/eSPI | 1 eSPI bus |
TPM interface | On board encryption chip SLB9670, supporting TPM2.0 |
Power supply | ATX power Socket, supports ATX/AT On/Off mode Chassis front panel FPANEL1 and FPANEL2 Pin-header , choose one from two |
Expansion bus | 2 * PCIe 5.0 x16 slot(x8 signal), maximum data bandwidth 32GB/s; 2 * PCIe 4.0 x4 slot, maximum data bandwidth 8GB/s 2 * PCIe 3.0 x4 slots, maximum data bandwidth 4GB/s 1 * Standard PCI slot (32bit) |
Operating temperature and humidity | -10 ℃~60 ℃, relative humidity 0%~90%, no condensation, air pressure 85-105kPa |
Non-operating temperature and humidity | -40 ℃~85 ℃, relative humidity 0%~90%, no condensation, air pressure 85~105kPa |
Watch Dog | 255-level programmable in the mode of seconds/minutes, supports timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Win10 x64，Win11 x64，Linux Ubuntu 22.04 |
PCB dimensions (L*W) | 305mm X 244mm |
