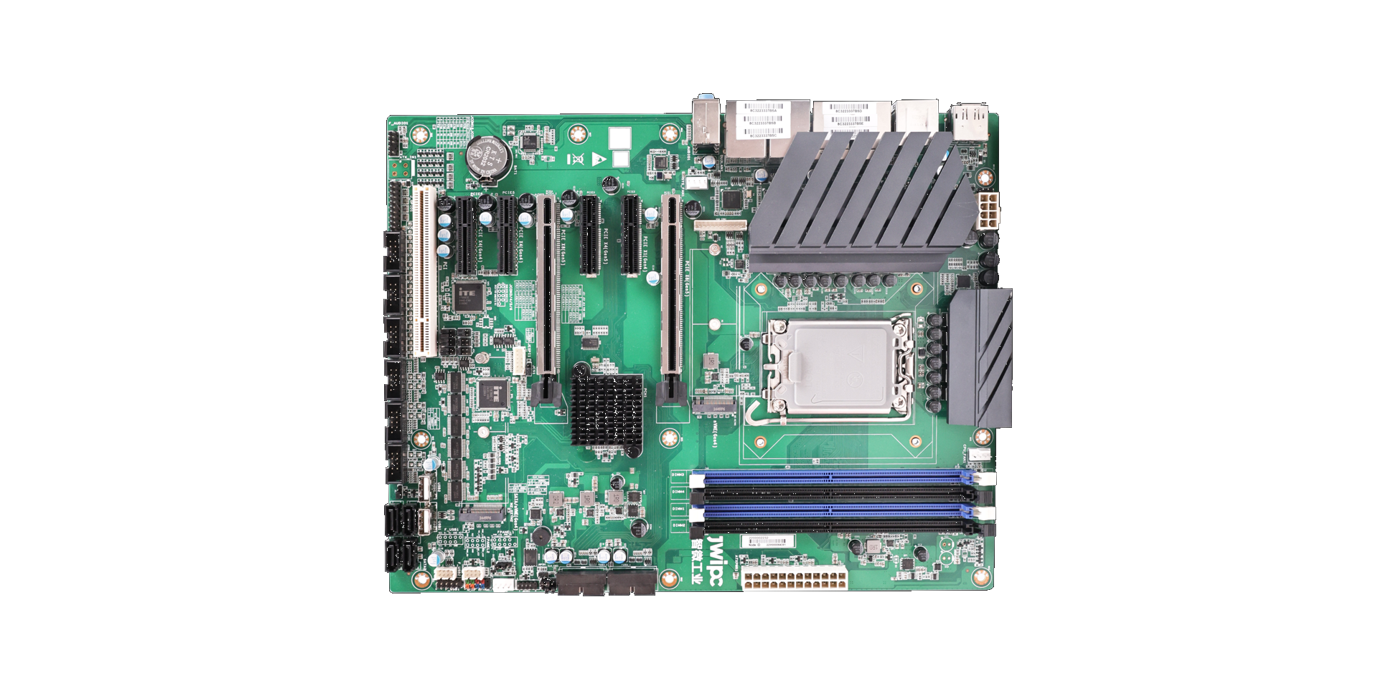

AIoT0-W680
The AIoT0-W680 is a high-performance ATX industrial motherboard supporting 12th, 13th, and 14th Gen Intel® i3/i5/i7/i9 processors with the W680 chipset. It offers strong expandability, supporting up to 128GB of DDR5 memory, multiple PCIe slots, and a wide range of interfaces including USB, SATA, and COM. Designed for industrial applications, it features a wide operating temperature range and high reliability, making it ideal for high-performance computing needs such as AI and machine vision.
- •
- Supports LGA1700 Socket for 12th, 13th, and 14th Gen Intel® i9/i7/i5/i3 CPUs
- •
- Four DDR5 U-DIMM Slots, Supporting up to 128GB
- •
- Five PCIe Expansion Slots for Up to 22 Network Ports
- •
- 10 USB 3.2 High-Speed Ports for Industrial Cameras
- •
- 4 Display Outputs / 4 SATA Ports / 2 GbE LAN Ports / 14 USB Ports / 6 COM Ports / 1 PCI Slot / 7 PCIe Slots
- •
- High-Tg PCB for Enhanced Temperature Stability
- •
- Industrial-Grade I/O Protection Against ESD and Surges for System Stability and Reliability
- •
- Optimized Interface and Expansion Layout to Minimize Interference and Facilitate Industrial Expansion
CPU | Support LGA1700 packaged Gen12&13&14 i9/i7/i5/i3 CPUs (not supporting G-series), TDP up to 125W, i5 and above support vPro |
Chipset | Intel ® W680 chipset |
Memory | 4 DDR5 UDIMM memory slots, support dual channels, support ECC memory, single 32GB, maximum support 128GB With 12 generation CPU two support DDR 5-4800 (black), 4 support DDR 5-4000; With 13 & 14 generation CPU insert two maximum support DDR 5-5600 (black), insert 4 maximum support DDR 5-4000. |
Display controller | Intel CPU Integrated display controller (depending on the assigned CPU) |
Display interface | Four display output DP + DP + HDMI + DVI-D, support independent four display HDMI：3840*2160@60Hz ；DP：5120*2160@60Hz ；DVI-D：1920*1080@60Hz |
Storage | 4 SATA 3.0 (6 Gb/s) Ports, Support SATA Raid 0 / 1 / 5 / 10 Two M.2 2242 / 2280 Key-M supports Nvme (M2-KEYM 2 supports SATA / Nvme adaptation) |
Audio | The rear IO supports MIC-In, Speaker-Out, Line-In three-hole audio, with a reserved front panel audio pin F_Audio |
Network | 2 Intel high-speed Ethernet ports: LAN1: i226-LM/V2.5Gb; LAN2: i219V |
USB | 10 rear IO USB3.2 Type A（2 * Gen2 , and 8 Gen1 ) ; 4 intenal USB（2 x USB 2.0 via header, 2 x USB 2.0 Type-A) Chassis front panel USB interface F_USB1 and F_USB2 , choose one from two |
Parallel port | 1 * parallel port |
Serial port | 6 serial port (COM1&2 supports RS232 / 422 / 485, COM3-6 supports RS232) |
Keyboard & mouse | 1 PS/2 Keyboard & mouse via 2-in-1 connector on the rear IO |
Digital I/O | 16-bit digital I / O, providing power supply and ground, + 5V level |
LPC/eSPI | 1 eSPI bus (2x6Pin can expand four serial ports) |
TPM interface | On board encryption chip SLB9670, supporting TPM2.0 |
Power supply | ATX power Socket, supports ATX/AT On/Off mode Chassis front panel FPANEL1 and FPANEL2 Pin-header , choose one from two |
Expansion bus | 1 * PCIe 5.0 x16 slot, maximum data bandwidth 64GB/s; 1 * PCIe 4.0 x16 slot (x4 signal), maximum data bandwidth 8GB/s 1 * PCIe 4.0 x4 slot, maximum data bandwidth 8GB/s 2 * PCIe 3.0 x4 slots, maximum data bandwidth 4GB/s 2 * Standard PCI slot (32bit) |
Operating temperature and humidity | -10 ℃~60 ℃, relative humidity 0%~90%, no condensation, air pressure 85-105kPa |
Non-operating temperature and humidity | -40 ℃~85 ℃, relative humidity 0%~90%, no condensation, air pressure 85~105kPa |
Watch Dog | 255-level programmable in the mode of seconds/minutes, supports timeout interrupt or system reset |
BIOS | AMI UEFI BIOS |
Operating System | Win10 x64，Win11 x64，Linux Ubuntu 22.04 |
PCB dimensions (L*W) | 305mm X 244mm |
