E068

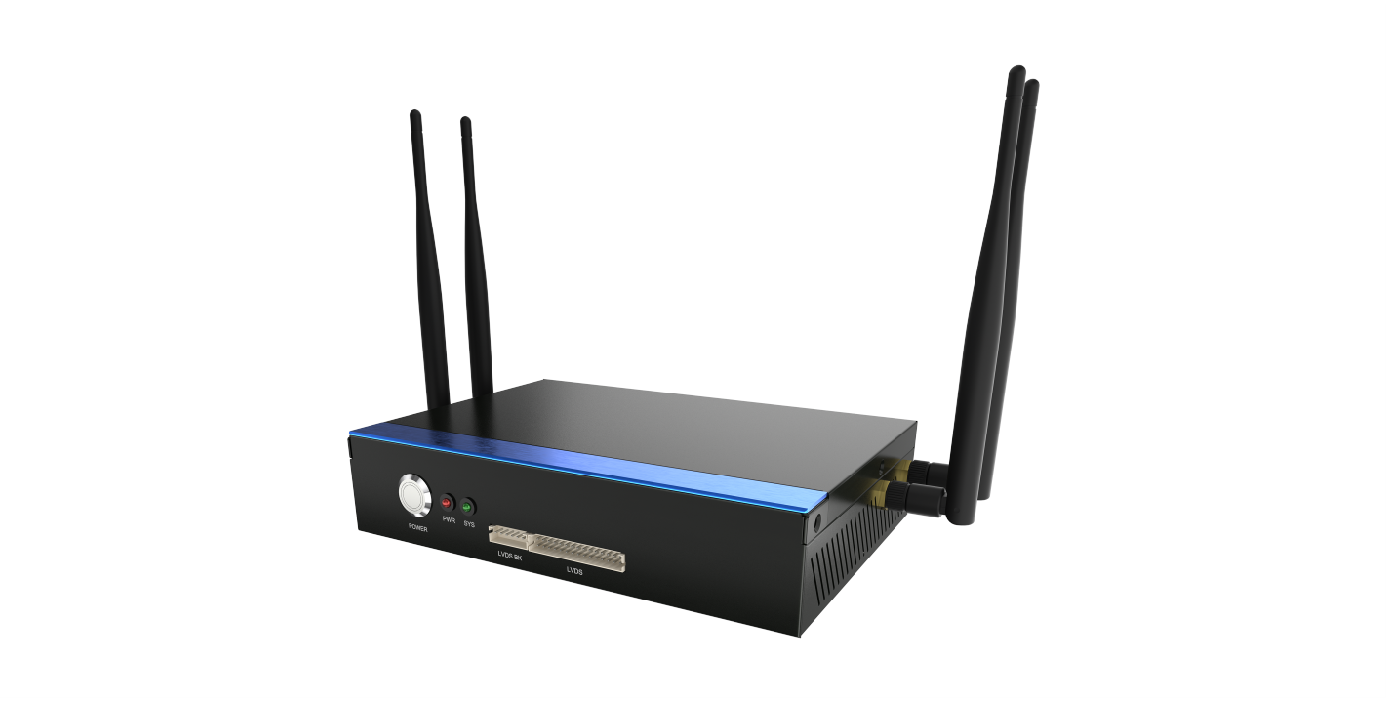

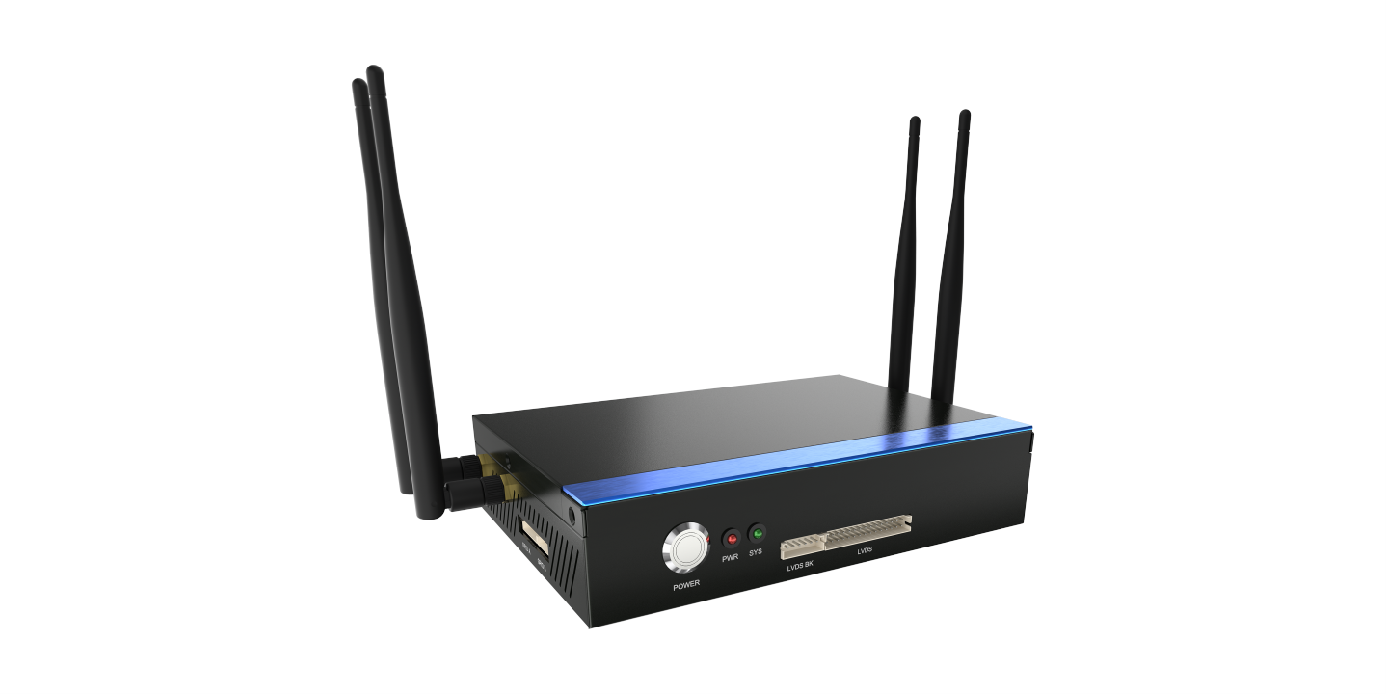

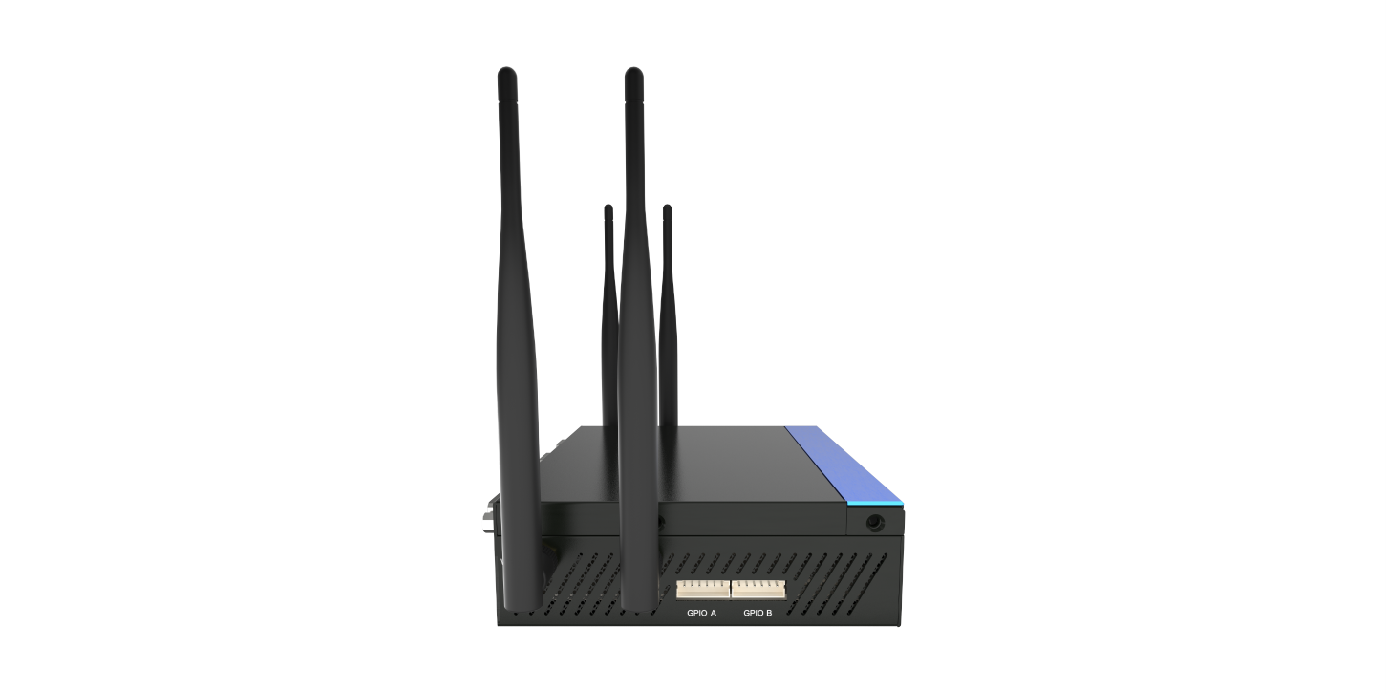

The JEA-E068 is an ARM-based Edge AI BOX based on the Rockchip RK3568 SoC, designed primarily for lightweight AI inference applications. It features a compact size, powerful performance, and a wide range of interfaces, supporting multiple operating systems, making it suitable for various edge computing and AI deployment scenarios.
- •
- Rockchip RK3568 SoC up to 2.0 GHz
- •
- 4x Cortex-A55 + Mali-G52 GPU + 1 TOPS NPU
- •
- Ideal for entry level edge AI applications
- •
- Compact design for easy integration
- •

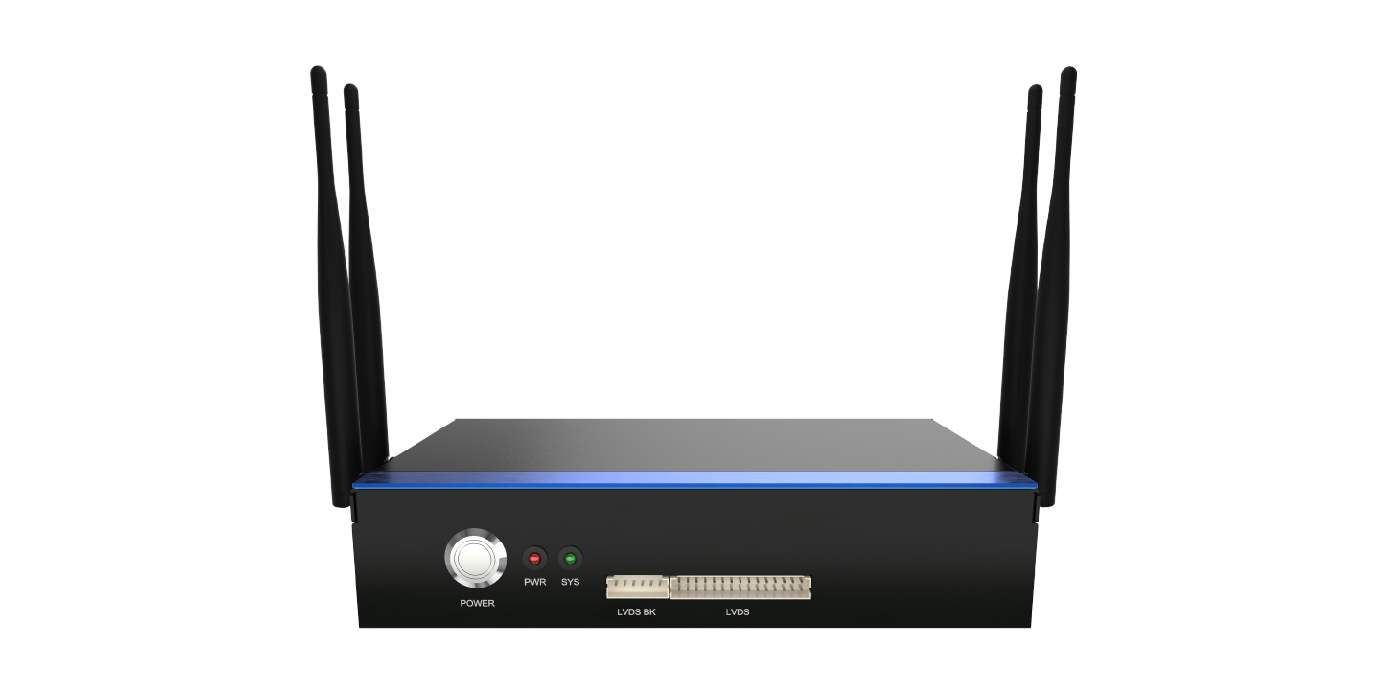

- Dual display: 1x HDMI, 1x Dual ch. LVDS
- •

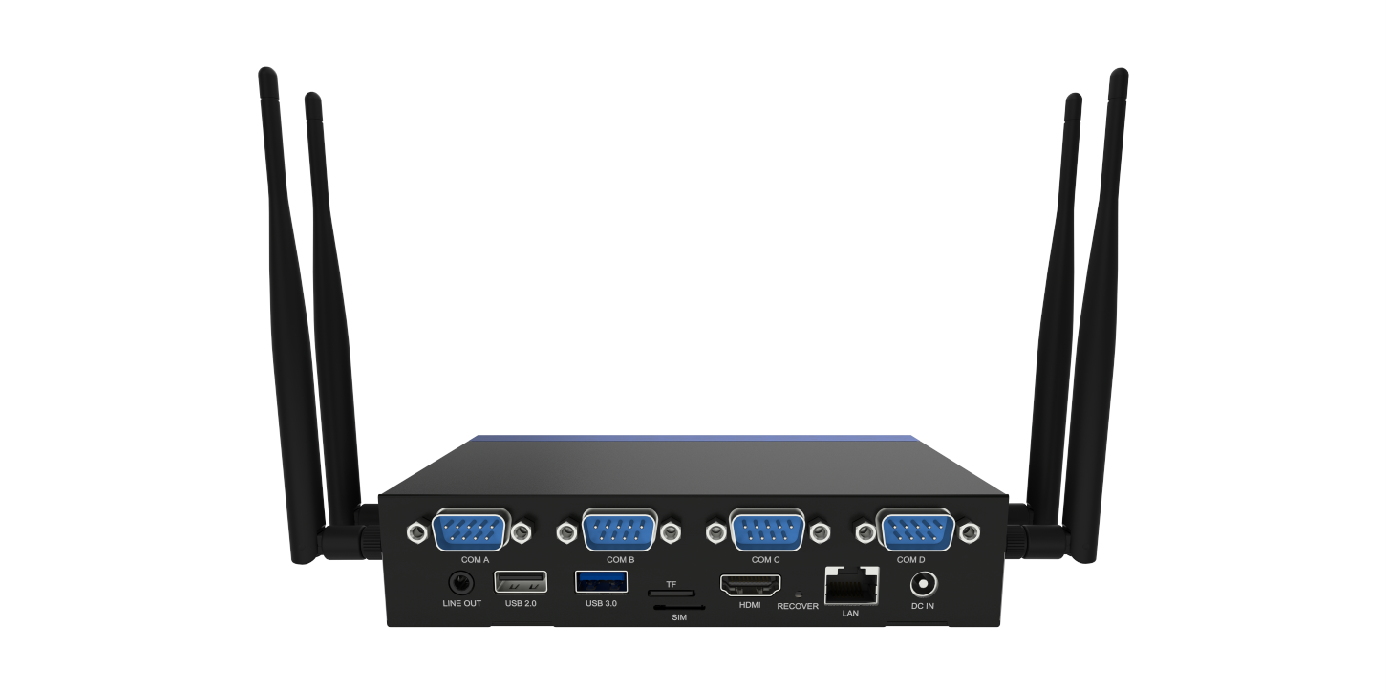

- Rich I/Os: 1x GbE, 2x USB, 4x DB9 COM
- •
- On-board WiFi+BT module + M.2 Key B for 5G/4G
- •
- Wake-on-LAN, Watchdog Timer & RTC support
- •
- Android / Linux / OpenHarmony OS support
Processor System | CPU | Rk3568,Quad-core Cortex-A55 Up to 2.0Ghz |
GPU | ARM G52 2EE | |
NPU | 1TOPS | |
Memory | Onboard LPDDR4/4X，Support 2GB/4GB Optional | |
Expansion | Interface | 1 x M.2 (KEY B 3042/3052) for 4G or 5G Module 1 x Micro Sim Slot，1 x TF Slot |
Graphics | Graphics Processor | Mail-G52 |
Interface | HDMI2.0，Max resolution up to 4096x2160@60Hz LVDS， Max resolution up to 1920x1080@60Hz | |
Storage | Storage Device | Onboard 16GB EMMC，Support 8GB/32GB/64GB Optional |
GNSS | GNSS | Non-support |
Audio | Audio Codec | RK809 |
Interface | 1 x 3.5mm Audio Jack (2 in 1) | |
Network | Ethernet | 1 x Realtek LAN |
WIFI | Onboard 2.4G/5G WIFI/BT Module | |
I/O interface | LED | 1 x Power LED |
USB | 1 x USB2.0 TYPE-A，1 x USB3.0 TYPE-A | |
Serial | 4 x COM（RS232/RS485 Optional） | |
Others | 1 x LVDS_BK | |
Power | Power Input | 12V DC-In |
Power Interface | 2.5/5.5 DC Jack | |
Others | OS Supports | Debian 10 / Android 11 |
Watchdog | Support | |
TCM/TPM | Non-support | |
Antenna | 4 x WIFI/5G Ant | |
Mechanical | Dimensions | 154mm(L)×107mm(W)×34mm(H) |
Mounting | Desk/Wall-mounting | |
Environment | Operating Temp. | 0~40℃ |
Humidity | 10%~90% Humidity, non-condensing | |
Storage Temp. | -20~70℃ | |
Humidity | 5%~95% Humidity, non-condensing |
