E078

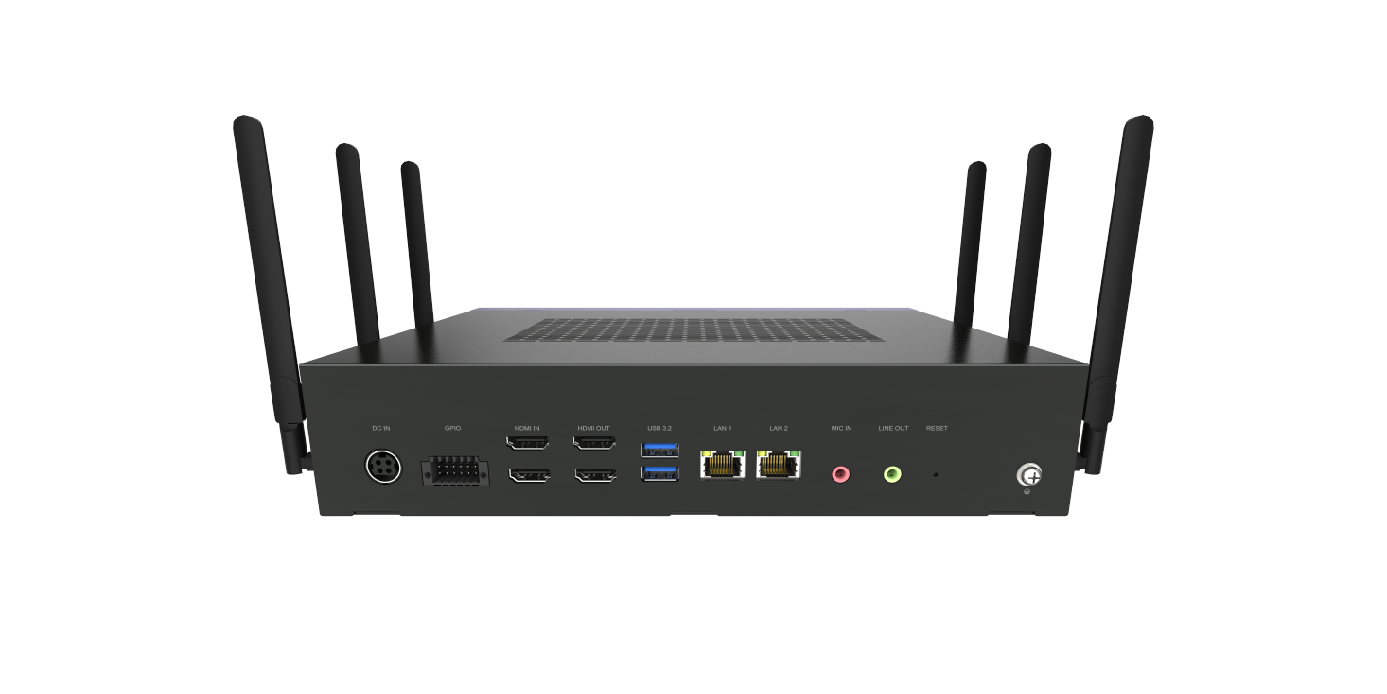

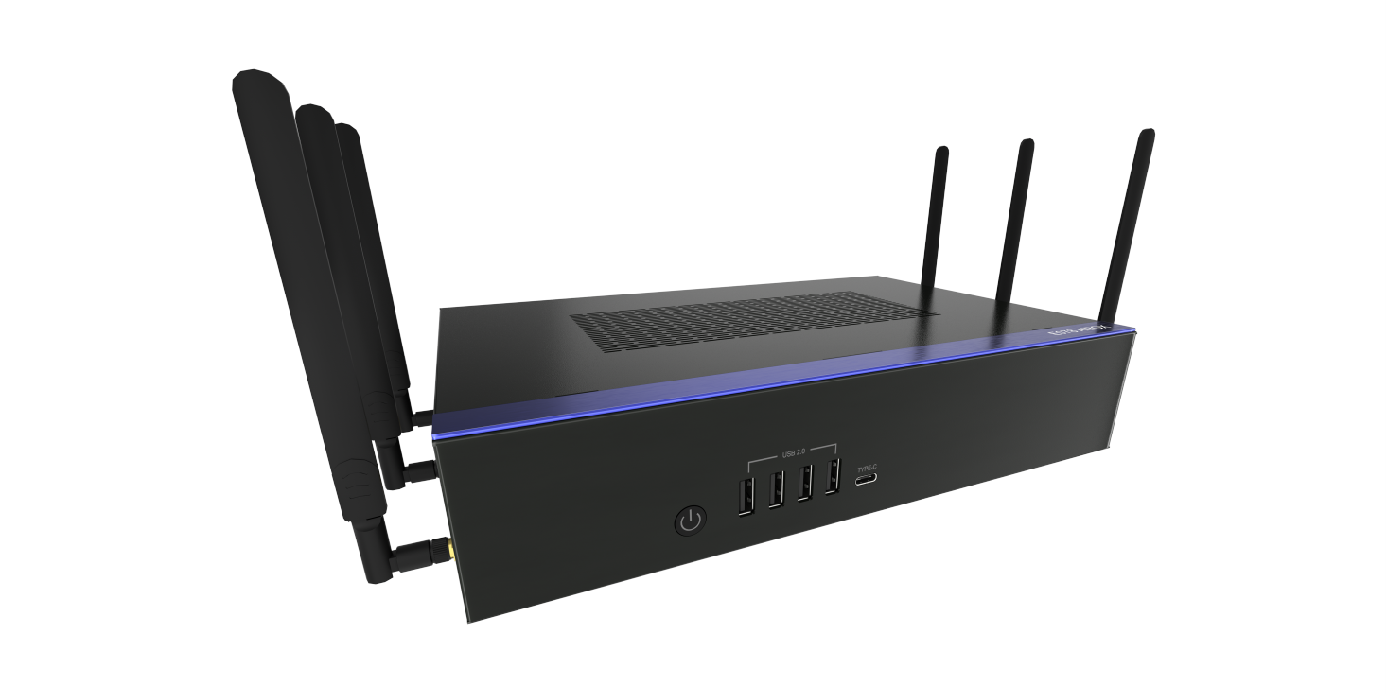

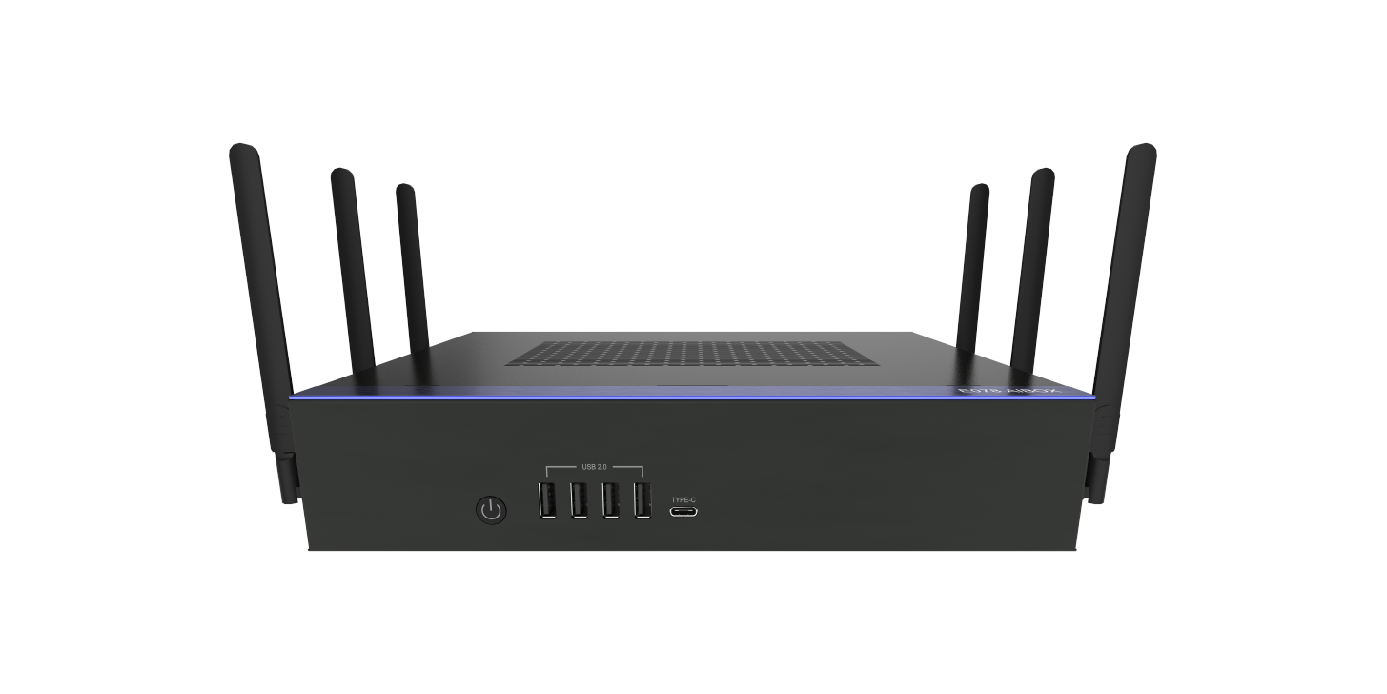

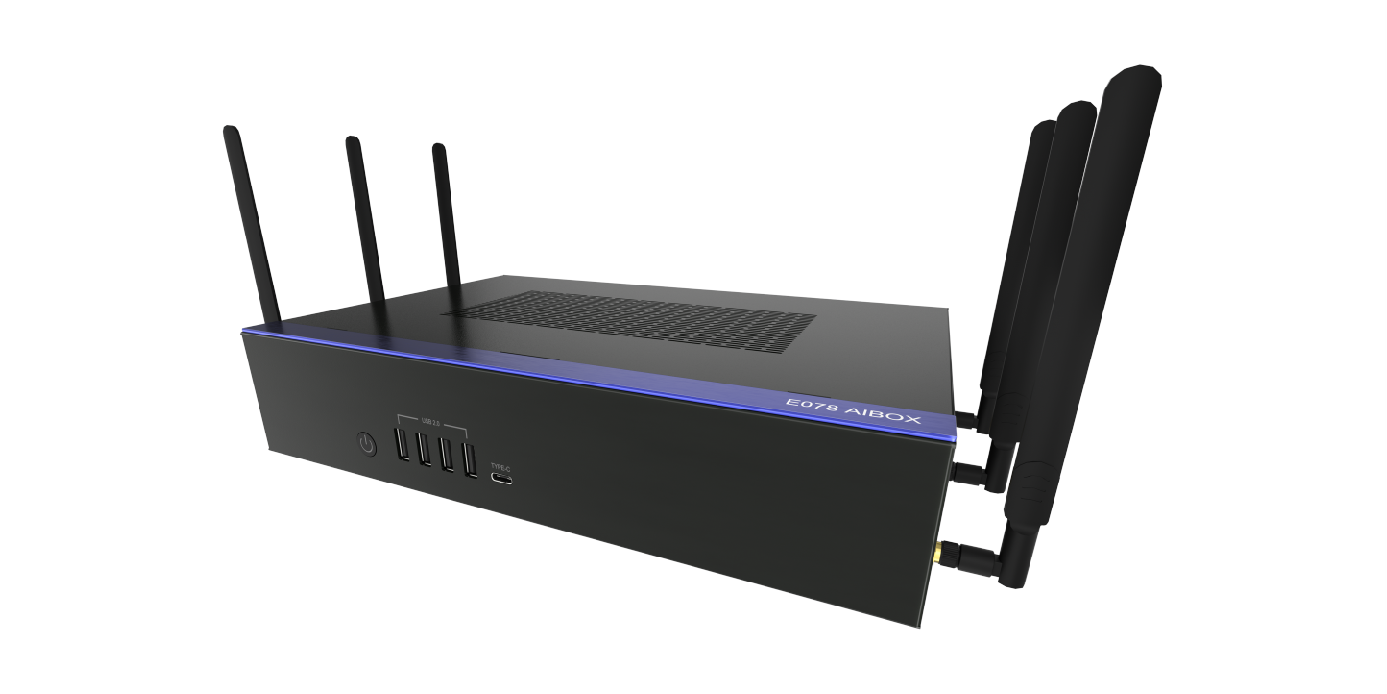

The JEA-E078 is an edge AIBOX based on the Intel Tiger Lake-U platform. It supports high-performance MXM GeForce graphics cards and dual network interfaces, offering robust graphics processing capabilities and connectivity. The device provides a variety of interfaces, including HDMI input/output, USB, Ethernet, and supports multiple storage options. The JEA-E078 is suitable for various AI edge computing scenarios, such as smart cities, intelligent transportation, and smart communities.
- •
- Intel® 11th Gen (Tiger Lake）Core™ Processors
- •
- Nvidia GeForce MXM graphics card
- •
- Onboard 4 HDMI display interface
- •
- 1 GigE LAN，1 2.5Gbps LAN
- •
- 3 M.2 Socket :2 M.2 Key M for SSD
- •
- 2 USB3.0，4 USB2.0, 1 TYPE-C
- •
- 19V DC-In
System | CPU | Intel®Tiger Lake U CPU，TDP Max 15W |
GPU | NVIDIA Graphics Card | |
NPU | Non-Support | |
Memory | 2 x SODIMM DDR4 3200Mhz，Up to 64GB | |
Expansion | Interface | 1 x M.2 (KEY M 2280) for SSD/NVME SSD 1 x M.2 (KEY M 2280) for SATA SSD |
Display | Graphics Processor | Intel®UHD Graphics |
Interface | HDMI2.0 Out，Max resolution up to 4096x2160@60Hz HDMI1.4 IN，Max resolution up to 4096x2160@30Hz DP1.2(TYPE-C），Max resolution up to 4096x2160@60Hz | |
Storage | Storage Device | M.2 SSD |
GNSS | GNSS | Non-support |
Audio | Audio Codec | ALC897 |
Interface | 1 x 3.5mm Line Out，1 x 3.5mm Mic In | |
Network | Ethernet | 1 x Intel GbE LAN 1 x Intel 2.5Gbps LAN |
WIFI | 1 x M.2 2230 with PCIe and USB2.0 for WIFI/BT Module | |
I/O | LED | 1 x Power LED |
USB | 4 x USB2.0 TYPE-A，2 x USB3.0 TYPE-A，1 x TYPE-C（USB3.0） | |
Serial | Non-support | |
Others | 1 x 12 Pole Phoenix GPIO | |
Power | Power Input | 19V DC-In |
Power Interface | 4Pin DC JACK | |
Other | OS Supports | Linux/Windows10/Windows11 |
Watchdog | Support | |
TCM/TPM | Onboard TPM2.0 IC | |
Antenna | 2 x WIFI Ant，4 x 4G/5G Ant | |
Dimension | Dimensions | 264mm(L)×172mm(W)×55mm(H) |
Mounting | Desk/Wall-mounting | |
Environment | Operating Temp. | 0~40℃ |
Humidity | 10%~90% Humidity, non-condensing | |
Storage Temp. | -20~70℃ | |
Humidity | 5%~95% Humidity, non-condensing |
