E608

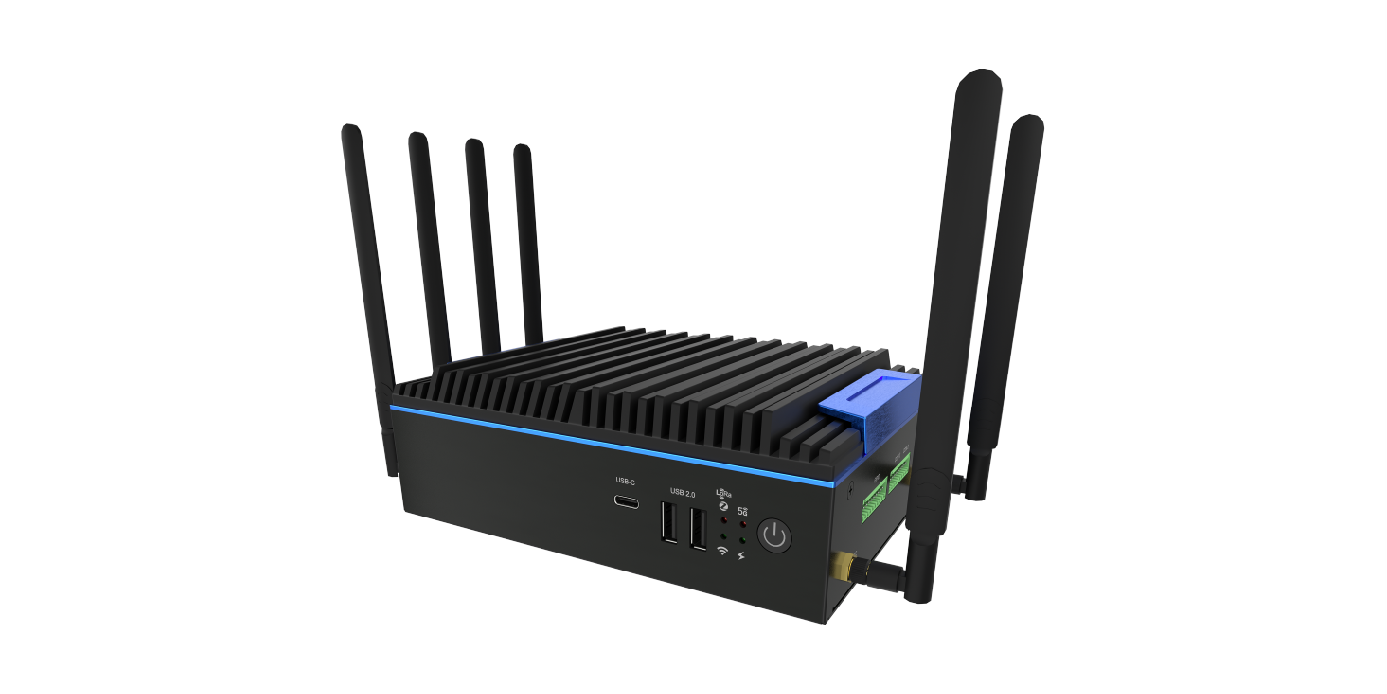

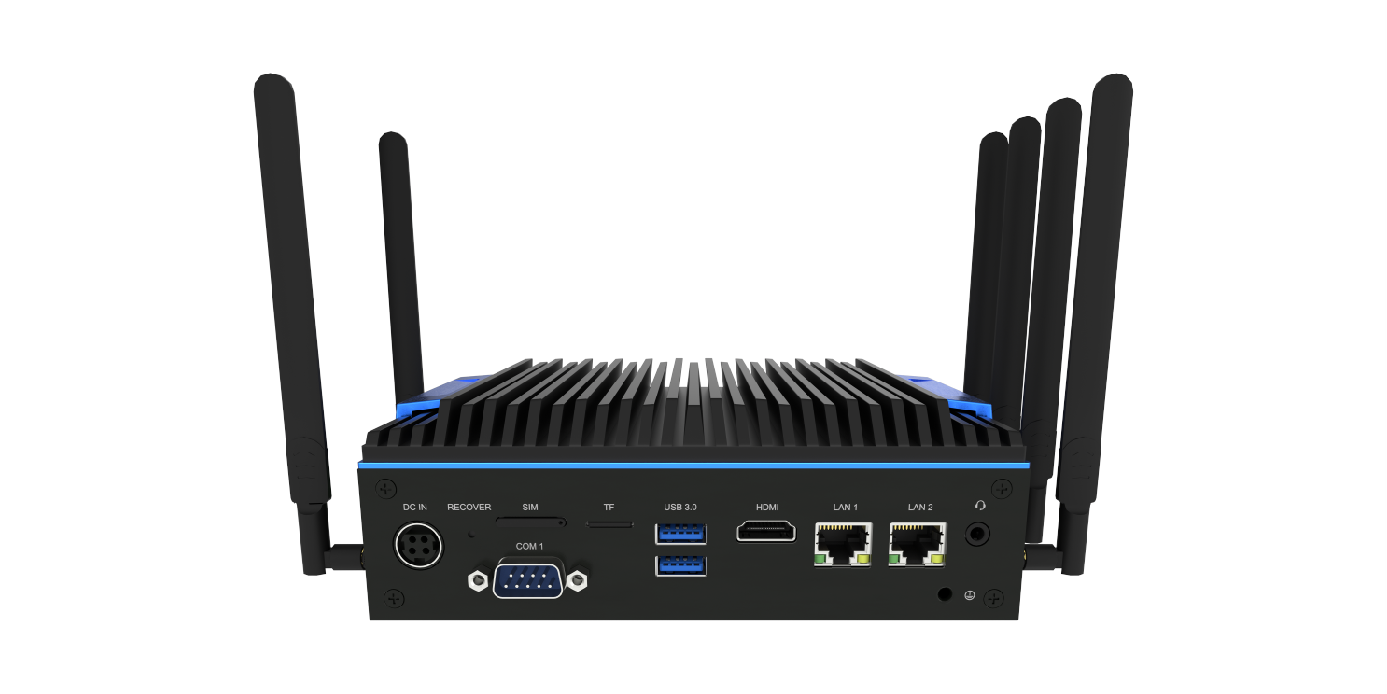

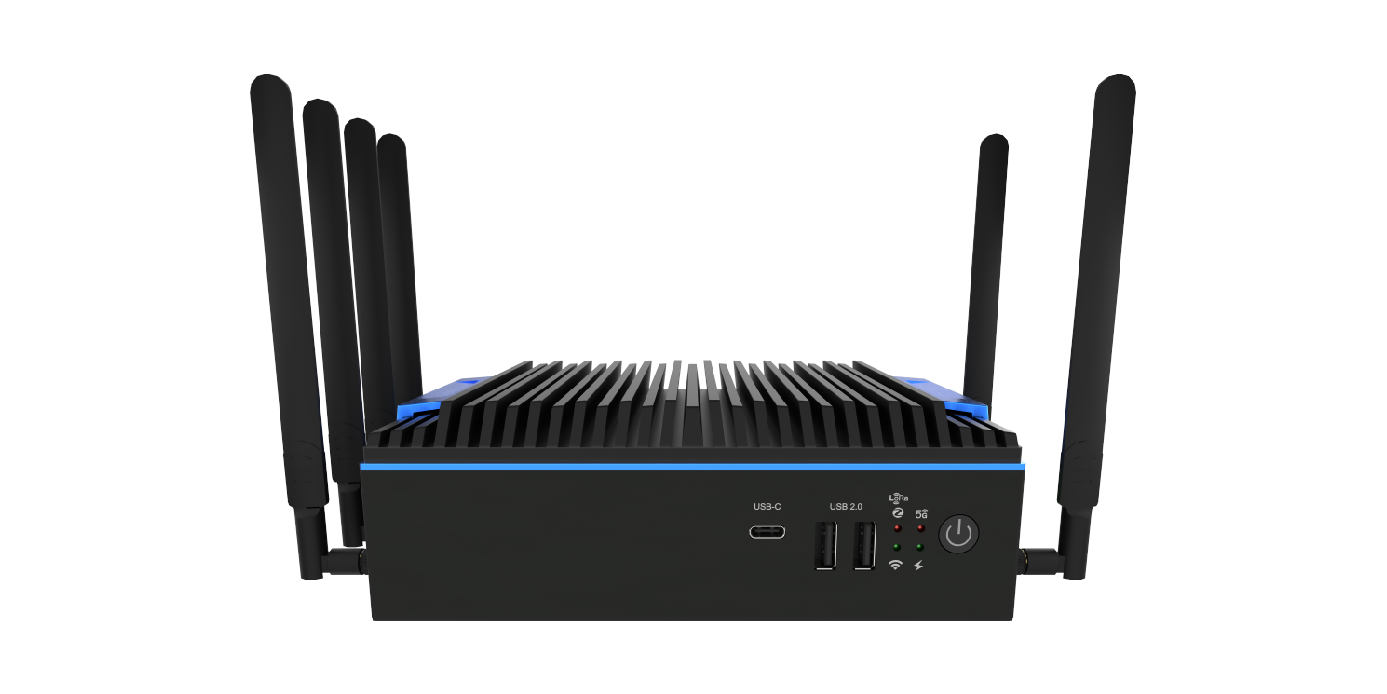

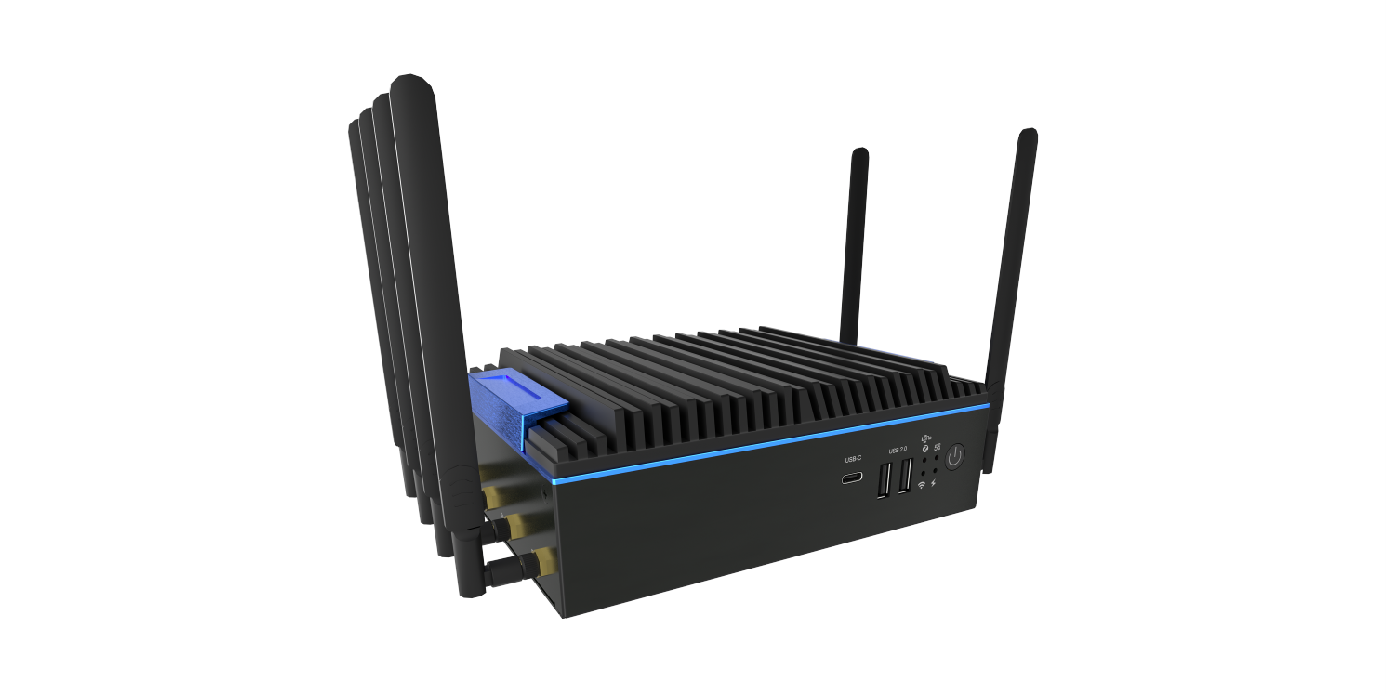

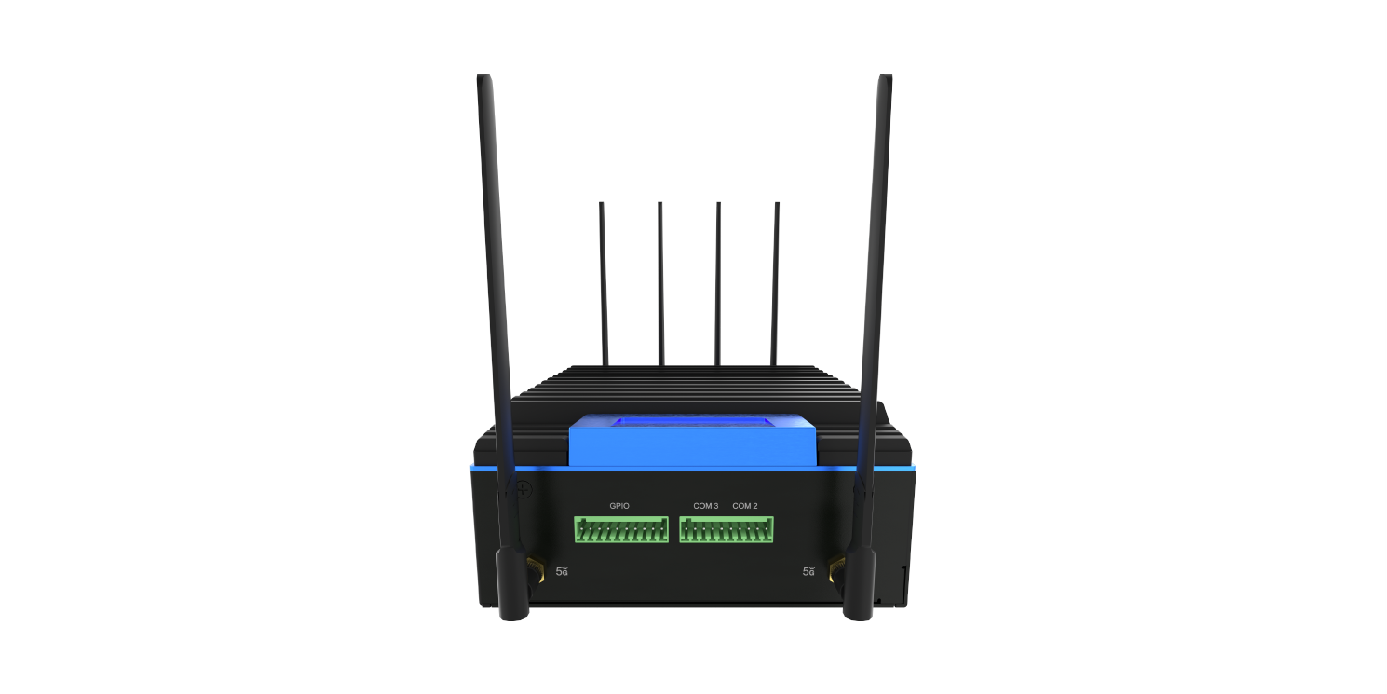

The JEA-E608 is an edge AIBOX based on the NVIDIA Jetson Orin Nano module. It delivers up to 40 TOPS of AI performance, equipped with an Ampere architecture GPU and Cortex-A78AE CPU. The device features a range of interfaces, including dual Gigabit Ethernet, WiFi, Bluetooth, 5G/4G, and LoRa wireless connectivity options, as well as various storage and expansion options. The JEA-E608 supports Linux Ubuntu operating system and NVIDIA JetPack SDK, making it suitable for a wide range of edge AI applications.
- •
- NVIDIA Jetson Orin Nano 4GB/8GB Module
- •
- Ampere Architecture GPU + Cortex-A78AE CPU
- •
- Up to 40 TOPS of AI Performance
- •
- Ideal for Deep Learning Acceleration at the Edge
- •
- Dual GbE LAN for Camera Connectivity
- •
- WiFi, Bluetooth, 5G/4G, and LoRa for Remote Access
- •
- M.2 NVMe SSD and SD Card for Storage
- •
- On-board TPM 2.0 Module for Security
- •
- Supports Linux Ubuntu OS and NVIDIA JetPack SDK
Module | Orin Module | Jetson Orin Nano 4GB | Jetson Orin Nano 8GB |
Processor System | CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 1.5 GHz 1.5MB L2 + 4MB L3 | |
GPU | 512-core NVIDIA Ampere GPU with 16 Tensor Cores | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |
NPU | 20TOPS （int8） | 40TOPS（int8） | |
Memory | 4GB 64bit LPDDR5 34 GB/s | 8GB 128bit LPDDR5 68 GB/s | |
Expansion | Interface | 1 x M.2 (KEY B 3042/3052) for 4G or 5G Module 1 x Mini PCIe for Lora Module 1 x Micro Sim Slot，1 x TF Slot | |
Graphics | Graphics Processor | NVIDIA Ampere GPU | |
Interface | HDMI1.4，Max resolution up to 4096x2160@30Hz | ||
Storage | Storage Device | 1 x M.2 (KEY M,2280) with NVME SSD | |
GNSS | GNSS | Onboard GPS Module | |
Audio | Audio Codec | ES8336 | |
Audio Interface | 1 x 3.5mm Audio Jack (2 in 1) | ||
Network | Ethernet | 2 x Realtek LAN | |
WIFI | 1 x M.2 (KEY E,2230) with PCIex1,USB2.0 for Wireless and Bluetooth | ||
I/O interface | LED | 1 x Power LED，1 x 5G LED，1 x WIFI LED，1 x Zigbee LED | |
USB | 2 x USB2.0 TYPE-A，2 x USB3.0 TYPE-A | ||
Serial | 1 x DB9（RS232/RS485 Option），1 x 10 Pole Phoenix（RS232+RS485） | ||
Others | 4-ch IN，4 x CH Out （10 Pole Phoenix GPIO ） | ||
Power | Power Input | 12V DC-In | |
Power Interface | 2-Pole Phoenix DC plug in | ||
Others | OS Supports | Ubuntu20.04 | |
Watchdog | Support | ||
TCM/TPM | Onboard Z32H330TC TCM Module | ||
Antenna | 2 x WIFI Ant，4 x 5G Ant | ||
Mechanical | Dimensions | 187mm(L)×131mm(W)×54mm(H) | |
Mounting | Desk/Wall-mounting | ||
Environment | Operating Temp. | 0~40℃ & -20~60℃ （According to configuration optional） | |
Humidity | 10%~90% Humidity, non-condensing | ||
Storage Temp. | -20~70℃ & -30~80℃ （According to configuration optional） | ||
Humidity | 5%~95% Humidity, non-condensing | ||
