IPC-2U480

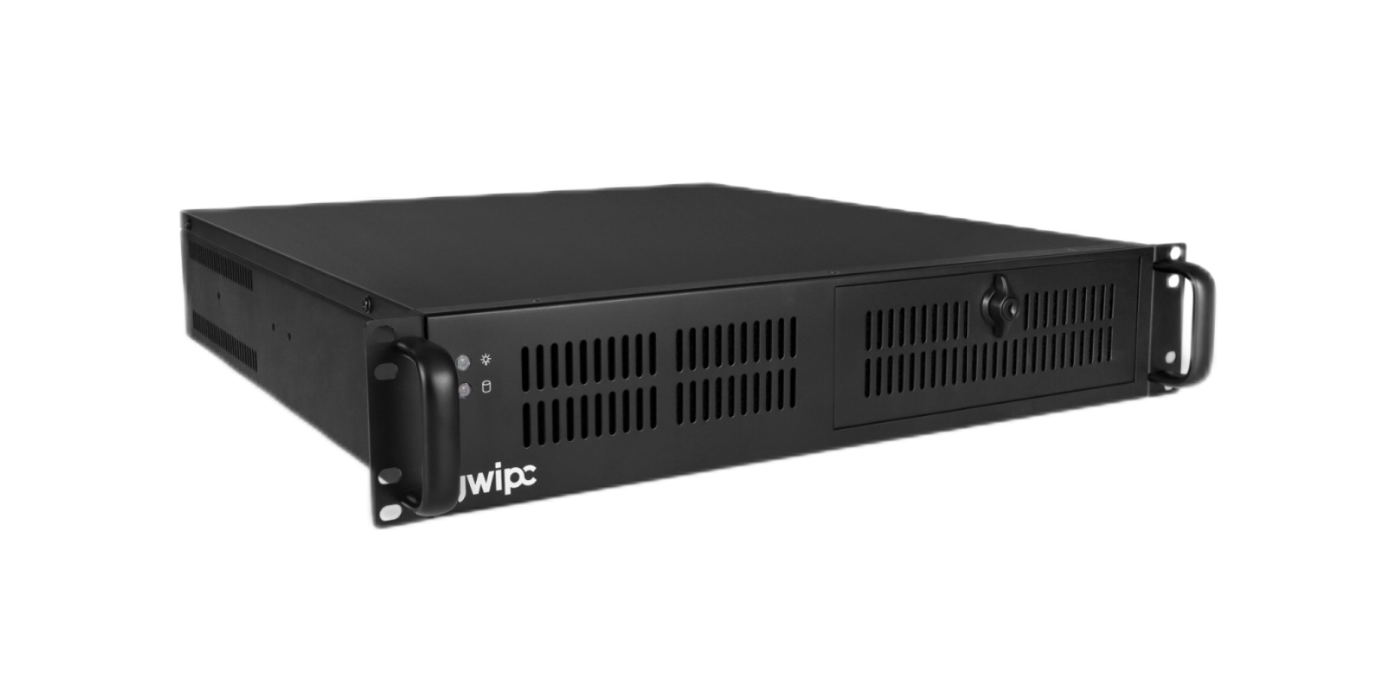

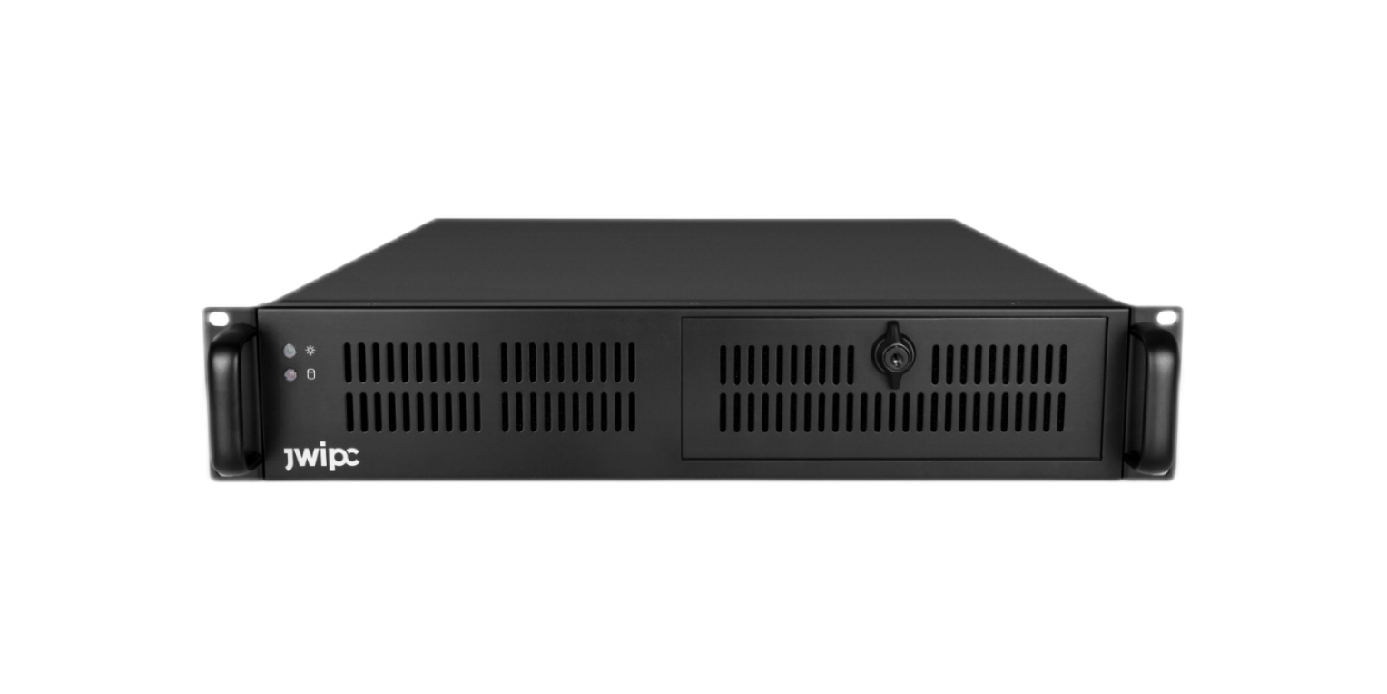

The IPC-2U480 is a 2U standard black rack-mounted chassis, equipped with abundant external ports and supporting 7-slot half-height PCI/PCIe expansion, which can be widely used in energy storage, transportation PIS equipment and other industries.
- •
- Compatible with ATX, Micro-ATX, Mini-ITX industrial motherboard
- •
- Supports 2 3.5" hard disk mounting slots and 1 2.5" SSD mounting slots
- •
- Provides seven half-height PCI/PCIE vertical expansion slots. Compatible with Flex 2U power supply or redundant power supply
- •
- The power switch, reset switch, power indicator and hard disk indicator are set in the lockable and see-through front door to effectively prevent unauthorized operation
- •
- The gauge design can be used in harsh environments such as vibration, dirt, dust and extreme temperature environments
System | Adapted motherboard | Support ATX、Micro-ATX、Mini-ITX |
Optional motherboard | AIoT0-H81, AIoT0-H110, AIoT0-C236, AIoT0-H510, AIoT0-W580, AIoT0-H610, AIoT0-W680 | |
I/O Interface | Front IO | 2*USB，POWER LED，HDD LED，RESET SW，POWER SW |
Rear IO | 2*COM | |
Expansion | Expansion Slot | 7*half-height expansion slot |
Storage | 2.5” Drive Bay | / Optional configuration 1 |
3.5” Drive Bay | 2 | |
5.25” Drive Bay | 1 | |
Power supply | Power Input | Support Flex 2U 400W |
Power Interface | AC | |
Others | System Fan | 2*8025 System Fan |
Physical parameters | Dimensions | 428 x 88.5 x 483mm (W x H x D) |
Weight | 6.8KG | |
Mounting | Desk/Rackmount | |
Working environment | Operating Temp. | 0℃～45℃ |
Storage Temp. | -40℃～55℃ | |
Humidity | Working relative humidity 20%～80%，Non-operating relative humidity20%～93%(40℃) | |
Shock | 3 directions, 10G(11ms half sine wave), 3 times/ directions | |
Vibration | Working status: 1Grms@5~500Hz , Non-working status：2Grms@5~500Hz |
