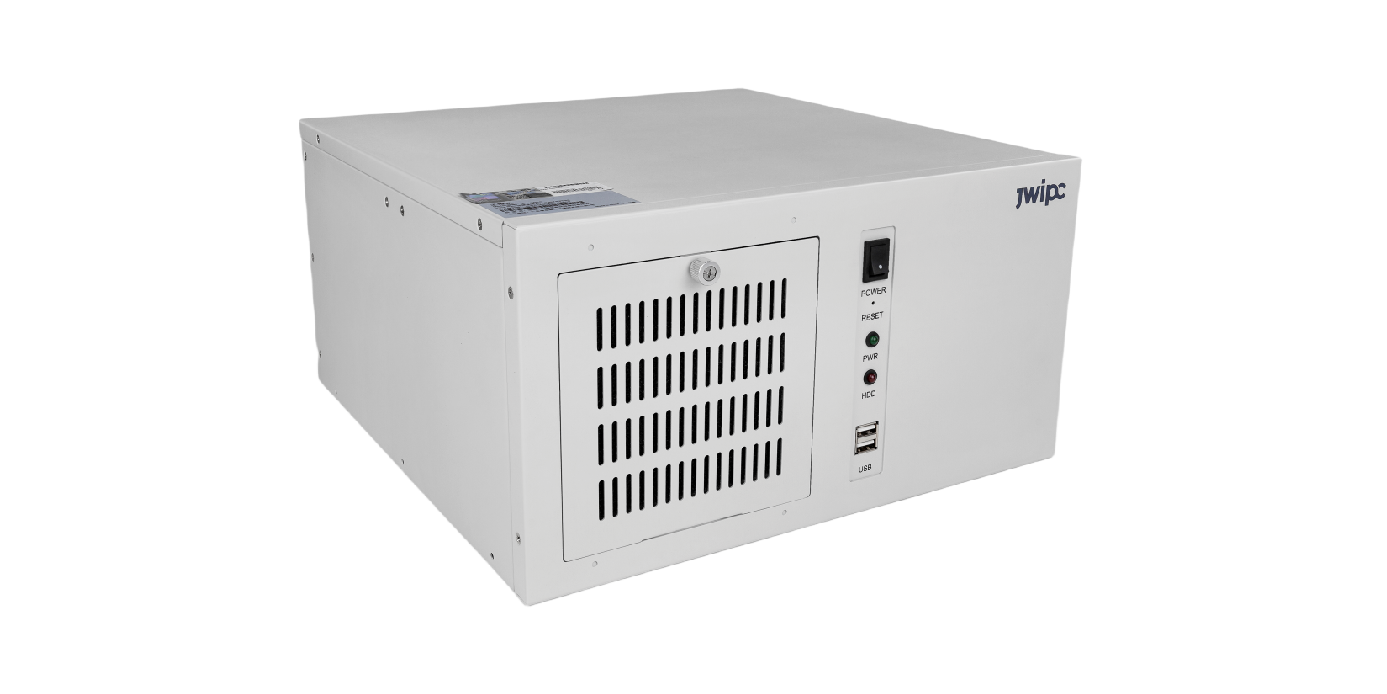

7 Slot chassis

IPC-750 is a 7-slot chassis that supports multiple serial ports, USB, and 7-slot PCI/PCIE expansions, which can be widely used in lithium, photovoltaic, 3C, semiconductor, laser, pharmaceutical and other industries.

Compatible with ATX, Micro-ATX, Mini-ITX industrial motherboard
Supports 1 3 5" hard drive and 1 2.5" SSD mounting slot
Seven full-height PCI/PCIE expansion slots with layering and mounting brackets
Compatible with ATX power supply
The front end of the chassis is equipped with two external USB ports. The gauge design can be used in harsh environments such as vibration, dirt, dust and extreme temperature environments
Specification parameters

System

Adapted motherboard

Support ATX、Micro-ATX、Mini-ITX

Optional motherboard

AIoT0-H81AIoT0-H110AIoT0-C236AIoT0-H510AIoT0-H610

I/O Interface

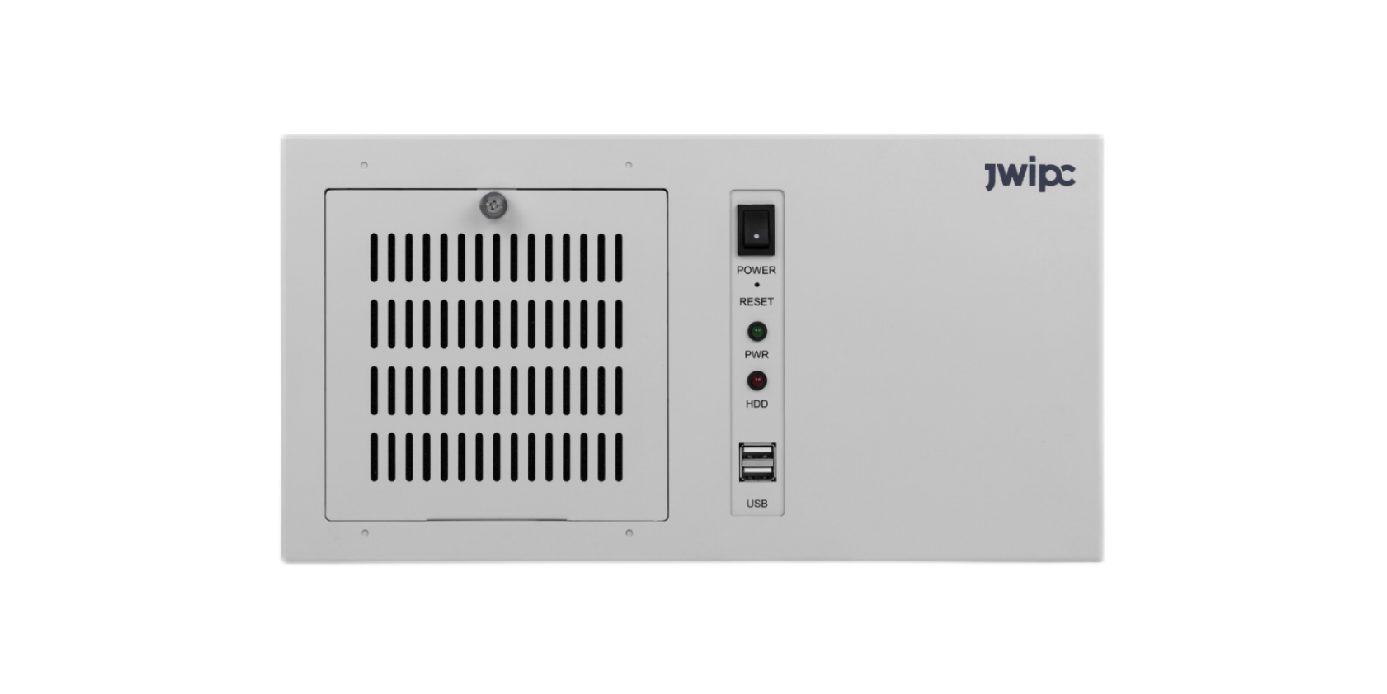

Front IO

2*USB,POWER LED,HDD LED,RESET SW,POWER SW

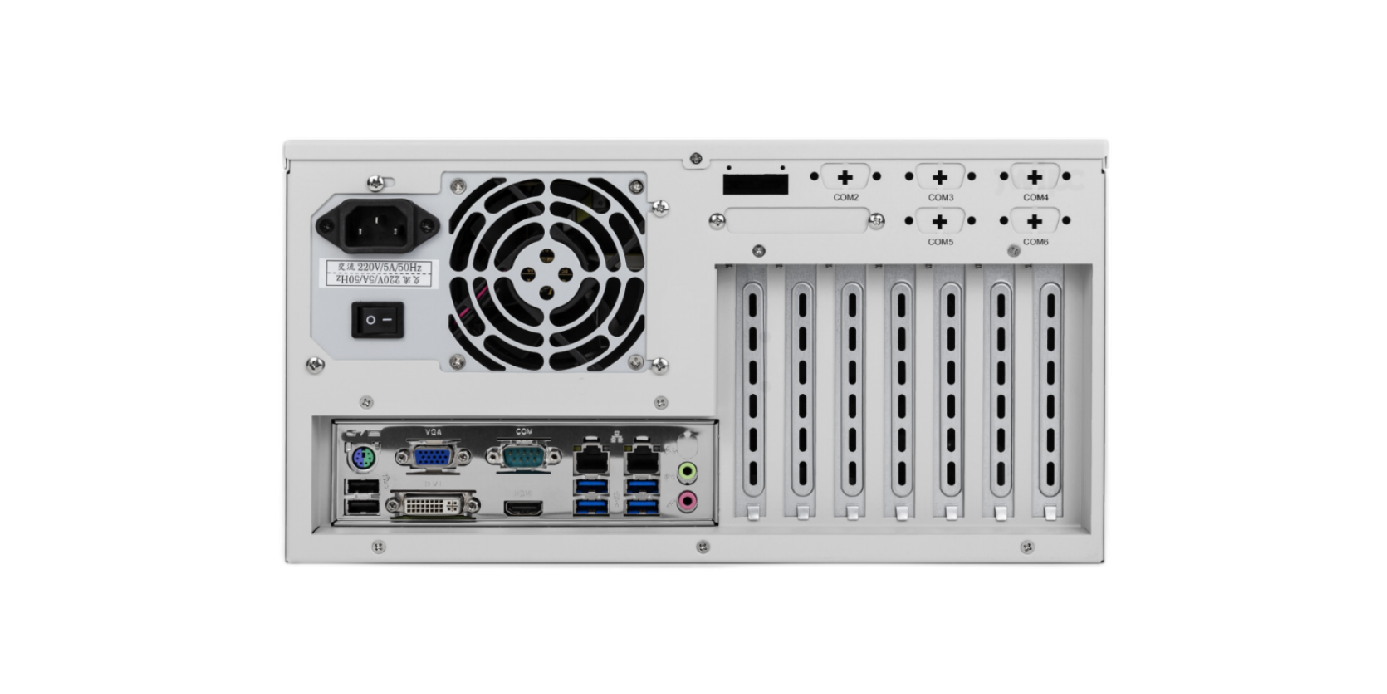

Rear IO

5*DB9,1*DB37,1*Phoenix terminal

Expansion

Expansion Slot

7*Full-height expansion slot

Storage

2.5” Drive Bay

1

3.5” Drive Bay

1

5.25” Drive Bay

/

Power supply

Power Input

Support ATX 300~500W

Power Interface

AC-in

Others

System Fan

1*8025 System Fan

Physical parameters

Dimensions

331mm × 174mm× 331mm (W x H x D)

Weight

6.1KG

Mounting

Desktop/Wall mounting

Working environment

Operating Temp.

0℃~45℃

Storage Temp.

-40℃~55℃

Humidity

Working relative humidity 20%~80%,Non-operating relative humidity 20%~93%(40℃)

Shock

3 directions, 10G(11ms half sine wave), 3 times/direction

Vibration

Working status 1Grms@5~500Hz , Non-working status:2Grms@5~500Hz
