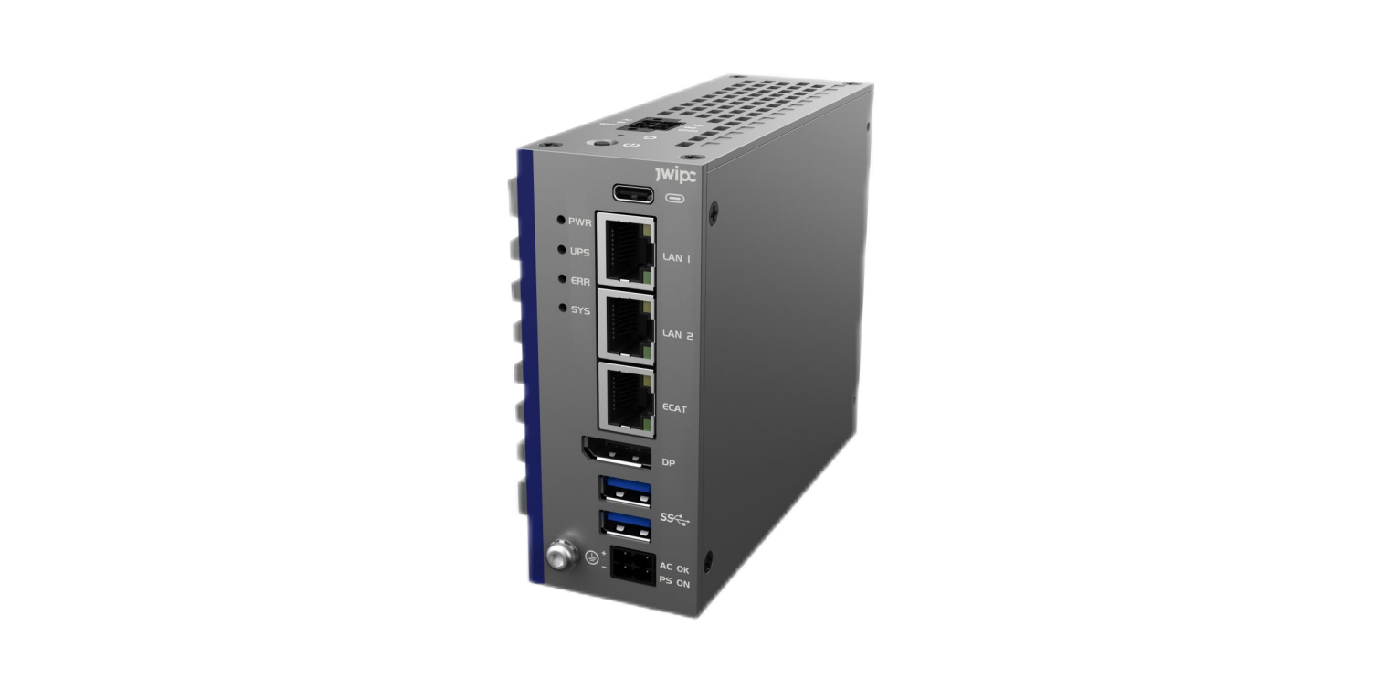

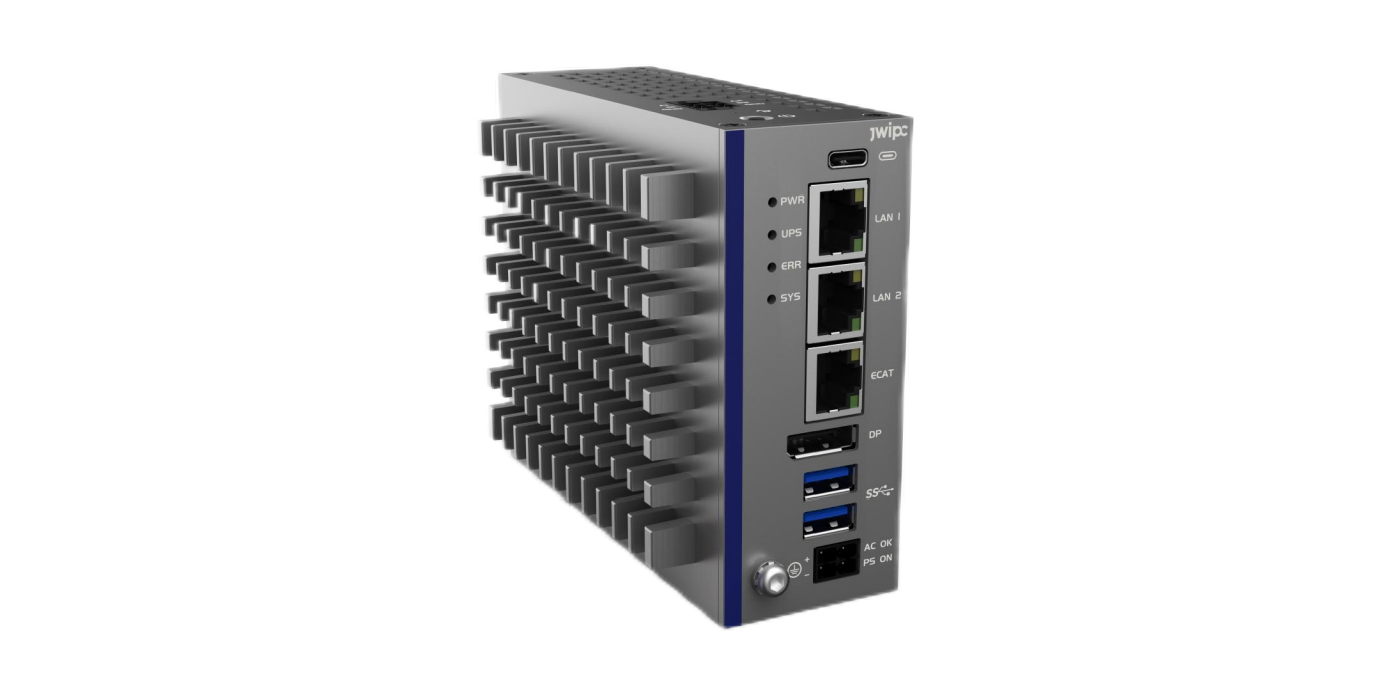

PAC-3020
PAC-3020 is a high-performance Programmable Automation Controller featuring an Intel® Celeron® Alder Lake N100 processor, integrated with 8GB LPDDR5 memory and 32GB eMMC storage. It supports a variety of interfaces including DP display, dual LAN, EtherCAT, USB 3.0, and RS485, and includes an M.2 expansion slot. The product is designed with a compact form factor, supporting wall mounting and DIN rail installation, making it suitable for automation control and industrial IoT in harsh industrial environments.
- •
- Intel N100 SoC
- •
- 8GB LPDDR5 on board
- •
- 32G EMMC on board
- •
- 1xDP
- •
- 2xLAN, 1xECAT
- •
- 2xUSB-TYPE A(USB3.0),1xUSB-TYPE C(USB3.0)
- •
- 1x M.2 2242
- •
- 2xRS485(with isolation)
- •
- DC IN 24V. Electrolytic capacitor inside
System | Processor | Intel® Celeron® Alder Lake N100 |
Chipset | Intel® Alder Lake SoC | |
BIOS | AMI UEFI BIOS | |
Memory | Onboard 8GB LPDDR5 | |
OS | Windows10, Linux | |
I/O Interface | USB | 2x USB-TYPE A(USB 3.0), 1x USB-TYPE C(USB3.0) |
COM | 2xRS485(with isolation), 6PIN Pheonix Terminal | |
LED | 1x Power LED, 1x SYS LED, 1x ERR LED, 1xUPS LED | |
Graphics | Interface | 1xDP, up to 4096 x 2160@60Hz |
Storage | Storage Device | EMMC/32G on board MRAM（ reserved） 1x M2.2242 SATA/NVME(PCIex2) |
Ethernet | LAN | 2x LAN( Intel I210AT), 1x ECAT(Intel I210AT) |
Display | LCD | Monochrome 128x64 Dot Matrix Display ，With up, down, back and confirm buttons |
Power | Power Input | DC IN 24V, Electrolytic capacitor inside ， 100ms Power-off Retention |
Power Interface | 4-Pole Phoenix DC plug in | |
Others | others | 1x PWR button 1x reset button RTC battery |
Mechanical | Dimensions （WxHxD) | 55x108x123 mm |
Weight | KG | |
Mounting | Wall-mounting, D in rail mounting | |
Environment | Operating Temp. | -20~60℃ |
Storage Temp. | -25~70℃ | |
Humidity | 95%@40℃ (non-condensing) | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duration | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random ， 5~500Hz ， 1 hr/axis |
