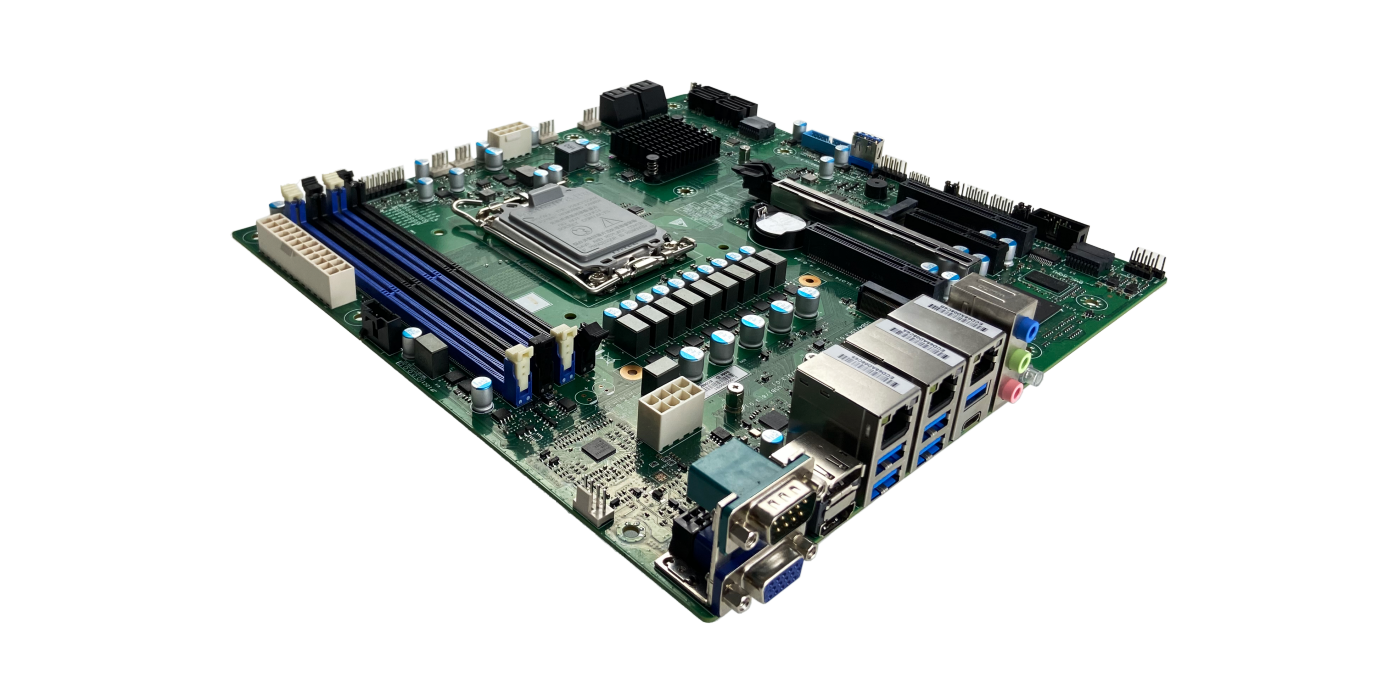

P13SWM-BMC
The P13SWM is a high-performance single-socket server motherboard based on the Intel® W680 workstation chipset, utilizing Intel® 12th and 13th generation Core™ processors. It offers significant improvements in device expandability and performance. This server motherboard also supports ODM customization services to meet personalized customer needs, making it a top choice for industry users looking to build a refined IT platform.
- •
- Intel® high-performance workstation W680 chipset, supporting Intel 12th/13th generation processors
- •
- 4 DDR5 UDIMM memory slots, supporting up to 128G of memory
- •
- 1 standard PCIe 5.0 x16 (x16 slot), 2 standard PCIe 4.0 x4 (x8 slots), and 1 standard PCIe 3.0 x4 (x4 slot) for flexible expansion
- •
- 8 hard drives, with storage types supporting 6G SATAIII
- •
- 2 Intel® 2.5G network interfaces and 1 network management interface
- •
- USB3.0 for high-speed data backup to mobile storage
- •
- Supports IPMI and hardware monitoring, allowing remote monitoring of host power, voltage, temperature, fan, and other hardware operating statuses
System controller | CPU | ADL-S platform Intel 12th/13th generation Core processors |
Chipset | Intel® W680 chipset | |
BIOS | AMI UEFI BIOS | |
Graphics card | Chip | ASPEED AST2600 BMC |
Interface | 1 x VGA, 1 x DP, 1 x HDMI | |
Memory | Type | 4 UDIMM memory slots; supports up to DDR5 4800/5600MT/s |
Capacity | Supports up to 128GB | |
Memory Size | 8G, 16G, 32G | |
Network | Controller | Intel i226 Enterprise Network Controller |
2.5G Network | 2 x RJ-45 2.5GbE LAN ports, supporting 10/100/1000/2500Mbps | |
IPMI | 1 standard RJ45, 10/100/1000Mbps network interface | |
Storage | SATA | 8 SATA3 6Gb/s ports, supporting Raid 0, 1, 5, 10 |
M.2 | 1 M.2 2242/2280 port, supporting PCI-E 4.0 x4; 1 M.2 2280 port, supporting PCI-E 3.0 x4 | |
Expansion Slots | PCIe Expansion | 1 standard PCIe 5.0 x16 (x16 slot), 2 standard PCIe 4.0 x4 (x8 slots) |
1 standard PCIe 3.0 x4 (x4 slot) | ||

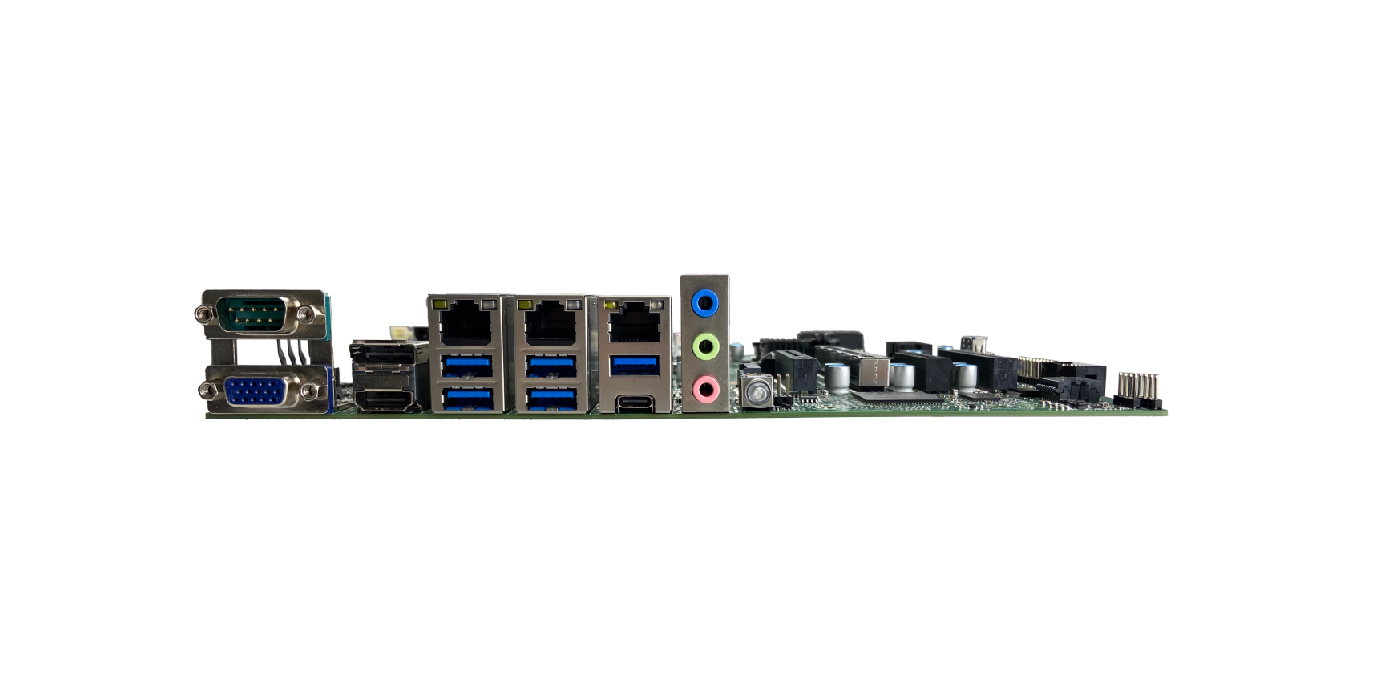

I/O Ports | Back Panel I/O Ports | 1 x IPMI management interface, 5 x USB 3.0 interfaces, 2 x RJ-45 2.5GbE LAN interfaces, 1 x Type-C interface |
1 x COM interface, 1 x UID switch (with LED light), 1 x audio interface, 1 x VGA interface, 1 x HDMI interface, 1 x DP interface | ||
Onboard I/O | 1 x front COM pin header, 5 x 4-pin fan interfaces, 1 x chassis intrusion detection interface 1 x Audio pin header (for front panel connection) | |
1 x 24-pin power interface + 8-pin power interface + 8-pin reserved power interface | ||
1 x USB 3.0 pin header, supports up to 2 devices; 1 x USB 2.0 pin header, supports up to 2 devices; 1 x M.2 2242/2280 slot, supports PCI-E 4.0 x4; 1 x M.2 2280 slot, supports PCI-E 3.0 x4; 1 x USB3.0 Type A; 2 x GPIO pin headers | ||
Dimensions | Dimensions | 248.84mm*246.84mm |
Temperature & Humidity | Operating Temperature | 0~35 Celsius |
Operating Humidity | 8%~90% non-condensing | |
Storage Temperature | -40~70 Celsius | |
Non-operating Humidity | 5%~95% non-condensing |
