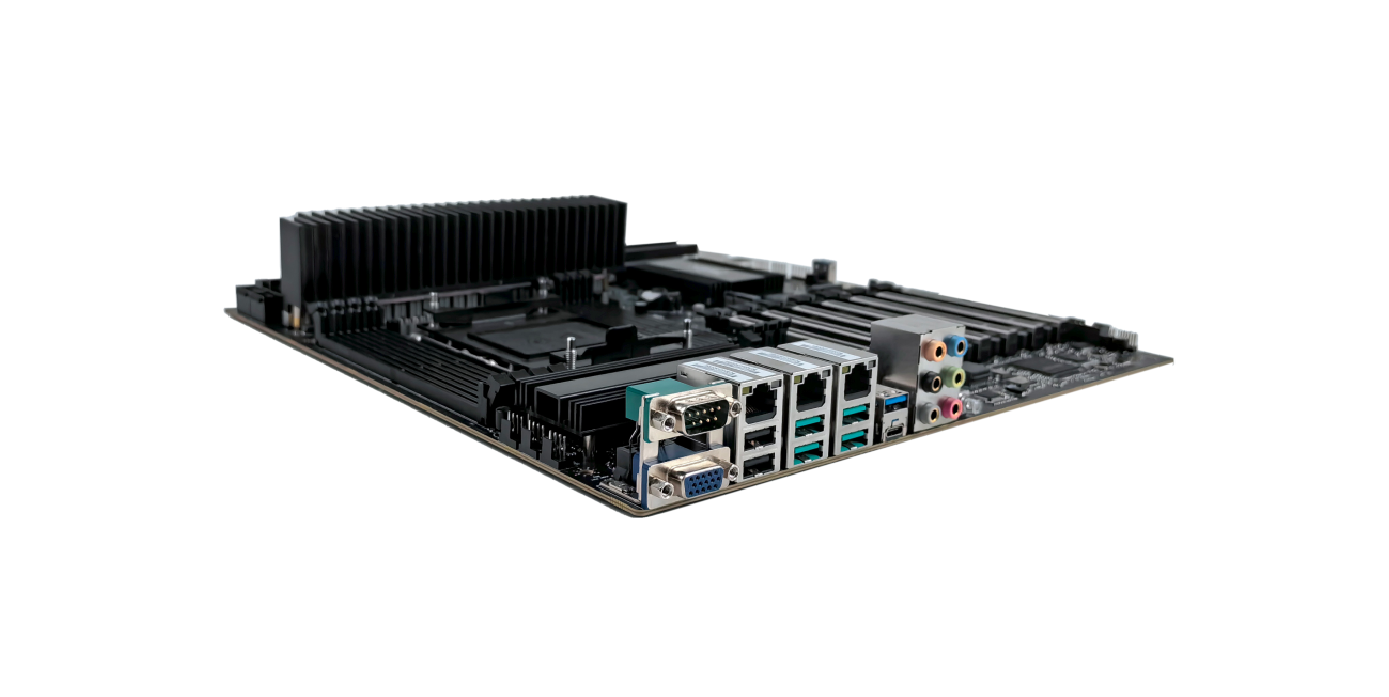

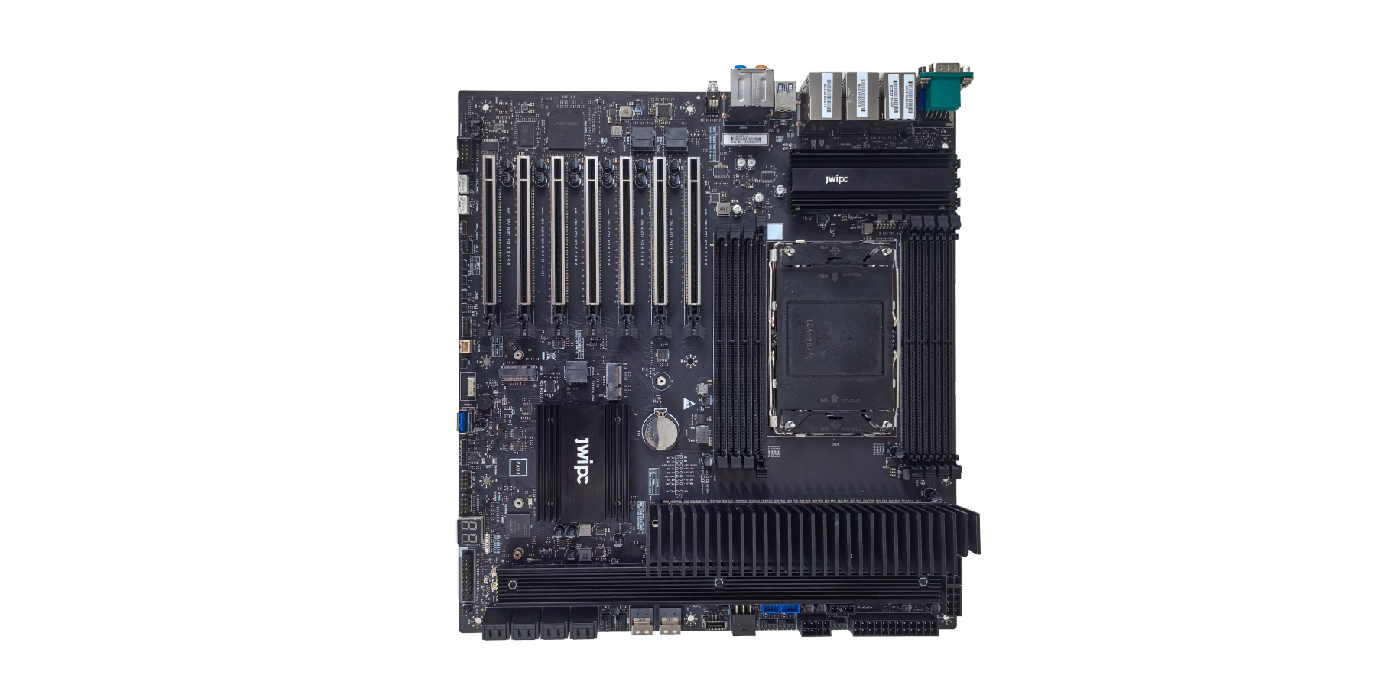

P15SWN

Single-socket high-performance server motherboard

The P15SWN is a high-performance single-socket server motherboard based on the Intel® workstation W790 chipset, featuring Sapphire Rapids series W2400/W2500 processors (64L) and W3400/W3500 processors (112L). Designed specifically for creators, developers, and engineers, this server motherboard also offers ODM customization services to meet personalized customer needs, making it a top choice for industry users looking to build a refined IT platform.

•: Intel® workstation W790 chipset, using Sapphire Rapids series W2400/W2500 Processor 64L and W3400/W3500 Processor 112L processors

•: 8 DDR5 RDIMM memory slots, supporting up to 2TB ECC RDIMM memory

•: 6 PCIe 5.0 X16 expansion slots (X16 signal) and 1 PCIe 5.0 X16 expansion slot (X8 signal)

•: 8 SATA interfaces, 2 Slimline, NVME X4 *2 M.2 (Key M) 22110/2280 (CPU)

•: NVME X4*1 M.2 (Key M) 22110/2280 (PCH)

•: 1 10G network interface, 1 Intel® 1G network interface, 1 network management interface, 1 WIFI interface M.2 (Key E)

•: Supports USB3.2 for high-speed data backup to mobile storage

Message consultation Business Consulting

Specification Comparison

Specification parameters

System Main Control	CPU	1 Socket E, Intel® Xeon® Sapphire Rapids workstation series processor, supports Intel Turbo Boost Max Technology 3.0
	Bridge Chip	Intel® W790 Chipset
	BIOS	AMI UEFI BIOS
Display	Chip	ASPEED AST2600 BMC
Display	Interface	1 x VGA
Memory	Type	8 x DDR5 RDIMM (8 channels); 64L only supports DIMMA1/DIMMB1/DIMME1/DIMMF1 Supports 4800/4400MHz
	Memory Capacity	W2400/W2500 Processor 64L maximum supports 1TB 3DS RDIMM W3400/W3500 Processor 112L maximum supports 2TB 3DS RDIMM
	Memory Size	16G, 32G, 64GB, 128GB, 256GB
Network	WIFI	1 x M.2 (Key E)
	Wired	2 x RJ-45 ports, one supports 100/1000/2500/10000Mbps, one supports 100/1000Mbps
	IPMI	1 x Standard RJ45, 10/100/1000Mbps network port
Storage	SATA	8 x SATA, SlimlineX4 x2
Storage	M.2	NVME X4 2 M.2 (Key M) 22110/2280 (CPU); NVME X41 M.2 (Key M) 22110/2280 (PCH)
Expansion Slots	PCIe Expansion	6 x PCIe 5.0 X16 (X16 signal) slots (1, 3, 4, 5, 6, 7)
Expansion Slots	PCIe Expansion	1 x PCIe 5.0 X16 (X8 signal) slot (2)

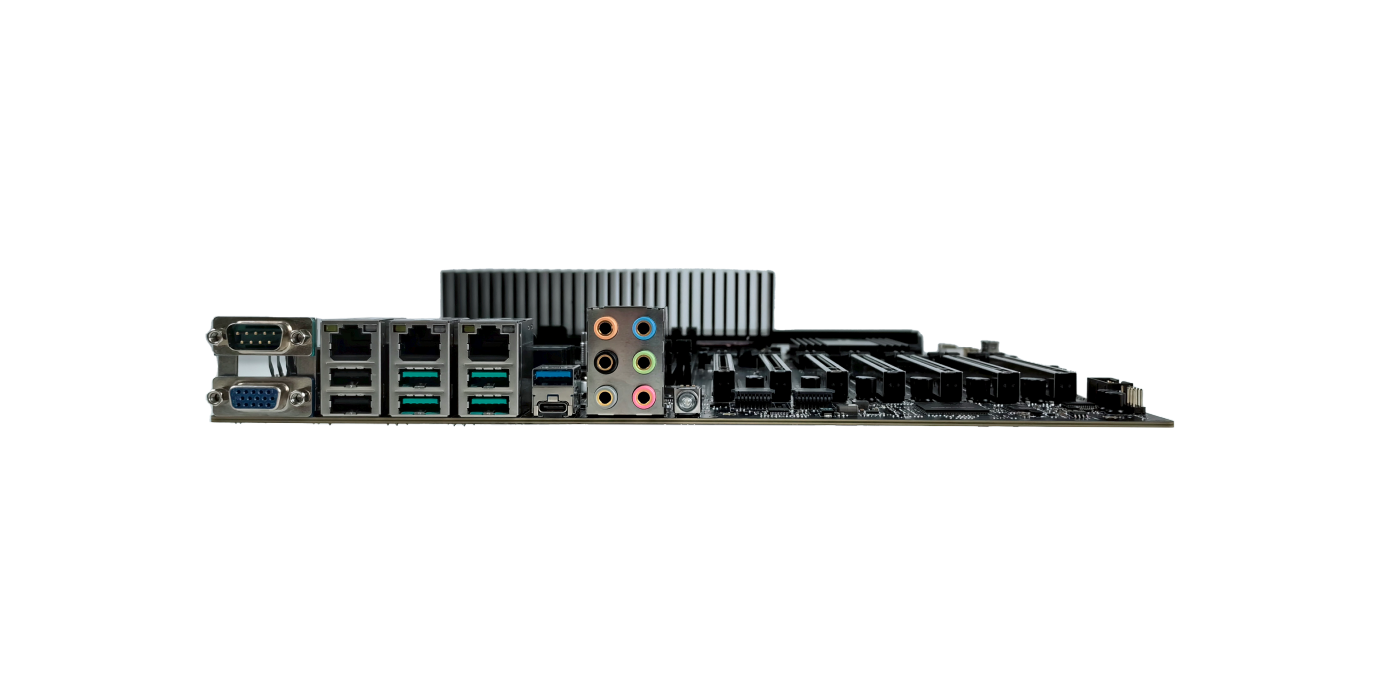

I/O Ports	Rear I/O Ports	1 x USB Type-C; 5 x USB 3.2 Gen 2 port(s) (Type-A); 1 x VGA port; 1 x UID (with LED); 1 x DB9 RS232; 2 x USB 2.0 port(s) (2 x Type-A); 6 x Audio jacks; 1 x 10Gb Ethernet ports; 1 x 1Gb Ethernet ports; 1 x BMC Ethernet ports
I/O Ports	Onboard I/O	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®); 1 x USB 3.2 Type-A 1 x USB 3.2 Gen 1 header(s) supports 2 additional USB 3.2 Gen 1 ports 24-pin Main Power connector; 3 x 8-pin +12V Power connector 1 x BMC header; 1 x COM Port header; 1 x Front Panel Audio header 1 x JFI; 1 x SMBUS; 1 x SPI TPM header; 1 x VROC Key header
Dimensions	Dimensions	330*305mm
Temperature & Humidity	Operating Temperature	0~35°C
	Operating Humidity	8%~90% non-condensing
	Storage Temperature	-40~70°C
	Non-operating Humidity	5%~95% no condensation

Specification parameters

CPU

One SocketE, Intel®Xeon®Sapphire Rapids Workstation series processor, supports Intel Rui Speed Max Technology 3.0

Bridge plate

Intel®W790 chipset

BIOS

AMI UEFI BIOS

Display chip

ASPEED AST2600 BMC

Display interface

1 x VGA

Memory type

8 x DDR5 RDIMMs (8 channels); 64 l only support DIMMA1 DIMMB1 / DIMME1 / DIMMF1 support 4800/4400 MHZ

Memory capacity

The W2400 Processor 64L supports a maximum of 1TB 3DS RDIMM. The W3400 Processor 112L supports a maximum of 2TB 3DS RDIMM

Memory size

16G , 32G, 64GB, 128GB, 256GB

Network controller

WIFI

1 x M.2 (Key E)

wired

2 x RJ - 45 interface, support for 100/1000/2500/5000/10000 MBPS

IPMI

1 x standard RJ45, 10/100/1000Mbps network interface

SATA

8 x SATA , Slimline x2

M.2

NVME X4 *2 M.2 (Key M)22110/2280 (CPU); NVME X4*1 M.2 (Key M) 22110/2280 (PCH)

PCIe expansion

5 x PCIe 5.0 X16 (X16 signal) slot(1, 3, 4, 5, 7) 1 x PCIe 4.0 X16 (X8 signal) slot(4); 1 x PCIe 5.0 X16 (X8 signal) slot(2)

Rear I/O interface

1 x USB Type-C; 5 x USB 3.2 Gen 2 port(s) (Type-A); 1 x VGA port; 1 x UID (with LED); 1 x DB9 RS232; 2 x USB 2.0 port(s) (2 x Type-A); 6 x Audio jacks; 2 x Intel® dual 10Gb Ethernet ports; 1 x BMC Ethernet ports

Onboard I/O

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®); 1 x USB 3.2 Type-A 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 24-pin Main Power connector; 1 x USB 3.2 Type-A 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 24-pin Main Power connector; 3 x 8-pin +12V Power connector 1 x BMC header; 1 x COM Port header; 1 x Front Panel Audio header 1 x JFI; 1 x Front Panel Audio Header; 1 x SMBUS; 1 x SPI TPM header; 1 x VROC Key header

dimension

330*305mm

Operating temperature

0 to 35 degrees Celsius

Operating humidity requirement

8% to 90% no condensation

Storage temperature

-40 to 70 degrees Celsius

Non-working humidity requirement

5% to 95% no condensation
