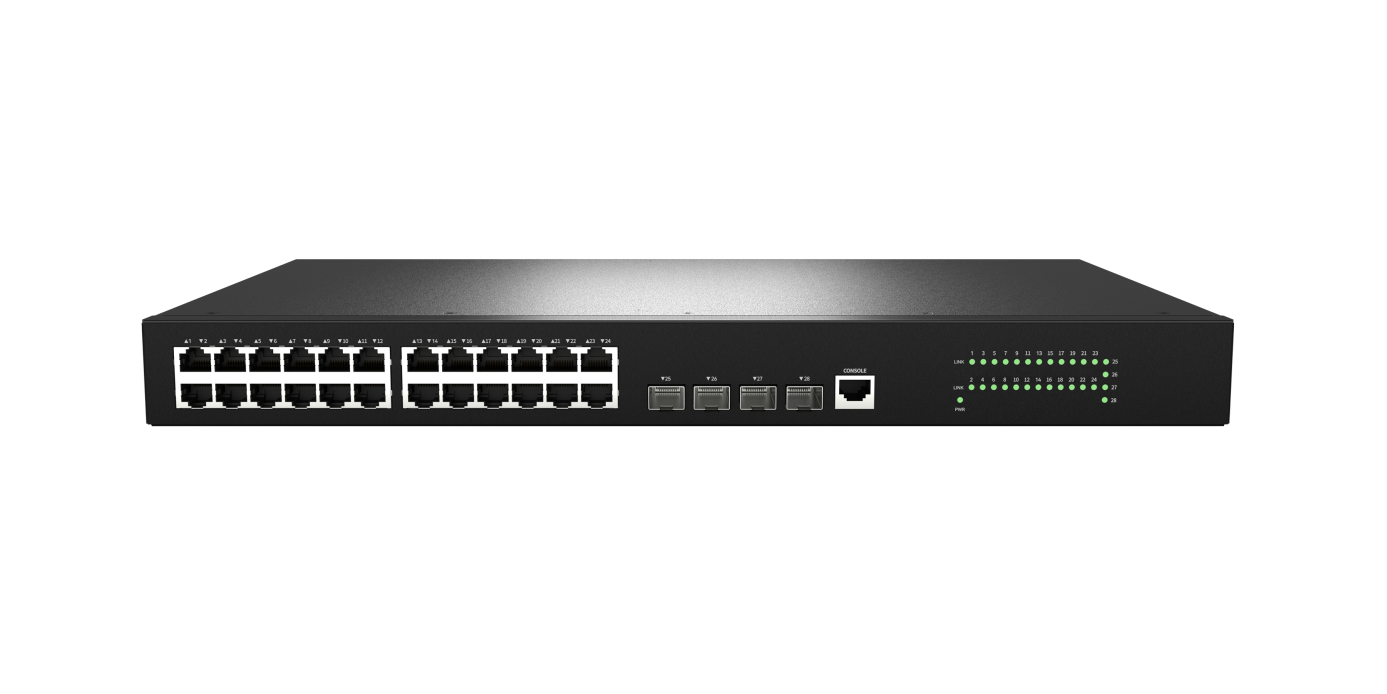

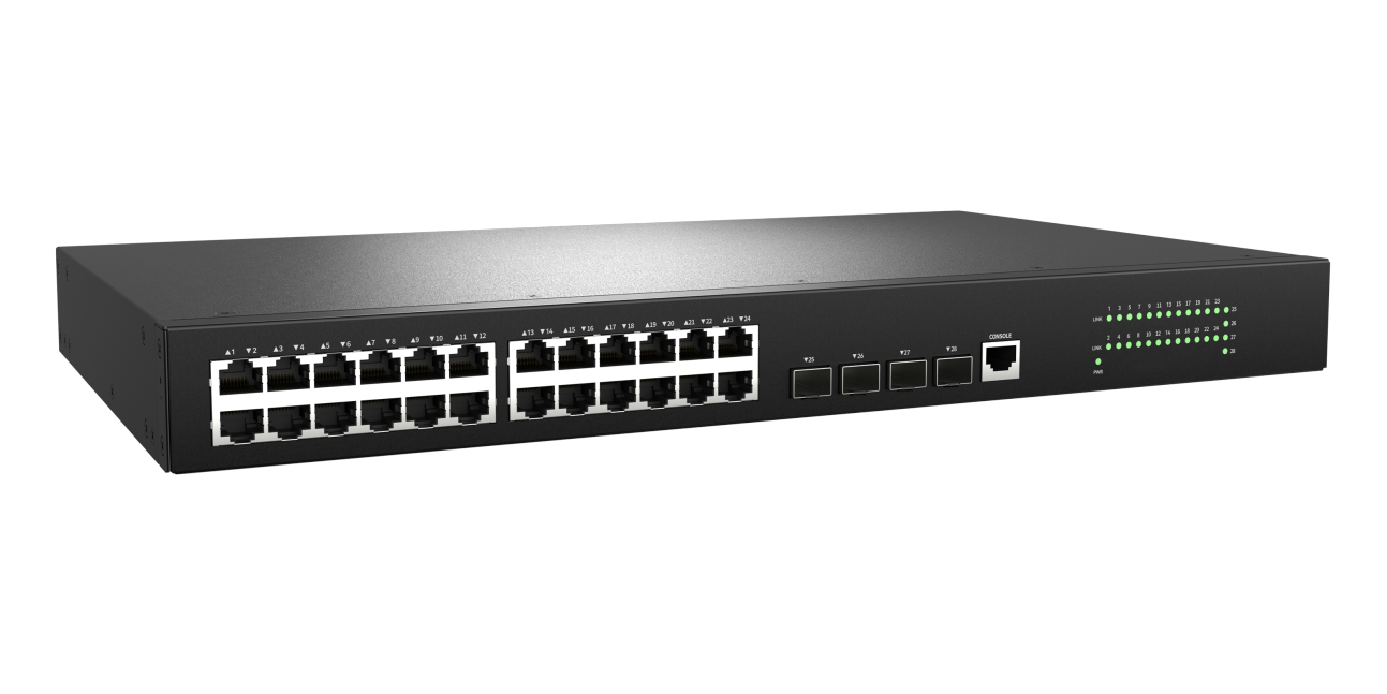

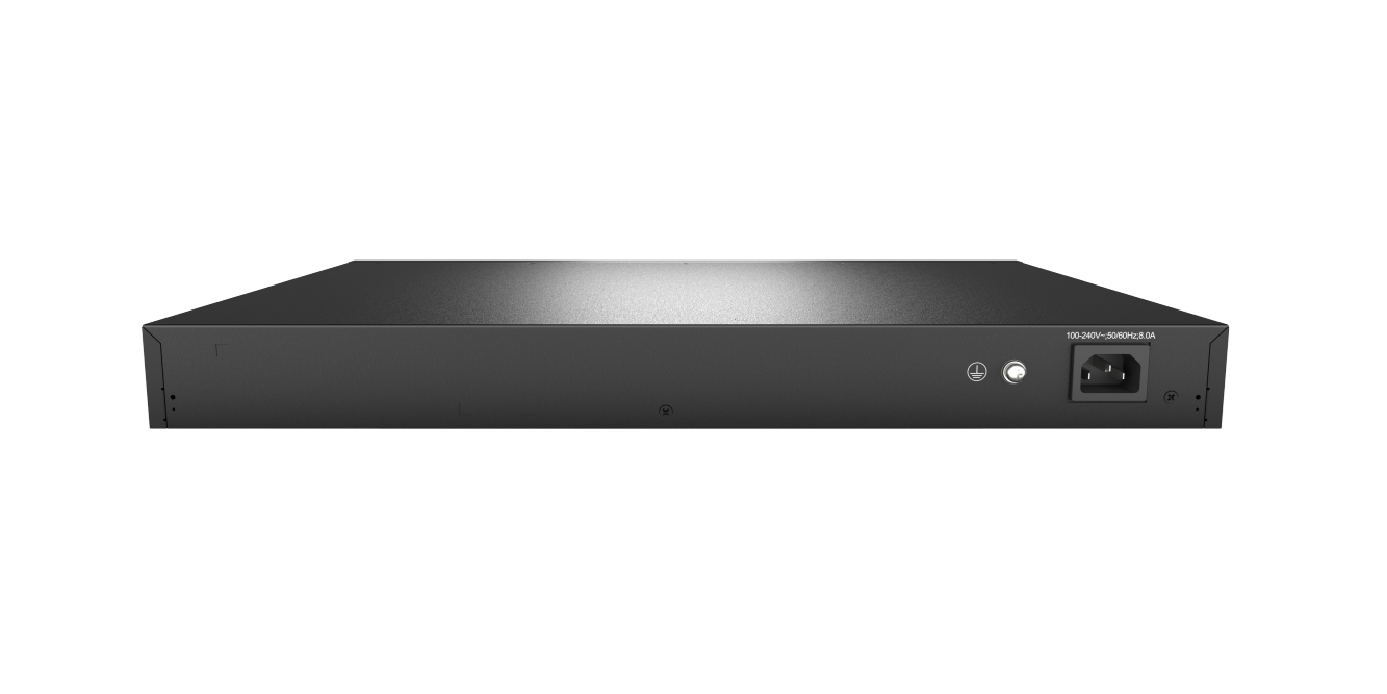

Managed Gigabit switch

The Gigabit Ethernet Management series switches have multiple features that bring high availability, comprehensive security, robust multicast control, and advanced QoS to the network edge while maintaining simple management.

Full Gigabit Ethernet switch
Supports TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSHv2. Supported ERPSv1, STP/RSTP, and MSTP
Easily manage your network through a web browser, CLI, remote login/serial console
Specification parameters



Performance

Switching capacity

56Gbps

Auto-negotiation

Support

Auto-MDI/MDIX

Support

Ports

RJ45

24*10/100/1000MBASE-T RJ45 Ports


SFP4*1G SFP Ports

Console1

PoE

802.3af/at

N/A

Led

Port LED

Green: link/active

Power Supply

Inputrange

100~240V,50/60Hz

Connector

AC

System power consumption

24W

Physical

Parameters

Dimension (Wx D x H) mm

440mm(L)×220mm(W)×44mm(H)

Installation

Desktop and Cabinet Installation

Heat dissipation

Fanless natural heat dissipation

Environments

OperatingTemperature

-0~50℃(32~122 °F)

StorageTemperature

-40~70℃(-40~158 °F)

Operating Humidity (non-condensing)

10 to 95% (non-condensing)

Storage Humidity

10 to 95% (non-condensing)

Certification

FCC ClassA

Support

CE

Support

CB

Support

UL

Support

L2 Features

VLAN

IEEE802.1QVLAN; IEEE802.1vProtocol-basedVLAN; Port-basedVLAN; IPSubnet-basedVLAN, MAC-basedVLAN,VoiceVLAN; GVRP; QinQ

Port

Port statistics Flow control Port speed limit Port protection Port mirroring Port MAC address learning limit

Link aggregation

Static link aggregation; IEEE802.3ad with LACP; Unicast/Multicast load balance overtrunk port

RedundancyProtocols

EAPS

ERPSv1

STP/RSTP/MSTP

ACL

L3/L4 ACL

StatisticsACL

VLANACL

IPv4/IPv6 ACL

QOS

SP

WRR

WFQ

8 queues/port ofPriorityQueues

IGMP

IGMP v1v2v3

IGMP Snooping

Storm Control

Broadcast/Multicast/ Unknown UnicastStorm Control

DHCP

DHCP Relay

DHCP Ciient

DHCP Snooping

Security

RADIUS/TACACS+, IEEE802.1X; Port Authentication, MACAuthentication bypass; DHCPSnooping (Option 82), IPSource guard, DoSProtection

IPv6

IPv4/IPv6 DualProtocolStack, IPv6 DHCP

Management

Web Management

SNMPv3 的 CLI

RMON

MIB II

FTP/SFTP/TFTP client

GMRP

NDP

NTDP

SNTP

LLDP

Ping

Traceroute

Syslog
