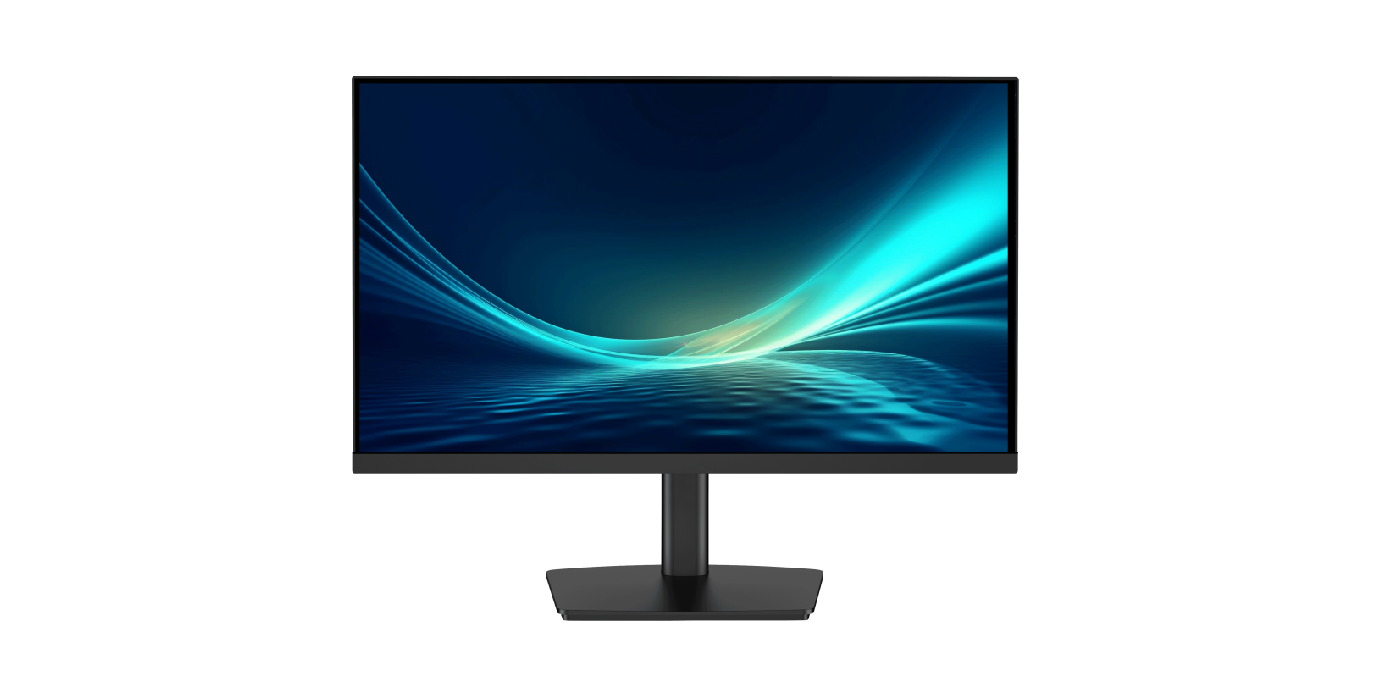

21.5" Cloud all-in-one machine

The 21.5-inch ARM-series cloud appliance offers a secure and quiet operation with a variety of interface options. It is a popular choice for a range of cloud office applications.

ARM RK3566 platform 21.5-inch all-in-one, 1920*1080 IPS screen
Board attached 2GB LPDDR4/4X, board attached 16GB EMMC, support wired/wireless networking
Optional lifting camera, privacy protection is more secure

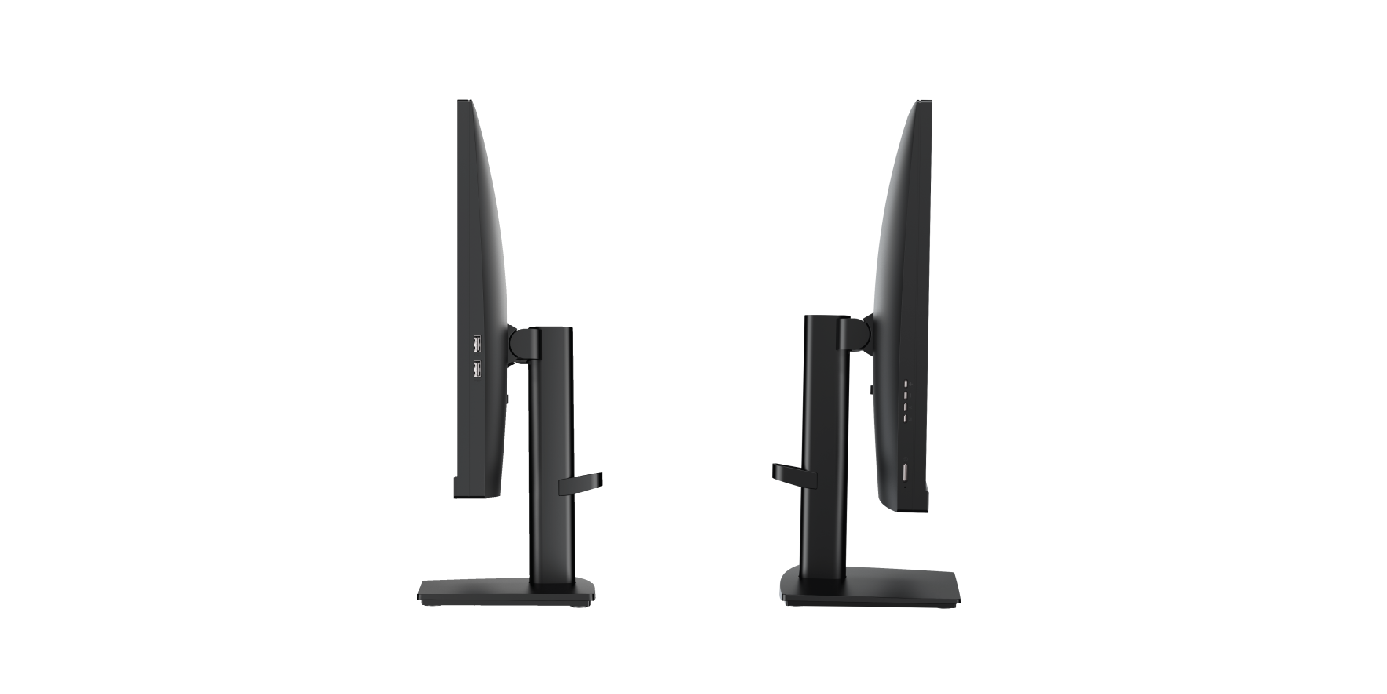

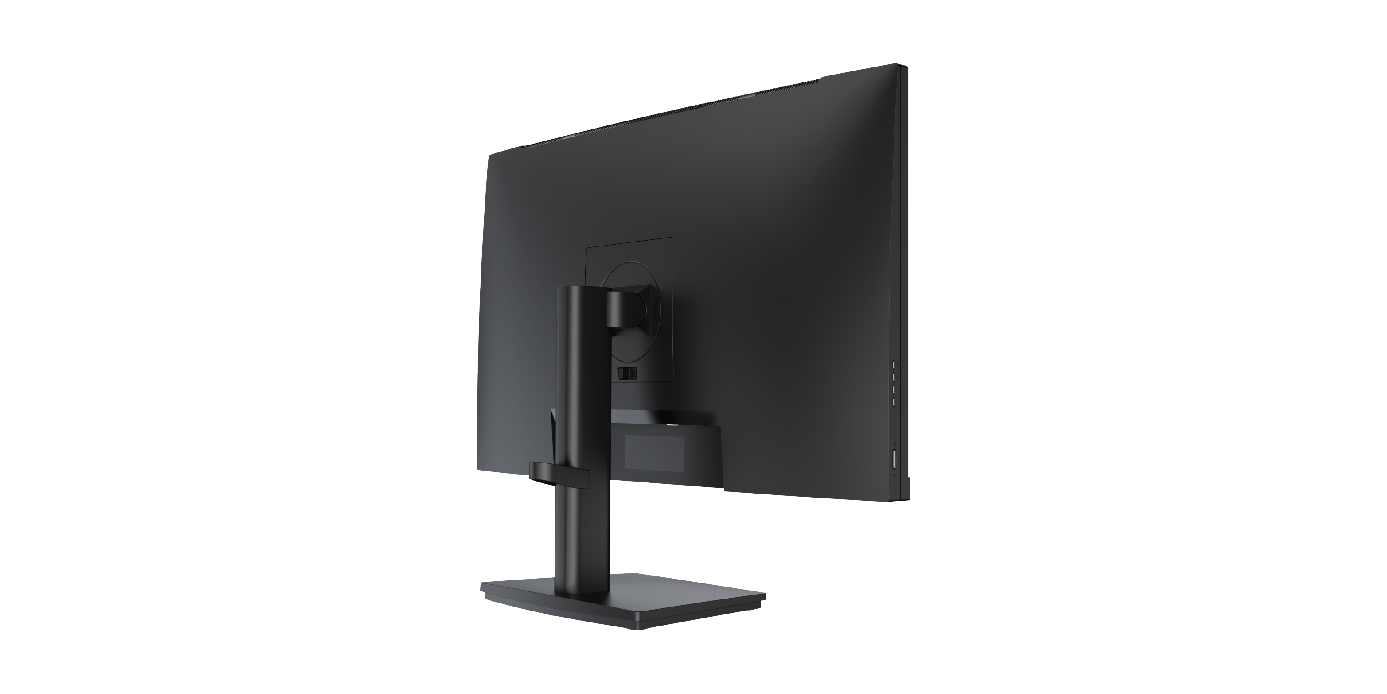

Optional lifting rotary base
Independent screen button, one key screen more power saving
Specification parameters

CPU

CPU

RK3566,4 Core A55, 1.8GHz

TDP

6 W

NPU

1 TOPS

Display

Graphic card

ARM Mali-G52

Multi displays

Screen Mirroring

Interface

1 x HDMI-Out 4K @60Hz

Network

Lan IC

RTL8111H

Lan Interface

100/1000Mbps

Lan Connector

1 x RJ45 Ports

Wireless Type

SDIO

Wireless Interface

1T1R, 2.4G/5G WiFi5 /BT4.2

4G/5G

N/A

I/O interface

Serial Port

N/A

USB

1 x USB3.0,  3 x USB2.0

Button

1 x Volume up, 1 x volume down, 1 x system settings, 1 x screen off, 1 x Power Button

SIM CARD

N/A

AUDIO

1 x 3.5mm Audio Jack(Mic-In + Line Out)

POWER

1 x 2.1/5.5 DC-IN Connector

System

Memory

2GB LPDDR4/4X

Storage

16GB EMMC

OS

Android 11

LCD

21.5 inch, 1920*1080 IPS, LVDS

MCU

Optional (Wake-on-LAN /Remote Shutdown /Watchdog /Auto Power On)

Camera

Optional Elevating Camera

Speaker

2 x 8Ω / 3W

Power Input

12v 2.1/5.5 DC-In

Dimension

494mm(L) x 390mm(W) x 175mm(H)

Operating Temp.

0~40℃

Operating Humidity

20%~80% non-condensing

Storage Temp

-20~65℃

Operating Humidity

20%~95% non-condensing
