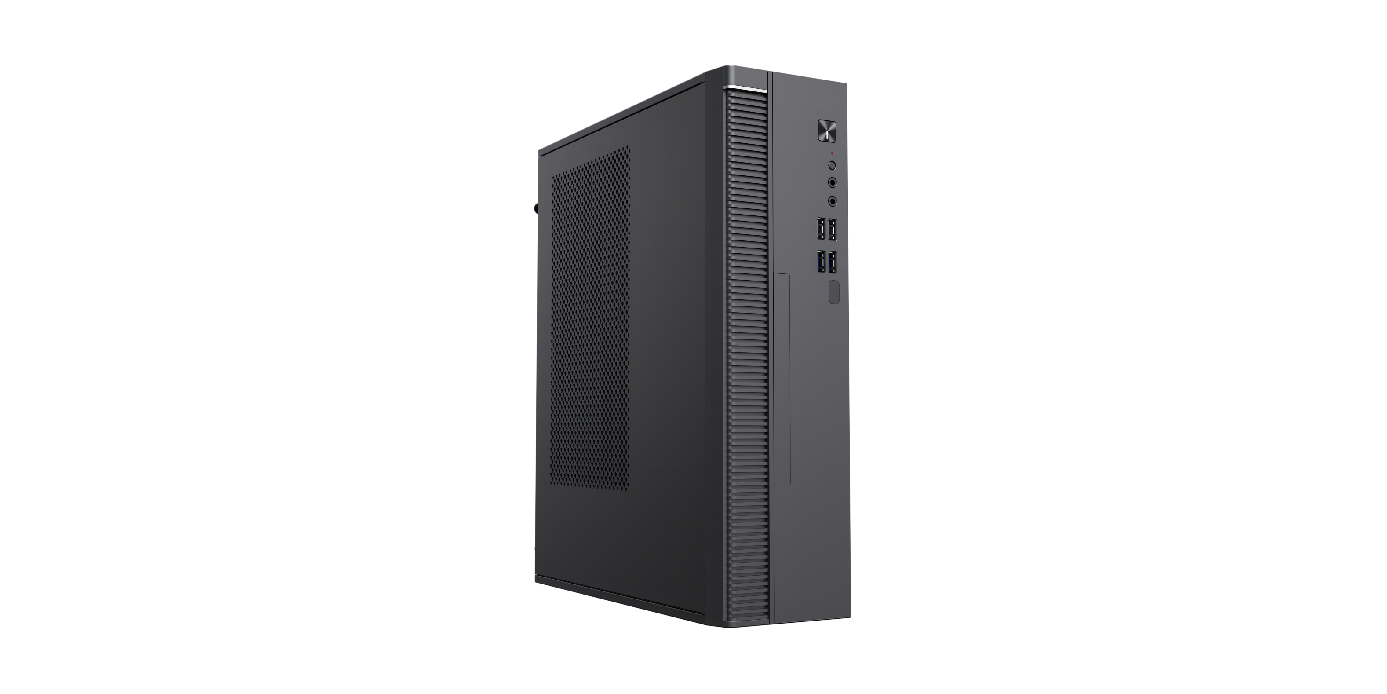

Localization of desktop computers

Designed on the Mega-core KX-U6780A platform, the U6780A provides abundant external ports and can be used in batches on standard office computers of the party, government, military, and enterprise. The mainboard provides serial ports and PCIe peripherals can support self-service terminals that meet specific requirements.

•
Based on Megacycle KX-U6780A/KX-U6580 chip design
•
Chassis dimensions: 290mm(L) x 92mm(W) x 341mm(H). Four U-DIMM DDR4 memory slots support up to 64 GB. Storage: 1 x M.2 2280/2260 SSD Port, 4 x SATA Gen3 Port
•
Expansion: 12 x USB2.0/3.0, 4 x PCIe slot, 2 x COM, 1 x LPT
•
Network: 1 x gigabit network card, support network wake-up function
•
Display: 1 x VGA, 1 x HDMI, 1 x DP
•
3PHASE power supply, CPU power consumption 70W
Specification parameters


CategoryItemSpecification
CPUCPUZhaoxin KX-U6780A / KX-U6580 series processor
TDP70 W
DisplayGraphic CardC-960
Multi DisplaysSupports triple display
Interface1 x HDMI 1.4%%BR%%1 x DP 1.2%%BR%%1 x VGA (DB-15)
NetworkLAN ICRTL8111H
LAN Interface10/100/1000 Mbps
LAN Connector1 x RJ45 Ports
I/O InterfaceSerial Port2 COM header, expandable
USBFront: 2 x USB2.0, 2 x USB3.2 Gen1%%BR%%Rear: 6 x USB2.0, 2 x USB3.2 Gen1
Button1 x Power Button
AudioFront: 1 x Mic in, 1 x Line out%%BR%%Rear: 1 x Line out, 1 x Line in, 1 x Mic in
Expansion1 x PCI Express3.0 x16 slot (PCIe x8)%%BR%%1 x PCI Express3.0 x8 slot (PCIe x1)%%BR%%1 x PCI Express3.0 x4 slot (PCIe x1)%%BR%%1 x PCI Express3.0 x1 slot (PCIe x1)
Power1 x 220V ATX Connector
SystemMemory4 DIMM DDR4, Max 64 GB
Storage1 x M.2 Key M 2280/2260 Size For NVMe GEN3 x2 / SATA x1 SSD%%BR%%4 x SATA Gen3 Port
OSWINDOWS 7 / WINDOWS 10 / NeoKylin / UOS
BIOSBaiAo UEFI BIOS
Auto Power OnYes
Power Input220V AC IN, 200W
Dimension290mm(L) x 92mm(W) x 341mm(H)
Operating Temp.-5~45 ℃
Operating Humidity10%~90% non-condensing
Storage Temp-20~70 ℃
Storage Humidity5%~95% non-condensing
