JEA-E068

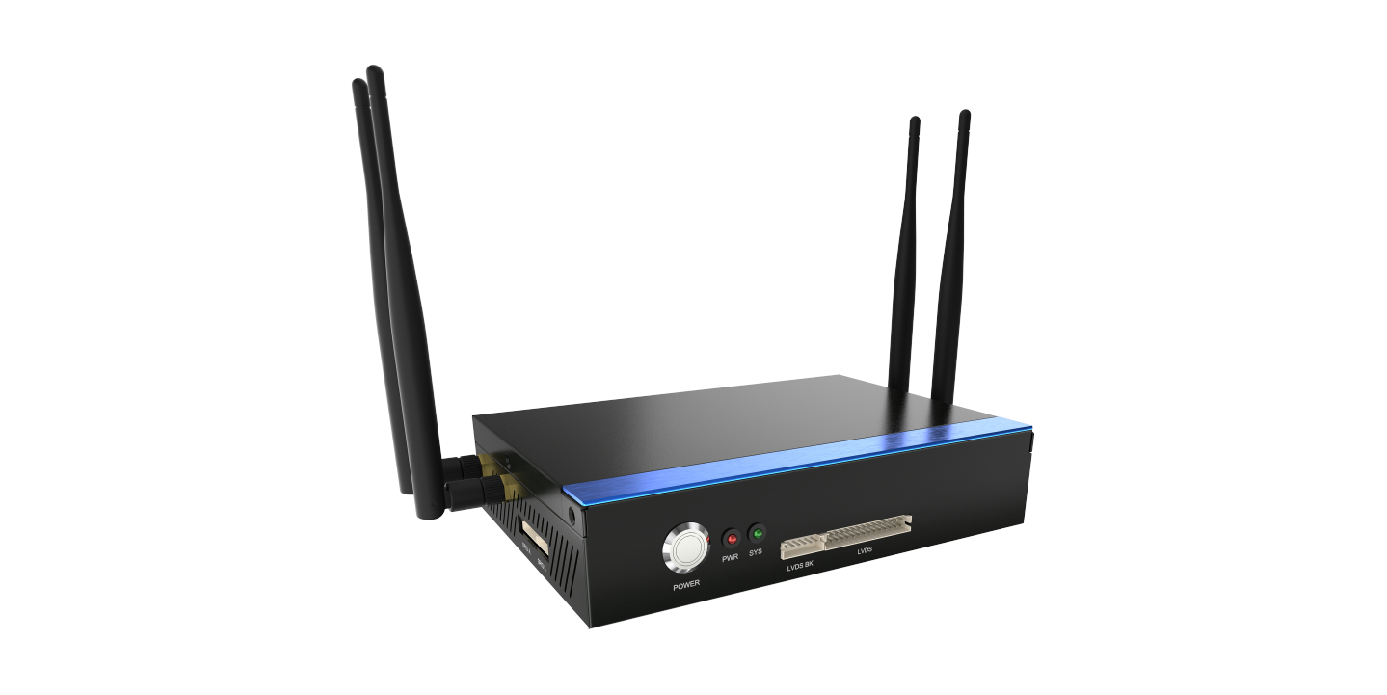

The JEA-E068 is an ARM-based Edge AI BOX based on the Rockchip RK3568 SoC, designed primarily for lightweight AI inference applications. It features a compact size, powerful performance, and a wide range of interfaces, supporting multiple operating systems, making it suitable for various edge computing and AI deployment scenarios.
- •
- Rockchip RK3568 SoC up to 2.0 GHz
- •
- 4x Cortex-A55 + Mali-G52 GPU + 1 TOPS NPU
- •
- Ideal for entry level edge AI applications
- •
- Compact design for easy integration
- •
- Dual display: 1x HDMI, 1x Dual ch. LVDS
- •
- Rich I/Os: 1x GbE, 2x USB, 4x DB9 COM
- •
- On-board WiFi+BT module + M.2 Key B for 5G/4G
- •
- Wake-on-LAN, Watchdog Timer & RTC support
- •
- Android / Linux / OpenHarmony OS support
System | AI Platform | Rockchip RK3568 |
AI Performance | 1 TOPS (INT8) | |
GPU | Arm Mali-G52, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 FP | |
CPU | Quad core Arm Cortex-A55 up to 2.0 GHz | |
Neural Network Acceleration | Integrated NPU for INT8/INT16/FP16 hybrid operation Supports model conversion from TensorFlow, Pytorch, Caffe, ONNX, MXNet etc. | |
HW Video Codec | H.265/H.264/VP9/VP8 Decoder up to 4K60 H.265/H.264 Encoder up to 1080p60 | |
Memory | On-board 2GB/4GB LPDDR4/4X | |
Storage & Expansion | On-board 8GB/16GB/32GB eMMC 5.1 for OS 1x Micro SD slot for storage expansion | |
Ethernet | Chipset | RTL8111H |
Interface | 1x RJ45, 10/100/1000 Mbps | |
Wireless Connectivity | WiFi | On-board 2.4 GHz WiFi + BT 4.2 module |
5G/4G | 1x M.2 Key B for 4G/5G with Micro SIM slot | |
LoRa | - | |
Others | - | |
Multimedia | Display | 1x HDMI 2.0a Type-A up to 4K60 1x Dual channel LVDS up to 1920x1200p60 Supports dual independent display |
Audio | 1x 3.5mm Line out | |
I/O | USB | 1x USB 3.0 OTG Type-A 1x USB 2.0 Type-A |
Serial Port | 4x DB9 COM (RS-232/485 optional) | |
CAN | - | |
GPIO | 2x GPIO wafer (7-bit GPIO, 1-bit ADC) | |
Other Features | Watchdog | Watchdog Timer & power on/off management |
Real Time Clock | On-board RTC chip, battery-backed | |
Security | - | |
Power | Power Input | 12V DC-IN |
Interface | 5.5x2.5mm DC Jack | |
System Ctrl & Monitoring | 1x Power button, 1x Recovery button 2x programmable LEDs | |
Mechanical | Dimensions | 154mm x 107mm x 34mm |
Software | OS Support | Android 11, Debian 10/11, Ubuntu 18.04, OpenHarmony 3.2/4.1 |
Environment | Operating Temp. | -5~50℃ |
Storage Temp. | -20~70℃ | |
Humidity | 10%~90% RH, non-condensing | |
Certifications | CCC |
