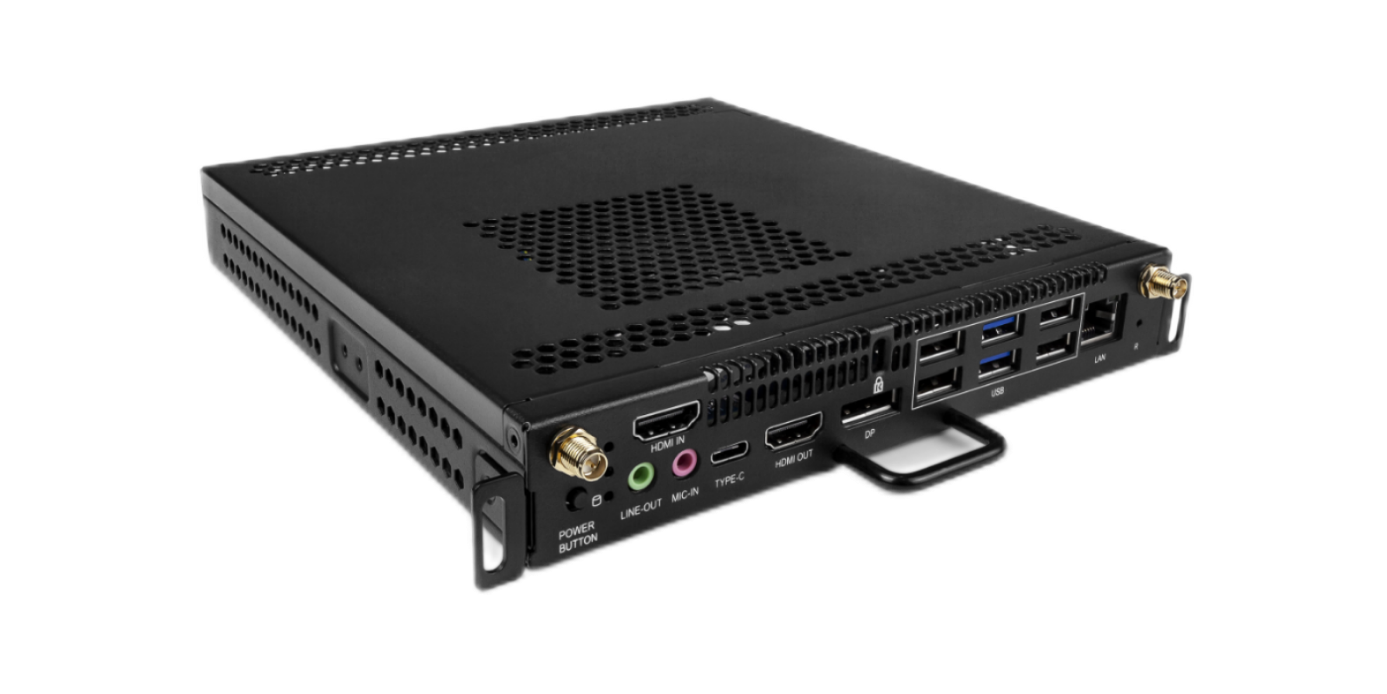

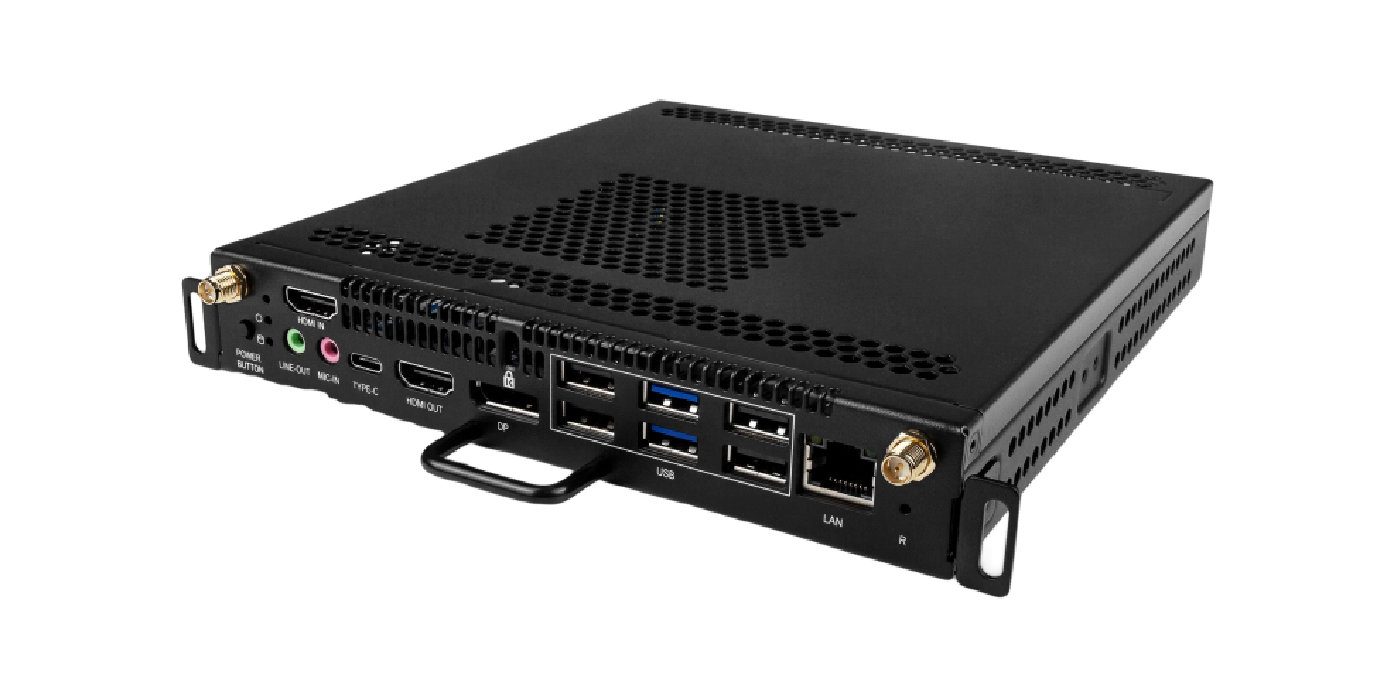

S102P
Based on the Intel Alder Lake - H platform, the new generation of OPS 2.0 standard products support eDP large screens, optional wireless screen casting, and HDMI IN (optional) functions, making them better suited for complex educational and conference applications.
- •
- Intel12th Gen Alder Lake-H, Option Alder Lake-U/P
- •
- 2 x DDR5 SO-DIMM Memory
- •
- 1 x HDMI1.4, 1 x DP1.2
- •
- 1 x HDMI2.1 MAX 8K@60Hz，1 x eDP(120PIN)
- •
- 2 x Gigabit Ethernet port
- •
- 3 x USB2.0, 3 x USB3.0,1 x Type-C USB3.0
CPU | CPU | Intel 12th Alder Lake-H/13th Raptor Lake-H Processor |
TDP | 45 W | |
Chipset | Intel Q670/B660 | |
Display | Graphic card | Intel UHD Graphics |
Multi displays | Support four displays | |
Interface | IO：1 x HDMI 1.4，1 x DP1.2；1 x HDMI IN 80pin: HDMI2.1，1 x eDP 1.4b | |
Network | Lan IC | 1x RTL8111H/ RTL8111M |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | WIFI 6e&BT5.2 Module | |
Wireless Interface | M.2 Key E 2230 Module | |

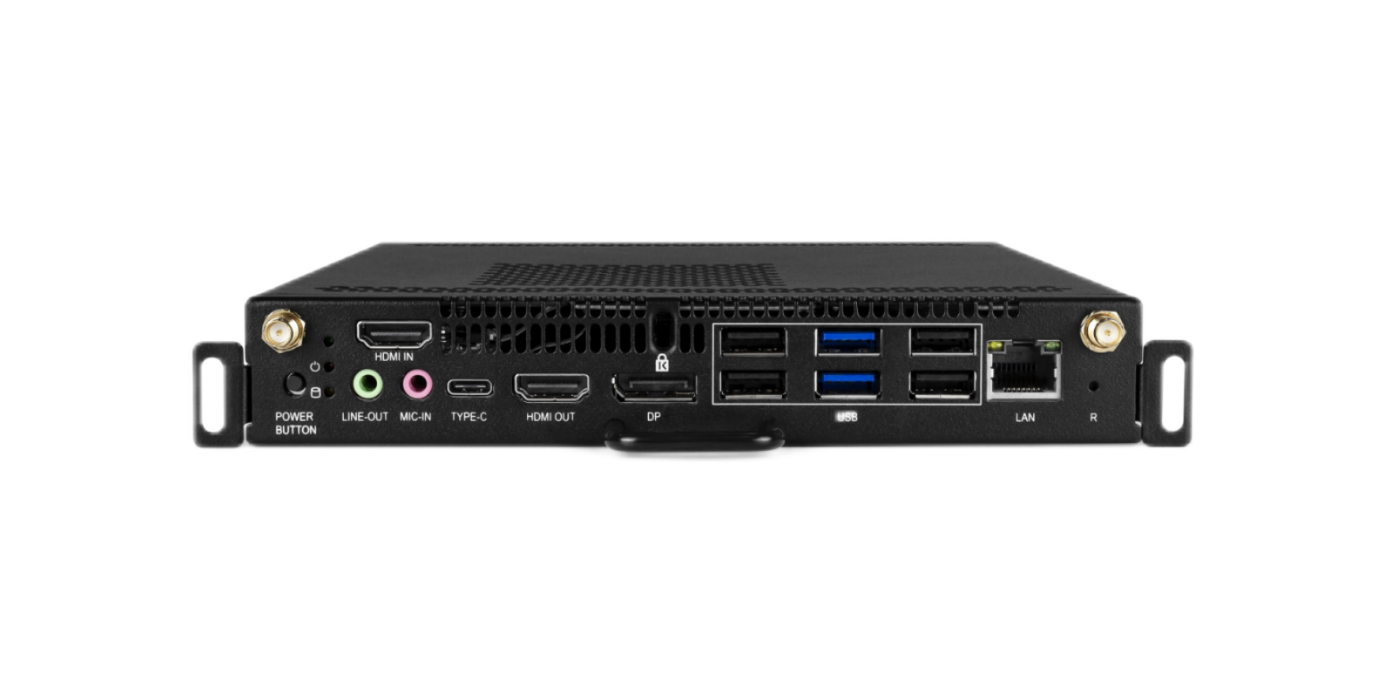

I/O interface | Display | 1 x HDMI 1.4，1 x DP1.2；1 x HDMI IN |
USB | 3 x USB2.0；3 x USB3.0, 1 x type-c | |
Button | 1 x PowerButton, 1 x Reset Button 1 x Recover | |
Slot | 1 x RJ45 | |
AUDIO | 1 x Line Out ; 1 x MIC-In | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |

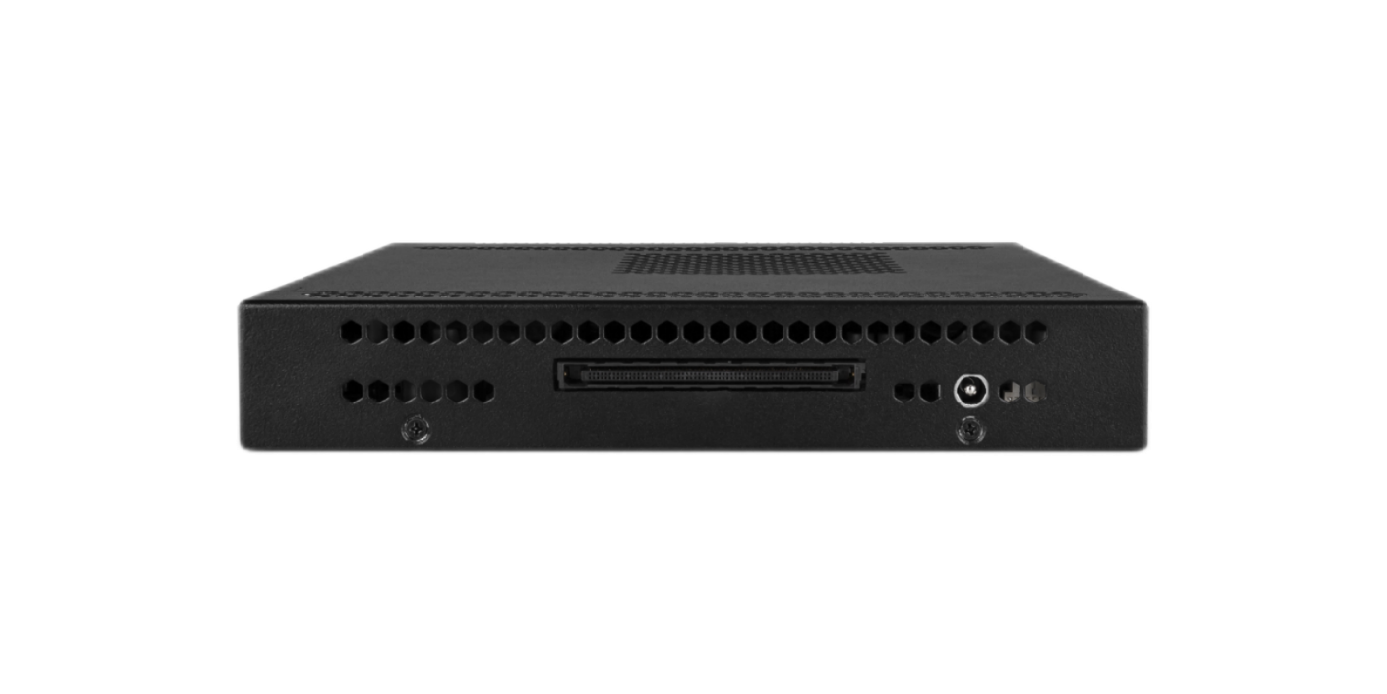

JAE | 1 x 120pin: HDMI2.1，1 x eDP 1.4b 2 x USB2.0，2 x USB3.0，TTL，1 x LAN，1 x PCIE 1 x 2.5/5.5 DC IN JACK | |
System | Memory | Dual SO-DIMM DDR5 Up to 4800 |
Storage | 1 x M.2 2280 for NVME/SATA SSD | |
OS | Window11 /Windows10/ Linux | |
WatchDog | Support | |
Auto Power On | Yes | |
TPM2.0 | Option | |
RTC | Yes | |
Power Input | 12-19v 2.5/5.5 DC-In | |
Dimension | 195mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -10~50℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
