R66B

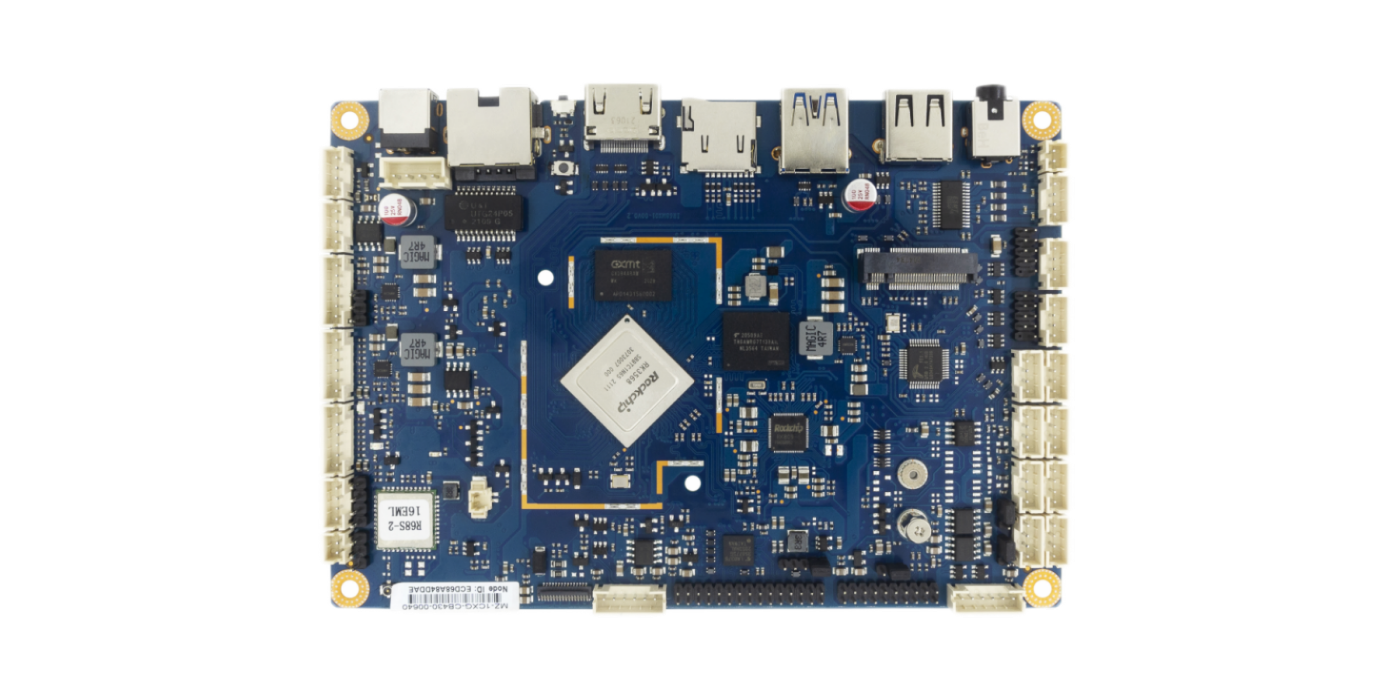

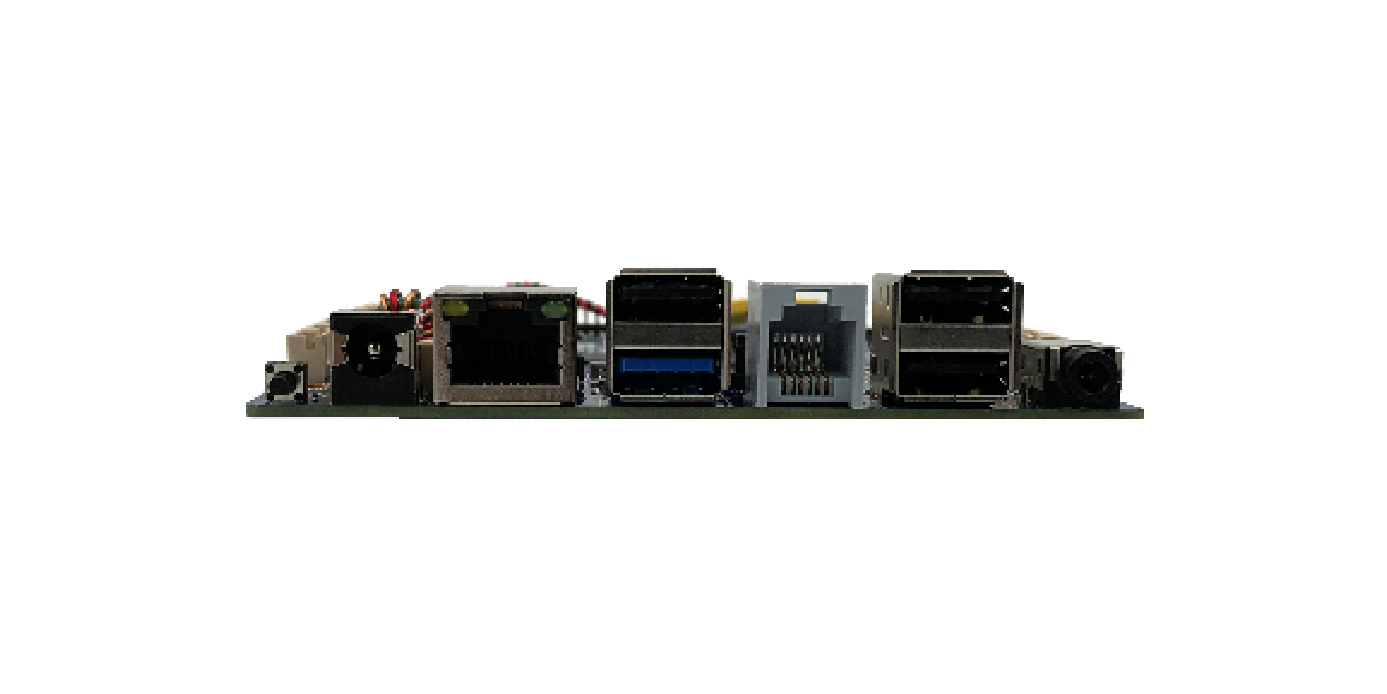

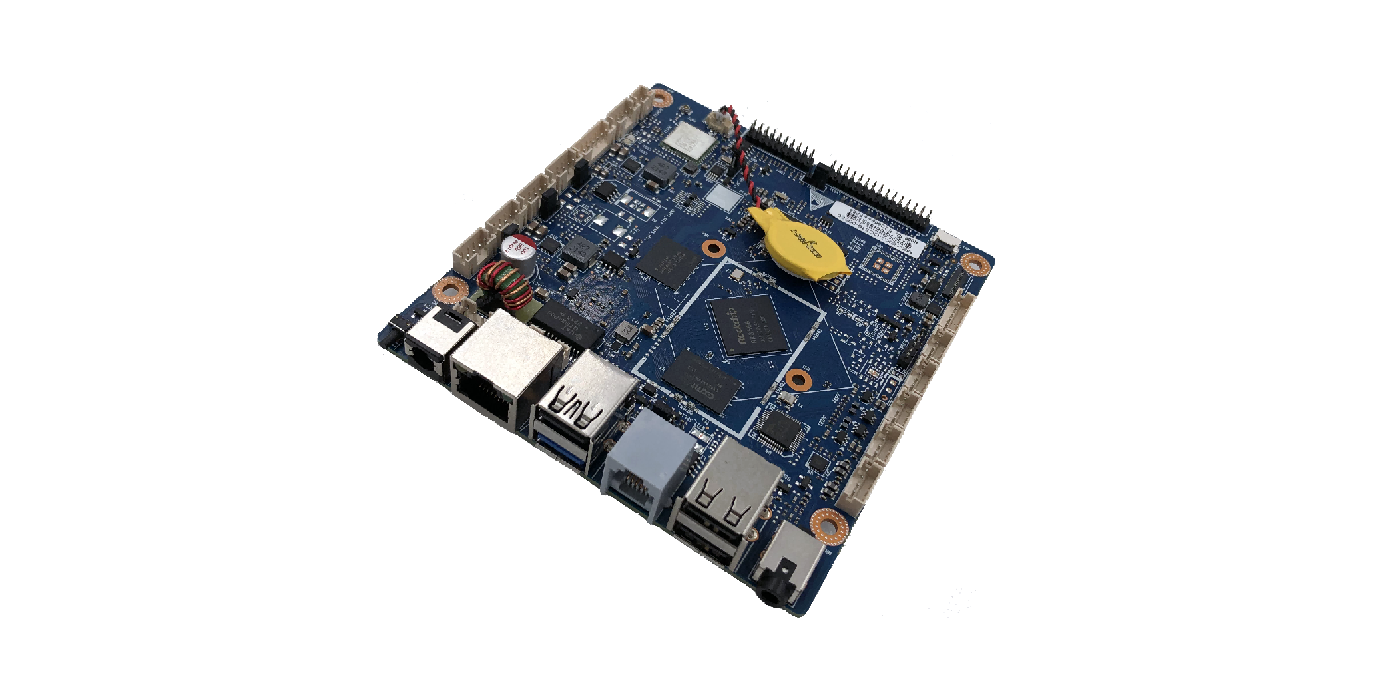

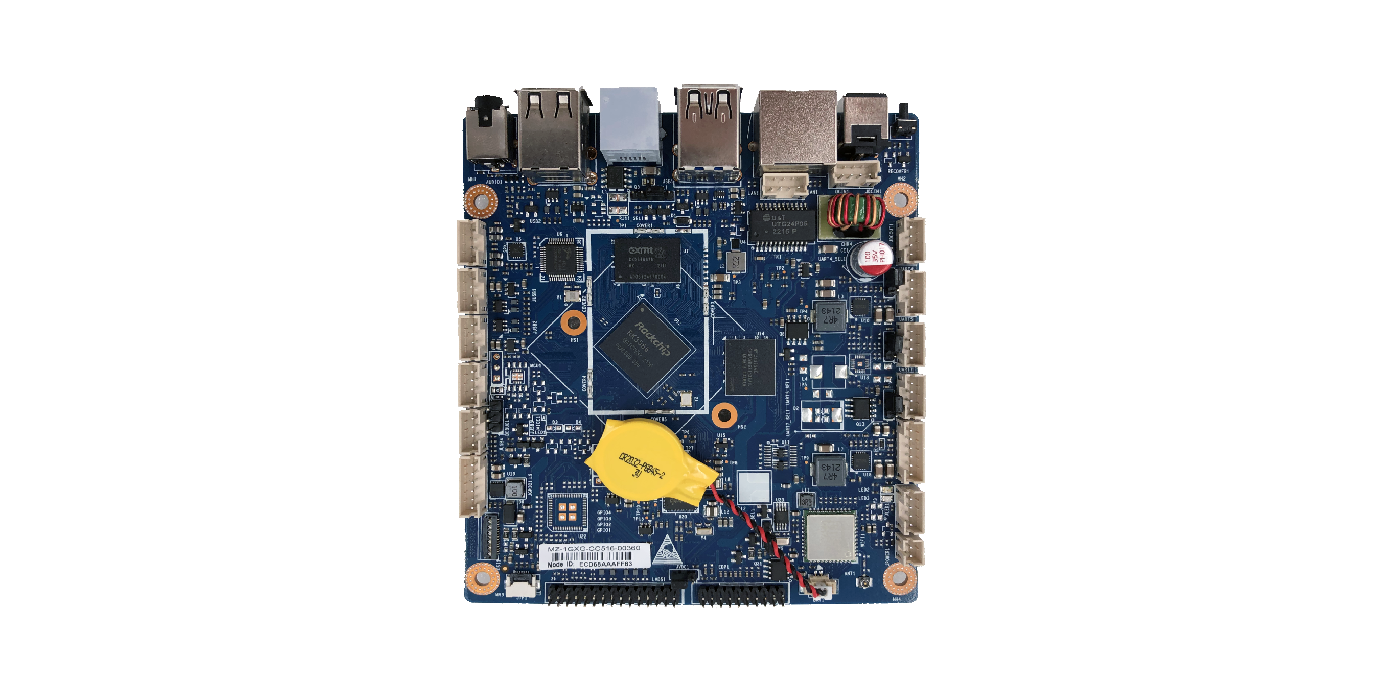

R66B single board is a smart retail motherboard, using Rockchip RK3566, with Onboard LPDDR4 memory, EMMC, EDP/LVDS/MIPI DSI display out, Gigabit Ethernet, USB3.0&USB2.0, can be widely used in cash registers, electronic scales, etc.
- •
- Rockchip RK3566 Quad-core Cortex-A55, 1.8GHz
- •
- EDP/LVDS/MIPI DSI display interface
- •
- Supports 58mm/80mm printer
- •
- Supports 12V/24V cash drawer
- •
- Compatible with 12V and 24V power supplies
- •
- Compact in size and able to be placed inside upright bar
CPU | Rockchip RK3566 Quad-core Cortex-A55, 1.8GHz |
Memory | Onboard LPDDR4/4X，2GB/4GB |
Display controller | ARM Mali-G52 2EE |
Display interface | 1 x EDP, 2x 10PIN 2.0mm header 1 x LVDS, 2x 15PIN 2.0mm header 1 x MIPI-DSI, 31PIN FPC |
Storage | Onboard EMMC，16GB/32GB/64GB |
Audio | 1 x 3.5mm combo jack，1 x Speaker out 4Pin header |
Network | 1 x RJ45 Gigabit Ethernet，1 x Onboard 2.4G WIFI4+BT4.2/2.4G&5G WIFI5+BT4.2 |
USB | 4 rear IO USB（1 x USB 3.0 Type-A and 3 x USB 2.0 Type-A ) 4 intenal USB（2 x USB 3.0 via header, 4 x USB 2.0 via header, 1 x USB 2.0 Type-A) |
Serial port | 4 Serial port (2 x COM support RS232, 2x COM support RS232/TTL) |
Cash drawer | 1 x RJ11 cash drawer |
Digital I/O | 3-digit I / O, providing power and ground, + 3.3V level |
TP-I2C | 1 x JTP FPC 6pin |
Power supply | DC JACK 12V/24V 5.5*2.5mm DC IN 12V/24V 4pin header，DC OUT 12V/24V 4pin header |
Operating temperature and humidity | -5~50 ° C, 10%~90% no condensation |
Non-operating temperature and humidity | -20~70 ° C, 5%~95% without condensation |
Watch Dog | Onboard MCU supports watchdog (optional) |
Operating System | Andorid11 |
PCB dimensions (L*W) | 105mm X 115mm |
