SYS-80415R-G10

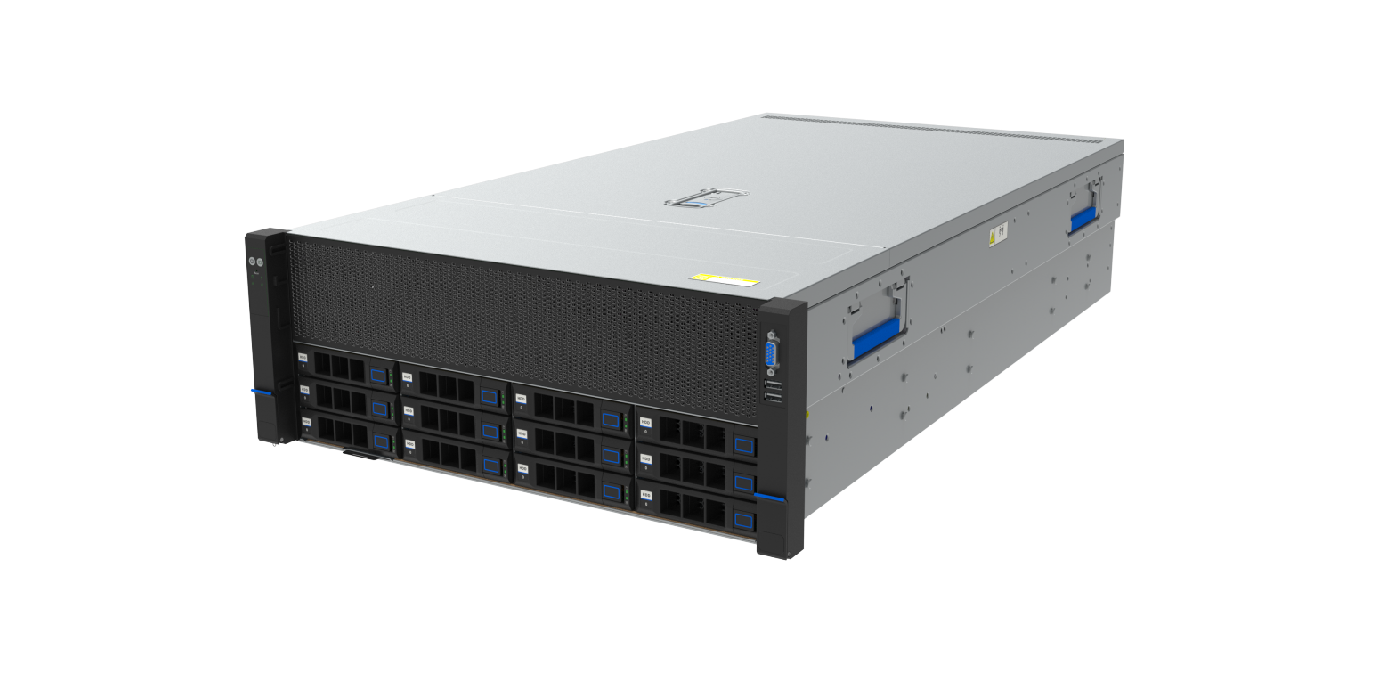

SYS-80415R-G10 series product is a high-performance dual-socket GPU server motherboard supporting 4th Gen Intel® Xeon® Scalable processors. This product uses the Intel® C741 chipset and is newly designed for the 4th/5th generation Intel® Xeon® Scalable series processors. It supports up to 10 full-height double-wide GPUs. From its exterior design to internal components, the new server reflects the company's pursuit of "Technology/Innovation/Eco-friendliness" in its business philosophy, providing customers with a high-performance, highly reliable, low-power consumption, and optimally cooled 4U GPU-bay server. Whether for enterprise-class data centers or developing business applications, the product offers multiple flexible configuration options to better meet the growing server needs of customers. It provides reliable hardware support for data storage, high-performance computing, virtualization, animation, 3D modeling and rendering, AI, deep learning training, machine vision, cloud gaming, and more. It is the best choice for large industries, enterprises, research institutions, and government users who require high stability and practicality.
- •
- Based on Intel® C741 high-performance server chipset, using Intel Xeon® 4th/5th Gen Scalable series processors, offering significant performance improvements
- •
- Provides 32 x DDR5 DIMM memory slots, supporting frequency up to 5600 MHz and up to 8TB 3DS RDIMM
- •
- Onboard: 20 x MCIO PCIe 5.0 x8 slots (each interface can be configured as 2 NVMe x4), supporting Intel VROC NVMe RAID key
- •
- 1 x MCIO PCIe 4.0 x8 slot for flexible expansion
- •
- Flexible configurations
- •
- 10 x PCIe 5.0 x16 slots (dual-slot), supporting up to 10 full-height double-wide GPUs
- •
- 1 x PCIe 5.0 x16 slot (x8 signal) (single-slot)
- •
- 1 x OCP3.0 PCIe 5.0 x16
- •
- 4 x front-accessible U.2 NVMe slots
- •
- Supports 2 * M.2 PCI-E 3.0 x2（ 2280/22110)
- •
- Supports 12 x hot-swappable 3.5"/2.5" SAS/SATA drives, optional support for 4 x U.2 drives
- •
- providing multiple storage solutions for enterprise applications.
- •
- OCP3.0 modular IO interfaces for expanding network ports, USB, IPMI management, VGA, COM, UID, etc.
- •
- Onboard AST2600 BMC management chip, supporting hardware monitoring, remote monitoring, system maintenance, host power, voltage, temperature, fan operation status, etc.
- •
- Supports 4 x standard CRPS power supplies, with efficient and safe redundant modes like 2+2 or 3+1
System Control | CPU | Supports 3rd/4th Gen Intel® Xeon® scalable series processors; EGS （ Sapphire Rapids/Emerald Rapids）, TDP 350W |
Number of CPUs | 2 x Socket E (LGA4677) | |
Chipset | Intel® C741 chipset | |
Memory | Type | 32 x memory slots (8-channel/CPU), Support 5600/4800/4400MHz DDR5 RDIMM, 3DS RDIMM； Supports RDIMM: 16G, 32G, 64GB, 128GB；3DS RDIMM 256GB；Support up to 8TB 3DS RDIMM， |
Graphics | Chip/Interface | ASPEED AST2600 BMC, 1 x rear VGA interface, 1 x front VGA interface |
Storage | Hot-swap | Supports 12 x hot-swappable 3.5"/2.5" 12Gb/s direct-attached SAS/SATA drives (optional support for 4 x U.2 NVMe or expander backplane) |
RAID controller | 8 x SATA3 6Gb/s interfaces, supporting Raid 0, 1, 5, 10 (2 x MinisasHD) Optional RAID card, supports RAID 0/1/10/5/6/50/60/1E (optional RAID card cache protection module); Optional Intel VROC NVMe RAID key; | |
M.2 | 2 x M.2 interfaces, supporting 2242/2280 (PCI-E 3.0 x2) | |
1GbE network | Network card IC | Intel X550-AT2 enterprise-grade 10GbE network controller; 2 x 10GbE RJ45 networks, supporting 100/1000/10000 Mbps |
IPMI management interface | Type | 1 x standard RJ45, 10/100/1000 Mbps network interface |
USB | USB 3.0 | 2 x USB 3.0 (rear IO), 2 x USB 3.0 (front) |
USB 2.0 | 1 x USB 2.0 (internal TYPE A) | |
Serial port | Serial port | 1 x RJ45 COM port, 1 x serial port header |
PCIe Expansion | PCIe Expansion | Onboard: 20 x MCIO PCIe 5.0 x8 slots (each interface can be configured as 2 NVMe x4), supporting Intel VROC NVMe RAID key; 1 x MCIO PCIe 4.0 x8 slot for flexible expansion; Flexible configurations: 10 x PCIe 5.0 x16 slots (dual-slot), supporting up to 10 full-height double-wide GPUs; 1 x PCIe 5.0 x16 slot (x8 signal) (single-slot); 1 * OCP3.0 PCI E 5.0 x16; 4 x Front-accessible U.2 NVMe slots |

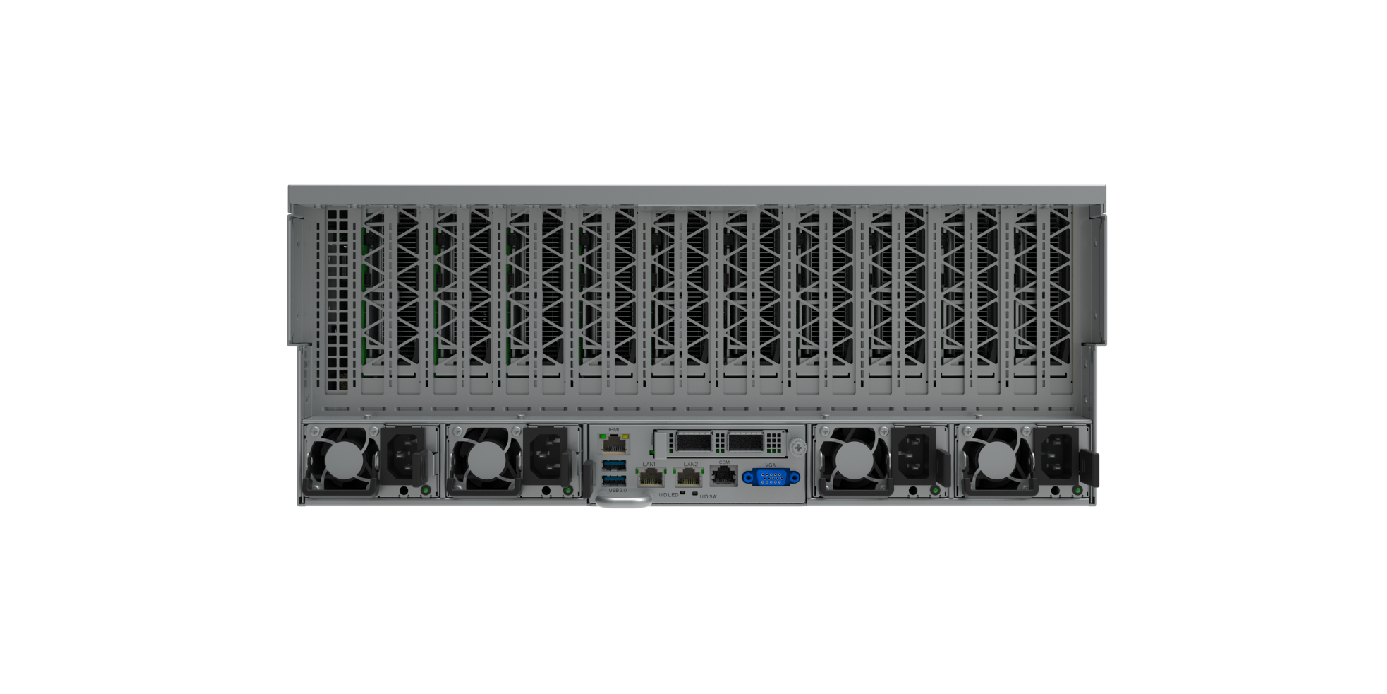

Back panel | Rear window indicator lights | 1 x RJ45 IPMI dedicated management interface; 2 x RJ45 10GbE network ports; 1 x RJ45 COM port; 1 x UID switch; 1 x UID LED indicator; 1 x VGA; |

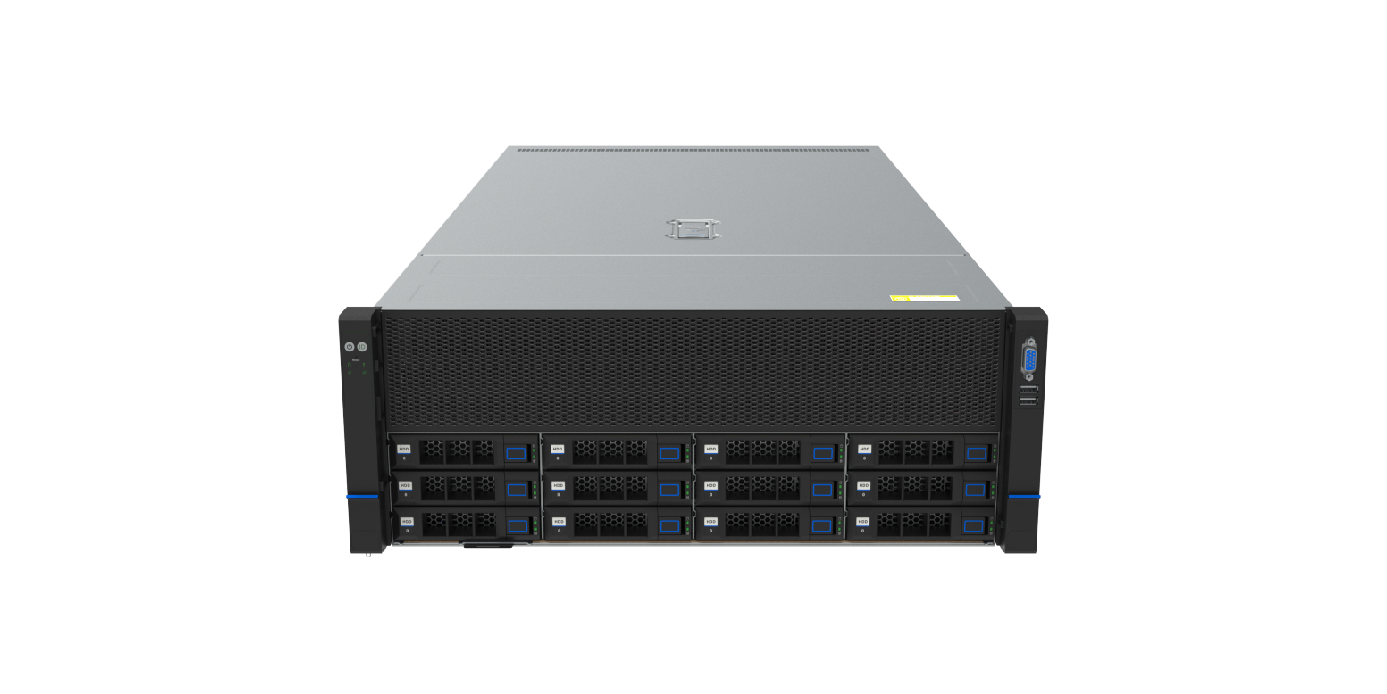

Front panel | Switch | 1 x Illuminated power switch; 1 x illuminated UID switch; 1 x reset switch; |
Indicator lights | 1 x HDD activity indicator; 2 x network indicators; 1 x alarm indicator | |
Power supply | Power input | Optional CRPS 1600W/2000W/2700W power supplies, supporting 3+1 or 2+2 redundancy |
Fan | Fan | Internal 8 8056 fans; optional rear 4 x 8038 fans |
Dimensions | Dimensions | Dimensions: 836mm (D) * 437.5mm (W) * 176.5mm (H) |
Temperature / humidity requirements | Temperature | Operating temperature: 10℃ to 35℃; Storage temperature: -40℃ to 70℃ |
Humidity | Operating humidity: 8% to 90% non-condensing; storage humidity: 5% to 95% non-condensing | |
Installation kit | Rails | Supports rails (optional) |
