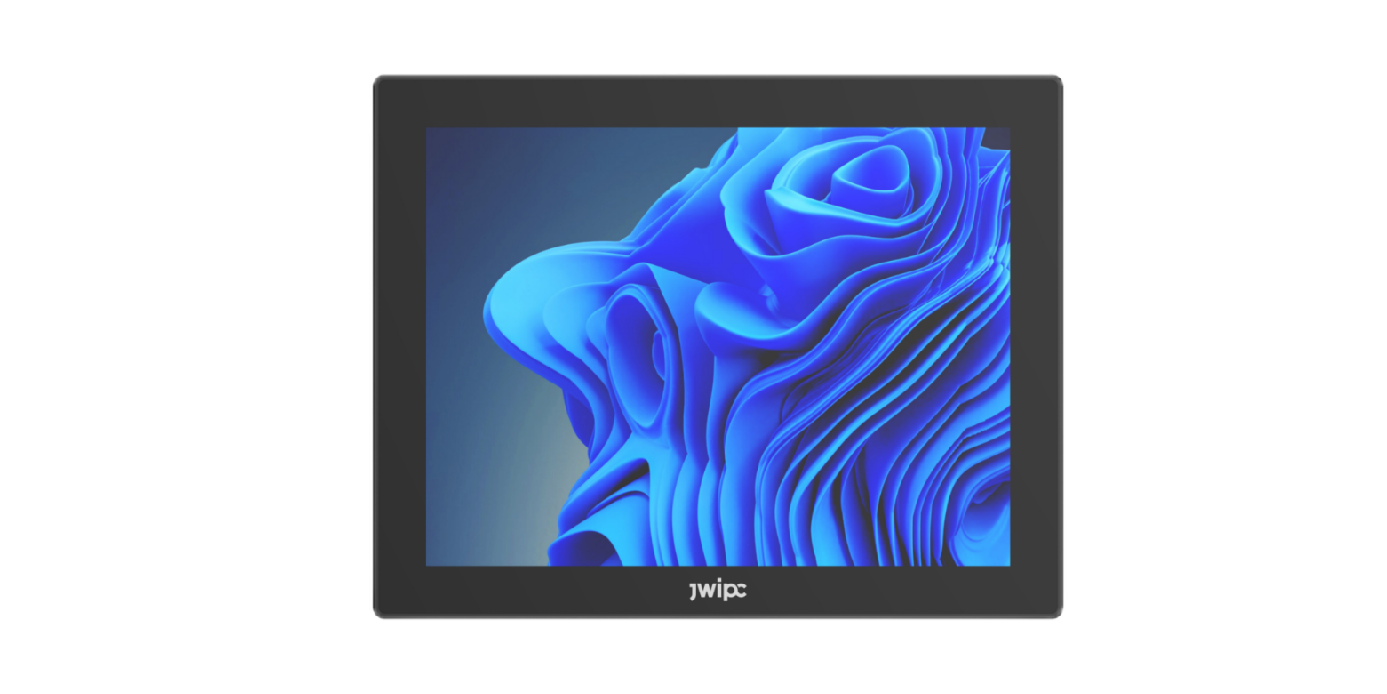

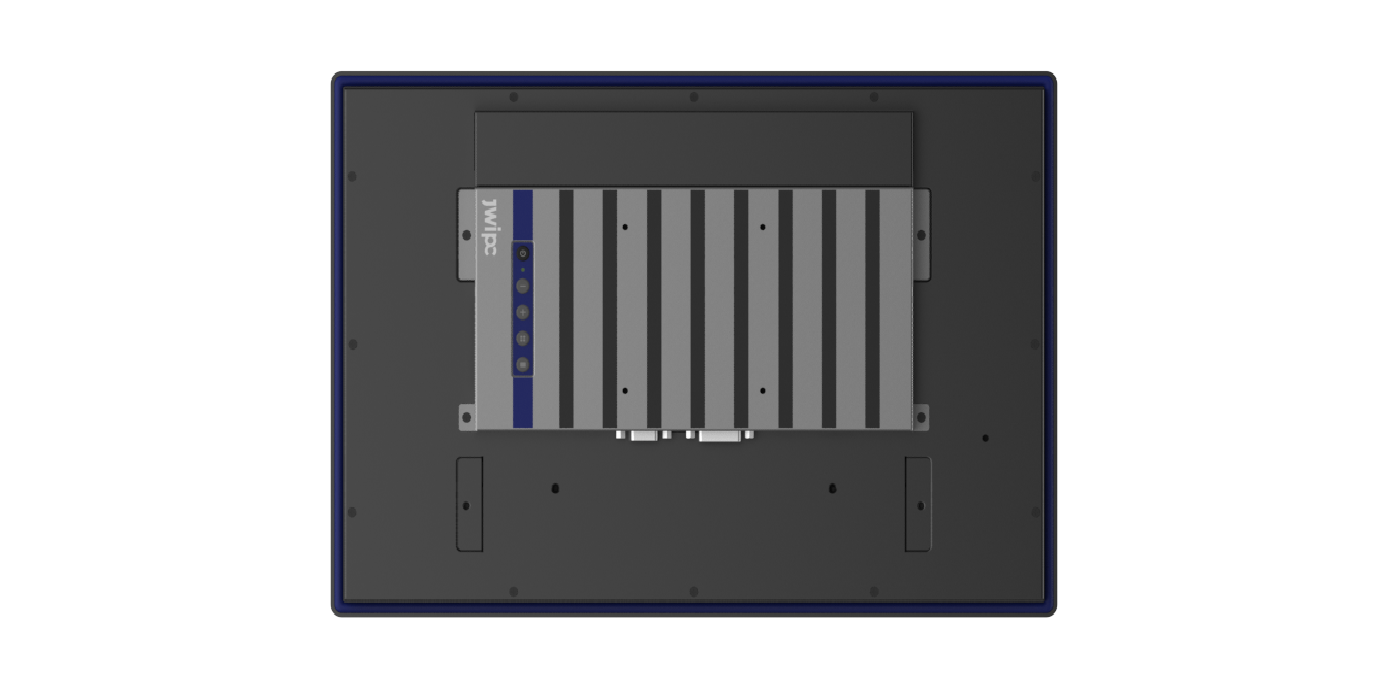

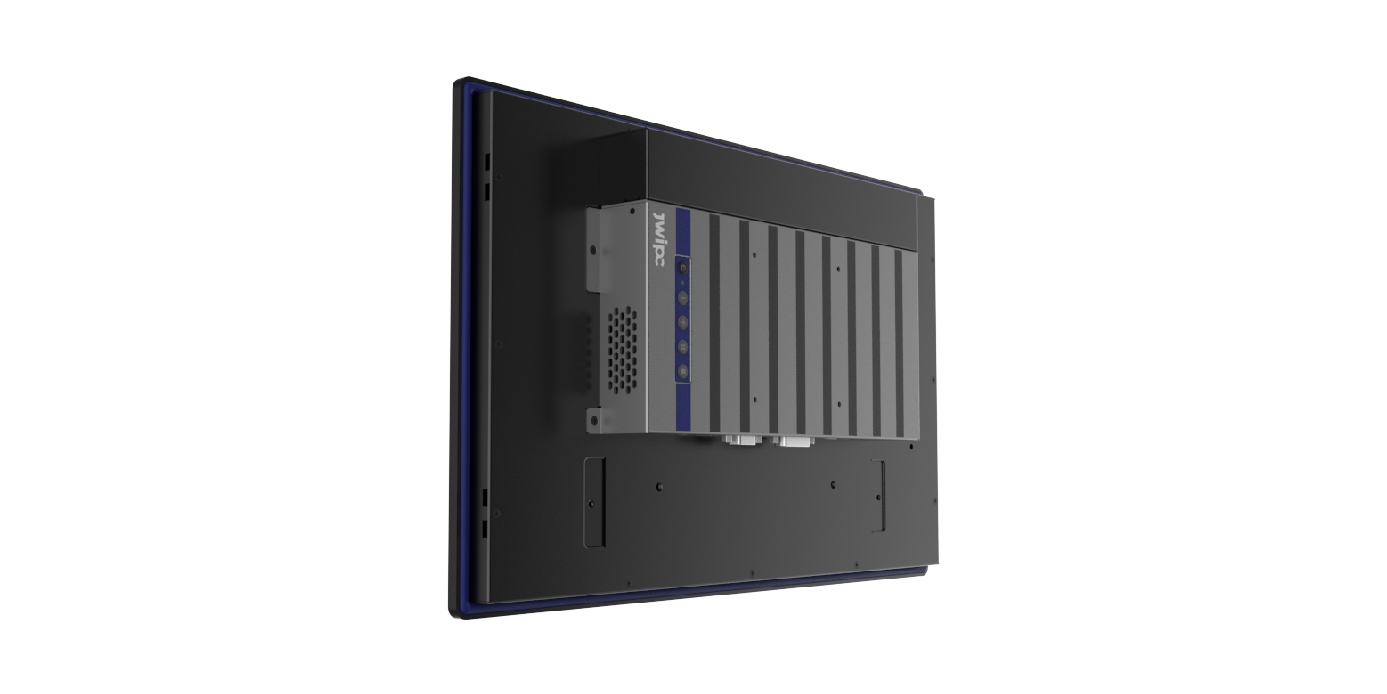

Industrial display

The TDS-170 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows for flexible modules that are waterproof and dust-proof. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring.

17-inch LED-backlit display with 1280x1024 resolution
Full-view display, optional capacitive/five-wire resistive touch screen, capacitive screen supports 10-point touch

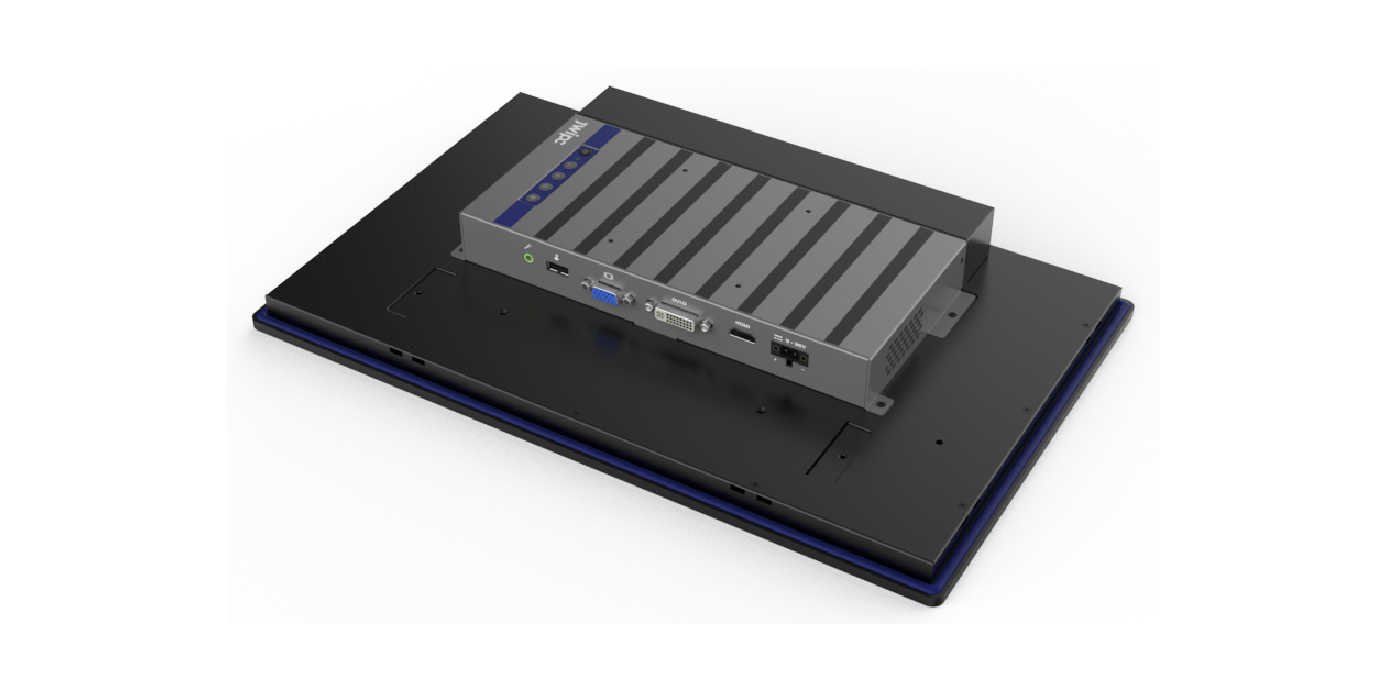

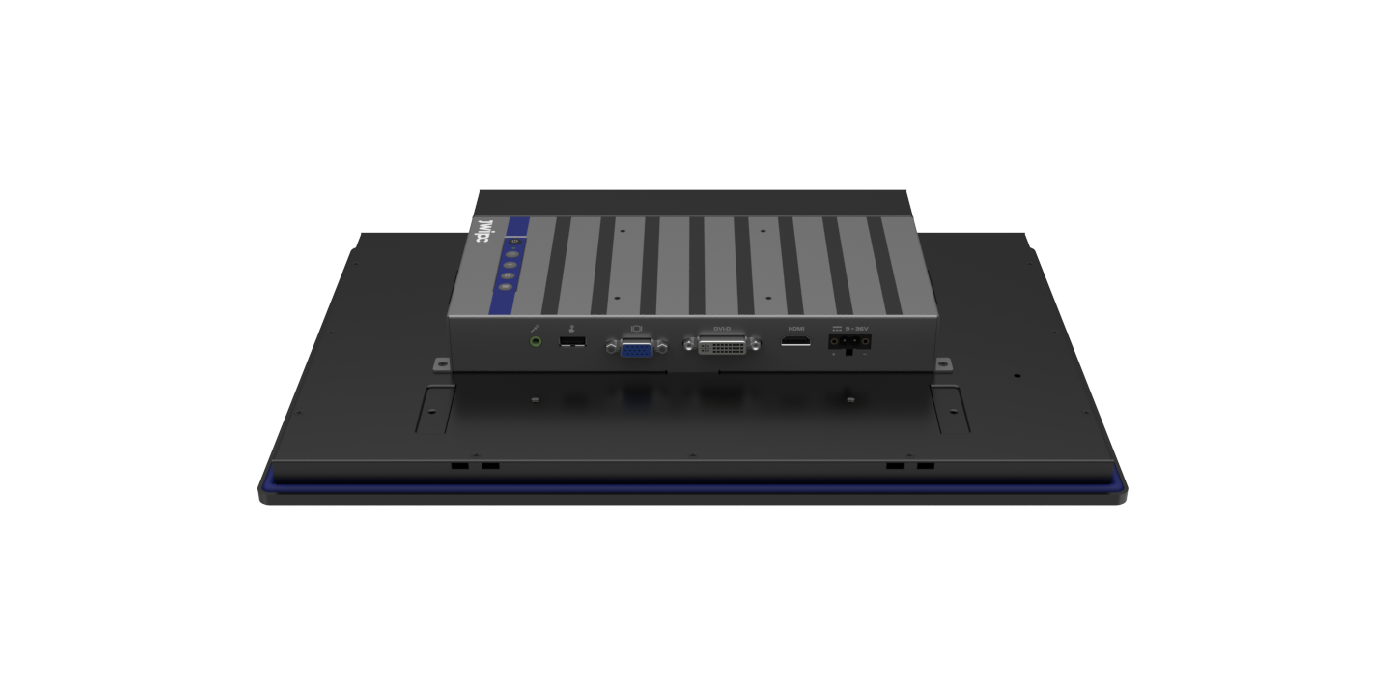

Support VGA,HDMI,DVI-D display interface
12-36V wide voltage input
Support 2xspeakers with 3W amplifier
Specification parameters

 Touch Screen

Aspect Ratio

5:4

Max. Resolution

1280x1024

Luminance (cd/m2)

250 cd/m2

Contrast Ratio

1000:1

Backlight Life

30000 hours

Viewing Angle

85 (L), 85 (R), 80 (U), 80 (D)

 Touch Screen

Touch Type

10-point capacitive screen (optional 5-wire resistive touch screen)

Transmittance

>81% (>78% for 5-Wire Resistive)

Lifecycle

50 Million Times (10 Million Times for 5-Wire Resistive)

Power

Power Input

DC 12-36V,  RVP/SCP/OVP/OCP

TDP

TBD

Driver Board

Display Intput

HDMI,VGA,DVI-D

OSD menu

Menu/UP/Down/AUTO Setting/Power

Brightness, Contrast Ratio, Setting, Color Temperature, Language

Mechanical

Dimensions

(L×W×H)(mm)

391.4x326.4x58mm

Weight

TBD

OS

OS

Windows 7, Windows 8, Windows 10, Windows 11,  Linux

Environment

Operating Temperature
(OP)

0 ~ 50 °C (32~122 °F)

Operating Relative Humidity

95% @ 40 °C (non-condensing)

Storage Temperature
(NOP)

-20 ~ 60 °C (-4 ~ 140 °F)

Shock (OP)

15g 11ms  Half Sine Wave

Vibration (OP)

5~500Hz 1Grms

EMC

CE Class A

Ingress Protection

IP65 Front Panel
