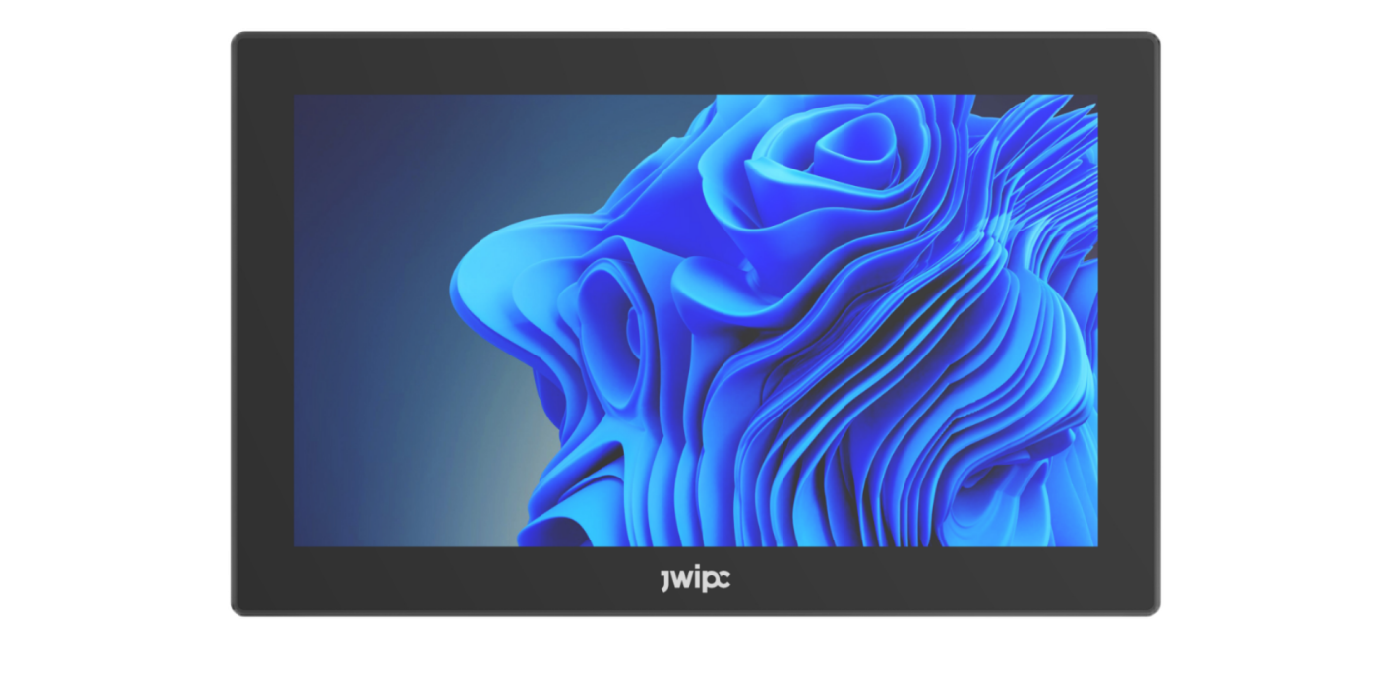

TDS-185
The TDS-185 series industrial displays feature high-resolution screens, support capacitive/resistive touch screens, and a modular design that allows for flexible modules that are waterproof and dust-proof. It is suitable for manufacturing, automation and logistics to provide reliable data display and monitoring.
- •
- 18.5 inch LED backlit display with 1920x1080 resolution
- •
- Full-view display, optional capacitive/five-wire resistive touch screen, capacitive screen supports 10-point touch
- •
- Support VGA,HDMI,DVI-D display interface
- •
- DC 12-36V wide voltage input, supports RVP/SCP/OVP/OCP
- •
- Support 2xspeakers with 3W amplifier
Touch Screen | Aspect ratio | 16:9 |
Max. Resolution | 1920x1080 | |
Luminance (cd/m2) | 250 cd/m2 | |
Contrast Ratio | 1000:1 | |
Backlight Life | 30000 hours | |
Viewing Angle | 89 (L), 89 (R), 89 (U), 89 (D) | |
Touch Screen | Touch Type | 10-point capacitive screen (optional 5-wire resistive touch screen) |
Transmittance | >81% (>78% for 5-Wire Resistive) | |
Lifecycle | 50 Million Times (10 Million Times for 5-Wire Resistive) | |
Power | Power Input | DC 12-36V, RVP/SCP/OVP/OCP |
TDP | TBD | |
Driver Board | Display Intput | HDMI,VGA,DVI-D |
OSD menu | Menu/UP/Down/AUTO Setting/Power Brightness, Contrast Ratio, Setting, Color Temperature, Language | |
Mechanical | Dimensions (L×W×H)(mm) | 470x290x58mm |
Weight | TBD | |
OS | OS | Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Environment | Operating Temperature | 0 ~ 50 °C (32~122 °F) |
Operating Relative Humidity | 95% @ 40 °C (non-condensing) | |
Storage Temperature | -20 ~ 60 °C (-4 ~ 140 °F) | |
Shock | 15g 11ms Half Sine Wave | |
Vibration | 5~500Hz 1Grms | |
EMC | CE Class A | |
Ingress Protection | IP65 Front Panel |
