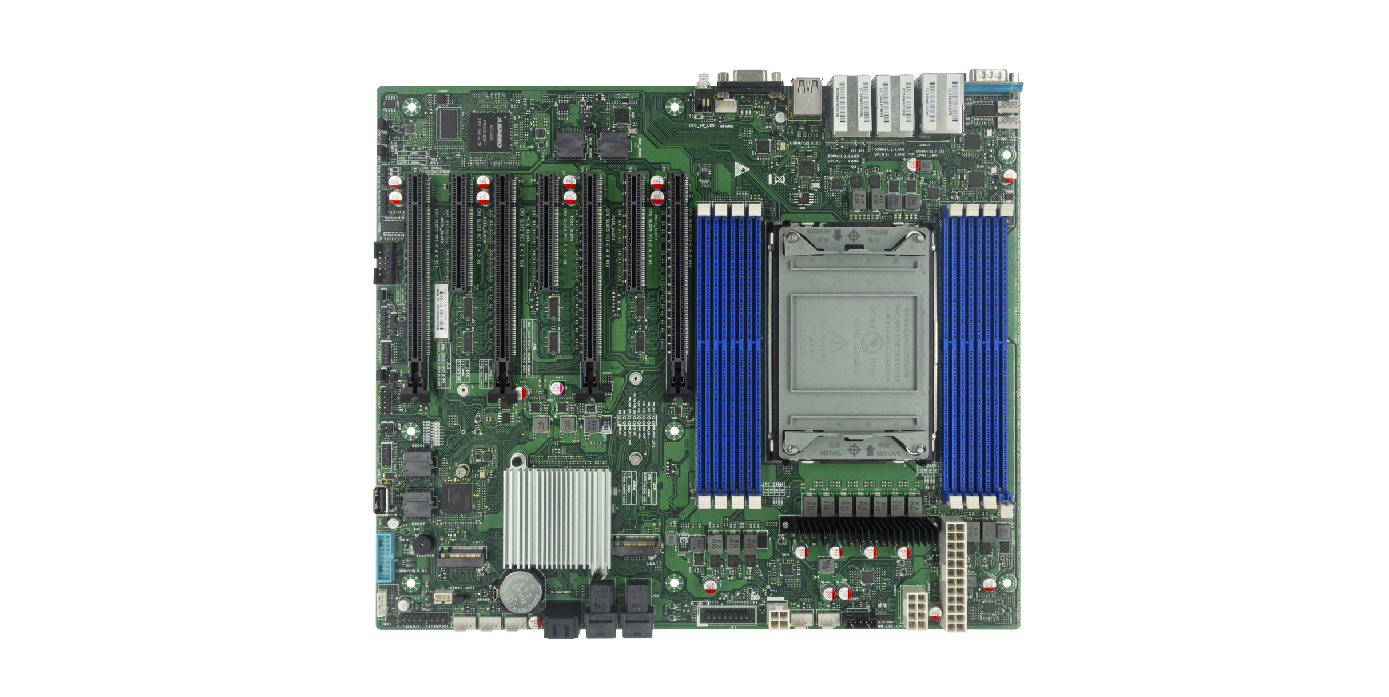

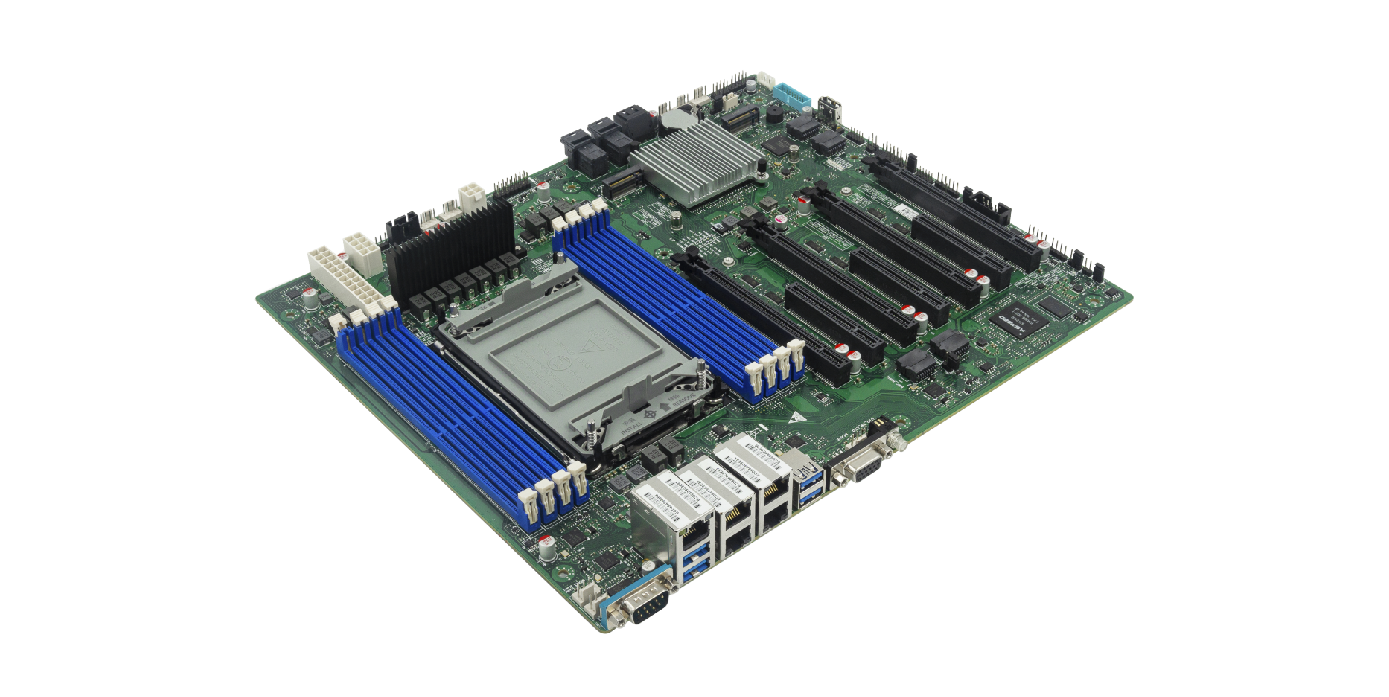

P13SRA
The P13DRG is a dual-GPU server motherboard that supports Intel® Xeon® 3rd Generation Scalable processors. It utilizes the Intel® C621A high-performance server chipset and is newly designed based on the 3rd Generation Xeon Scalable architecture. This server motherboard also offers ODM customization services to meet personalized customer needs, making it a top choice for industry users looking to build a refined IT platform.
- •
- Intel® high-performance server C621A chipset, it supports Intel® Xeon® 3rd Generation Scalable Processors
- •
- 8 DDR4 RDIMM memory slots (8 channels/CPU)
- •
- DDR4 ECC RDIMM
- •
- maximum supported frequency of 3200MHz
- •
- Maximum supported capacity of 2TB, offering higher density and larger capacity
- •
- 4 PCI E 4.0 x16 and 3 PCI E 4.0 x8 expansion slots for flexible expansion
- •
- 2 M.2 PCI-E 3.0 x4 / SATA3.0 (2242/2280), supporting Intel VROC NVME raid KEY
- •
- 10 SATA3 (6Gb/s) interfaces, supporting RAID 0, 1, 5, 10
System Controller | CPU | 1 Socket P+ (LGA4189), supporting Intel® Xeon® 3rd Generation Scalable Processors. TDP 270W |
Chipset | C621A Chipset | |
Memory | Type | 8 memory slots (8 channels/CPU) Supports 3200/2933/2666/3200MHz ECC DDR4 RDIMM |
Memory Capacity | Maximum support for 2TB 3DS RDIMM Maximum support for 2TB Intel® Optane™ Persistent Memory PMem 200 Series (Barlow Pass) | |
Memory Size | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB | |
Network | 2.5GbE Network | 2 dual-layer RJ45 ports, 4 2.5GbE networks, supporting 10/100/1000/25000Mbps, Intel enterprise-level 2.5G network controller |
IPMI | 1 standard RJ45 port, supporting 10/100/1000Mbps | |
Storage | SATA | 10 SATA3 6Gb/s interfaces, supporting RAID 0, 1, 5, 10 (2 MiniSAS HD + 2 7PIN SATA) |
M.2 | 2 x M.2 interfaces, supporting 2242/2280 (PCI-E 3.0 x2 / SATA) | |
Expansion Slots | PCIE | 4 standard PCIe 4.0 x16 (x16 slots); 3 standard PCIe 4.0 x8 (x8 slots) |
Slot 2 shares with Slot 3 (NA/16; 8/8) Slot 4 shares with Slot 5 (NA/16; 8/8) Slot 6 shares with Slot 7 (NA/16; 8/8) | ||
I/O Interface | Backplane I/O Interface | 4 x USB 3.0 ports, 1 x VGA port, 1 x COM port |
1 x UID switch (with LED), 4 x 2.5GbE RJ-45 LAN ports, 1 x RJ-45 IPMI management port | ||
Onboard I/O | 1 x VROC header; 1 x VGA header, 1 x TPM header, ATX24+8+4pin, 1 x standard PMBus interface | |
2 x USB 3.0 internal headers, 2 x USB 2.0 internal headers, 1 x USB2.0 Type A | ||
8 x 4pin fan headers, 1 x serial port header, 1 x chassis intrusion detection header | ||
Display | Chipset | ASPEED AST2500 BMC |
Interface | 1 x VGA | |
Dimensions | Dimensions | 12.33" x 10.23" (25.98cm x 31.31cm) |
Temperature & Humidity | Operating Temperature | 10°C to 35°C |
Storage Temperature | -40°C to 70°C | |
Operating Humidity | 8% to 90% (non-condensing) | |
Storage Humidity | 5% to 95% (non-condensing) |
