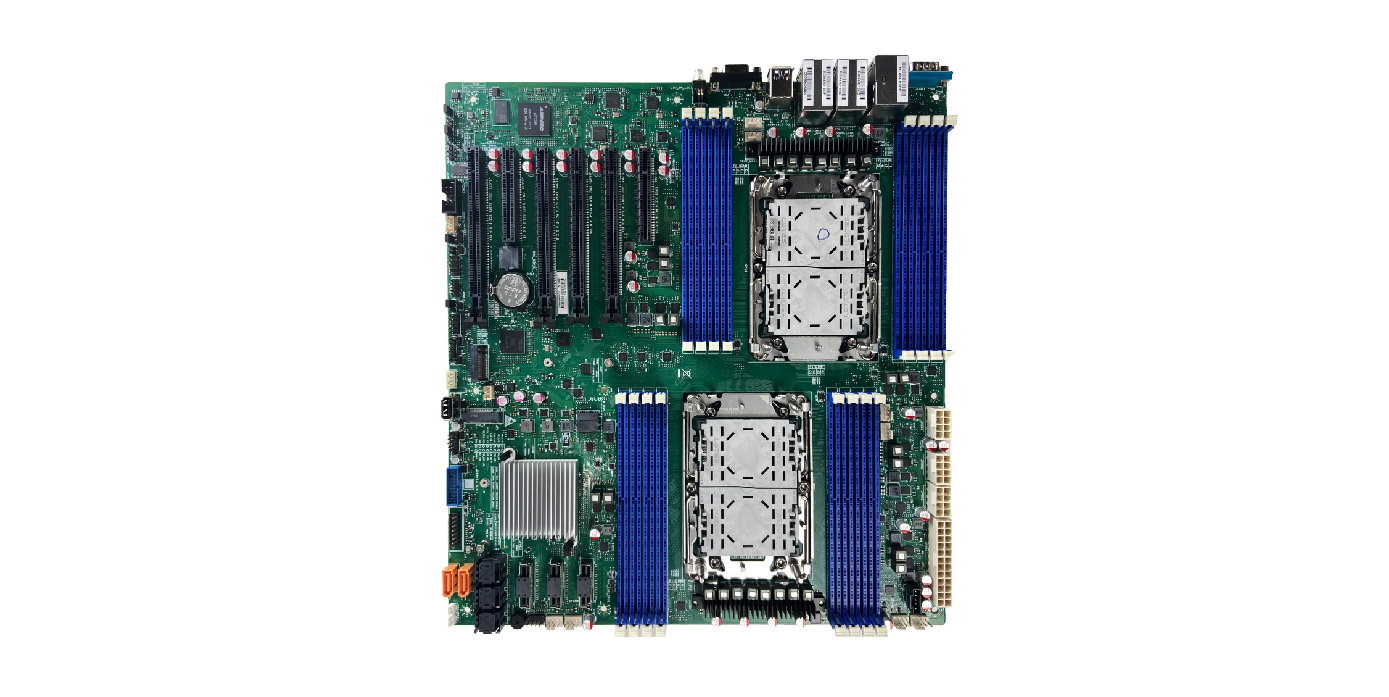

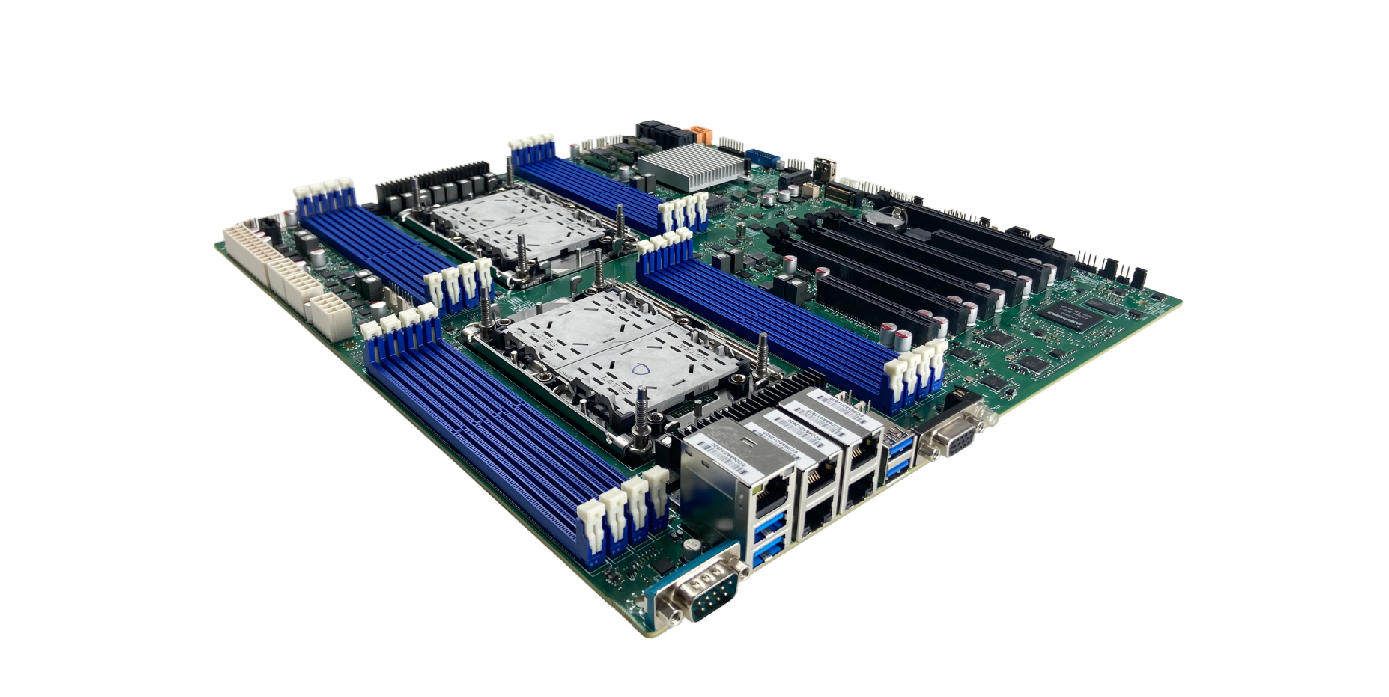

Intel Whitley Dual High-Performance Server Motherboard

The P13DRE is a server motherboard supporting Intel® Xeon® 3rd Generation Scalable Processors, featuring high performance, high reliability, and excellent heat dissipation. It uses the Intel® C621A high-performance server chipset, significantly enhancing device scalability and performance. This server motherboard also offers ODM customization services for clients with personalized needs, making it the top choice for industry users to build a refined IT platform.

Intel® high-performance server C621A chipset, it supports Intel® Xeon® 3rd Generation Scalable Processors
Provides 16 DDR4 RDIMM memory slots (8 channels/CPU)
Supports DDR4 ECC RDIMM
maximum supported frequency is 3200MHz
Maximum supported capacity is 4TB, offering higher density and larger capacity
Supports 4 PCI E 4.0 x16 and 2 PCI E 4.0 x8 expansion slots for flexible expansion
Supports 3 MCIO x8 interfaces for flexible expansion
Supports 2 M.2 PCI-E 4.0 x4 (2242/2280), supports Intel VROC NVME raid KEY
Specification parameters

System Control

CPU

2 Socket P+ (LGA4189), supports Intel® Xeon® 3rd Generation Scalable Processors.

Whitley: (Ice Lake), TDP 270W

Bridge Chip

C621A Chipset

Memory

Type

16 memory slots (8 channels/CPU)

Supports 3200/2933/2666MHz ECC DDR4 RDIMM

Memory Capacity

Maximum support for 4TB 3DS RDIMM

Maximum support for 4TB Intel® Optane™ Persistent Memory PMem 200 Series (Barlow Pass)

Memory Size

RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB

Network

Business Network Ports

2 dual-layer RJ45 ports, 2 Gigabit networks, 2 2.5GbE networks (not supported by SKU2), supports 10/100/1000/2500Mbps

IPMI Management Interface

1 standard RJ45 port, supports 10/100/1000Mbps

Storage

SATA

Supports 2 SATA3 interfaces, 3 MINI SAS HD interfaces, supports RAID 0,1,5,10

M.2

2 x M.2 interfaces, supports 2242/2280 (PCI-E 4.0 x4)

Expansion Slots

PCIE

4 standard PCIe 4.0 x16 (x16 slots); 2 standard PCIe 4.0 x8 (x8 slots); 3 MCIO interfaces (PCIe 4.0 x8)

I/O Interface

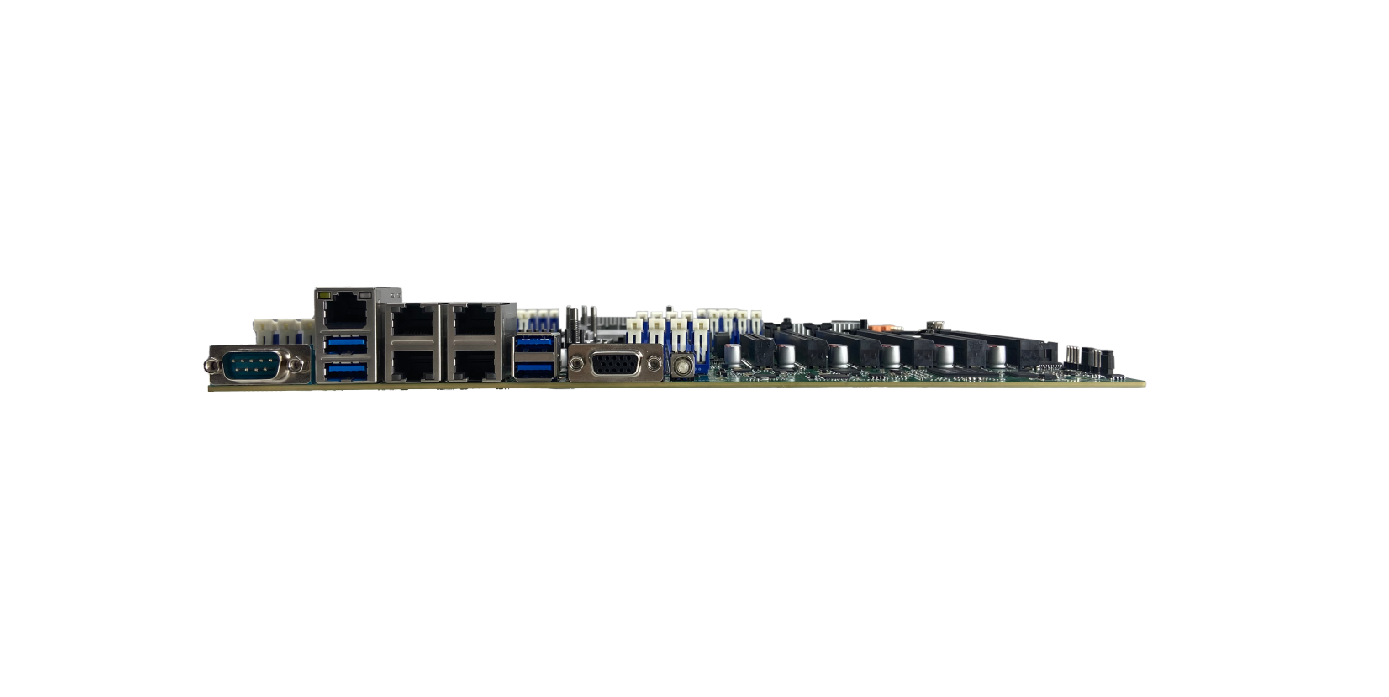

Backplane I/O Interface

4 x USB 3.0 ports, 1 x VGA port, 1 x COM port

1 x UID switch (with LED), 4 x RJ-45 LAN network ports, 1 x RJ-45 IPMI management port

Onboard I/O

1 x VROC header; 1 x TPM header, standard ATX24+8+8+8 pin, 1 x front VGA header

2 x USB 3.0 internal headers, 2 x USB 2.0 internal headers, 1 x USB 2.0 Type A

8 x 4-pin fan headers, 1 x serial port header, 1 x chassis intrusion detection header

Display

Chipset

ASPEED AST2500 BMC

Interface

1 x VGA

Dimensions

Dimensions

332.03mm x 305mm

Temperature & Humidity

Operating Temperature

10°C to 35°C

Operating Temperature

-40°C to 70°C

Operating Humidity

8% to 90% (non-condensing)

Storage Humidity

5% to 95% (non-condensing)
