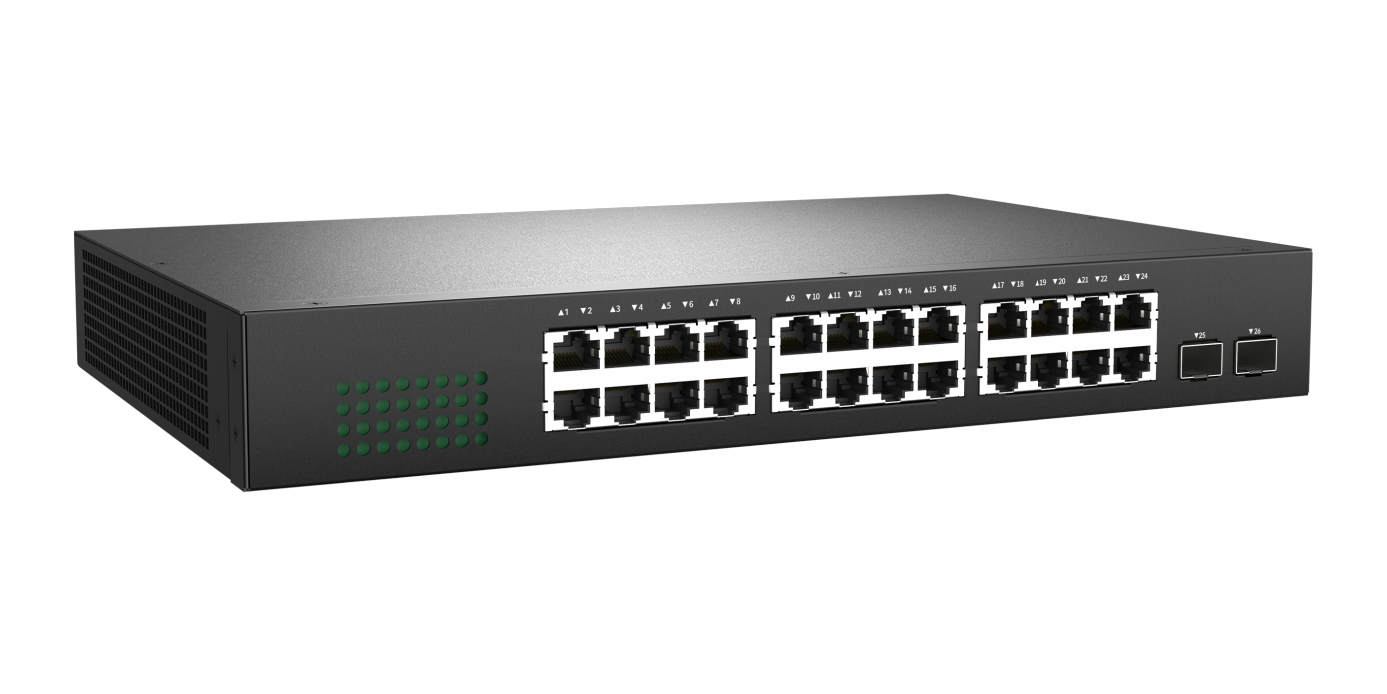

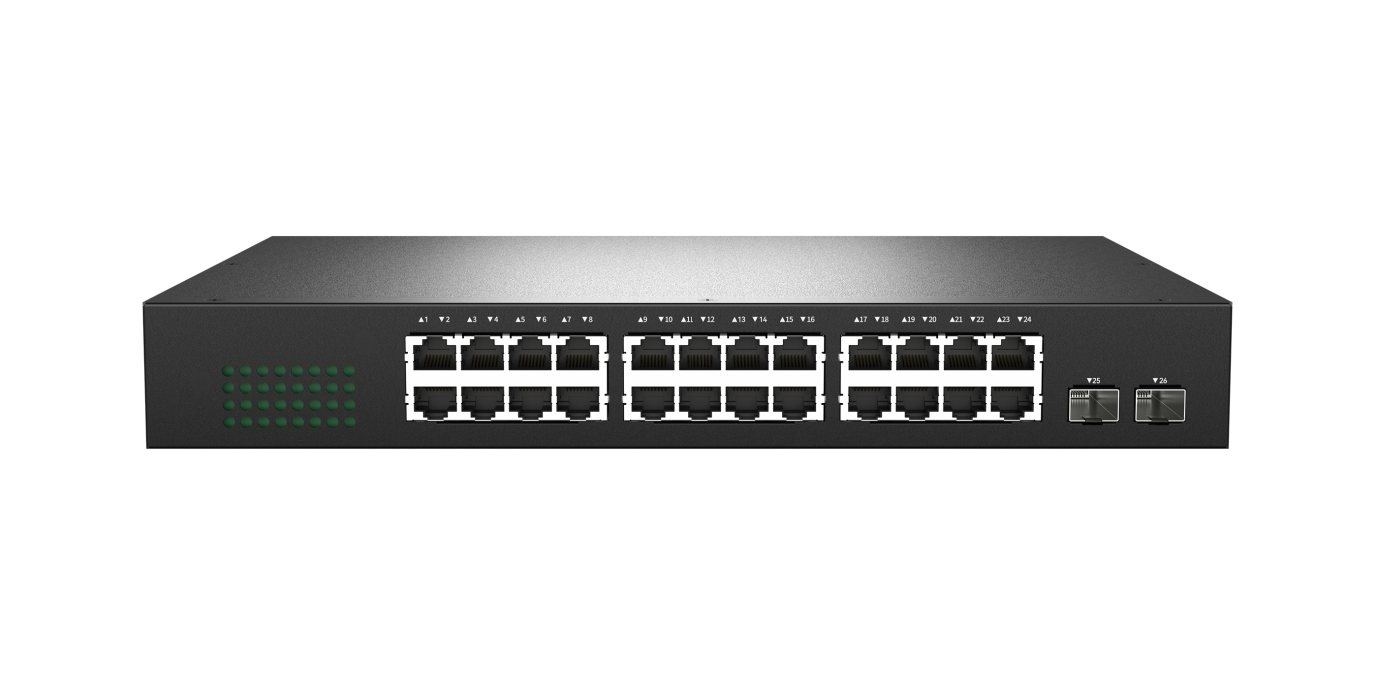

S1600-26TF
The S1600-26TF is suitable for Internet Service Providers (ISPs) and Multi-System Operators (MSOs), delivering over 1 Gb of network bandwidth to home users. It is also an ideal gigabit access switch for SMEs, enterprises, and campus networks.
- •
- Full Gigabit Ethernet switch
- •
- Non-network management
- •
- Plug and play
Performance | Switching capacity | 52Gbps |
Auto-negotiation | Support | |
Auto-MDI/MDIX | Support | |
Ports | RJ45 | 24*10/100/1000MBASE-T RJ45 Ports |
| SFP | 2 SFP Ports | |
PoE | 802.3af/at | N/A |
Led | Port LED | Green: link/active |
Power Supply | Inputrange | 12V/0.5A |
Connector | AC | |
System power consumption | 18W | |
Physical Parameters | Dimension (Wx D x H) mm | 158mm(L)×105mm(W)×27mm(H) |
Installation | Desktop and cabinet installation | |
Heat dissipation | Fanless natural heat dissipation | |
Environments | OperatingTemperature | -0~50℃(32~122 °F) |
StorageTemperature | -40~70℃(-40~158 °F) | |
Operating Humidity (non-condensing) | 10 to 95% (non-condensing) | |
Storage Humidity | 10 to 95% (non-condensing) | |
Certification | FCC ClassA | Support |
CE | Support | |
CB | Support | |
UL | Support |
