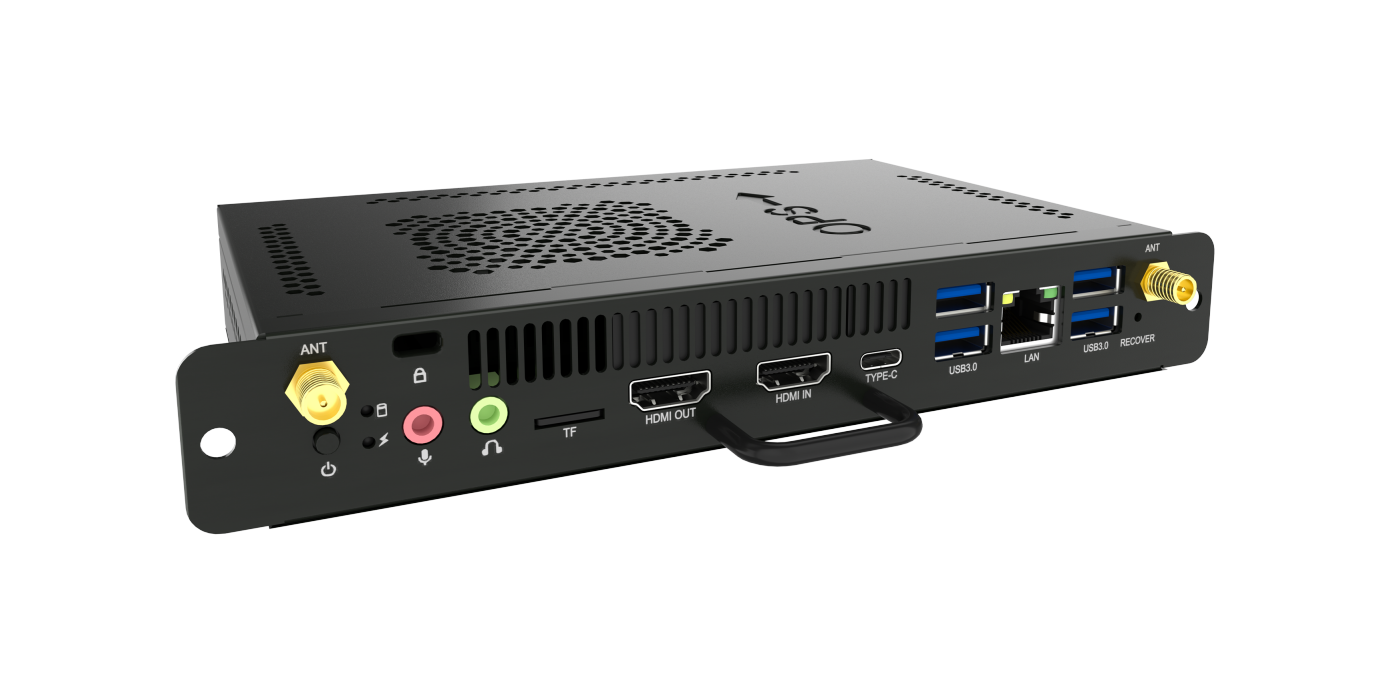

S039
Designed with the RUxchip RK3399 platform, featuring a quad-core Cortex-A53 processor, a standard OPS reference, and a 4K display, it is ideal for conference solutions, education, and digital signage applications.
- •
- Based on Rockchip RK3399 processor
- •
- Dual-core Cortex-A72 + quad-core cortex A53
- •
- Mali T864 GPU
- •
- Display: 1 x HDMI, 1 x HDMI(80pin)
- •
- Onboard WIFI/BT, support 4G mobile network
- •
- 1*10/100/1000Mbps Ethernet
- •
- Supports Android 7.1 operating system
CPU | CPU | Rockchip 3399 Dual-core Cortex-A72 up to 1.8GHz，Quad-core Cortex-A53 up to 1.4GHz |
TDP | 7W | |
Display | Graphic card | Mali T864 |
Multi displays | Support Dual displays | |
Interface | 1 x HDMI , resolution 1920 x 1080 @ 60Hz 1 x 80pin JAE Con.（HDMI2.0) , resolution 4096 x 2160 @ 60Hz | |
Network | Lan IC | 1 x RTL8211F ，1x RTL8111H（option） |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45，2xRJ45（option） | |
Wireless Type | Optional 2.5/5G WiFi | |
Wireless Interface | Onboard WIFI/BT module | |
I/O interface | HDMI | 1 x HDMI OUT(FHD only and no sound) 1 x HDMI IN （1080p，option） |
USB | 1 x USB3.0 OTG TYPE-A , 2 x USB 2.0 | |
Button | 1 x PowerButton, 1 x Clear CMOS Key | |
Slot | 1 x SIM Card Slot 1 x TF Card Slot | |
AUDIO | 1 x Line Out ; 1 x MIC-In 3.5mm JACK | |
POWER | 1 x 2.5/5.5 DC-IN Connector | |
Antenna | 1 x WIFI/BT ANT | |
LAN | 1 x RJ45，2xRJ45（option） | |
JAE | 1 x JAE 80pin Support 1 *HDMI2.0 ,2* USB2.0 ,1* USB3.0，1*TTL，Line out，DC IN； | |
System | Memory | LPDDR4 2G/4G |
Storage | Onborad Optional EMMC 8G / 16G / 32G /64G | |
OS | Android7.1, Ubuntu 18.04 | |
WatchDog | Support | |
Auto Power On | Yes | |
RTC | Yes | |
Power Input | 19V DC IN, 2.5/5.5 DC Jack & JAE 80pin DC IN | |
Dimension | 119mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -5~45℃ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70℃ | |
Operating Humidity | 5%~95% non-condensing |
