JMC-7114

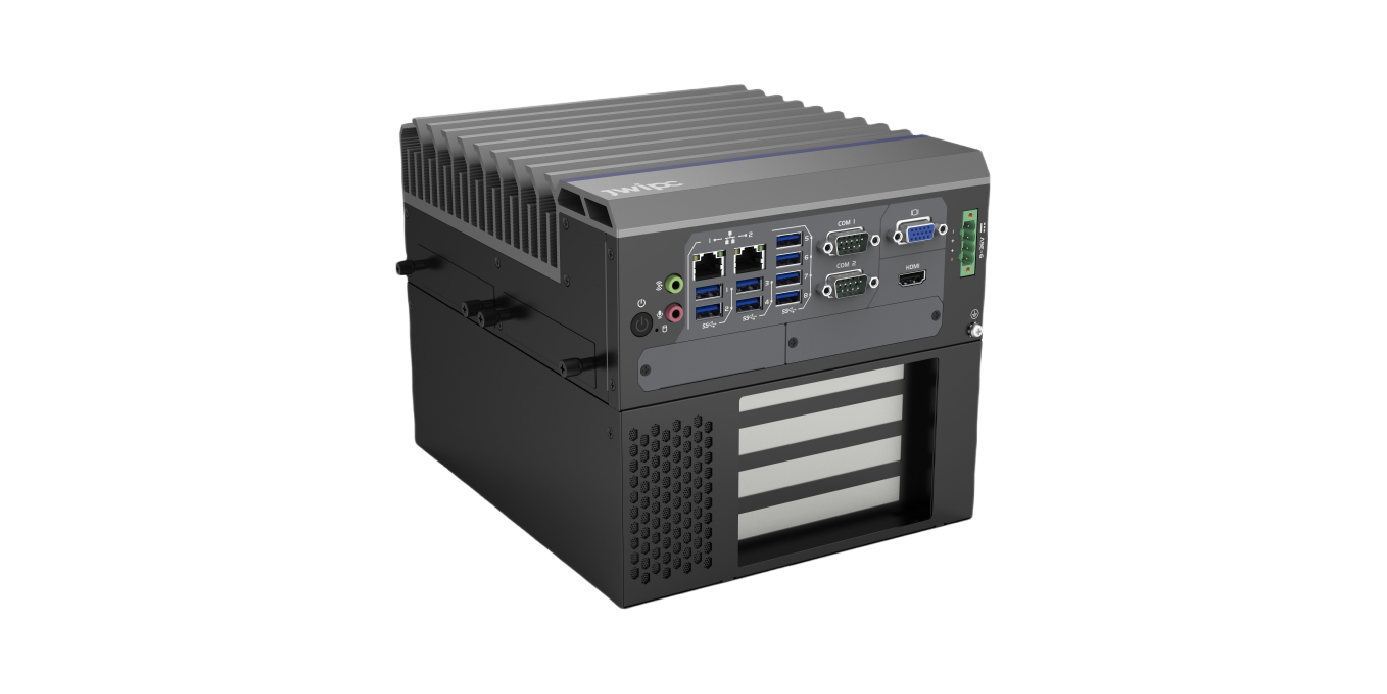

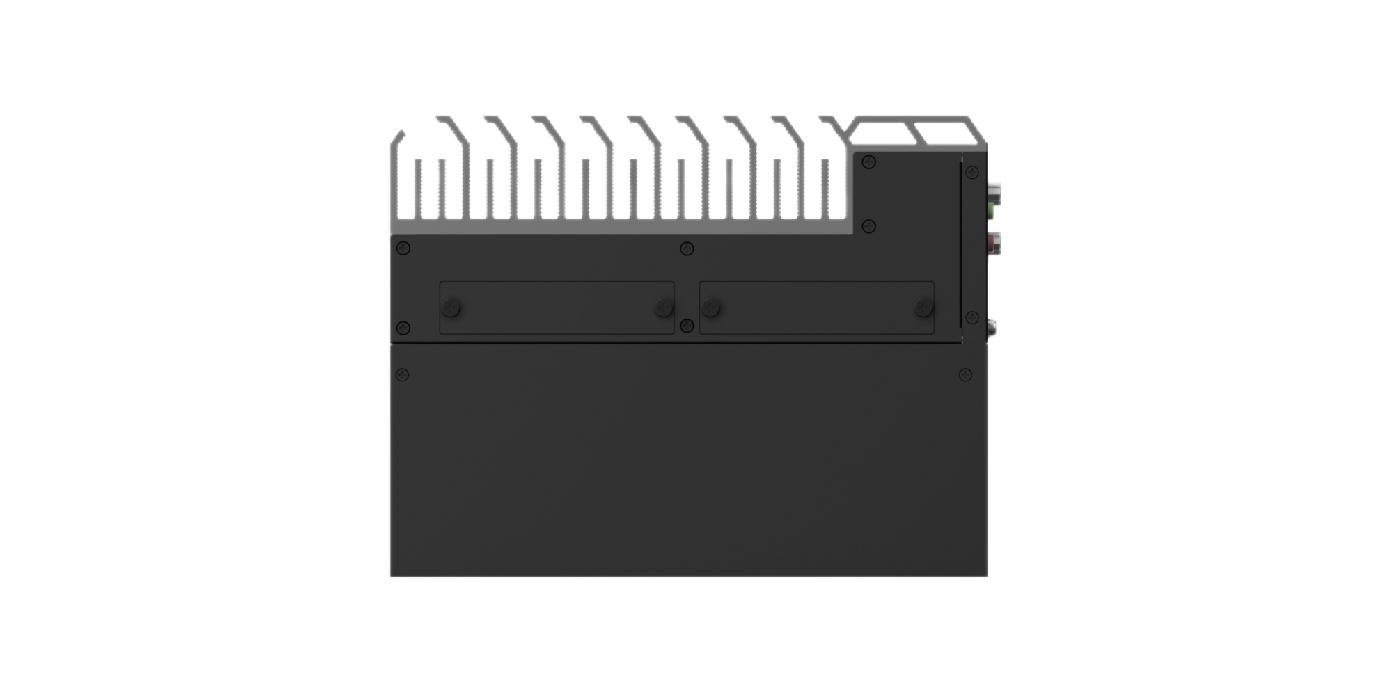

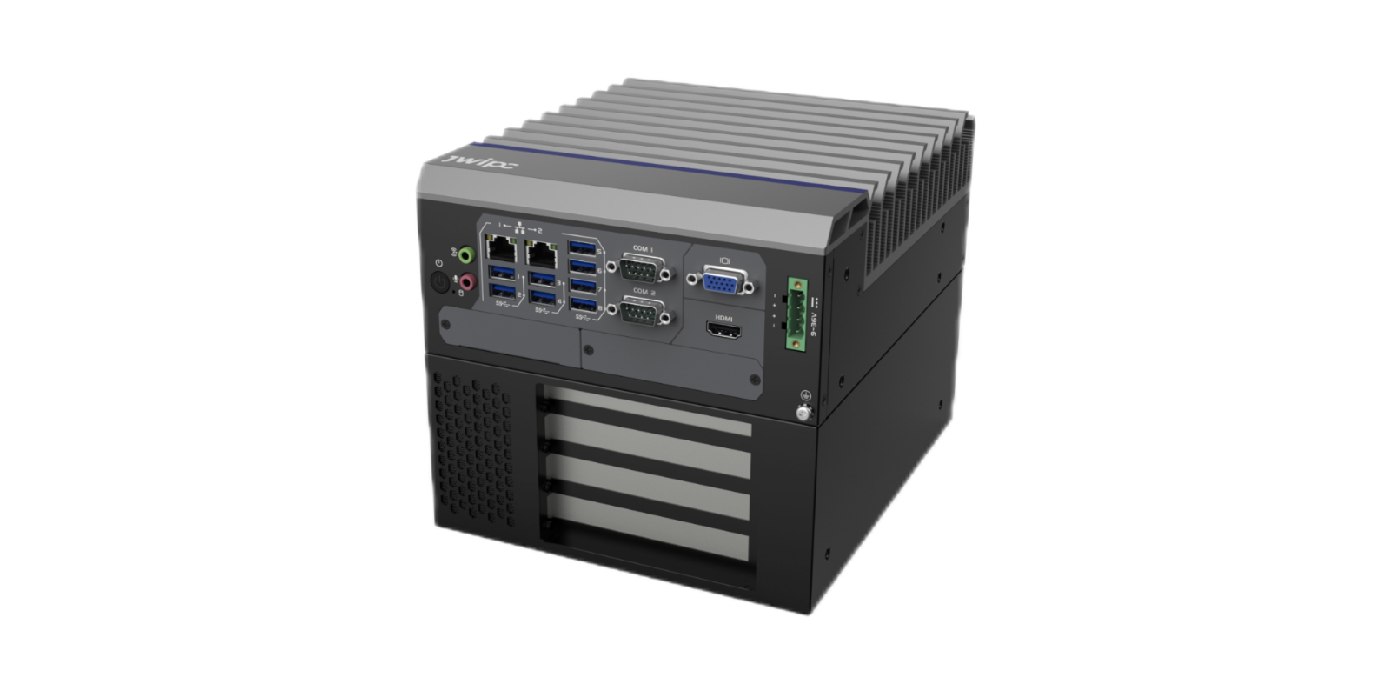

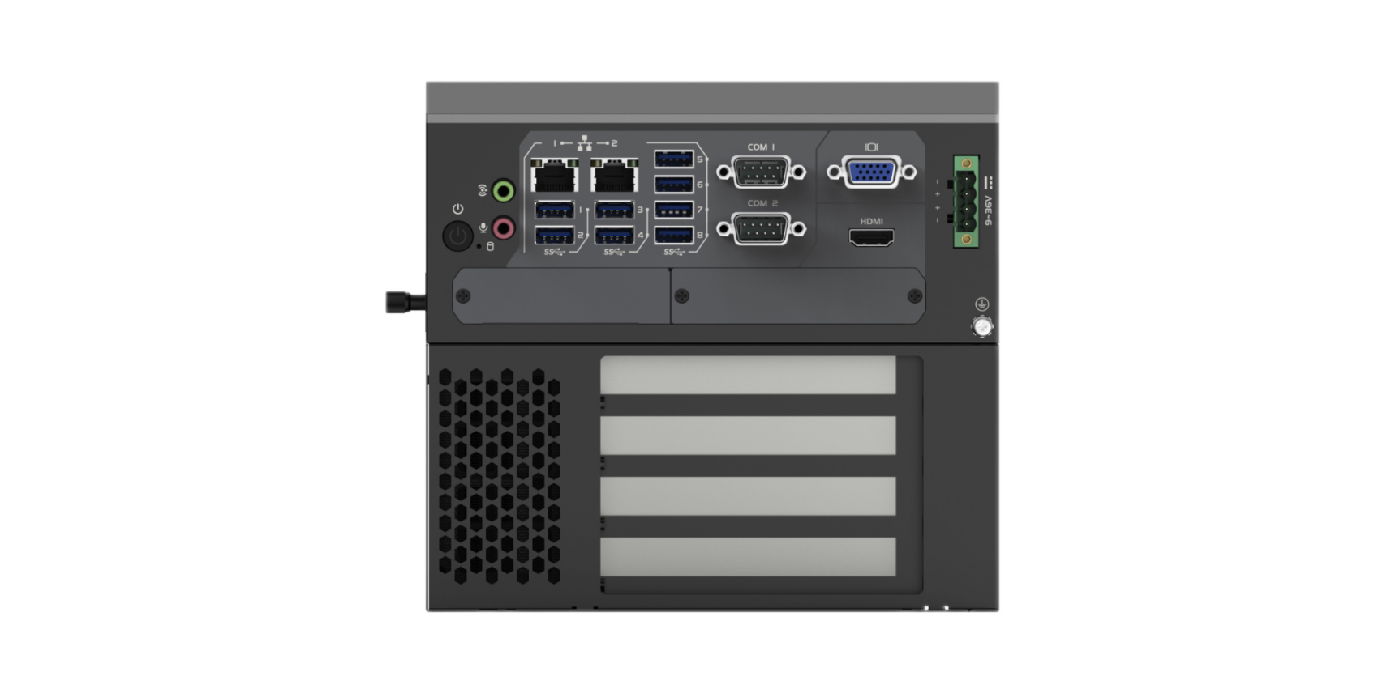

The JMC-7114 features a modular design with separate base and expansion layers, allowing for flexible extension of various interfaces such as LAN, COM, DP/HDMI, and remote power on/off through I/O modules and adapter cards. The base layer is a compact, fanless embedded industrial PC, while the expansion layer supports PCIe and PCI expansion requirements. It is widely used in industries including industrial automation, data acquisition, motion control, optical inspection, logistics and warehousing, intelligent sorting, intelligent transportation, energy, and robotics.
- •
- LGA1151 Gen 6th/7th/8th/9th Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor with Q170 Chipset
- •
- Dual-channel DDR4 2133/2400 MHz SODIMM Memory, up to 64 GB
- •
- Supports VGA and HDMI Display (3rd display supported by option)
- •
- 2 x GbE LAN, 8 x USB Ports
- •
- 2 x RS232/422/485 (with isolation), 2 x RS232/422/485 + 2 x RS232 (optional)
- •
- 1 x 2.5" HDD/SSD (up to 2), 1 x mSATA
- •
- DC 9~36V wide voltage input
- •
- Supports modular and flexible expansion
System | Processor | LGA1151 Gen 6th/7th/8th/9th Core™i3/i5/i7Pentium®/Celeron®Processor |
Chipset | Q170 | |
BIOS | AMI UEFI/Legacy BIOS | |
Memory | 2x DDR4 2133/2400 MHz SO-DIMM, up to 32GB | |
OS | 7th Gen. CPU: Windows 10 (64 bit) 6th Gen. CPU: Windows 10 (64 bit), Windows 8 .1, Windows 7 Linux OS | |
I/O interface | USB | 8x USB3.0, 2x USB2.0(Internal), 1x USB dongle |
Serial | 2x RS232/422/485 (with isolation), 2x RS232/422/485+2x RS-232(Optional) | |
LED | Power, HDD | |
Expansion | Mini-PCIe/ PCI/PCIe | 1x mPCIe (via Nano-SIM, support 4G module), 1x mPCIe/mSATA Expansion layer:1PCIex16+2PCI+1PCIex4 |
Graphics | Graphics Processor | Intel®UHD Graphics 530/510 |
Interface | 1xVGA, up to 1920*1200@60Hz 1xHDMI, up to 4096*2160@24Hz | |
Storage | Storage Device | 2 x 2.5”HDD/SSD(1 optional) ，support SATA RAID 0/1, 1 x mSATA |
Audio | Audio IC | Realtek ALC897 |
Audio Interface | 1xMic-in, 1xLine-out | |
Ethernet | LAN IC | 1xI219LM, 1x I210AT |
Interface | 2xRJ45 | |
Power | Power Input | DC IN 9~36V |
Power Interface | 4-Pole Phoenix DC plug in | |
Others | Watchdog Timer | 1 to 255 sec./min. per step |
TPM | Optional | |
Mechanical | Dimensions | 230mm(W)×192mm(D)×178mm(H) |
Weight | KG | |
Mounting | Desk/Wall-mounting | |
Environment | Operating Temp. | 65W: -10℃~50℃(With airflow), 35W:-10℃~60℃(With airflow) |
Storage Temp. | -40~85℃ | |
Humidity | 95% @ 40 °C (non-condensing) | |
Shock | With SSD: 15G, IEC 60068-2-27, half sine, 11ms duratio | |
Vibration | With SSD:2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis With HDD:1Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis |
