AMD RVZNE FP8 SERIES MINI PC

Support AMD FP8 Strix Point / Krackan Point /Hawk Point SERIES processors, Support 4 Display, 2.5 Gbps LAN. Featuring a sleek business design and compact size, the M224 is an ideal choice for both corporate offices and personal use.

AMD FP8 Strix Point/Krackan PointS ERIES Processor
AMD FP8 Hawk Point SERIES Processor
2 x SO DIMM DDR5
2 x M.2 2280 KEY-M PCIE SSD
1 x M.2 2230 KEY-E for WIFI/BT
2 x Gigabit Lan ( 2.5Gbps)
3 x USB3.2 Gen2, 2 x USB4.0
1 x HDMI, 1 x DP
Specification parameters

Processor System

CPU

AMD FP8 , Ryzen AI 300 Series/Ryzen 200 Series, TDP MAX 65W

Chipset

SOC

BIOS

AMI UEFI BIOS

Graphics

Multi displays

Support 4 display

Interface

1 x HDMI 2.1 , 1 x DP1.4, 2 x USB 4

Memory

Type

2 x SO-DIMM DDR5  5600MHz

Max

96GB

Ethernet

Lan IC

2 x RTL8125

Interface

1G/2.5GOptional

Connector

2 x RJ45

Wireless

Type

 M.2 2230 Standard Wi-Fi/BT module, Optional WiFi6E/WiFi7 module

Interface

1 x M.2 KEY E 2230

Storage

Type

SSD

Interface

2 x M.2 2280, PCIE 4.0 GEN4

IO Interface

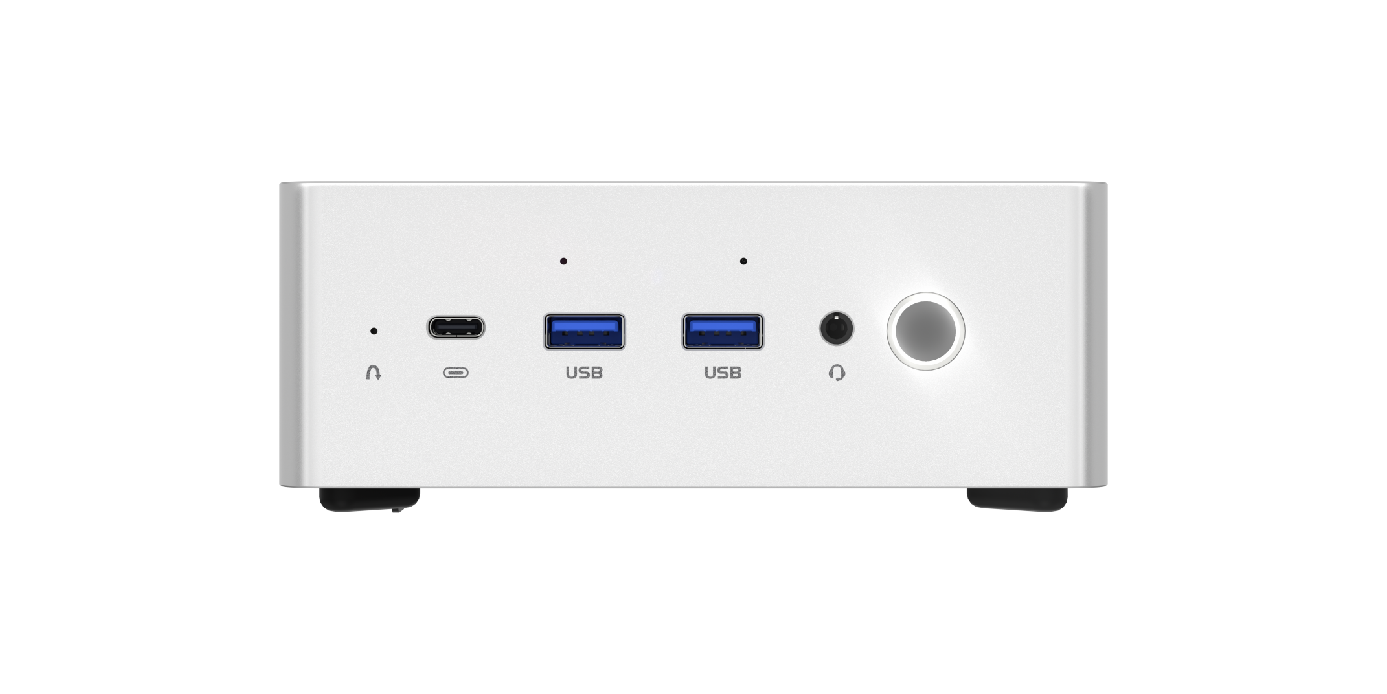

Front panel

1 x Power Button(Optiona finger),1 x 3.5mm Combo Audio Jack,2 x USB3.2(10Gb)1 x USB4 (Support PD100W Input/15W Output/DP Output Display/40Gb)


Rear panel

1 x HDMI2.1 ,1 x DP1.4,2 x RJ45,1 x USB4 (Support PD100W Input/15W Output/DP Output Display/40Gb),1 x USB3.2(10Gb) ,1 x 2.5/5.5 DC IN JACK ,

Software

OS Supports

WINDOWS 11

TPM

Optional

colour

colour

black or Silver + WhiteOptional

Power

Power input

19V DC IN120W

Size


140.0x138.8mm

Environment

Operating Temp.

-5~45

Operating Humidity

10%~90% non-condensing

Storage Temp.

-20~70

Operating Humidity

5%~95% non-condensing
