JADLTH02

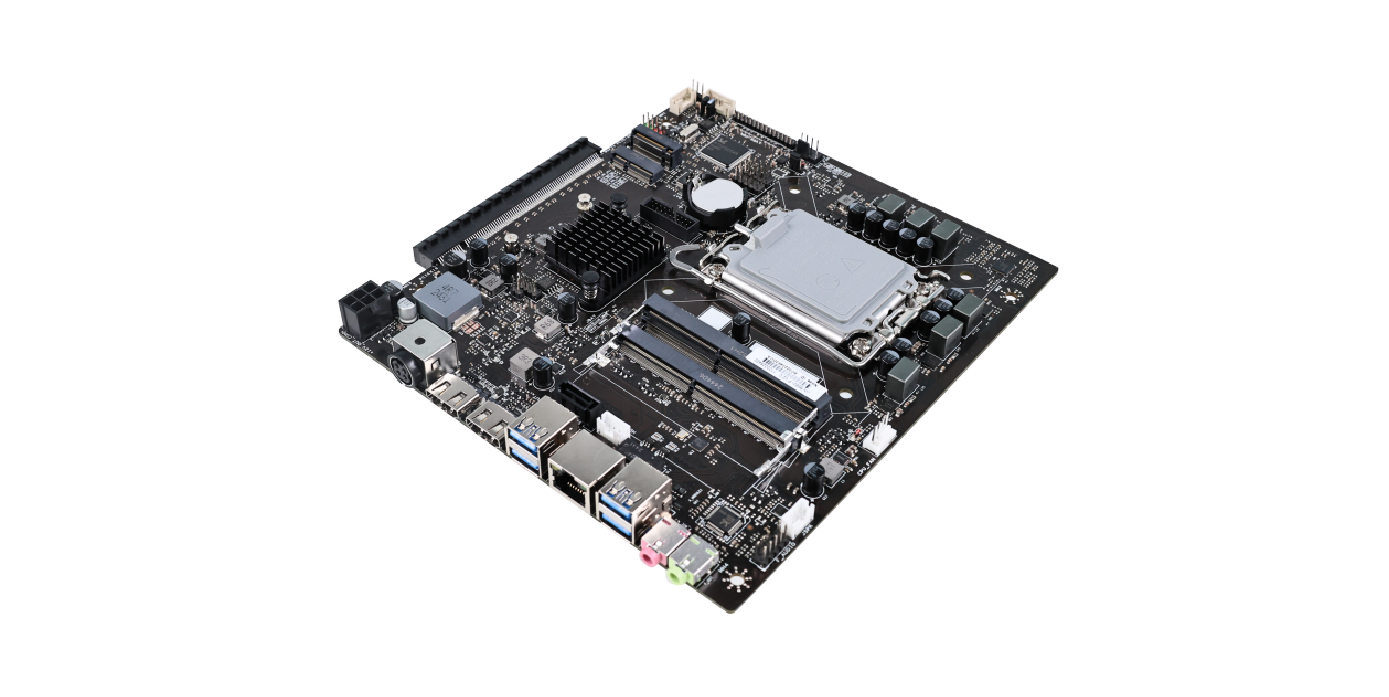

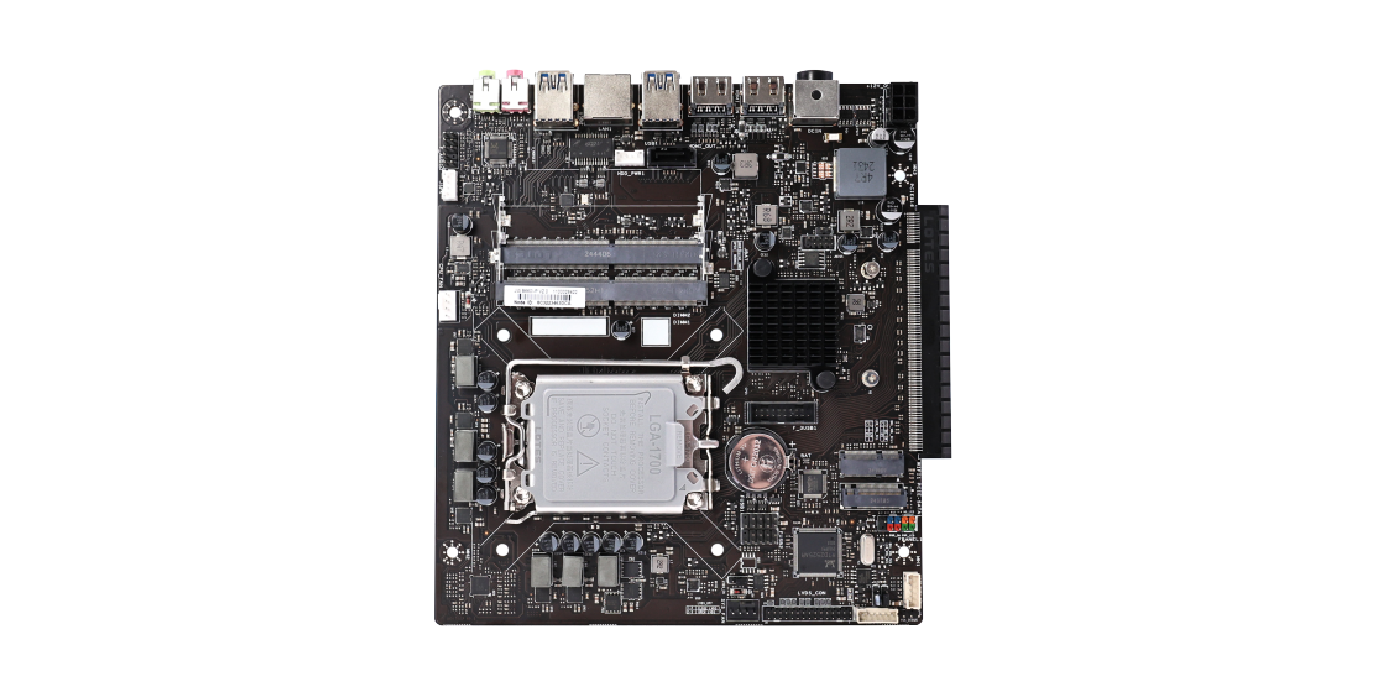

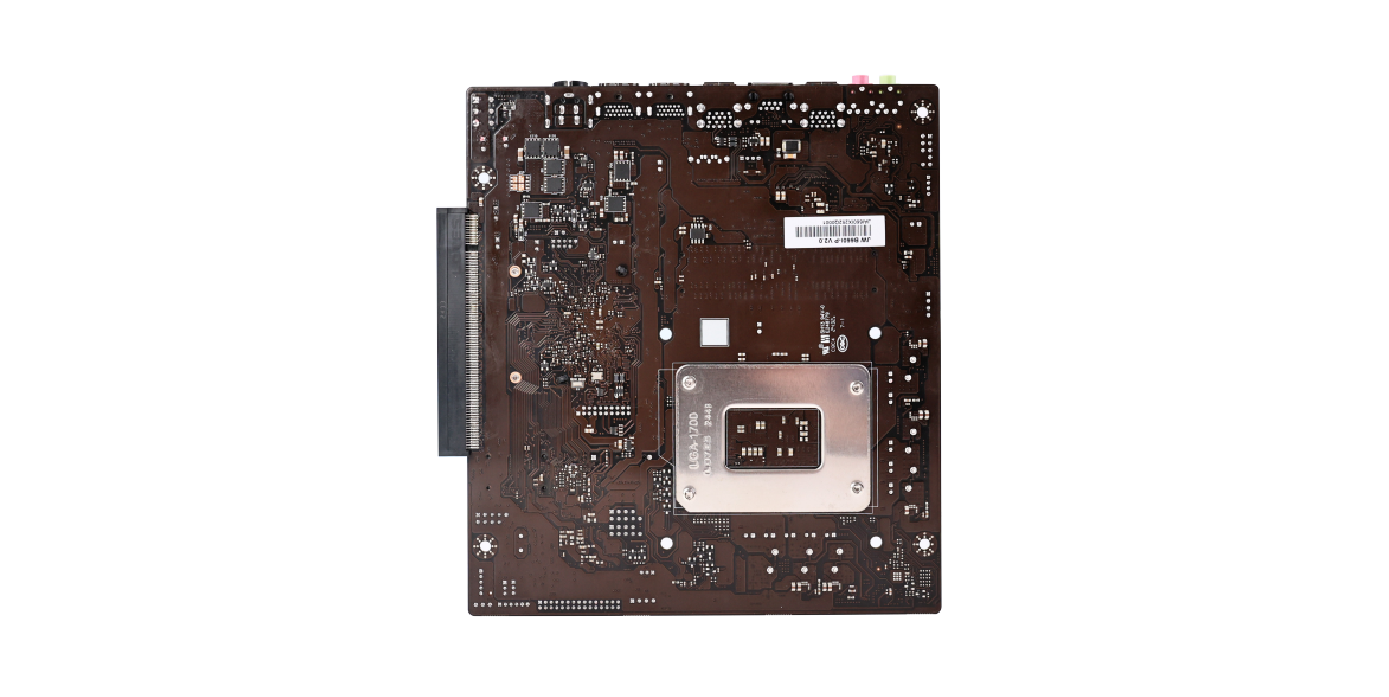

JWIPC JADLTH02 all-in-one motherboard is based on the Intel 12th/13th/14th generation Alder/Raptor Lake platform processors. The motherboard supports dual-channel DDR4 memory, SATA/NVME mode M.2 SSD, and different network access modes such as RJ45/WIFI/BT. It also supports a wide range of peripheral interfaces, making it suitable for various types of all-in-one machines in the industry.
- •
- Based on the Intel Alder/Raptor Lake platform
- •
- Supports 12th/13th/14th Generation Intel Core Processors
- •
- Dual-channel SO-DIMM DDR4 memory
- •
- 1×M.2 2230 slot (supports WIFI/BT)
- •
- 1×M.2 2280 slot (supports SATA/NVME mode)
- •

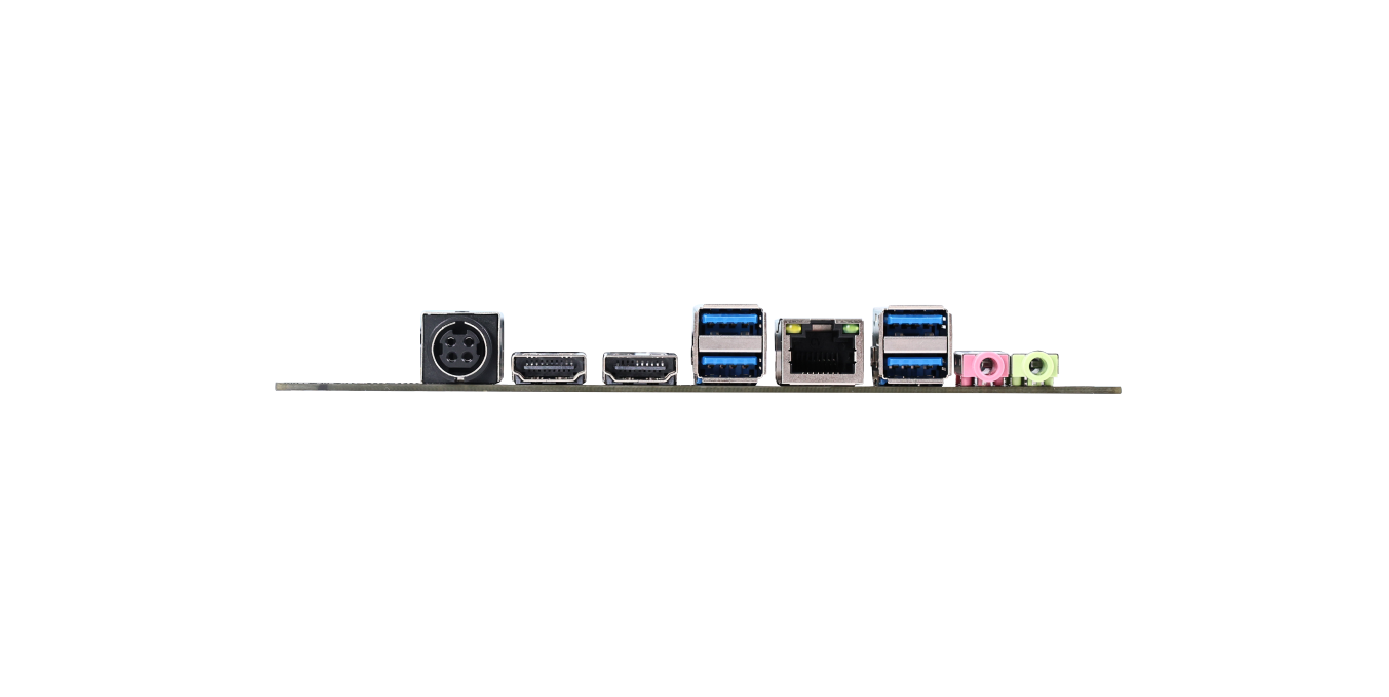

- Rear IO provides 4 x USB3.0
- •
- Onboard pin header can expand 4 USB2.0 ports
- •
- 1 x HDMI IN, 1 x HDMI OUT, 1 x LVDS
- •
- 1 x Gigabit Ethernet card, supports Wake-on-LAN function
- •
- 1 x PCI-E X16 (supports up to 170W)
CPU | Intel LGA1700 12th/13th/14th Generation CPU TDP: 65W Options: Intel Core i7/Core i5/Core i3/Pentium/Celeron |
Chipset | Intel H610 Chipset |
Graphics | Intel integrated graphics |
Memory | 2×DDR4 SO-DIMM DDR4 2666MHz/2933MHz/3200MHz Max: 64G |
Display Interface | 1x HDMI-IN; 1x HDMI-OUT; 1x LVDS |
Audio | Realtek ALC897 High Definition Audio Codec |
Storage | 1× M.2 2280 Slot (supports SATA/NVME mode) |
1× SATA3.0 Interface + 1× SATA Power Interface | |
Network | 1× RJ45 Gigabit Ethernet Port, RTL8111H |
WiFi | 1× M.2 2230 Slot (supports WIFI/BT) |
Audio Interface | 1 x Line out, 1 x Mic in (3.5mm Audio Jack) 1 x F_Audio Header (2 x 5-1 2.54mm specification) |
1 x 4pin speaker connector (3W/4Ω x2) | |
USB Interface | IO Interface: 4 x USB3.0 Onboard Header: 2 sets of USB2.0 headers (expandable to 4 USB2.0 ports) |
LVDS | 1×LVDS 30PIN header, 1×LCD_VOL_SEL display voltage jumper (5V/12V) 1×4PIN MON_SW header, 1×LVDS_OFF jumper |
Backlight | 1×6PIN INVERTER interface (Backlight +/-), 1×BKL_VOL backlight voltage jumper (12V/19V) |
Pin Headers | 1×FPANEL panel header, 1×4PIN CPU fan, 1×4PIN SYS fan |
Others | 1×6PIN graphics card power interface, 1×BIOS socket |
Power Input | 19VDC IN, 2.5/5.5 DC Jack power interface |
BIOS Support | 128M flash ROM, AMI UEFI BIOS, PC Health, WOL |
Dimensions | 170mm*190mm |
Operating Temperature | -10~50 degrees Celsius |
Operating Humidity | 10%~90% non-condensing |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirement | 5%~95% non-condensing |
Operating system | Win10 / W11 / Ubuntu |
