JRPSMC12

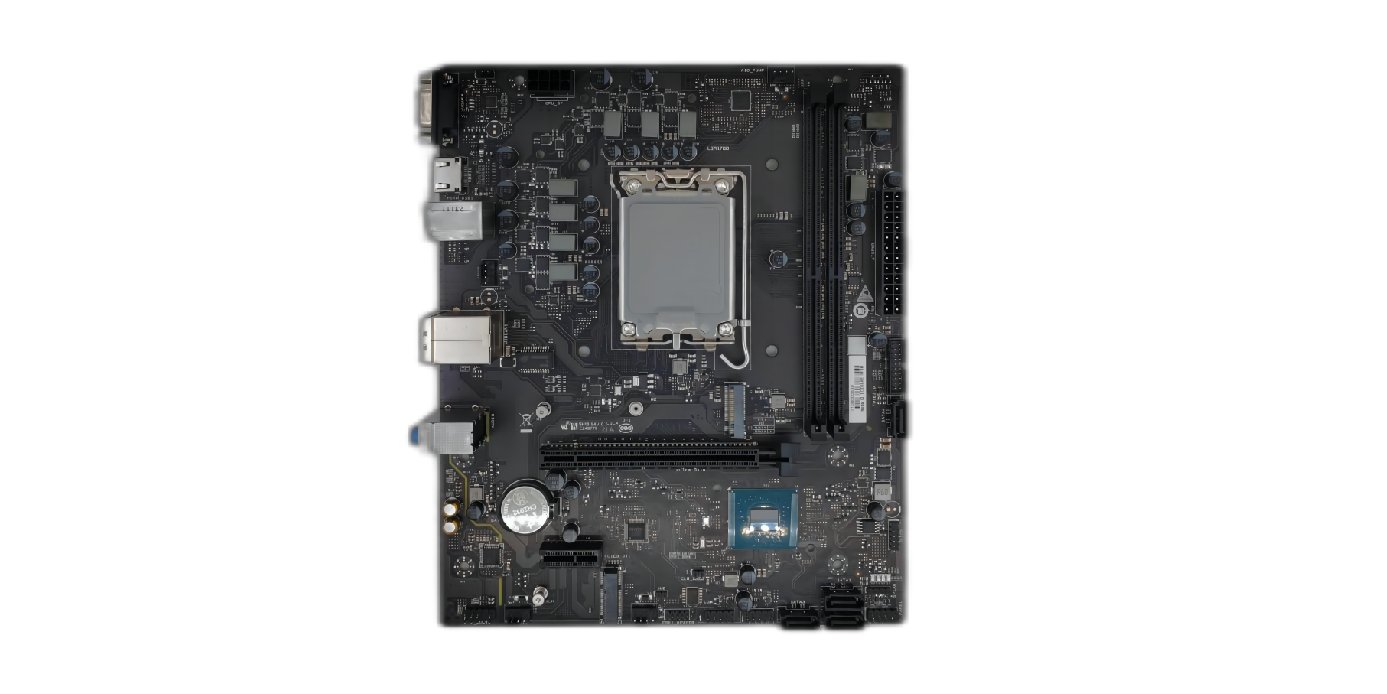

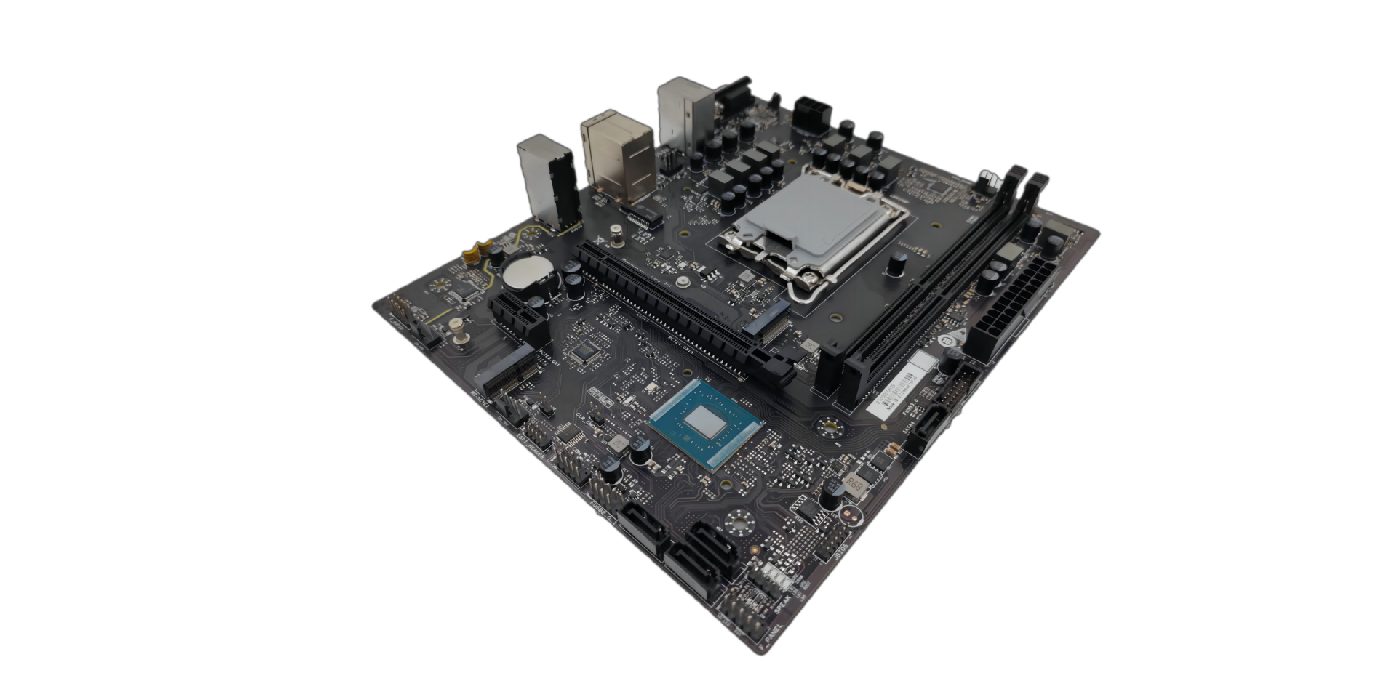

Standard 2DIMMS Micro ATX desktop computer motherboard, using Intel® Raptor Lake B760& Alder lake H610 chipset, with rich external interfaces, can be widely used in home, office, etc.
- •
- Based on Raptor Lake B760& Alder lake H610 chipset design
- •
- M-ATX Size: 200 x 235mm
- •
- 2 x U-DIMM DDR4 slots supported up to 64 GB
- •
- 1 x M.2 2242/2280 SSD Port, 4 x SATA Gen3 Port
- •
- 8 x USB2.0/3.0
- •
- M.2 WIFI/BT Port
- •
- 1 x HDMI, 1 x VGA
- •
- 1 x Gigabit network adapter, support network wake-up function
- •
- 5+1 PHASE power supply, CPU power consumption 65W
CPU | Support Intel 12th and 13th generation desktop CPU MAX 65W |
Chpset | B760 colay H610 |
Graphics | PCIE/onboard (reserved) |
Memory | 2 X U-DIMM DDR4, support 3200/2933/2666/2400 (MAX supports 64G) |
System | WINDOW 11 |
BIOS | AMI |
Storage | 1 X M.2: 2242/2280 Supports PCIE GEN3 x4 |
4 X SATA Gen3 Port | |
Audio | HD Audio IC, 6-channel sound card |
Network | Gigabit network interface |
1 X M.2 WIFI/BT horizontal slot | |
Display Interface | 1 X HDMI, 1 x VGA |
Audio Interface | 1 X Line out, 1 x Line in, 1 x Mic in; 3.5Mm Audio Jack |
1 X 9pin header, 2*5pin-1 2.54Mm | |

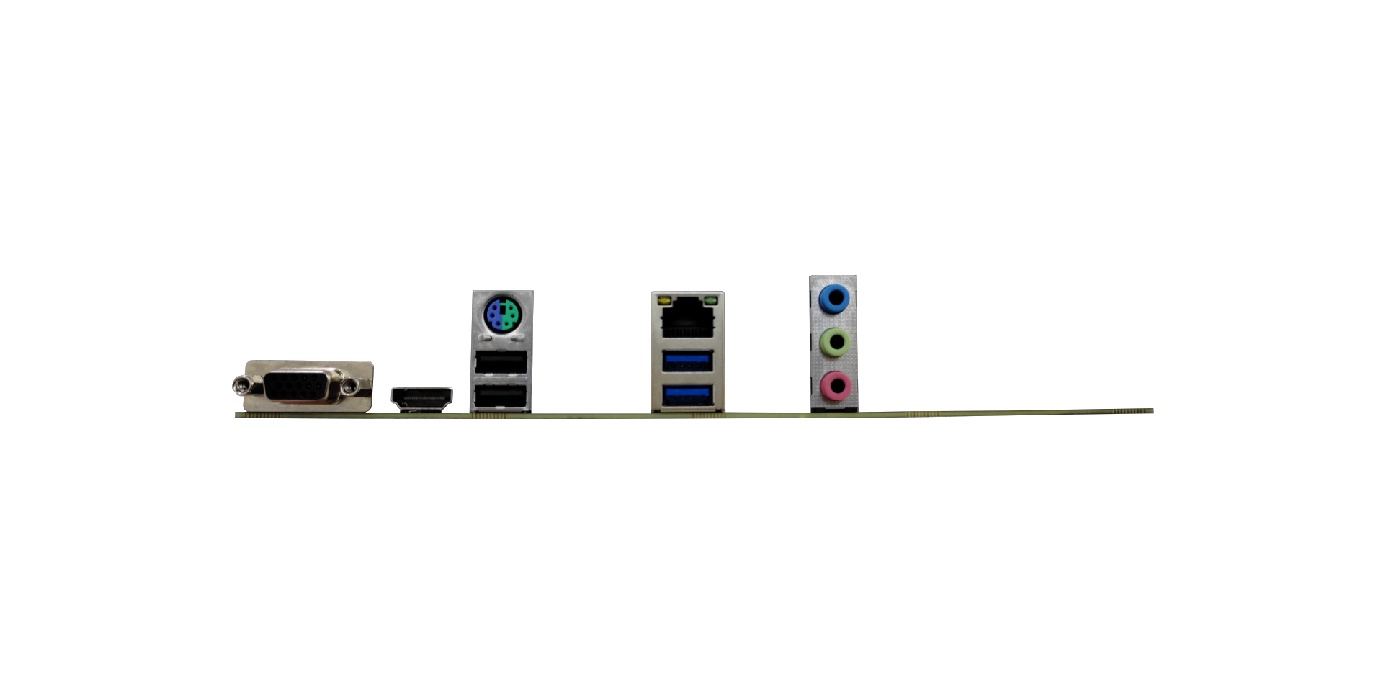

USB interface | Rear IO: 2 x USB2.0, 2 X USB3.2 Gen1 5G (Type-A) |
Onboard: 2 x USB2.0, 2 X USB3.2 Gen1 5G (Type-A) | |
Serial Port | 1 X 9pin header, 2*5pin-1 2.54Mm |
Extensions | 1 X PCI Express4.0 X16 slot, 1 x PCI Express3.0 X1 slot |
Front Panel | 1 X 2*5pin-1 (2.54 Pin header) |
Other | FAN: 1 x CPU fan 4Pin pin, 2 x chassis fan 4Pin pin, 1 x water pump fan 4Pin pin (support Smart FAN) |
1* JBIOS_TPM 2*6Pin-1 pin, 1 x Buzzer 4Pin pin, 1 x CLR_CMOS 3Pin pin | |
Power Input | 24PIN + 8PIN power supply interface |
Product size | Micro ATX motherboard specification, 200 x 235 mm |
Operating temperature | -5~40 Degrees Celsius |
Working humidity requirements | 10%~90% No condensation |
Storage temperature | -20~70 Degrees Celsius |
Non-operating humidity requirements | 5%~95% No condensation |
