JADHTH02

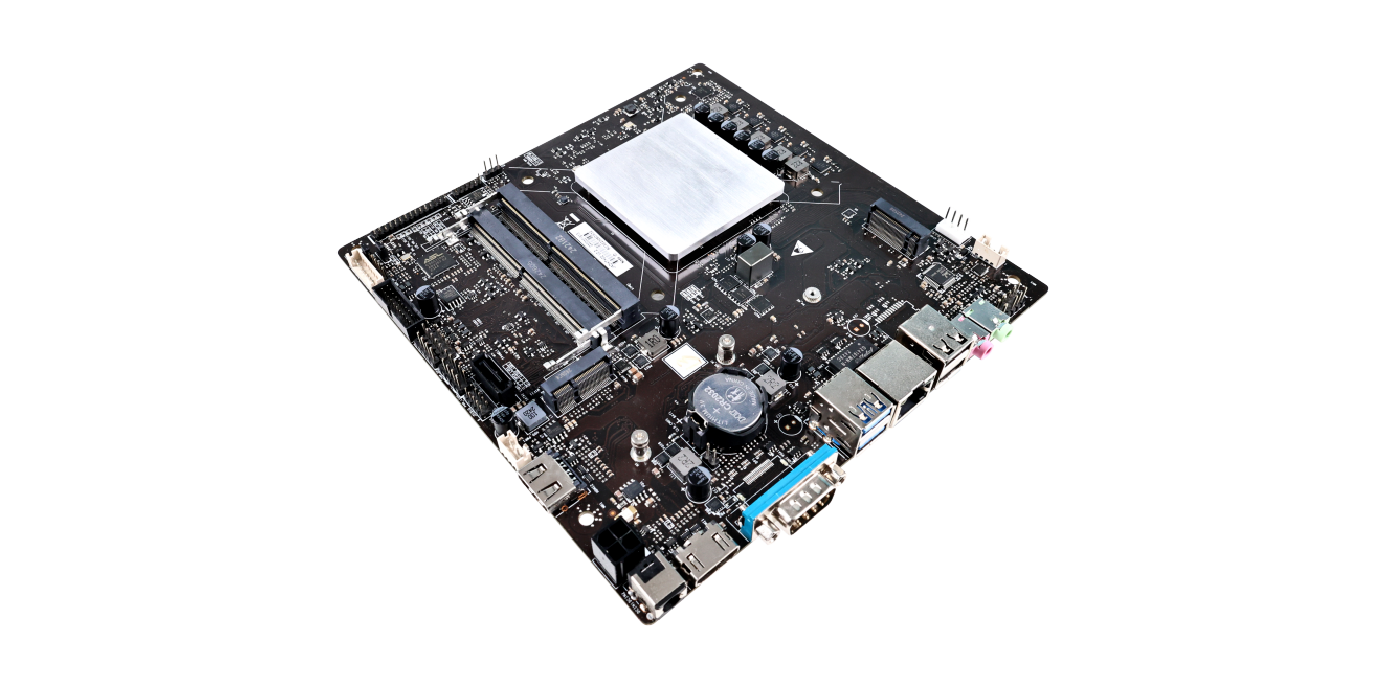

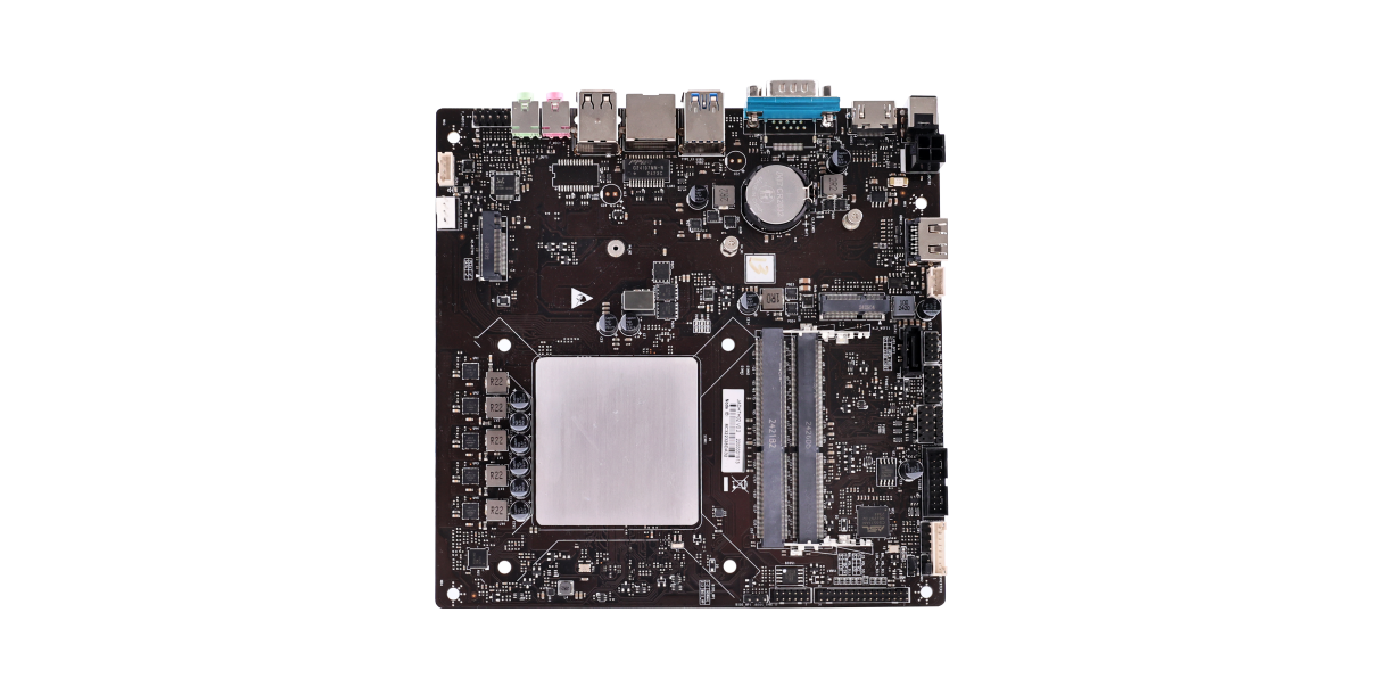

JWIPC JADHTH02 all-in-one motherboard is based on the Intel 12th Gen Alder Lake mobile platform processor, the motherboard supports dual-channel DDR4 memory, supports SATA/NVME mode M.2 SSD, and supports different network access modes such as RJ45/WIFI/BT/CNVI; it also supports a variety of peripheral interfaces, adapting to various types of all-in-one machines in the industry.
- •
- Based on Intel Alder Lake mobile platform
- •
- Dual-channel SO-DIMM DDR4 memory
- •
- 1×M.2 2230 slot (supports WIFI/BT/CNVI)
- •
- 1×M.2 2280 slot (supports SATA/NVME)
- •

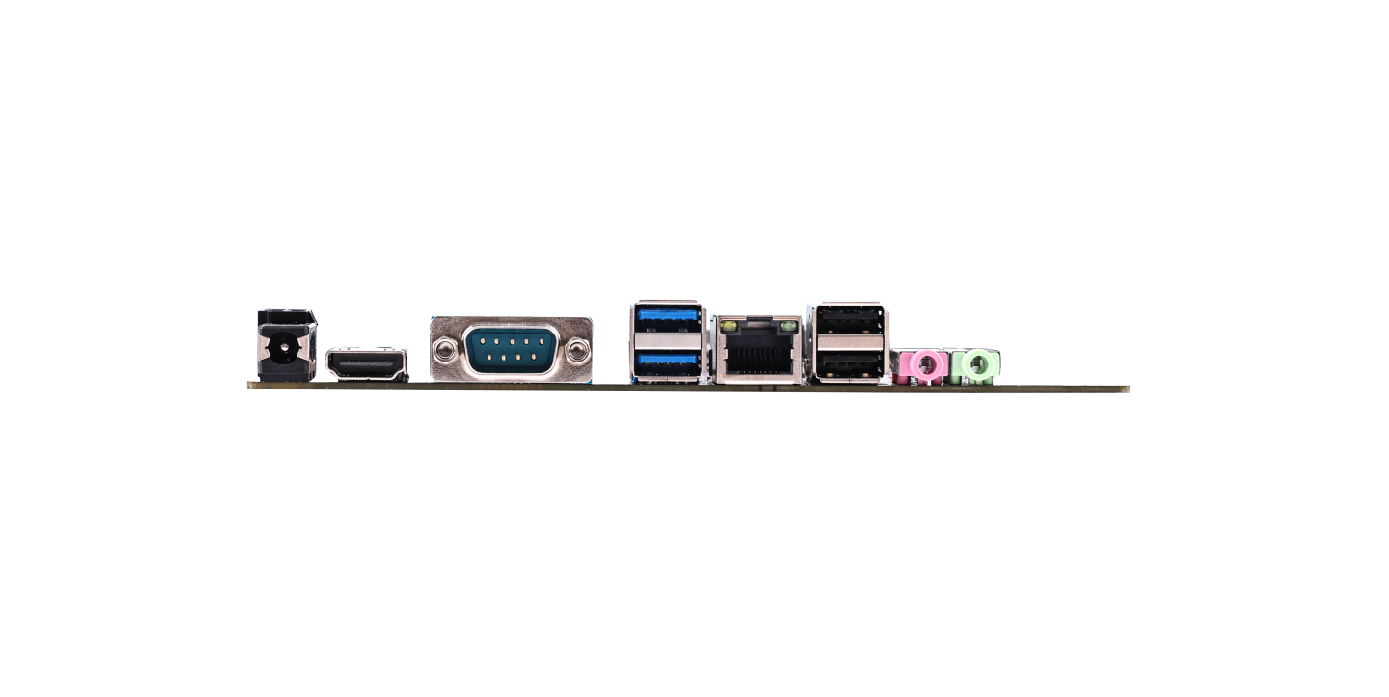

- Rear IO provides 2×USB3.0, 2×USB2.0
- •
- Onboard pin headers can expand to 2 USB3.0, 3 USB2.0 ports
- •
- 1 x HDMI port
- •
- 1 x LVDS port, supports up to FHD 120HZ
- •
- 1 x COM (optional VGA or DP)
- •
- 1x Gigabit Ethernet (optional dual channels), supports Wake-on-LAN
- •
- Supports LVDS gravity sensing (Sensor version only)
CPU | Intel 210H |
Chipset | Intel Raptor Lake |
Graphics | Intel integrated graphics |
Memory | 2×DDR4 SO-DIMM DDR4 2666MHz/2933MHz/3200MHz Max:64G |
Display Interface | 1×HDMI port; 1 x LVDS; 1 x HDMI (optional side output); 1 x COM (optional DP/VGA) |
Audio | Realtek ALC897 High Definition Audio Codec |
Storage | 1×M.2 2280 slot (supports SATA/NVME mode) |
1×SATA3.0 port + 1×SATA power port | |
Network | 1×RJ45 port; Realtek RTL8111M Gigabit Ethernet Controller |
WiFi | 1×M.2 2230 slot (supports WIFI/BT/CNVI) |
Audio Interface | 1 x Line out, 1 x Mic in (3.5mm Audio Jack) 1 x F_Audio header (2 x 5-1 2.54mm specification) |
1 x 4pin speaker connector (3W/4Ω x2) | |
USB Interface | IO Interface: Provides 2×USB3.0; 2×USB2.0 (optional 1×RJ45 interface) Onboard Pin Headers: Expand 2 USB3.0 ports; Expand 3 USB2.0 ports |
LVDS | 1×LVDS 30PIN header (supports up to 120HZ), 1×LCD_VOL_SEL display voltage jumper (5V/12V) 1×4PIN MON_SW header, 1×LVDS_OFF jumper |
Backlight | 1×8PIN INVERTER interface (backlight +/-), 1×BKL_VOL backlight voltage jumper (12V/19V) |
Pin Headers | 1×FPANEL panel header, 1×4PIN CPU fan |
Others | 1×4PIN DC socket, 1×JBIOS socket |
Power Input | 12~19V DC IN, 2.5/5.5 DC Jack power interface |
BIOS Support | 128M flash ROM, AMI UEFI BIOS, PC Health, WOL |
Dimensions | Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L |
Operating Temperature | -10~50 degrees Celsius |
Operating Humidity | 10%~90% non-condensing |
Storage temperature | -20~70 degrees Celsius |
Non-operating humidity requirement | 5%~95% non-condensing |
Operating system | Win10 / W11 / Ubuntu |
