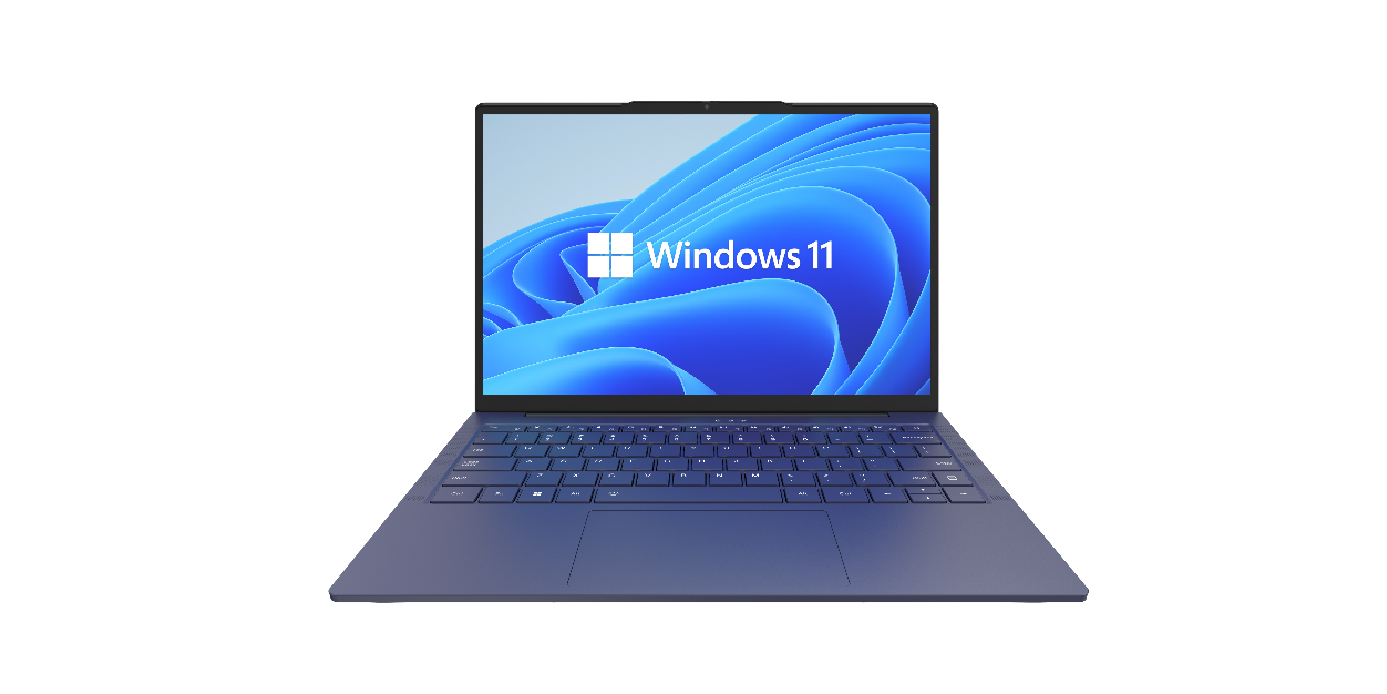

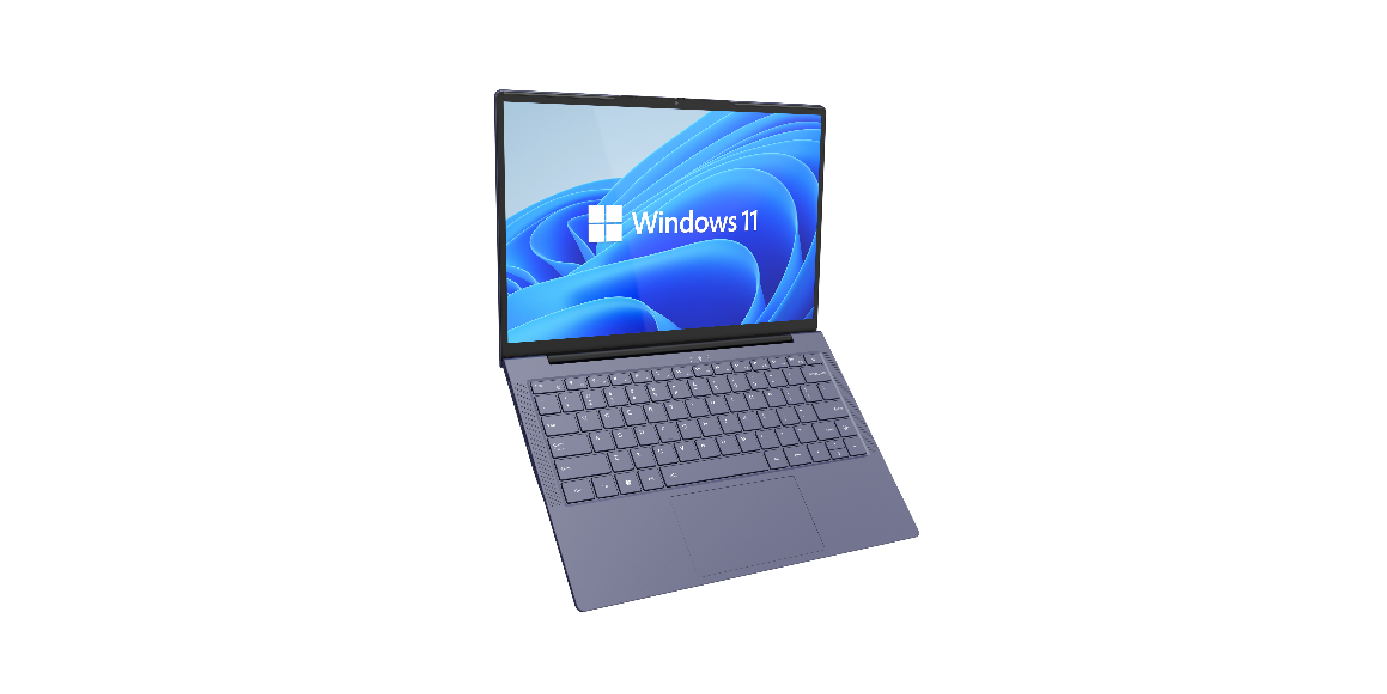

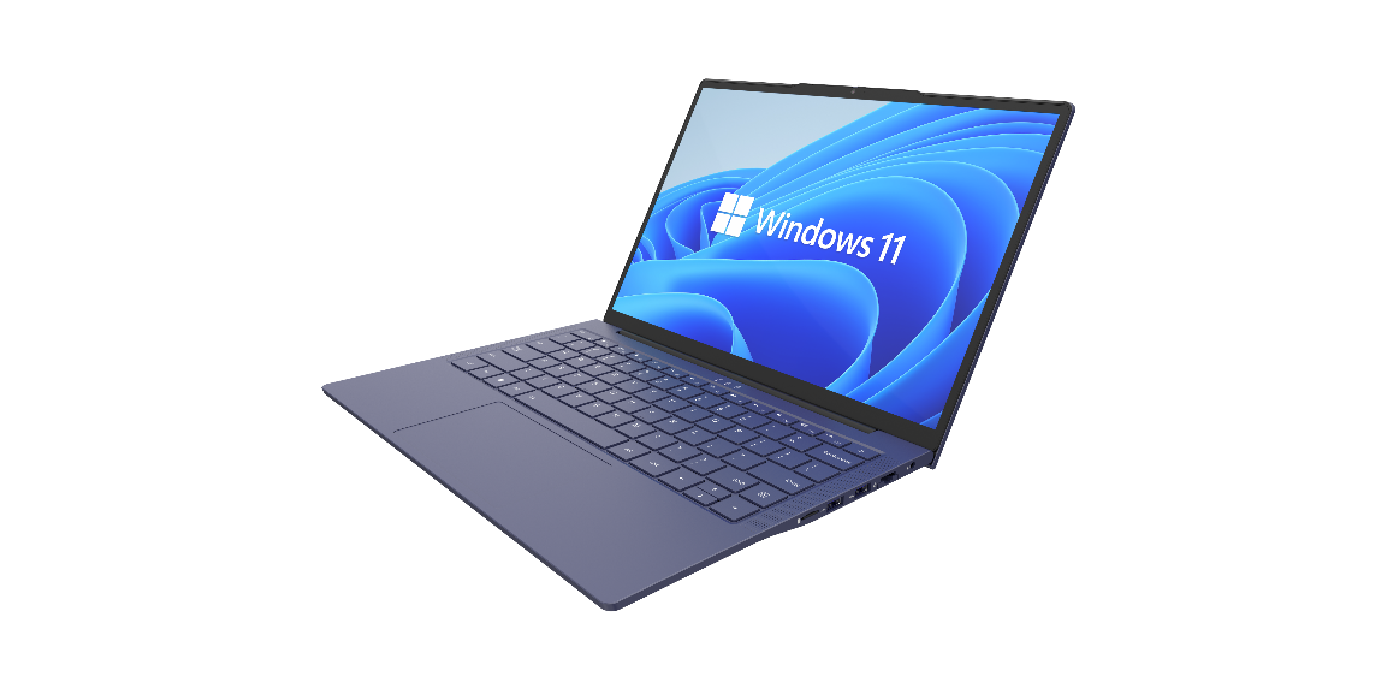

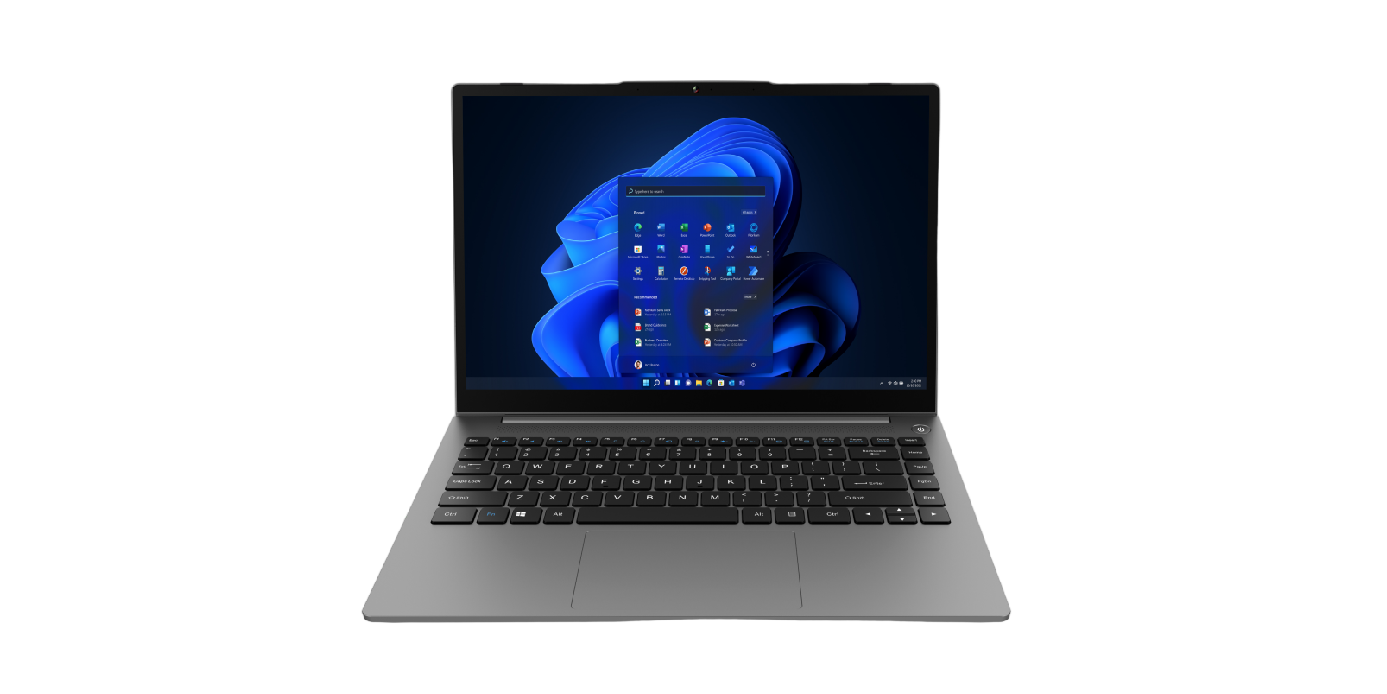

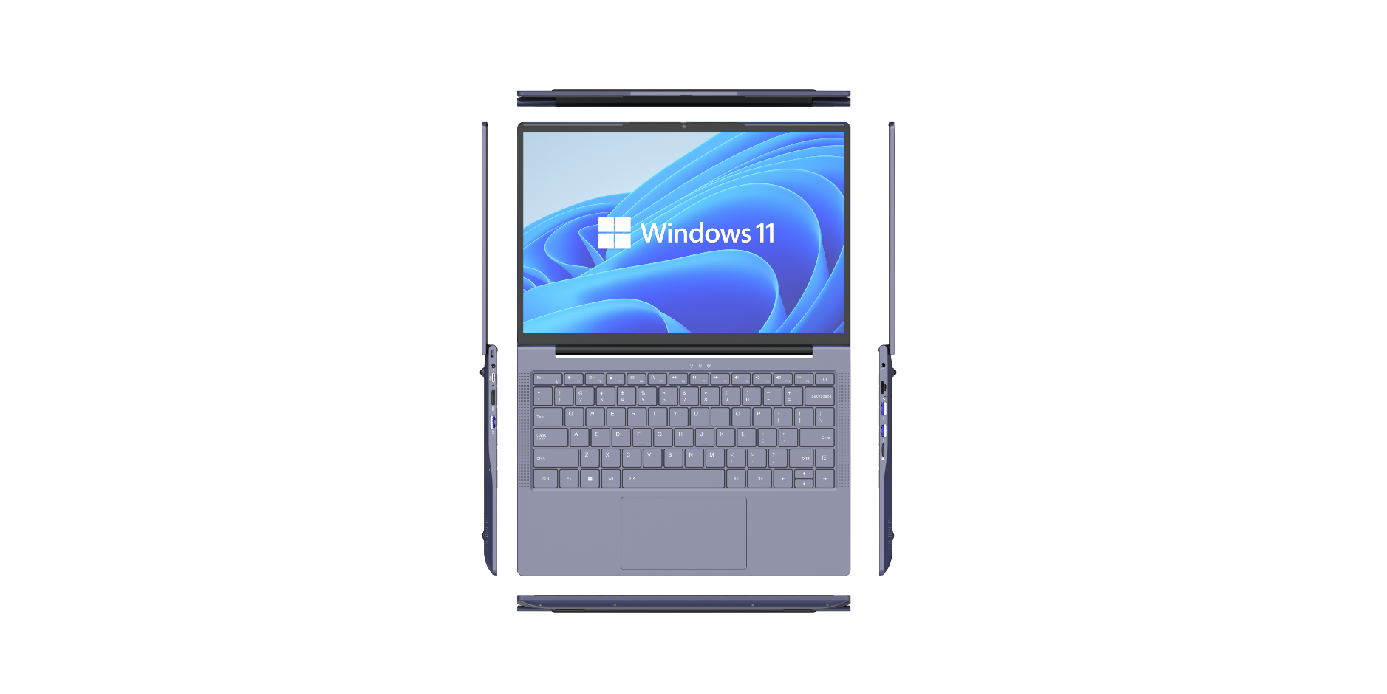

N330-16
This N330-16 supports AMD (FP7) Ryzen 8000 Series platforms, delivering smooth performance and low power consumption. Designed for everyday consumers, it’s ideal for work, study, and entertainment, with reliable connectivity and long battery life.
- •
- AMD Ryzen 8000 Series (FP7)
- •
- 16inch 1920x1200 IPS or QHD 2560x1600
- •
- A Metal, CD Plastic
- •
- 1 x M.2 2280 SSD slot
- •
- 1 x WIFI6
- •
- 1 x HDMI(TYPE A)
- •
- 3 x USB3.2(Gen1 ,5Gbps)
- •
- 1 x Type-c (Data + DP + Charging)
- •
- WIN11/Linux OS
Processor | CPU | AMD Ryzen 8000 Series(FP7 , FP7r2) |
BIOS | AMI UEFI BIOS | |
Graphic card | Indicate | AMD Radeon™ 780M |
Multi displays | Support 3 displays | |
Interface | 1 x HDMI , 1 x Type-c | |
LCD | SIZE | 16inch 1920x1200 16:10 or QHD 2560x1600 |
Memory | Type | 8GB/16GB/32GB DDR5 |
MAX Capacity | 32GB | |
LAN Interface | Lan IC | RT8111M RJ45 |
Wireless | WIFI Standard | Support WiFi 802.11b/g/n/ac/ax |
Speaker | Type | Built-in stereo speakers 8Ω/1.0W*4 |
Camera | Type | 1080P(2M) w/shutter door+DMIC*2 |
Storage | Type | Support SSD |
IO | 1 * M.2 2280 PCIe4.0×4 | |
I/O Interface | Left size | 1 * DC IN JACK，1 * HDMI1.4（4096 x 2304 @ 60Hz），1 * USB3.2 （GEN1），1*Type-c（PD+DP+Charging） |
Right size | 1*Kingston 1*RJ452*USB3.2（GEN1）,1*3.5mm AUDIO JACK，1*Micro SD | |
Keyboard | Input Device | US&UK（Support backlight) |
Operating System | OS | WINDOWS 11/LINUX |
TPM | Optional | |
Battery | Capacity | 62.7Wh（3S1P） |
Power adapter | Power Input | DC or Type-C GaN 100W 20V/5A |
Product Form | Form Factor | Notebook , 180° ；A metal，CD Plastic |
Dimensions | L357.4*W245*T19.5mm | |
Weight | ~1.85kg（without adapter) | |
Environment | Operating Temp. | 0~45℃ |
Operating Humidity | 10%~90% non-condensing | |
storage Temp. | -20~70℃ | |
Non-Operating humidity | 5%~95% non-condensing |
From initial concept to final development, our expert product engineers deliver tailored hardware and software solutions—ready to assist you immediately.
