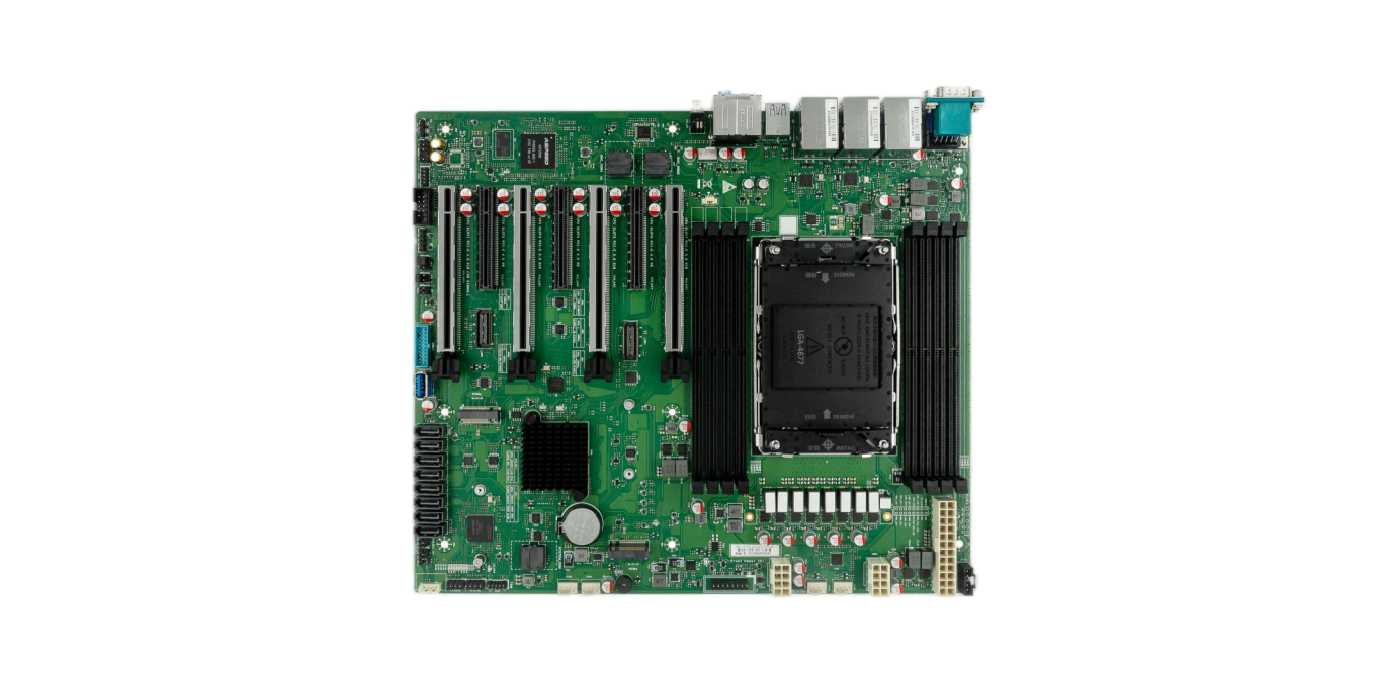

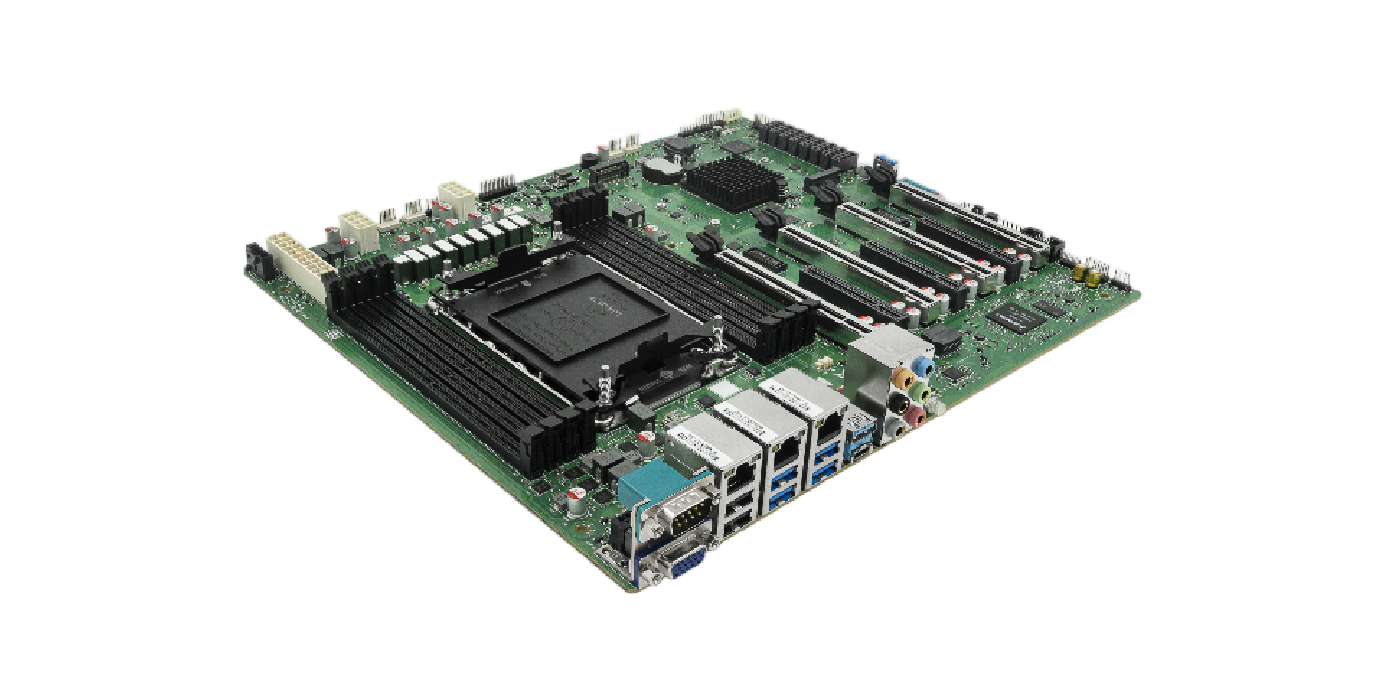

P15SWA-BMC
P15SWA is a high-performance single-channel server motherboard based on Intel® high-performance workstation W790 chipset and using Sapphire Rapids series W2400 Processor 64L and W3400 Processor 112L processors. This product is a brand new scalable server motherboard from appearance design to internal structure. It reflects the company's business philosophy of pursuing "technology/innovation/environmental protection" and its service philosophy of "continuous efforts to be customer- oriented and make the most professional products". It has greatly improved the scalability and performance of the supporting equipment. This server motherboard can also provide ODM customized services for customers with individual needs, making it the first choice for industry users to tailor refined IT platforms.
- •
- Using the Sapphire Rapids series W2400 Processor 64L and W3400 Processor 112L processors
- •
- Provide 8 DDR5 RDIMM memory slots, with a maximum memory support of 2TB ECC RDIMM
- •
- Supports 3 PCI E 5.0 x8 and 4 PCI E 5.0 x16 expansion slots
- •
- Supports 8 hard drives and 6G SATAIII storage types, providing multiple storage solutions for enterprise applications
- •
- Supports IPMI, hardware monitoring, and can remotely monitor the working status of hardware such as host power, voltage, temperature, and fans
Processor | CPU | 1 SocketE，Intel®Xeon®Sapphire Rapids Workstation Series Processors |
CHIPSET | Intel®W790 | |
BIOS | AMI UEFI BIOS | |
Display | CHIP | ASPEED AST2500 BMC |
PORT | 1 x VGA | |
Memory | TYPE | 8 SLOTS；64L Support only DIMMA1/DIMMB1/DIMME1/DIMMF1 Support 4800/4400MHz ECC DDR5 RDIMM |
Memory Capacity | W2400 Processor 64L MAX 1TB 3DS RDIMM W3400 Processor 112L MAX 2TB 3DS RDIMM | |
SIZE | 16G , 32G, 64GB, 128GB, 256GB | |
Network | Controller | Intel Enterprise-grade I226LM 2.5G network controller |
2.5G | 2 x RJ-45 2.5GbE LAN ，Support10/100/1000Mbps/2500Mbps | |
IPMI | 1 RJ45，10/100/1000Mbps Interface | |
Storage | SATA | 8 SATA3 6Gb/s interface，Support Raid 0，1，5，10 |
M.2 | 2M.2 2280 interface，support PCI-E 4.0 x4 | |
Expansion slot | PCIe | 3 PCIe 5.0 x16 slot（x16）1PCIe 5.0 x16slot（X8）64L support PCIE SLOT1/3/5/7 |
3 PCIe 5.0 x8（x8slot） | ||

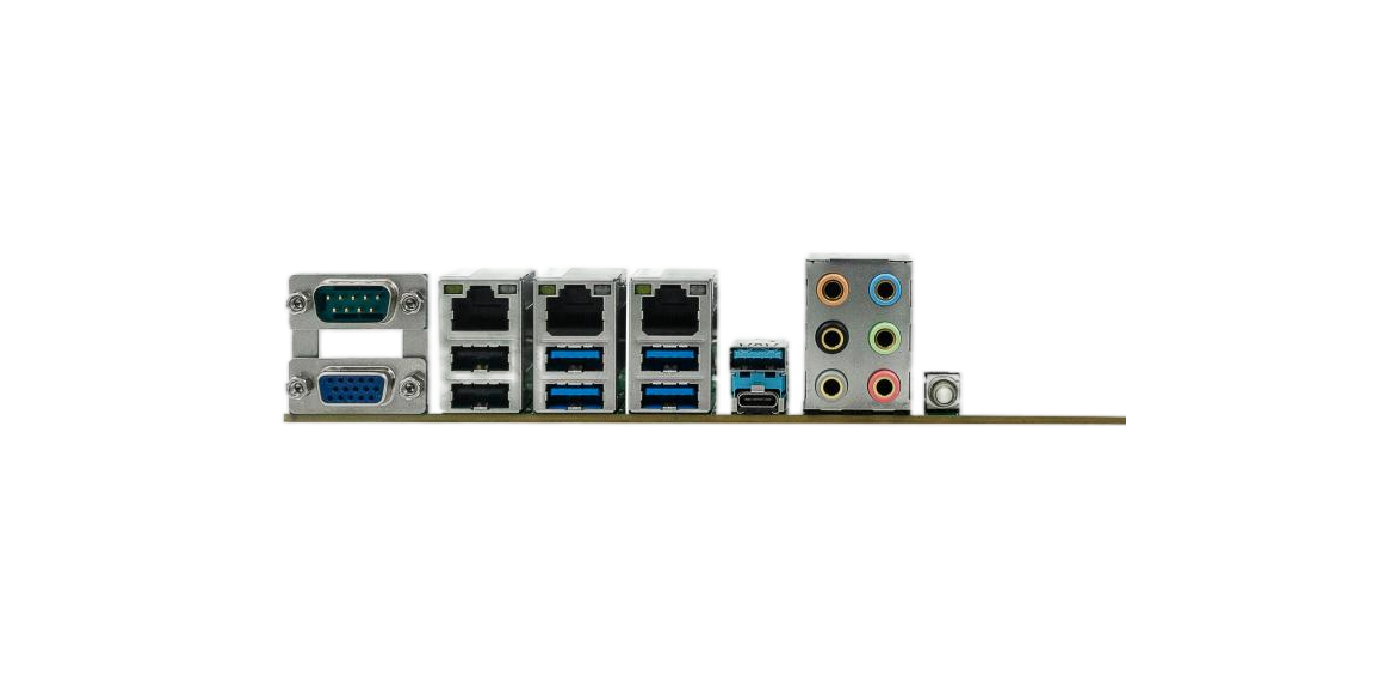

I/O Port | Back I/O port | 1 x VGA，1 x COM ，1 x IPMI ，2 x USB 2.0 ，5 x USB 3.0 ，2 x RJ-45 2.5GbE LAN ,1 x type-C，1 x 8 Channel audio interface ，1 x UID Switch (with LED light) |
Onboard I/O | 1 x 24-pin Power interface+ 8-pin+8-pin | |
1 x Front COM ,1 x TPM，5 x 4pin Fan interface,1 x Chassis opening detection interface, 1x Front Audio pin | ||
1 x USB 3.0 pin , Up to 2 devices；1 x USB 2.0 pin , Up to 2 devices,2 x M.2 junctor , NGFF : 2280/2242,nvme SSD ；1 x SMBus；1 x USB3.0 Type A | ||
Product Dimension | Size | 265.05*304.93mm |
Temperature and humidity requirements | Operation Tem | 0~35 ℃ |
Operating humidity | 8%~90% No condensation | |
Storage Tem | -40~70 ℃ | |
Non-Operating humidity | 5%~95% No condensation |
