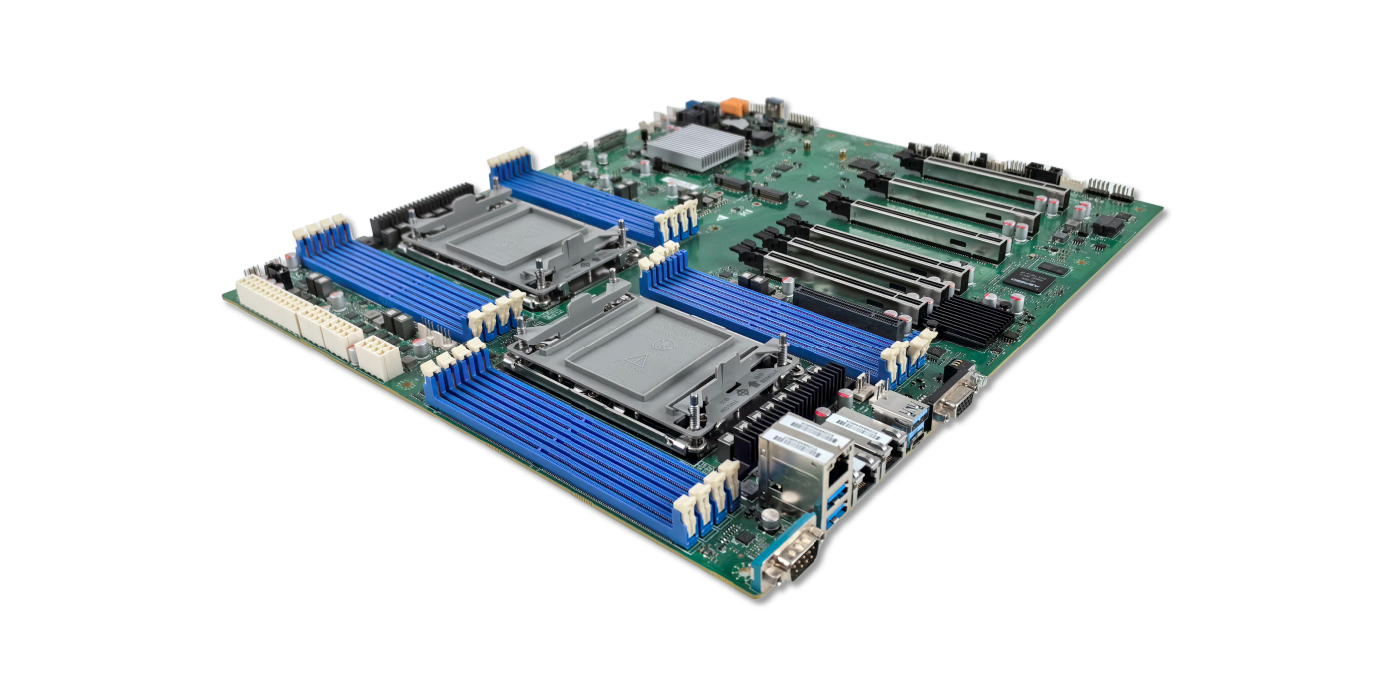

P13DRG
P13DRG is a dual GPU server motherboard supporting Intel® Xeon® 3rd generation scalable series processors; the product uses the Intel® C621A high-performance server chipset, newly designed based on the Intel Xeon 3rd generation scalable series processors. This server motherboard can also provide ODM customization services for customers with personalized needs, making it the first choice for industry users to create a refined IT platform.
- •
- Intel® high-performance server C621A chipset, supports two Intel® Xeon® 3rd generation scalable high-performance processors
- •
- 16 DDR4 RDIMM memory slots
- •
- DDR4 ECC RDIMM/3DS LRDIMM
- •
- maximum supported 3200MHz
- •
- maximum supported capacity of 4TB, significantly improving memory read and write speeds
- •
- 6 PCI E 4.0 x16, one PCI E 4.0 x8 expansion slots for flexible expansion
- •
- 2 M.2 PCI E 4.0 x4 (2280/22110), supports Intel VROC NVME raid KEY
- •
- 2 MCIO PCI E 4.0 x8 interfaces, two SATA interfaces for DOM electronic hard drives, 2 10GbE Ethernet ports (Intel X550), 1 Gigabit RJ45 IPMI dedicated management network port
System Control | CPU | Supports 2 Intel® Xeon® 3rd generation scalable series processors (LGA4189). Whitley (Ice Lake), TDP 270W |
Bridge Chip | Intel® C621A Chipset | |
Memory | Slots | 16 memory slots (8 channels/CPU), supporting 3200/2933/2666MHz ECC DDR4 RDIMM//3DS RDIMM |
Capacity | Maximum support for 4TB 3DS RDIMM Maximum support for 4TB Intel® Optane™ Persistent Memory PMem 200 Series (Barlow Pass) | |
Size | RDIMM//3DS RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB | |
Network | 10 Gigabit Network | 2 RJ45 10 Gigabit ports, supporting 10/100/1000/10000Mbps, Intel x550 enterprise-level 10 Gigabit network controller |
IPMI | 1 standard RJ45 port, supporting 10/100/1000Mbps network interface | |
Storage | SATA | 2 SATA3.0 DOM interfaces; |
m.2 | 2 x M.2 PCI-E 4.0 x4 interfaces, supporting 2280/22110 | |
Expansion | PCI-E | 6 PCI-E 4.0 X16; 1 PCI-E 4.0 X8 |
MCIO | 2 MCIO interfaces (PCIE4.0 X8) | |
IO Interface | Onboard IO | 1 COM pin header, 1 VGA pin header, 1 Audio pin header, 1 9-pin USB pin header (expandable to 2x USB 2.0), 1 20-pin USB pin header (USB 3.0), 1 JSD1 + 1 JSD2, 1 TPM, 1 SP1 (Buzzer), 1 VROC (JRK1), 1 JL1 (Chassis Intrusion Header), 1 JSEN1, 1 USB TYPE-A (internal), 1 NCSI, 8 FAN, 1 JBT1 (CMOS Clear), 1 JPME2 (ME), 24+8+8+8 power pin headers, 1 JFP front panel interface pin header |
Back Panel I/O | 1 COM, 1 VGA, 1 IPMI LAN, 2*10G LAN, 2*USB3.0 TYPE-A, 1*USB3.0 TYPE-A + 1*USB3.0 TYPE-C, 1 UID switch | |
Display | Chipset | ASPEED AST2500 BMC |
Interface | 1 x VGA | |
Dimensions | Dimensions | 382mm x 335mm |
Temperature & Humidity | Operating Temperature | 10°C to 35°C |
Storage Temperature | -40°C to 70°C | |
Operating Humidity | 8% to 90% (non-condensing) | |
Storage Humidity | 5% to 95% (non-condensing) |
